SKU: CS19584-5
Regular price $2,399.00
/
Size
Colour
Tax included. Shipping calculated at checkout.

Please bring your confirmation email when you come to collect your order.

Pickup Location: Pilkington Park, Unit 4, 167 Pilkington Road, Point England.

Pickup Hours: 10am to 3pm (Tue-Fri) except public holidays.

Our team will contact you once your goods are ready.

Learn More


NB: The height is changed to 2700mm

Features:

  • Modern, clean design to fit all decor
  • Resistant to all types of weather
  • Impact resistant, eco-friendly, UV-resistant panels.
  • Can be used as an additional room when walls/partitions are added
  • Perfect for entertaining year-round
  • German designed Bayer® 4mm PC polycarbonate panels

Specifications:

  • Au Frame 6063-T5
  • Aluminum Frame Color:Charcoal / White
  • Roof panel Color: Light Grey
  • PC Board: thickness 4mm
  • Bavere PC polycarbonate panels
  • 10-year warranty on polycarbonate roof sheets
  • Wind Load: 110km/h
  • Snow Load: 100kgs/m2
  • Post: 110*110mm, thickness 2mm height 2.7m

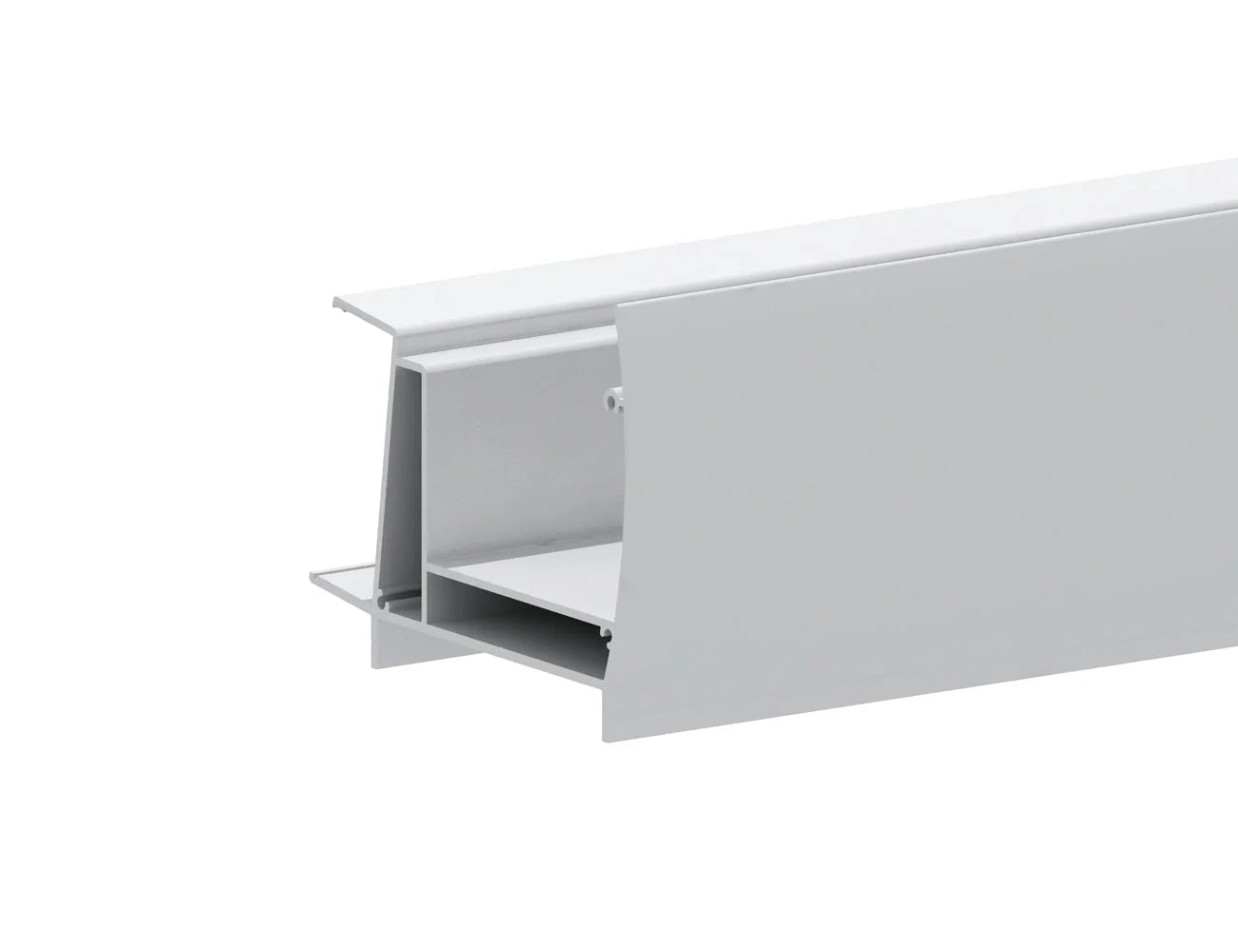

  • Front Beam: 160.2 x 129.29mm, thickness 2.5mm
  • Back Beam: 139.13 x 45.81mm, thickness 2mm
  • Side Beam: 109 x 50mm, thickness 1.5mm
  • Middle Beam: 109 x 50mm, thickness 1.5mm
  • Support Profile: 91.96 x 14.69mm, thickness:2.5mm
  • Package Material:  Honeycomb Carton
  • 10-year warranty on the aluminium frame
  • 10-year warranty on polycarbonate roof sheets

 Note:

Side quarter Window is not included. If you need it, please purchase it separately.

Package Contents:

  • 1x Coastal Patio Cover
  • 1x Instruction Manual

Click to download:installation manual

3 x 3m 4 x 3m 5 x 3m 6 x 3m
Package 1 285 x 26.5 x 16cm, 22kg 285 x 26.5 x 16cm, 22kg 285 x 37.5 x 16cm, 30.7kg 284.5 x 36 x 14cm, 41.84kg
Package 2 305.5 x 21 x 19cm, 27kg 210 x 22 x 25cm, 32.2kg 286.5 x 22 x 25cm, 40.4kg 314 x 19 x 22.5cm, 44.82kg
Package 3 293 x 35.5 x 16cm, 36.4kg 293 x 39.5 x 16cm, 42kg 293.5 x 29.5 x 16cm, 26.1kg 298 x 23 x 19.5cm, 32.97kg
Package 4 290 x 56.8 x 5cm, 41.2kg 229 x 63.6 x 5cm, 53kg 293.5 x 29.5 x 16cm, 31kg 298 x 23 x 14.5cm, 22.96kg
Package 5 66 x 55 x 20cm, 11.94kg 66 x 55 x 20cm, 13.64kg 290 x 59.6 x 5cm, 60kg 297 x 66.5 x 45cm, 63.95kg
Package 6 66 x 55 x 20cm, 23.68kg 66 x 55 x 20cm, 21.1kg
3 x 4m 4 x 4m 5 x 4m 6 x 4m
Package 1 284.5 x 25 x 14cm, 24.85kg 284.5 x 25 x 14cm, 29.85kg 285 x 37.5 x 16cm, 30.7kg 285 x 37.5 x 16cm, 30.7kg
Package 2 303 x 19 x 16cm, 22.98kg 208.5 x 19 x 22.5cm, 29.91kg 286.5 x 22 x 25cm, 40.4kg 338 x 22 x 25cm, 48.5kg
Package 3 398 x 23 x 19.5cm, 44.67kg 398 x 28 x 19.5cm, 51.85kg 396 x 29.5 x 16cm, 35kg 396 x 29.5 x 16cm, 41.6kg
Package 4 397 x 59.8 x 30cm, 42.49kg 397 x 59.5 x 30cm, 56.48kg 396 x 24.5 x 16cm, 41.3kg 396 x 29.5 x 16cm, 41.6kg
Package 5 66 x 55 x 20cm, 11.94kg 66 x 55 x 20cm, 13.64kg 390.9 x 59.6 x 5cm, 90kg 390.9 x 63.6 x 5cm, 107kg
Package 6 66 x 55 x 20cm, 21.1kg 66 x 55 x 20cm, 27.7kg

Polycarbonate Sheet Color:

Living Culture always aims to dispatch your item as soon as possible. Please note items will not be dispatched until payment has been received in full.

Estimated delivery times will be displayed at the time of checkout.

Click & Collect

At checkout, select Pickup as your shipping method. Our team will contact you once your goods are ready. Pickup is only available at our warehouse in Point England (near Panmure).

Shipping Costs

Use the shipping calculator by entering your postcode to get an estimate of the shipping cost.

Returns

We will provide a full refund (including shipping) if:
- The faulty item is found to be defective and we are unable to fix or replace it
- The item was incorrectly described in website listing

Learn more about our Return and Refund Policy

If you have any Questions or Concerns

-Live chat with us

-Call us on 0800 298 398

-Email us at support@livingculture.co.nz

-Visit Our Showroom: 139 Wairau Road, Wairau Valley, Auckland, 0627

At livingculture.co.nz, we want to offer you the best shopping experience possible. We're here to help you in any way possible!

Generally all products at Living Culture have at least a 12 month warranty. You can check the warranty information of each item in the product description. Contact us within the warranty period if you encounter any problems associated with the product.

Living Culture will replace your product if it is found to be “dead on arrival” (DOA) at our cost.

If you change your mind after the payment is confirmed, we will issue a store credit (lessany shipping and handling fees) and the item can be returned to us at your cost. Items must be returned in "as new" condition with all packaging and accessories (including manuals).

If your item is faulty, please contact us within the warrant period and we will assess your claim on a case-by-case basis and offer a replacement, full refund or store credit.

Seamless Indoor-Outdoor Living

Sleek Wall-Mounted Design

Designed for a smooth connection between your home and garden, it adds a touch of modern sophistication to any area.

Expansive Coverage

With a generous span, this patio cover is perfect for creating a spacious outdoor retreat, ideal for dining, entertaining, or simply relaxing.

What makes it special?

Bayer® solid polycarbonate panels

Zero-maintenance aluminum frame

What makes it special?

Bayer® solid polycarbonate panels

  • Crystal-clear visibility for an open, airy feel
  • Superior strength - 250 times more impact-resistant than glass
  • Built-in UV protection to prevent yellowing and degradation

Bayer® solid polycarbonate panels

  • Crystal-clear visibility for an open, airy feel
  • Superior strength - 250 times more impact-resistant than glass
  • Built-in UV protection to prevent yellowing and degradation

What makes it special?

Zero-maintenance aluminum frame

  • Rust and corrosion-resistant for long-lasting durability
  • Powder-coated finish withstands chipping, fading, and peeling
  • Sleek design complements any architectural style

Zero-maintenance aluminum frame

  • Rust and corrosion-resistant for long-lasting durability
  • Powder-coated finish withstands chipping, fading, and peeling
  • Sleek design complements any architectural style

Choose Your Style

Need a unique size or colour? Contact us to customise your patio cover to fit your specific needs.

Sizes

3 x 3m, 3 x 4m, 4 x 3m, 4 x 4m, 5 x 3m, 5 x 4m, 6 x 3m, 6 x 4m

3 x 3m, 4 x 3m,4 x 4m,5 x 3m, 5 x 4m, 6 x 4m

3 x 3m, 4 x 3m, 4 x 4m, 5 x 3m,5 x 4m, 6 x 4m

Frame Colours

White / Charcoal

White / Charcoal

White / Charcoal

Panel Colours

Light Grey

Light Grey

Light Grey
