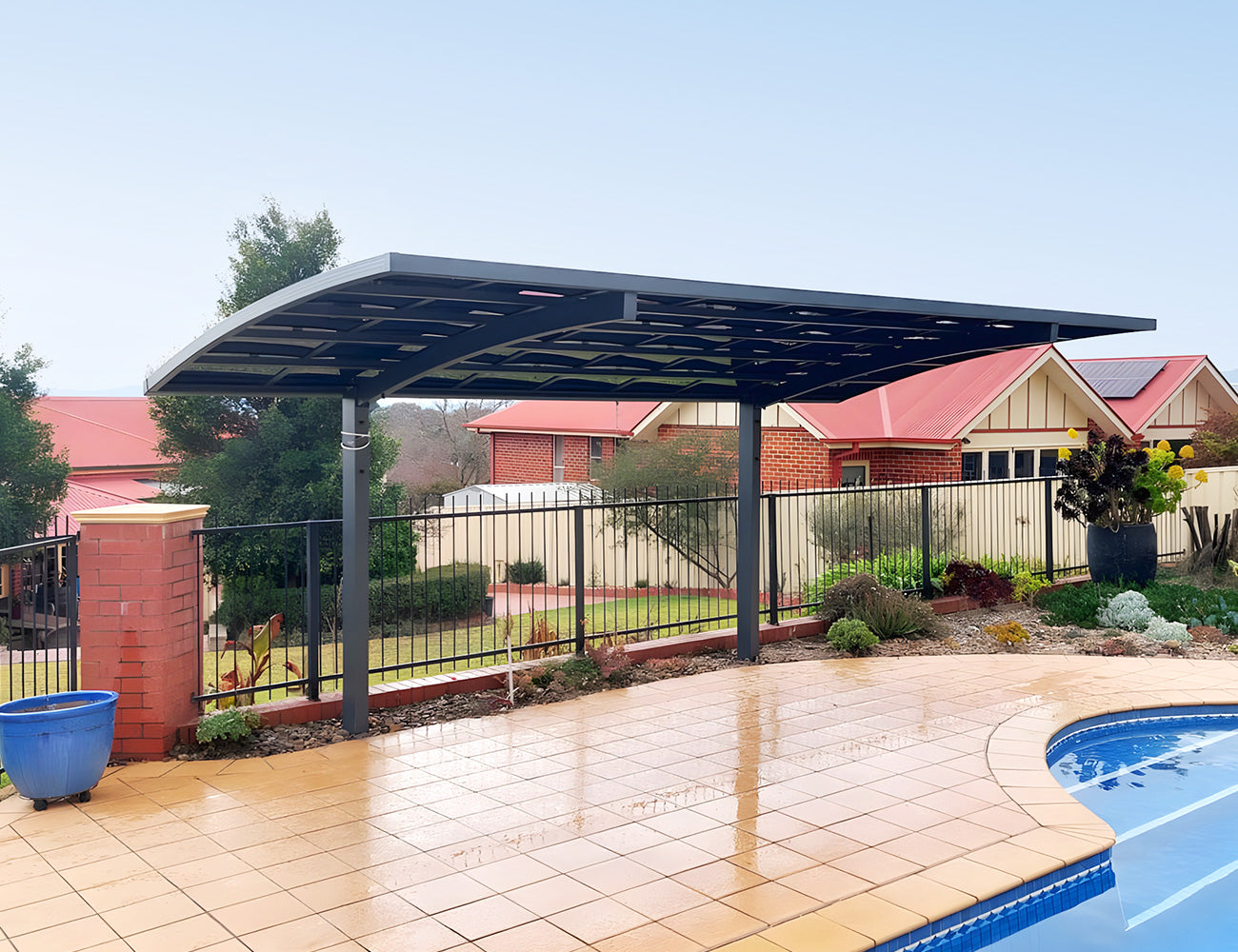

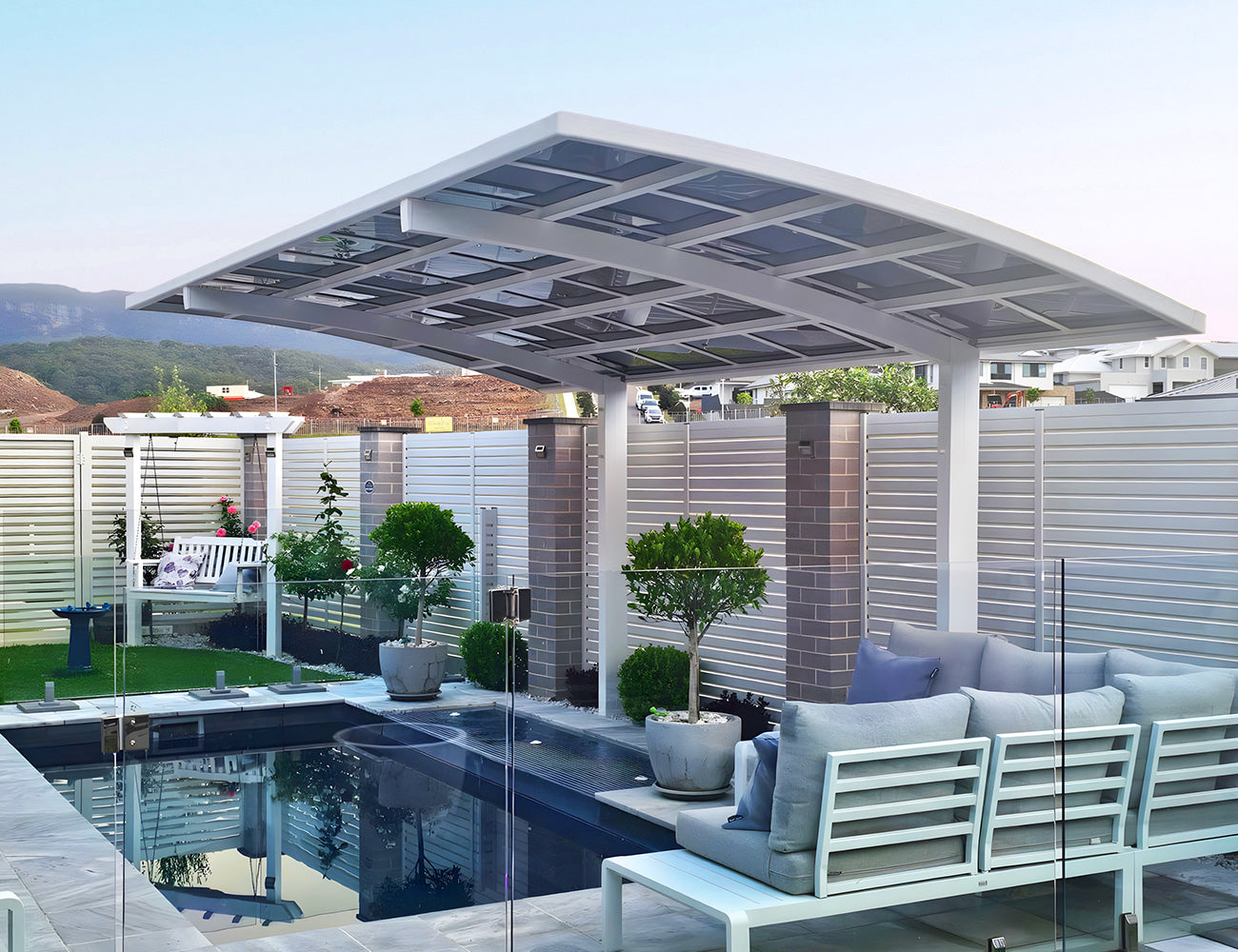

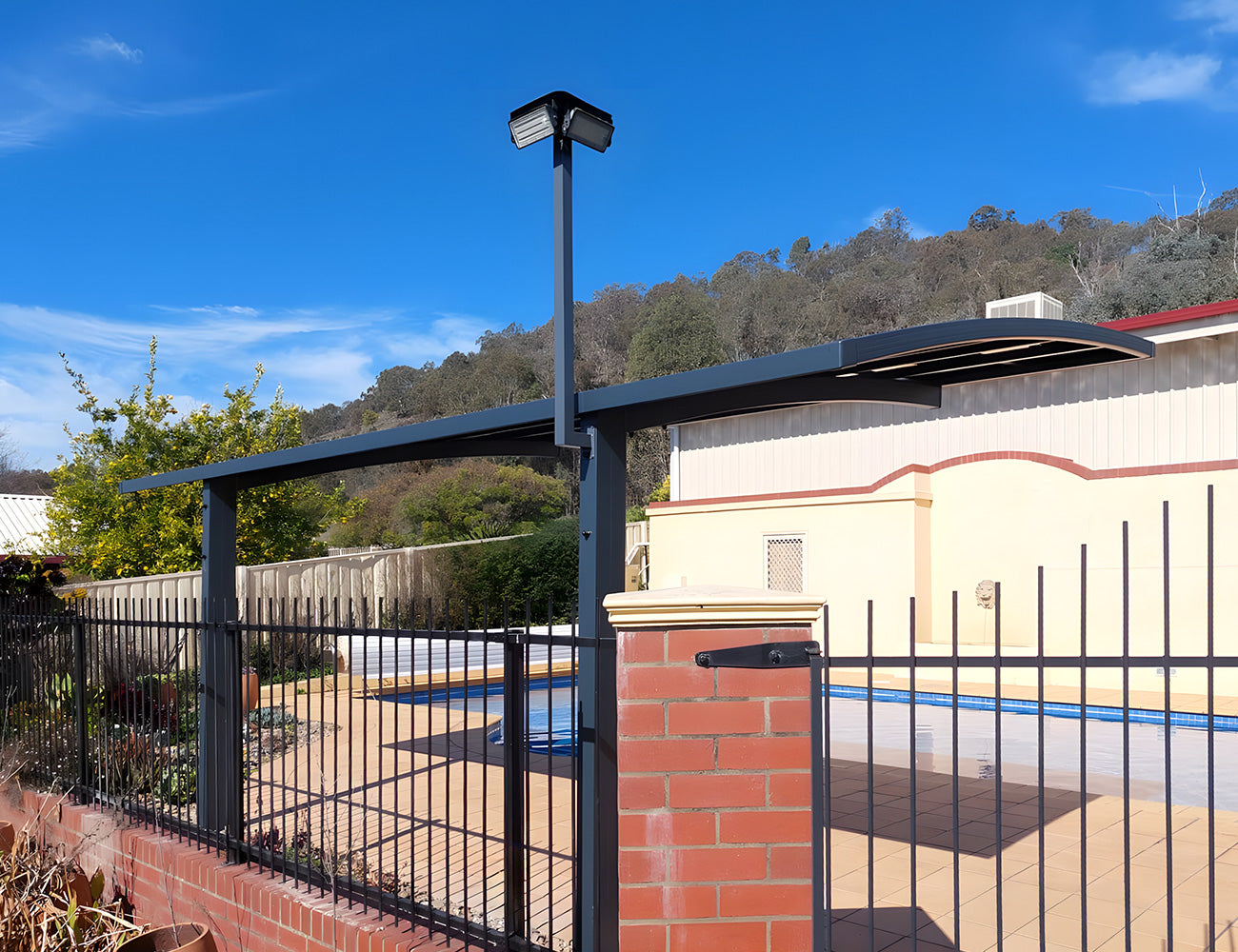

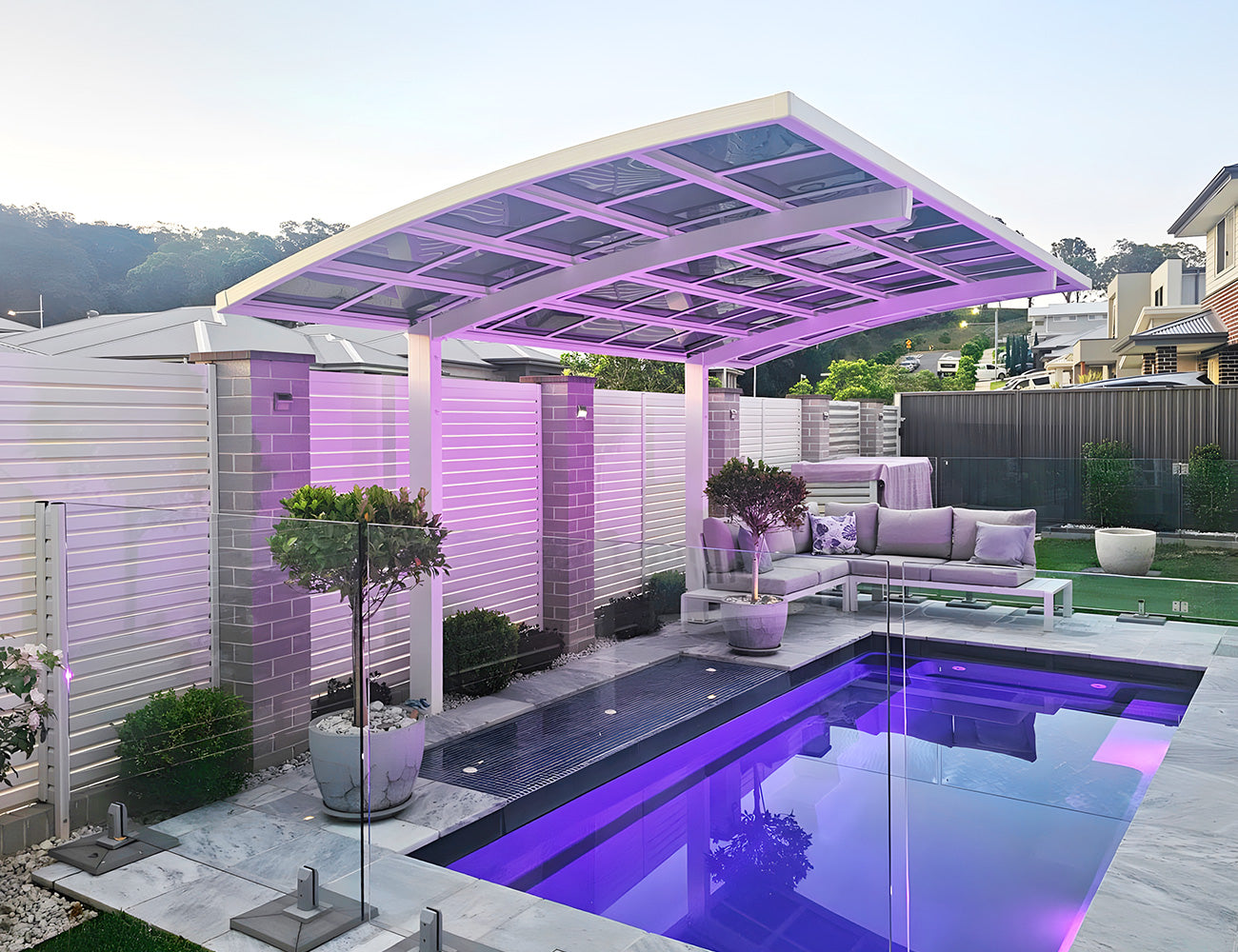

Cantilever Patio Cover 550x 280 x 316cm

Single Carport-550x 280 x 316cm, Colour: Black / Dark Grey,

Price

Color

Black / Dark Grey

Grey / Dark Grey

White / Dark Grey

Quantity

[{"id":49461414330615,"title":"Black \/ Dark Grey","option1":"Black \/ Dark Grey","option2":null,"option3":null,"sku":"CS22838-4","requires_shipping":true,"taxable":true,"featured_image":{"id":58767984263415,"product_id":9617160372471,"position":1,"created_at":"2024-10-22T20:00:13+13:00","updated_at":"2025-03-03T14:32:15+13:00","alt":"Single Carport-550x 280 x 316cm, Colour: Black \/ Dark Grey,","width":1300,"height":1000,"src":"\/\/livingculture.co.nz\/cdn\/shop\/files\/carport1.jpg?v=1740965535","variant_ids":[49461414330615]},"available":true,"name":"Cantilever Patio Cover 550x 280 x 316cm - Black \/ Dark Grey","public_title":"Black \/ Dark Grey","options":["Black \/ Dark Grey"],"price":359999,"weight":168500,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Single Carport-550x 280 x 316cm, Colour: Black \/ Dark Grey,","id":51363868737783,"position":1,"preview_image":{"aspect_ratio":1.3,"height":1000,"width":1300,"src":"\/\/livingculture.co.nz\/cdn\/shop\/files\/carport1.jpg?v=1740965535"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":49461414363383,"title":"Grey \/ Dark Grey","option1":"Grey \/ Dark Grey","option2":null,"option3":null,"sku":"CS22836-4","requires_shipping":true,"taxable":true,"featured_image":{"id":59675227554039,"product_id":9617160372471,"position":7,"created_at":"2025-03-03T14:32:06+13:00","updated_at":"2025-03-03T14:32:07+13:00","alt":null,"width":1300,"height":1000,"src":"\/\/livingculture.co.nz\/cdn\/shop\/files\/carport.webp?v=1740965527","variant_ids":[49461414363383]},"available":true,"name":"Cantilever Patio Cover 550x 280 x 316cm - Grey \/ Dark Grey","public_title":"Grey \/ Dark Grey","options":["Grey \/ Dark Grey"],"price":359999,"weight":168500,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":52025643532535,"position":7,"preview_image":{"aspect_ratio":1.3,"height":1000,"width":1300,"src":"\/\/livingculture.co.nz\/cdn\/shop\/files\/carport.webp?v=1740965527"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":49461414396151,"title":"White \/ Dark Grey","option1":"White \/ Dark Grey","option2":null,"option3":null,"sku":"CS22837-4","requires_shipping":true,"taxable":true,"featured_image":{"id":59675227521271,"product_id":9617160372471,"position":6,"created_at":"2025-03-03T14:32:05+13:00","updated_at":"2025-03-03T14:32:07+13:00","alt":null,"width":1300,"height":1000,"src":"\/\/livingculture.co.nz\/cdn\/shop\/files\/carport_white.webp?v=1740965527","variant_ids":[49461414396151]},"available":true,"name":"Cantilever Patio Cover 550x 280 x 316cm - White \/ Dark Grey","public_title":"White \/ Dark Grey","options":["White \/ Dark Grey"],"price":359999,"weight":168500,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":52025643499767,"position":6,"preview_image":{"aspect_ratio":1.3,"height":1000,"width":1300,"src":"\/\/livingculture.co.nz\/cdn\/shop\/files\/carport_white.webp?v=1740965527"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Let sunlight in while keeping the weather out. Our patio cover uses ultra-strong polycarbonate panels and a maintenance-free aluminum frame to protect your outdoor space for years to come.

Features:

Bright, Protected Space: Bayer® 2mm PC polycarbonate panels let natural light through while blocking harmful UV rays
Incredibly Durable: More impact-resistant than glass, withstanding harsh weather conditions
Maintenance-Free: The heat-protected polycarbonate panels are highly resistant to corrosion and fading.
Weather-Tested: Stands up to winds of 123 km/h and snow loads up to 64 kg/m² (21.6cm thickness).
Easy Assembly: Pre-drilled holes for quick and hassle-free setup.
Versatile Applications: Ideal for poolside shading, car protection, and BBQ shelter.
Comes with base plates for a stable installation.

Specifications:

Color Options 1: Dark Grey (RAL7016) (Aluminum frame) + Dark Grey (Polycarbonate panel)
Color Options 2: White (RAL9016) (Aluminum frame) + Dark Grey (Polycarbonate panel)
Color Options 3: Black (RAL9005) (Aluminum frame) + Dark Grey (Polycarbonate panel)
Material: Powder-coated Aluminium Alloy Frame, 2mm Bayer PC Polycarbonate Sheets for Roof Panel
Warranty: 10-year warranty on the aluminum frame, 10-year warranty on polycarbonate roof sheets

Dimensions:

With Base Plates: 550 × 280 × 316cm
Embedded Installation: 550 × 280 × 265cm
Frame: Posts (162 × 88mm, 2.6-4.0mm thick), Roof Beams (116 × 65 × 2.5mm)
Post Height: 261cm
Arc Top Height: 66cm

Packages: 4 cartons/set, Package Material: Carton

Package 1 Dimensions (L x W x H): 2843*325*156mm 37kg
Package 2 Dimensions (L x W x H): 5488*222*234mm 55kg
Package 3 Dimensions (L x W x H): 845*587*95mm 21.5kg
Package 4 Dimensions (L x W x H): 690*546*400mm 55kg

Weight: Gross Weight 168.5kg

Package Contents:

1x Cantilever Patio Cover
1x Instruction Manual

Polycarbonate Sheet Color:
