Create a more comfortable outdoor space for dining, relaxing or entertaining with the Atlantic Manual Freestanding Louvre Pergola.

Designed for New Zealand outdoor living, the Atlantic lets you adjust the roof throughout the day to suit changing sun, shade and airflow. Simply turn the manual crank to open or angle the aluminium louvres, or close them when you want more shade and overhead shelter from light to moderate rain.

Features:

• Easy Manual Control: Adjust the roof by hand to let in more sunshine, create shade or improve airflow — with no motor, wiring or electrical connection required.
• Strong Aluminium Structure: A strong aluminium frame provides added stability for exposed outdoor areas when correctly installed and secured.
• Low-Maintenance Alternative to Timber: Aluminium construction won’t rot or warp like timber, while the durable powder-coated finish helps resist moisture, weathering and coastal salt air — reducing the ongoing maintenance required over time.
• Discreet Rainwater Drainage: Rainwater is collected through integrated gutters and directed through the posts, avoiding exposed external downpipes and keeping the pergola looking clean and uncluttered.

• Professional Installation & After-Sales Support: Professional installation is available, with ongoing after-sales support to assist with product use, maintenance and any questions after installation.


Specifications

• Frame Material: 6063-T6 Aluminium

• Colours: Black (RAL 9005) / White (RAL 9016) / Grey (RAL 7016)

• Louvre Operation: Manual Hand Crank

• Louvre Angle: 0°–87°

• Wind Resistance: 117–134 km/h, depending on size, configuration and installation conditions
• Finish: AkzoNobel Powder Coating
• Drainage: Integrated Gutter with Internal Post Drainage
• Warranty: 10-Year Structural Warranty

Package Contents:

• 1x Atlantic Manual Freestanding Louvre Roof
• 1x Instruction Manual

Click to download: 2 x 2m 2.6 x 2.6m 3 x 2m 4 x 2m 3 x 3m 4 x 3m installation manual

Click to download: 5 x 2m 5.9 x 2m 5 x 3m 5.9 x 3m installation manual

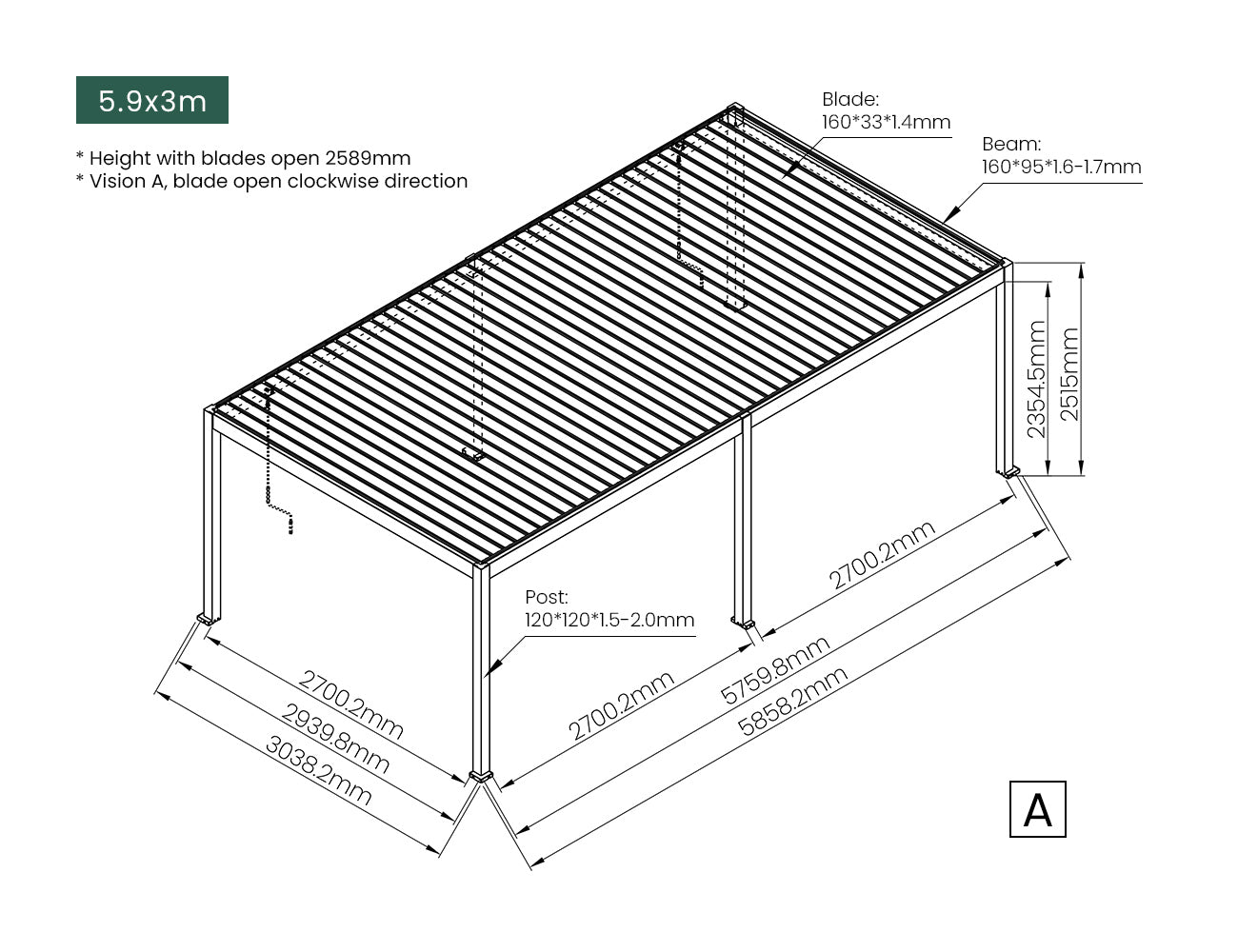

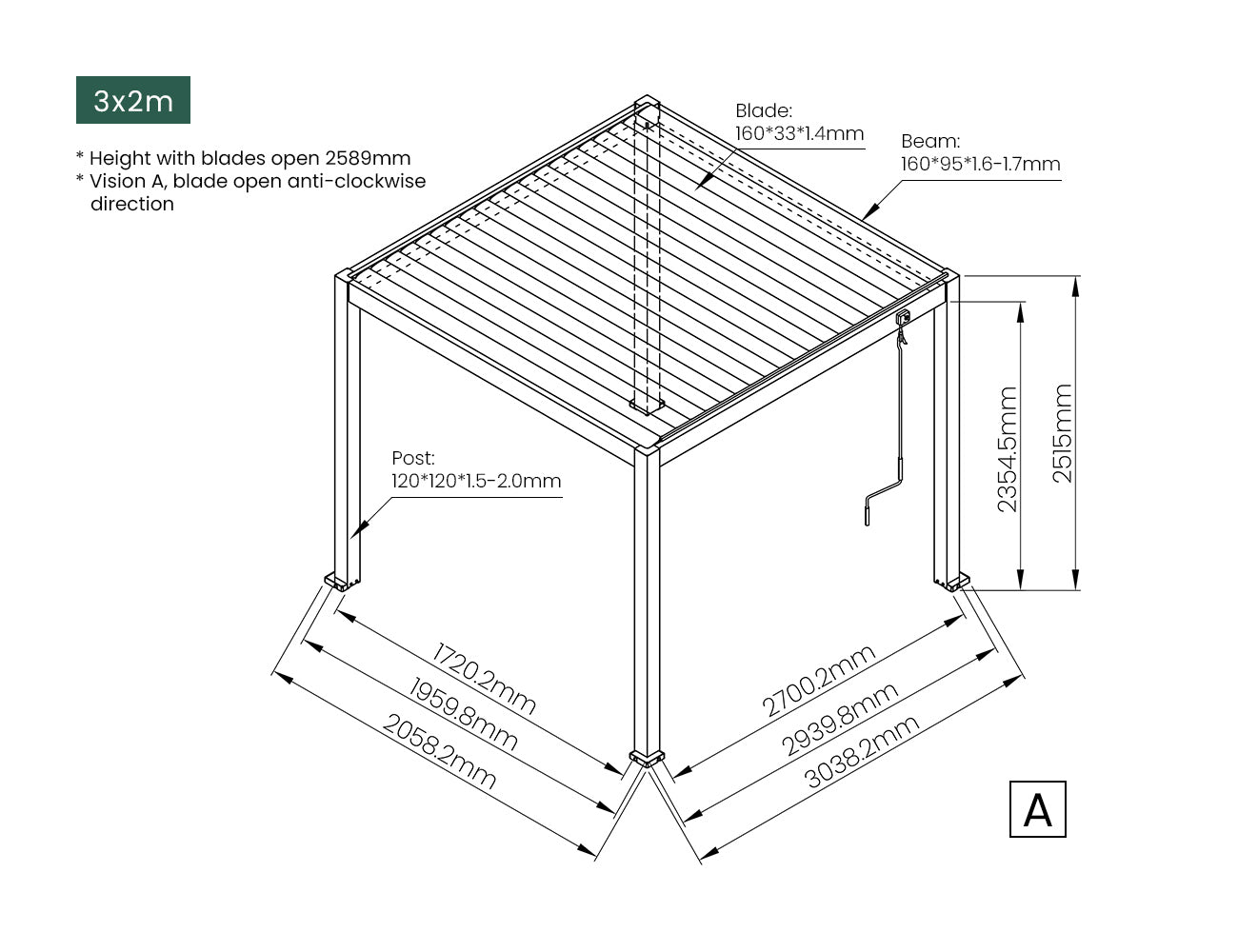

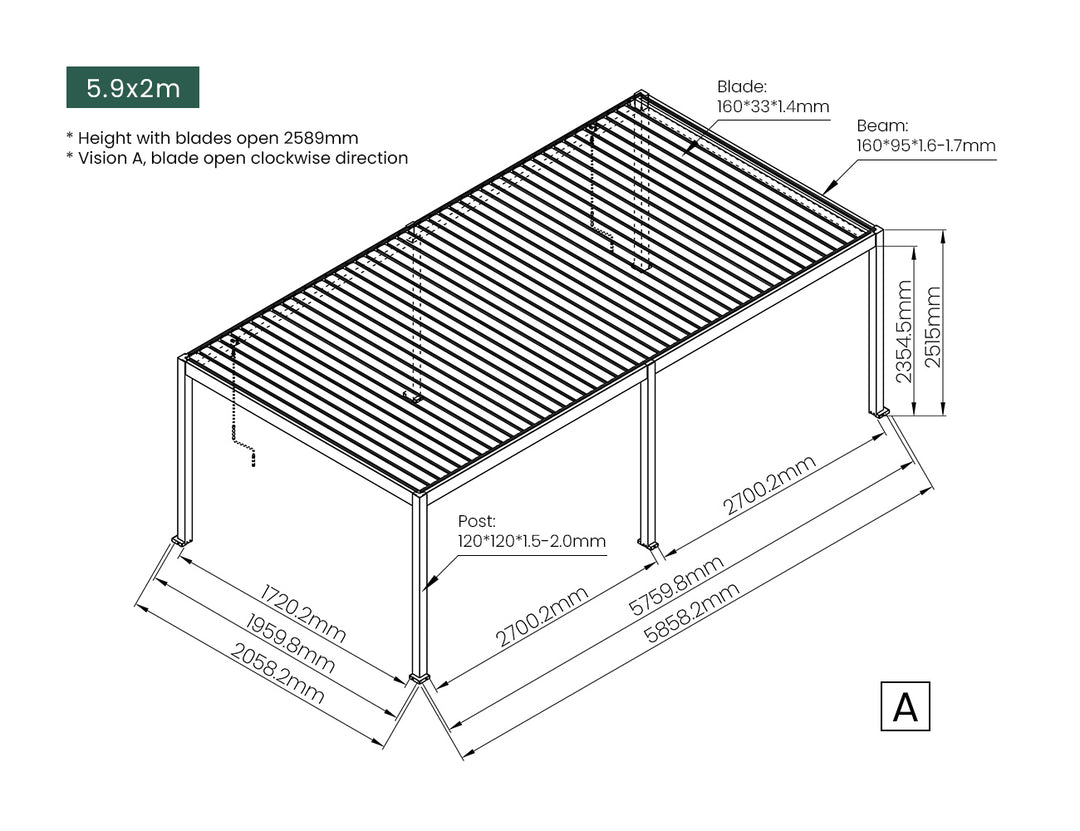

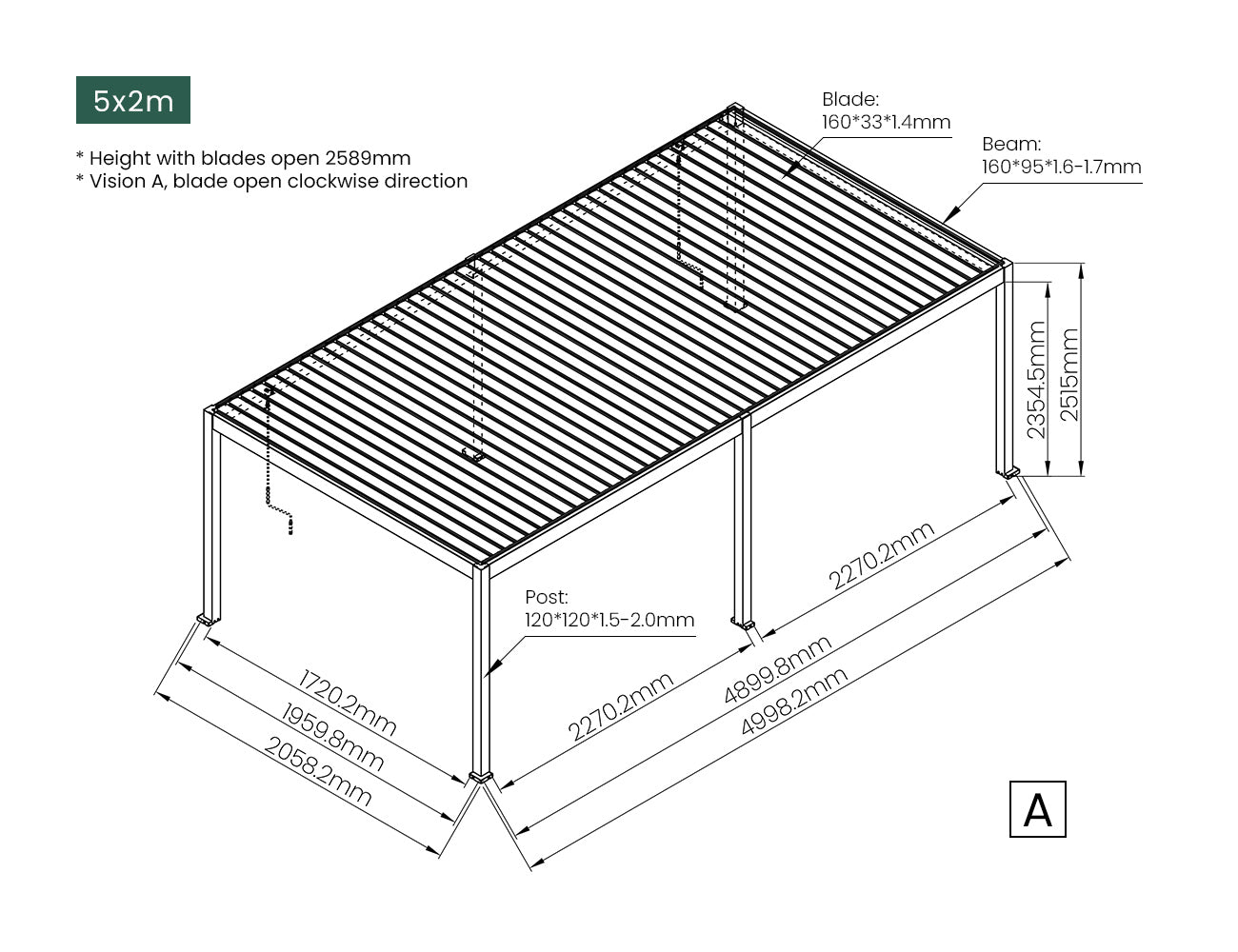

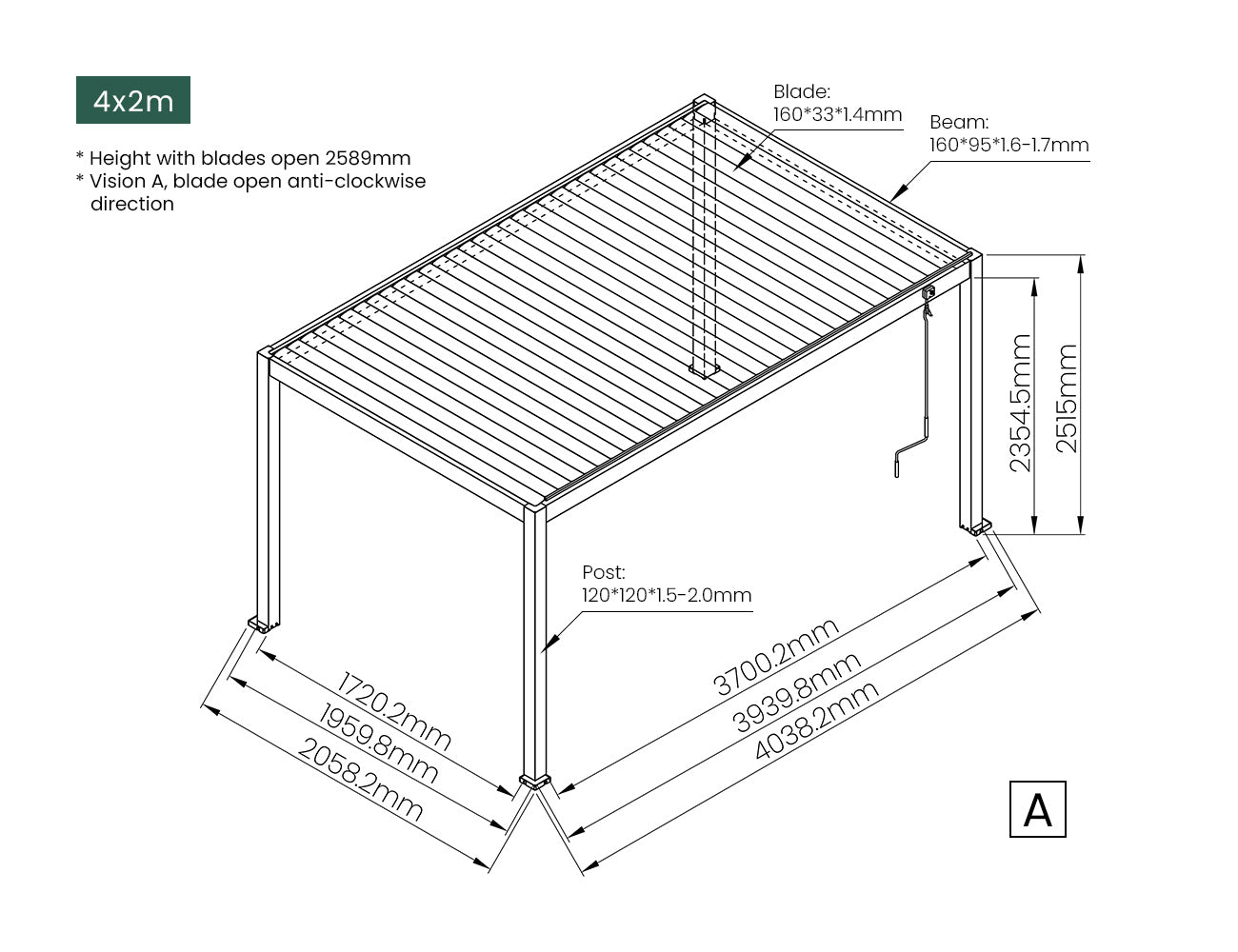

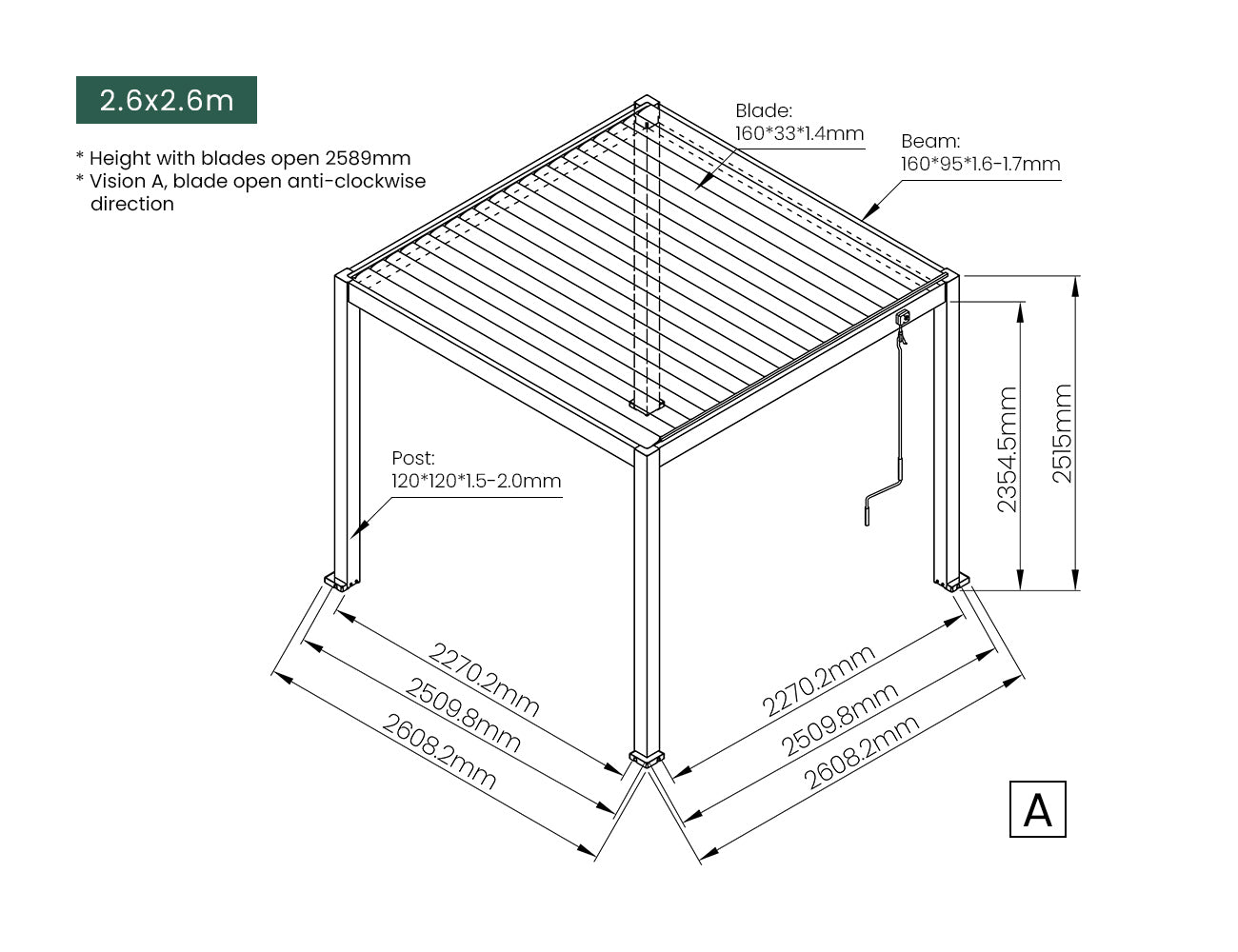

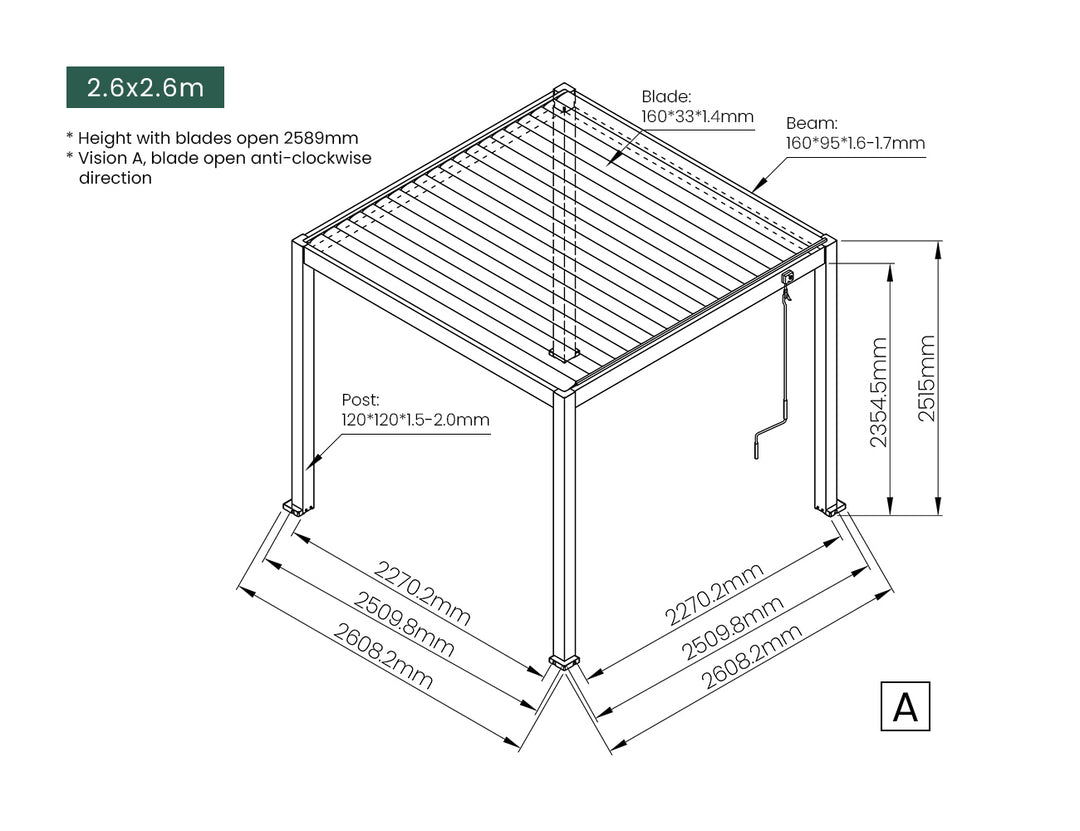

Note: Check line drawings for exact dimensions; actual sizes may vary slightly.

Email hello@livingculture.co.nz for details.

View in our showroom at 139 Wairau Road, Wairau Valley, Auckland, More Showroom Locations

Finance options available in store.

*NOTE: Install must be on a suitable substrate surface.  We recommend seeking professional advice before installation. Please ensure professional installation of your louvre system. For your safety, please do not make any alterations to the system - any adjustments will void your warranty.

Warranty Exclusions:
The warranty does not cover changes, fading or damage caused by extreme weather conditions (including severely heavy rain or wind, heat from BBQs and heaters). The warranty also does not cover damage caused by misuse, accident or negligence. Installation instructions MUST be followed closely as damage caused by not following the instructions voids your warranty.

Warranty covers domestic use only and excludes commercial use.

We specialize in professional installation of outdoor canopies, patio covers, and pergolas for residential properties. Our experienced installation team ensures precise measurements, secure structures, and clean finishing to enhance both the beauty and functionality of your outdoor living space.

From backyard patios to garden terraces, we are committed to delivering durable, weather-resistant solutions tailored to your home. We focus on safety, craftsmanship, and customer satisfaction in every project.

Regions Covered

We offer our assembly service throughout New Zealand, with varying availability depending on the region and time of year:

Dispatch & Delivery

• Quick Dispatch:
  In-stock items are processed and dispatched within 48 hours of payment confirmation (excluding weekends and public holidays).
• Estimated Delivery Times for In-Stock Items:
  North Island: Expect delivery within 5–7 business days.
  South Island: Expect delivery within 5–14 business days.
  (Exact delivery estimates are displayed at checkout.)
• Handling Heavy or Bulky Items:
  For larger or heavier items, please ensure someone is available at delivery to assist with unloading. Additional delivery assistance can be arranged if required (an extra fee may apply).

Click & Collect

• How It Works:
  At checkout, select Pickup as your shipping method. Our team will contact you once your order is ready.

• Please bring your confirmation email when you come to collect your order.

  Pickup Location: Pilkington Park, Unit 4, 167 Pilkington Road, Point England.

  Pickup Hours: 8am to 4pm (Mon-Sat) except public holidays.

  Learn More

Shipping Costs

• Calculate Your Shipping:
  Use our shipping calculator by entering your postcode at checkout to get an estimate of your shipping cost.

Returns

We offer a full refund (including shipping) under the following conditions:

• Defective Items:
  If a faulty item is found to be defective and cannot be fixed or replaced.
• Incorrect Descriptions:
  If the item does not match its website description.

Refund Timeframe: Once your refund request is approved, the funds will be returned to your original payment method within 5–7 business days. (Bank processing times may vary).

Learn more about our Return and Refund Policy

Need Assistance?

• Email: support@livingculture.co.nz
• Phone: 0800 298 398
• Auckland Showroom: 139 Wairau Road, Wairau Valley, Auckland, 0627
• Christchurch Showroom: 217 Blenheim Road, Riccarton, Christchurch 8041

Investing in a pergola enhances your outdoor space's value and aesthetics. Proper care and maintenance ensure its longevity and functionality across all seasons. Below is a comprehensive guide to help you maintain your pergola in optimal condition.​

Regular Inspections

· Frequency: Conduct inspections several times a year.​

· Structural Check: Examine seams, joints, and tracks for signs of wear, rust, or corrosion. Addressing these issues promptly maintains the structural integrity.​

· Motor Maintenance: If your pergola is motorized, ensure the motor remains free from dust and debris to function efficiently.​

· Debris Removal: Clear accumulated debris such as twigs and leaves, especially from roof slats, to prevent operational hindrances.​

· Vegetation Control: Trim nearby vines and bushes to prevent potential damage to the pergola structure.​

Cleaning Procedures

· Initial Rinse: Use a hose or bucket to remove loose dirt from the pergola's surface.​

· Gutter and Slat Cleaning: Inspect and clear gutters and roof slats of dirt buildup, then flush with water to ensure thorough cleaning.​

· Mild Detergent Wash: Prepare a solution of warm water mixed with a small amount of mild detergent. Avoid harsh chemicals that can strip protective coatings.​

· Gentle Scrubbing: Using a soft-bristled brush or sponge, gently clean the structure following the grain to prevent scratches.​

· Thorough Rinse: After cleaning, rinse all soap residues with clean water.​

· Drying: Wipe down the pergola with a microfiber cloth or towel to prevent water spots and streaks.​

Cleaning Frequency Based on Environment

· Urban Areas: Clean every three months.​

· Rural Areas: Clean every six months.​

· Industrial and Marine Environments (within 1 km of the sea): Perform monthly cold-water washes and biannual warm water with detergent washes.​

Accessory Maintenance

· Privacy Screens: Wipe visible dirt with a damp sponge. Avoid harsh chemicals to prevent material damage. Allow to air dry after cleaning.​

· Shutter, Slatted, or Patterned Walls: Clean with warm soapy water and a cloth, rinse with clean water, and let air dry.​

· Glass Walls and Doors: Use a glass cleaner and microfiber cloth to remove marks and dirt.​

· Sliding Doors: Regularly inspect tracks to prevent dust and dirt buildup; use a handheld vacuum if necessary.​

Retractable Shade Blinds Usage

· Storage Position: Keep retractable shade blinds open when not in use.​

· Wind Protection: Leaving blinds down during high winds can cause damage, which may not be covered under repair warranties.​

By adhering to these maintenance practices, your pergola will remain in excellent condition, providing lasting value and enjoyment to your outdoor space.​
