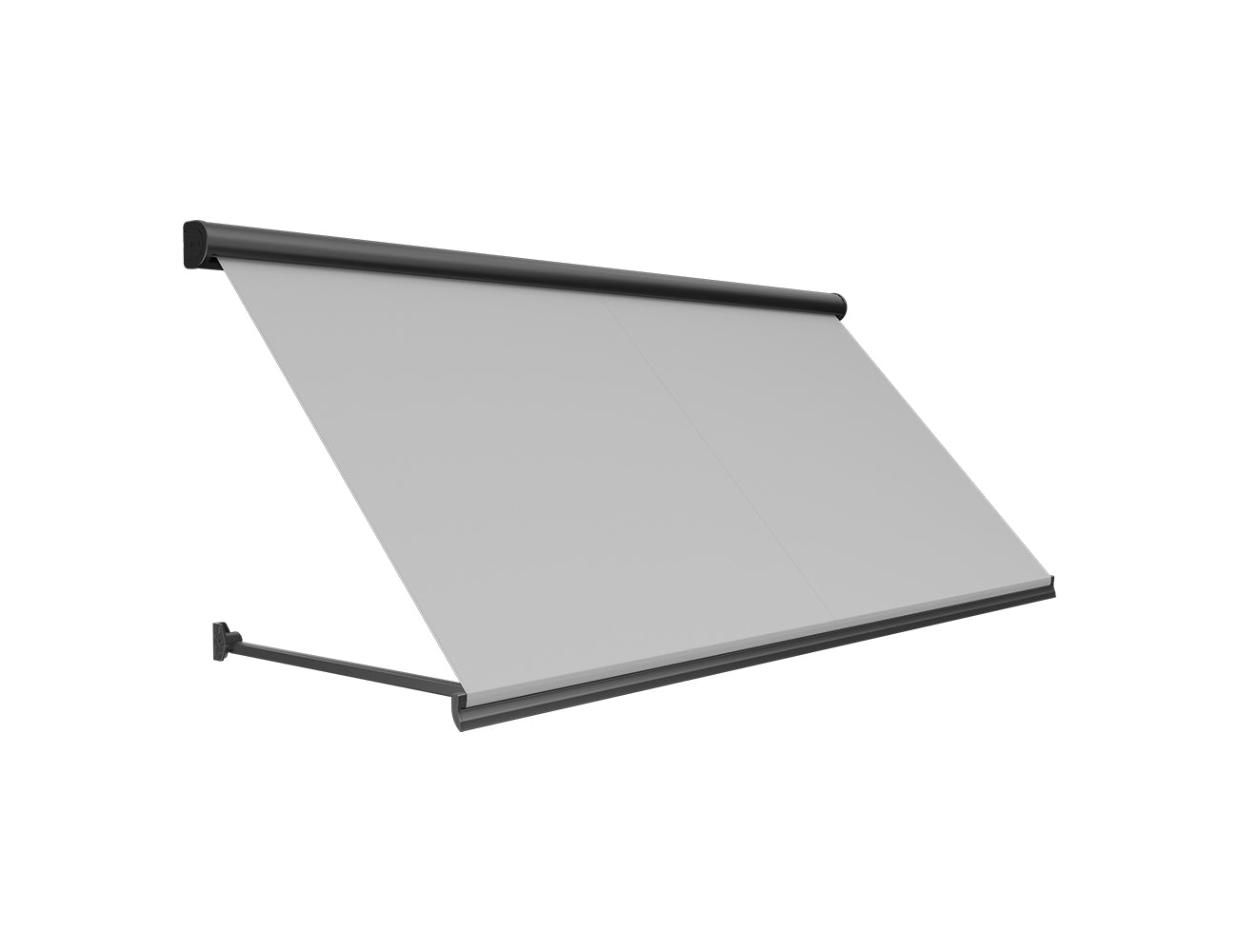

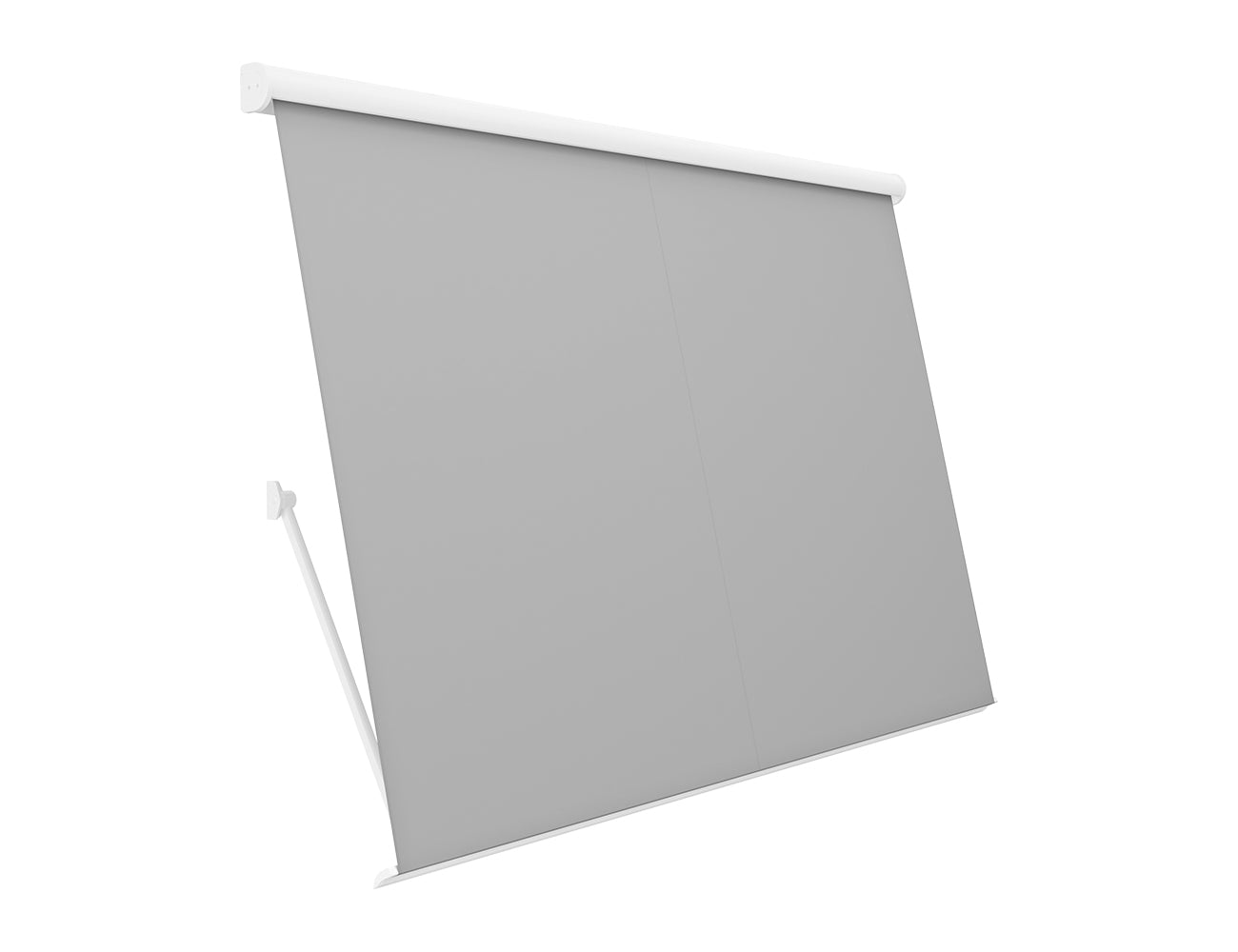

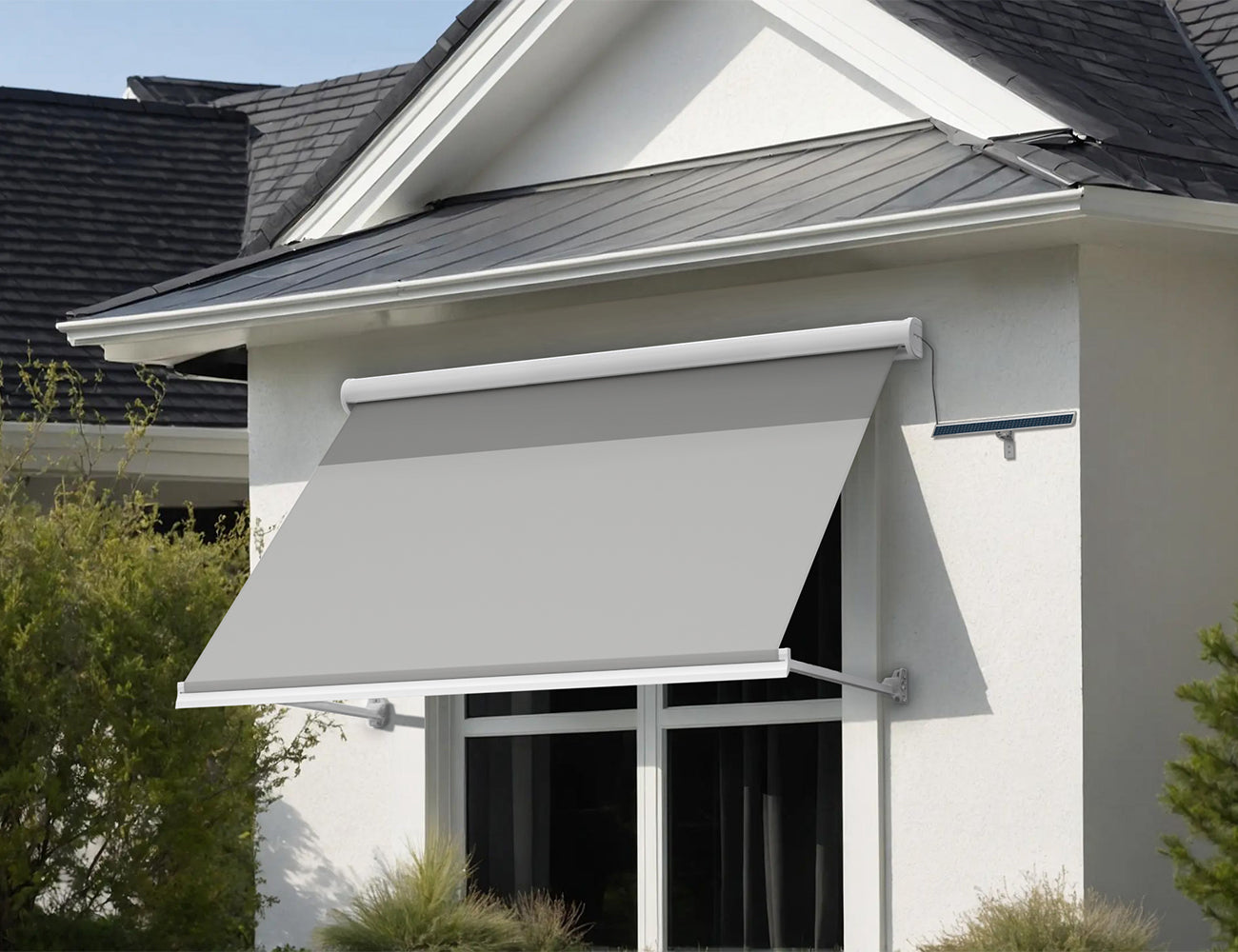

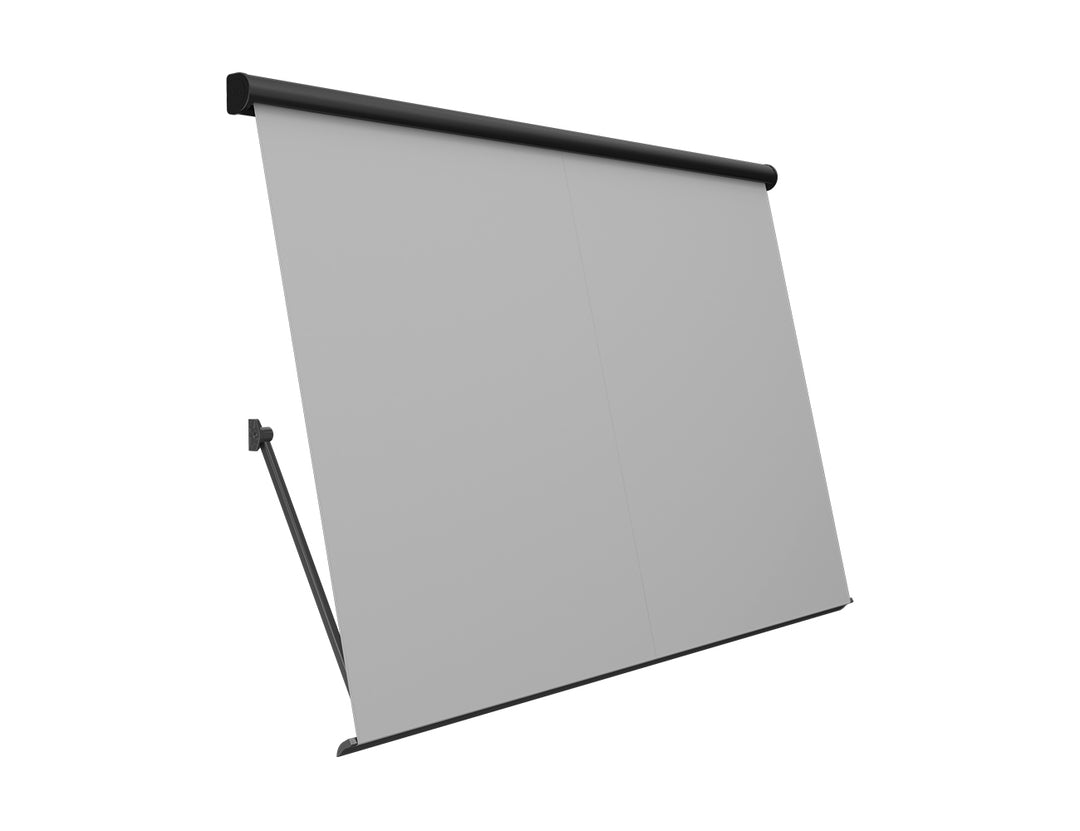

The Solaris Drop-Arm Awning is a premium external shading system designed to protect your home from intense heat and glare. By intercepting sunlight externally, it is significantly more effective than internal blinds—keeping your interior naturally cool and lowering air conditioning costs.

Powered by the sun and fully wireless, the Solaris combines a modern, minimalist aesthetic with robust weather protection.

Why Choose Solaris?

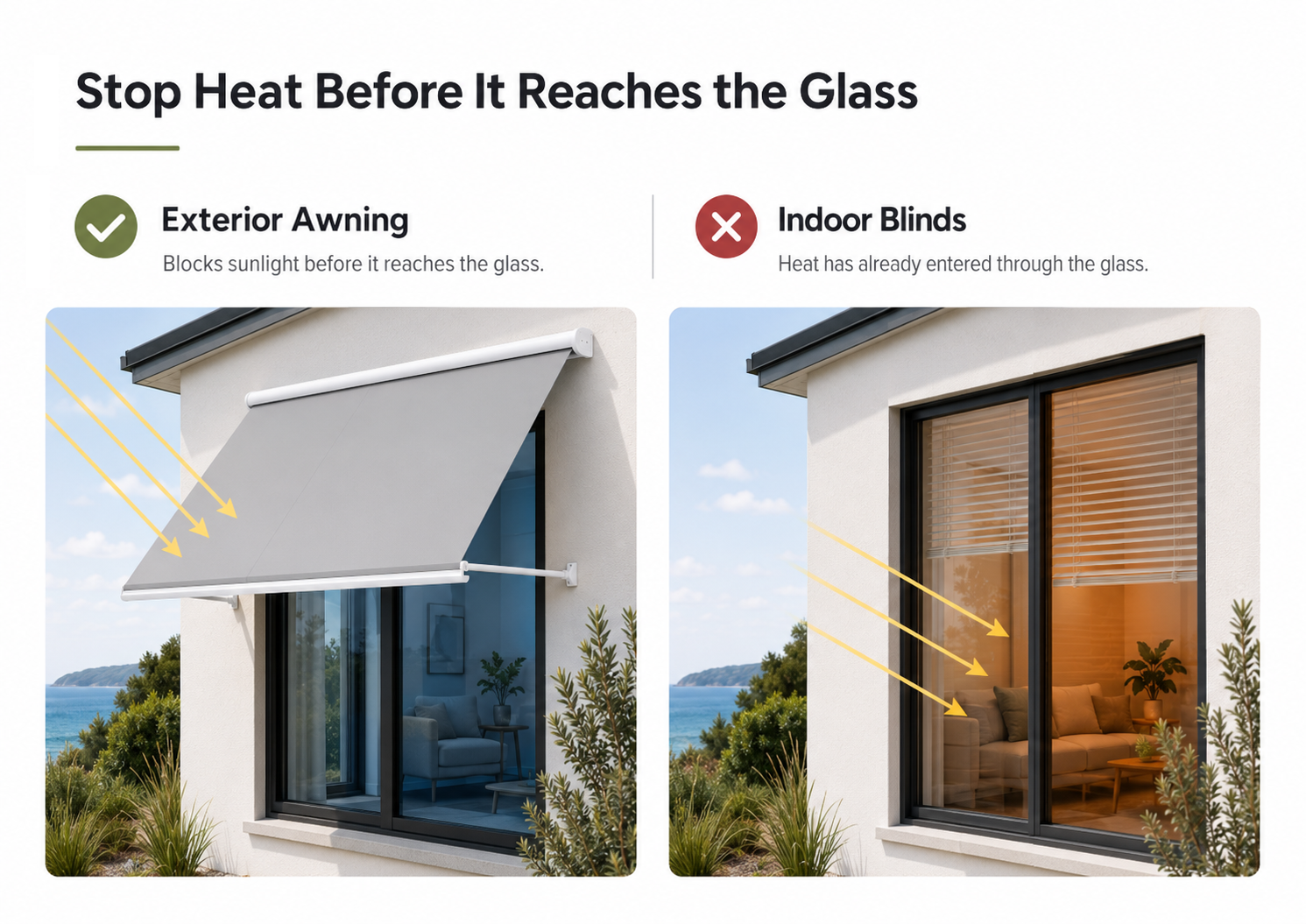

☀️ Blocks 90% of Solar Heat Designed specifically for vertical windows and glass doors, the Solaris stops heat transfer at the source. This stabilizes your indoor temperature and reduces your energy bills.

👁️ Glare Reduction & Daytime Privacy The high-density textile filters bright sunlight, allowing you to watch TV or work on screens without blinding glare. It preserves your view of the outdoors while providing excellent visual privacy from the street during the day.

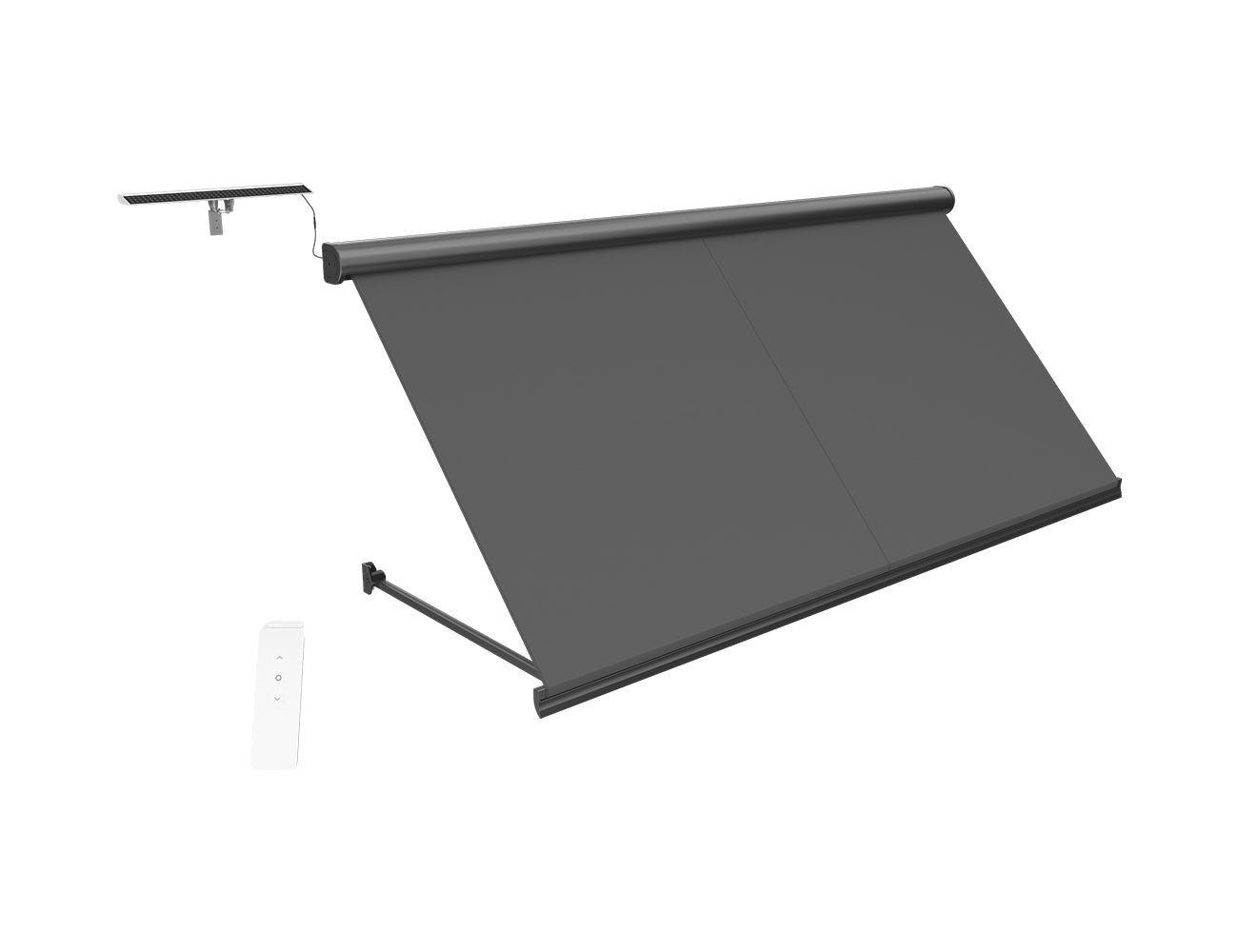

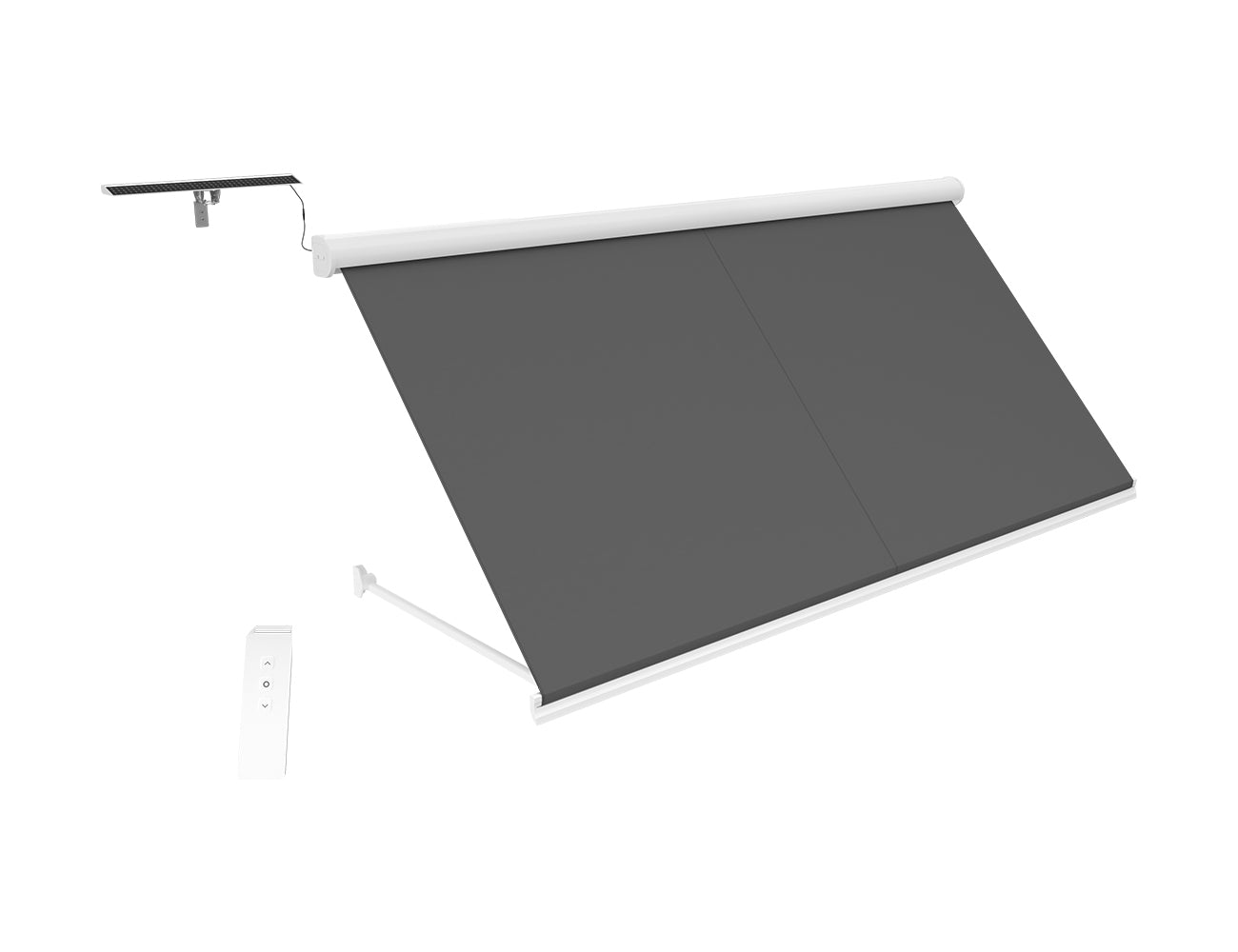

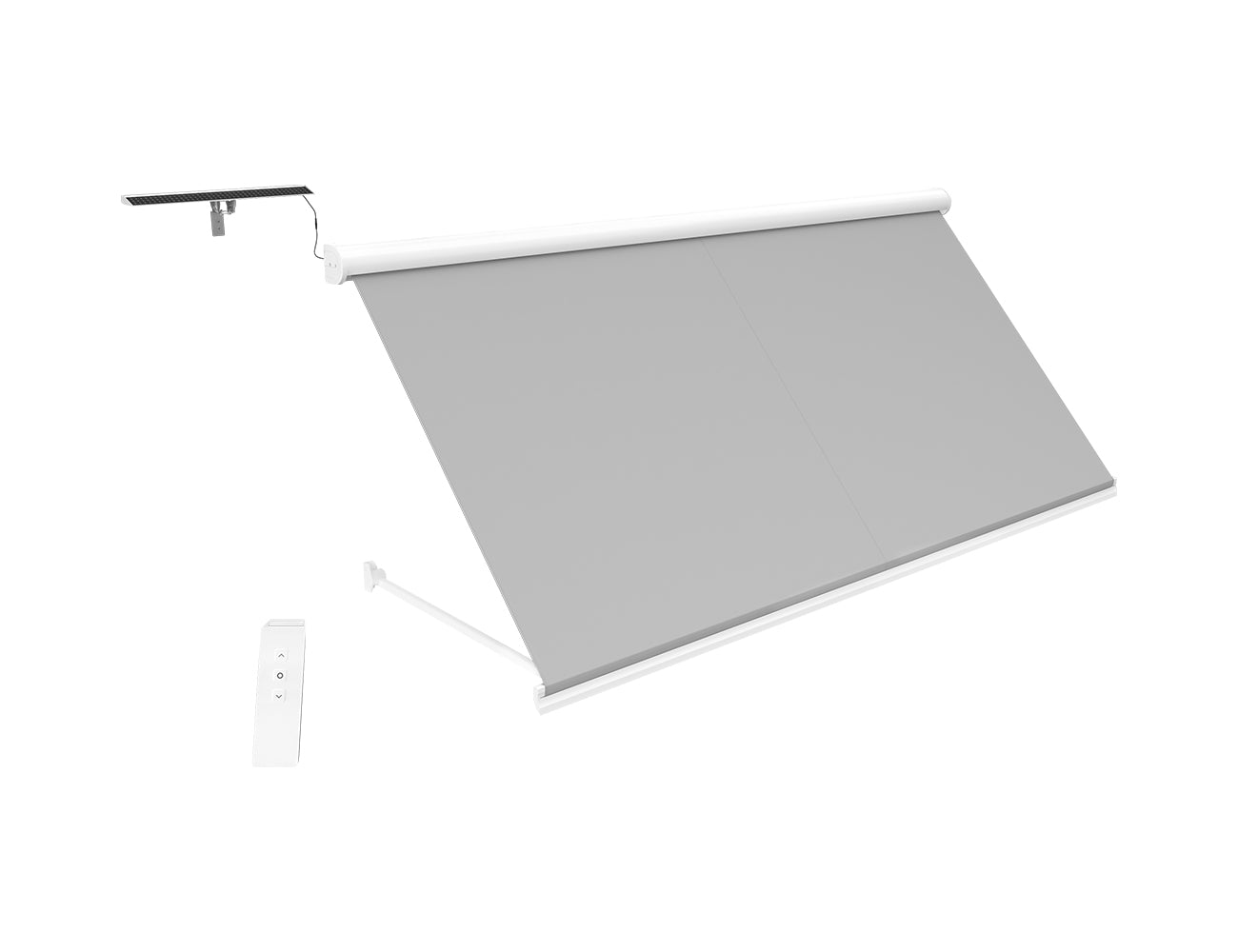

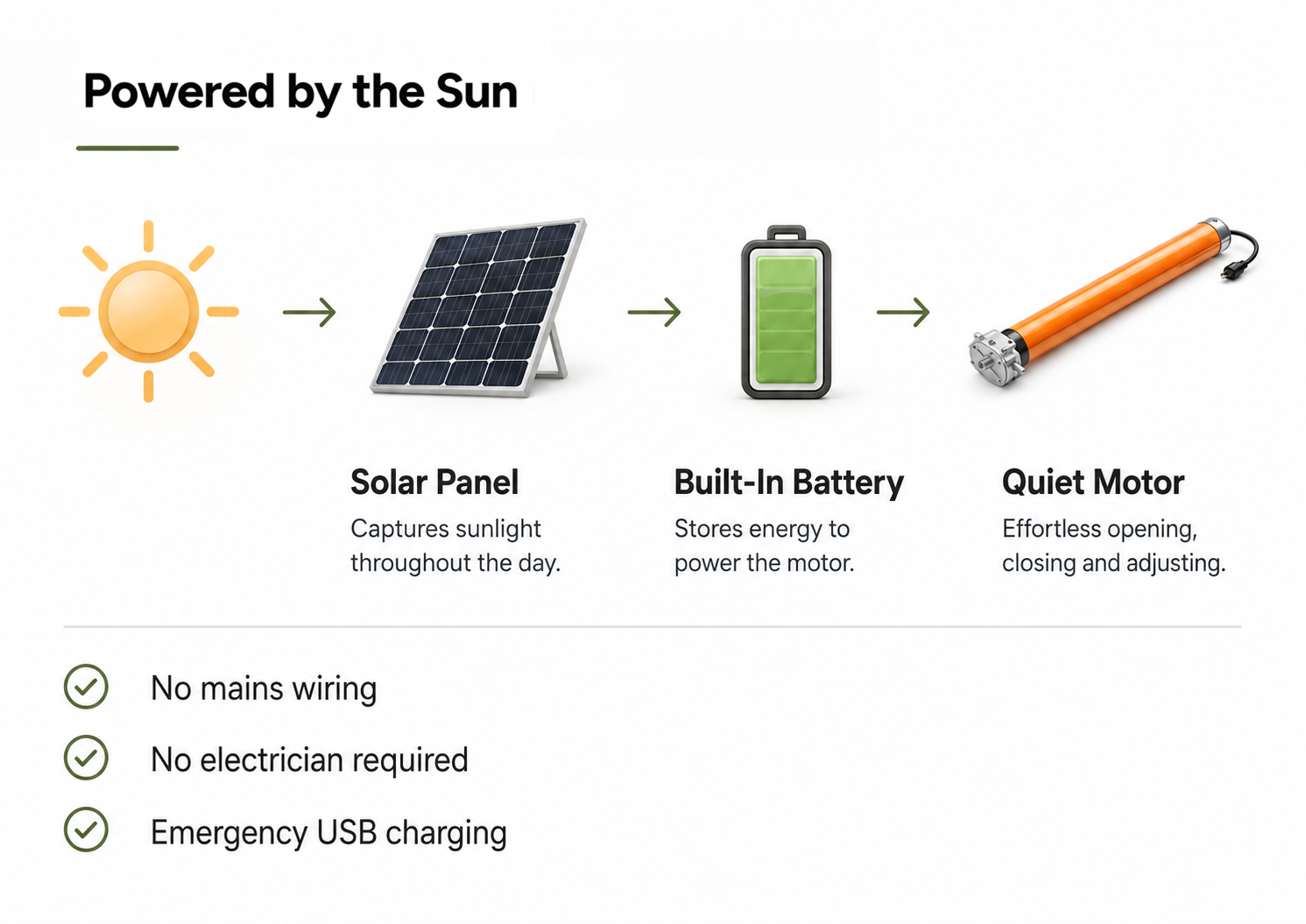

🔋 100% Wireless Solar Power No electrician required. The system runs on a built-in battery and solar panel.

• Continuous Charging: The panel tops up the battery whenever the sun shines.

• Emergency Backup: Includes a built-in charging port for standard chargers—perfect for extended periods of overcast weather.

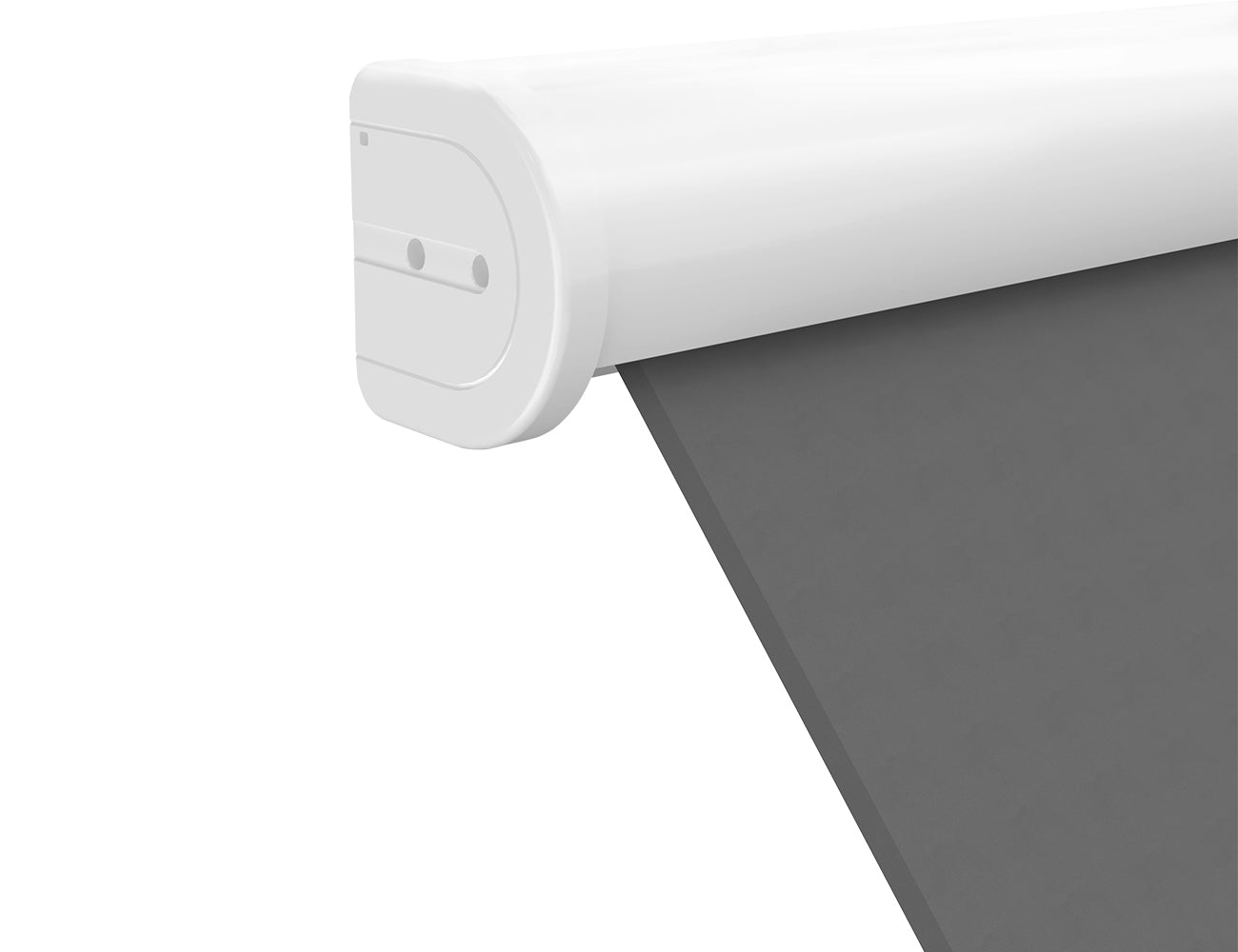

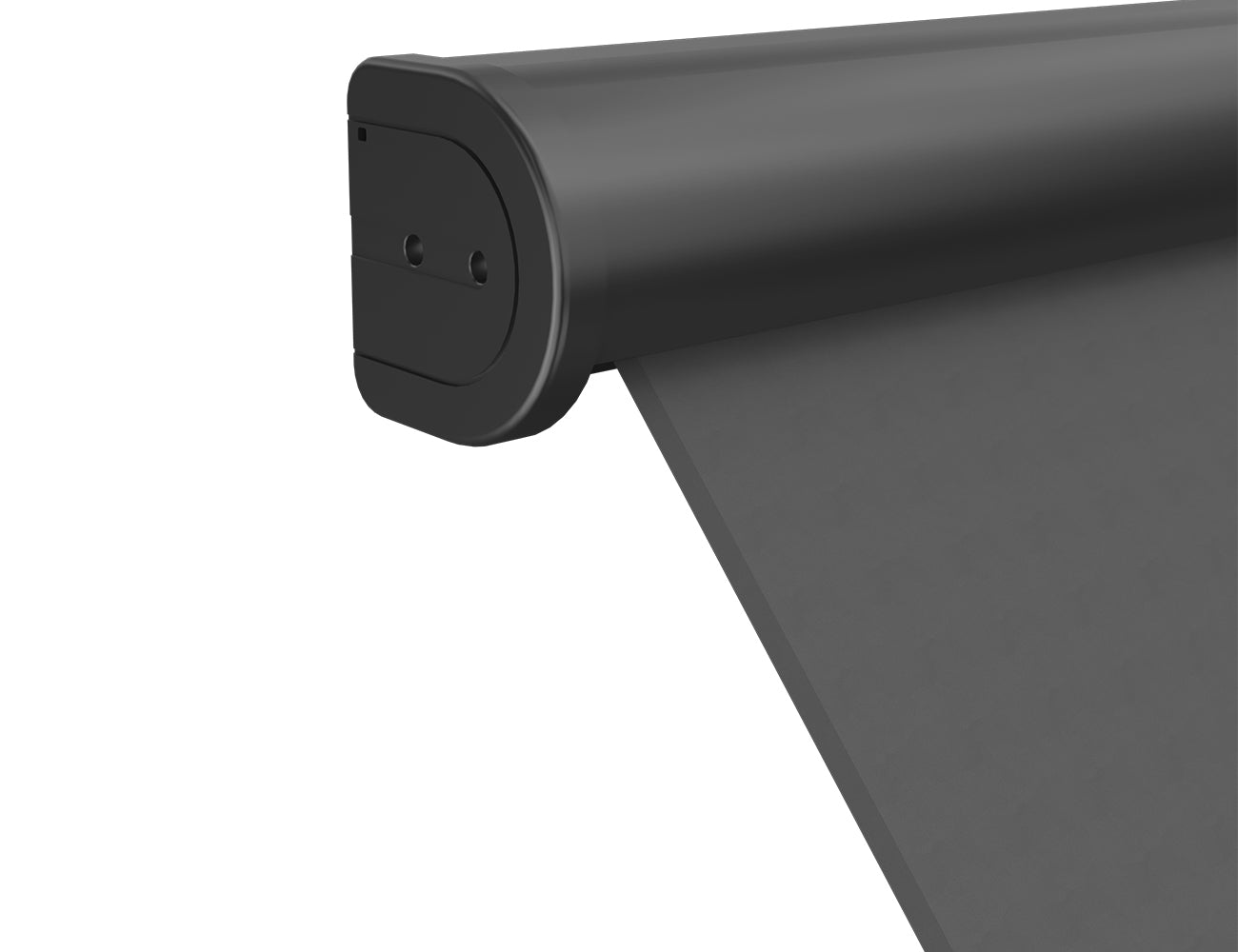

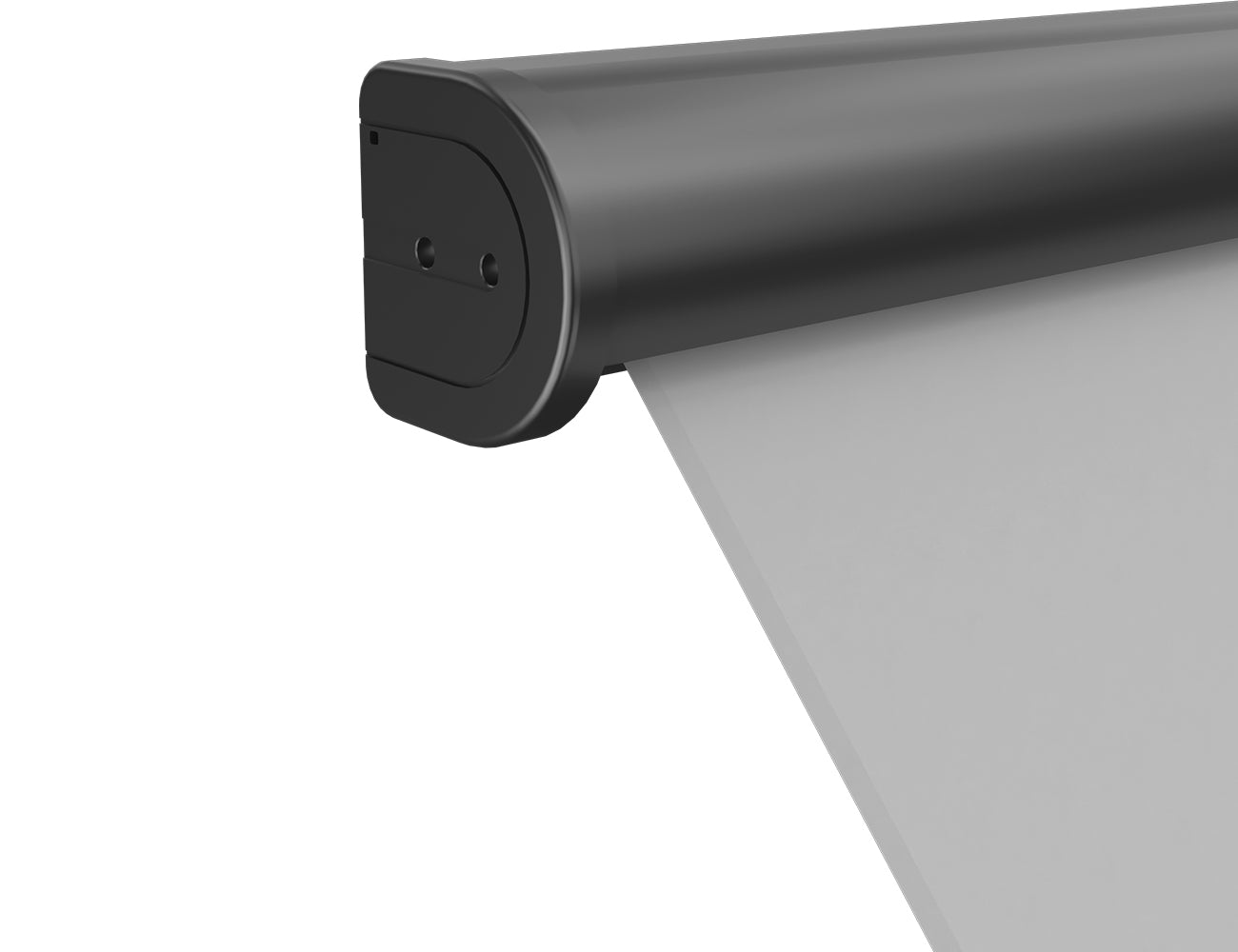

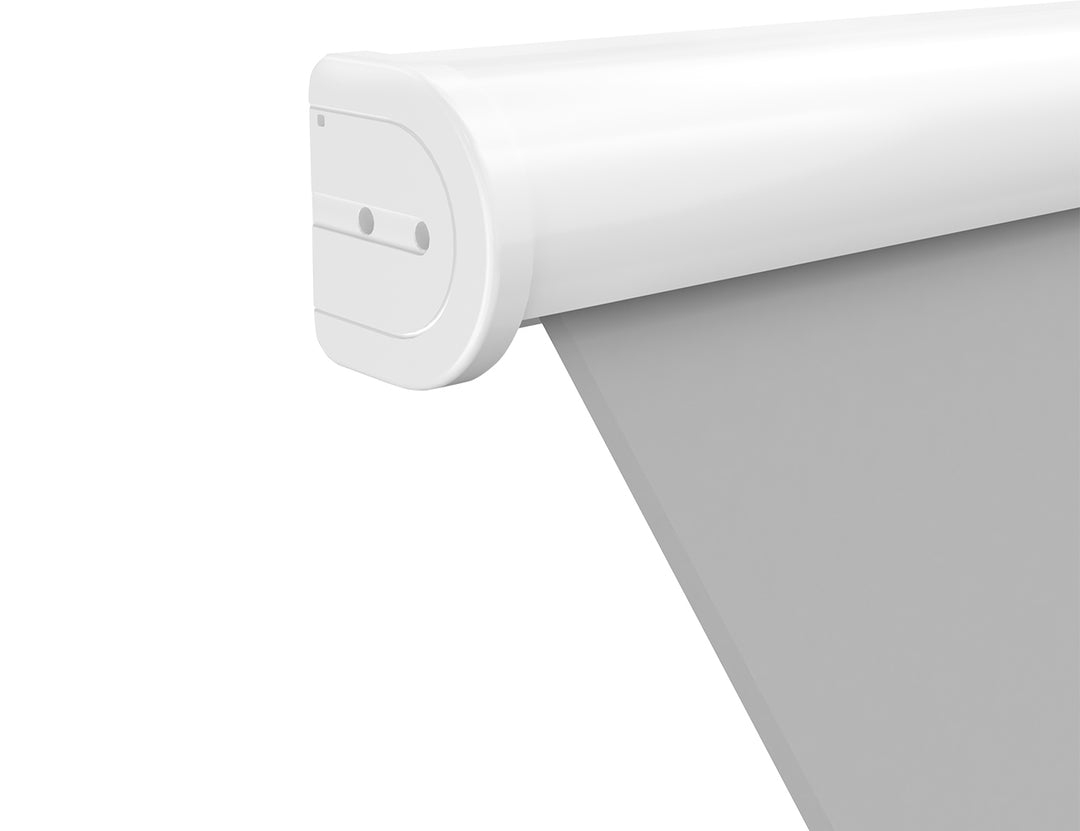

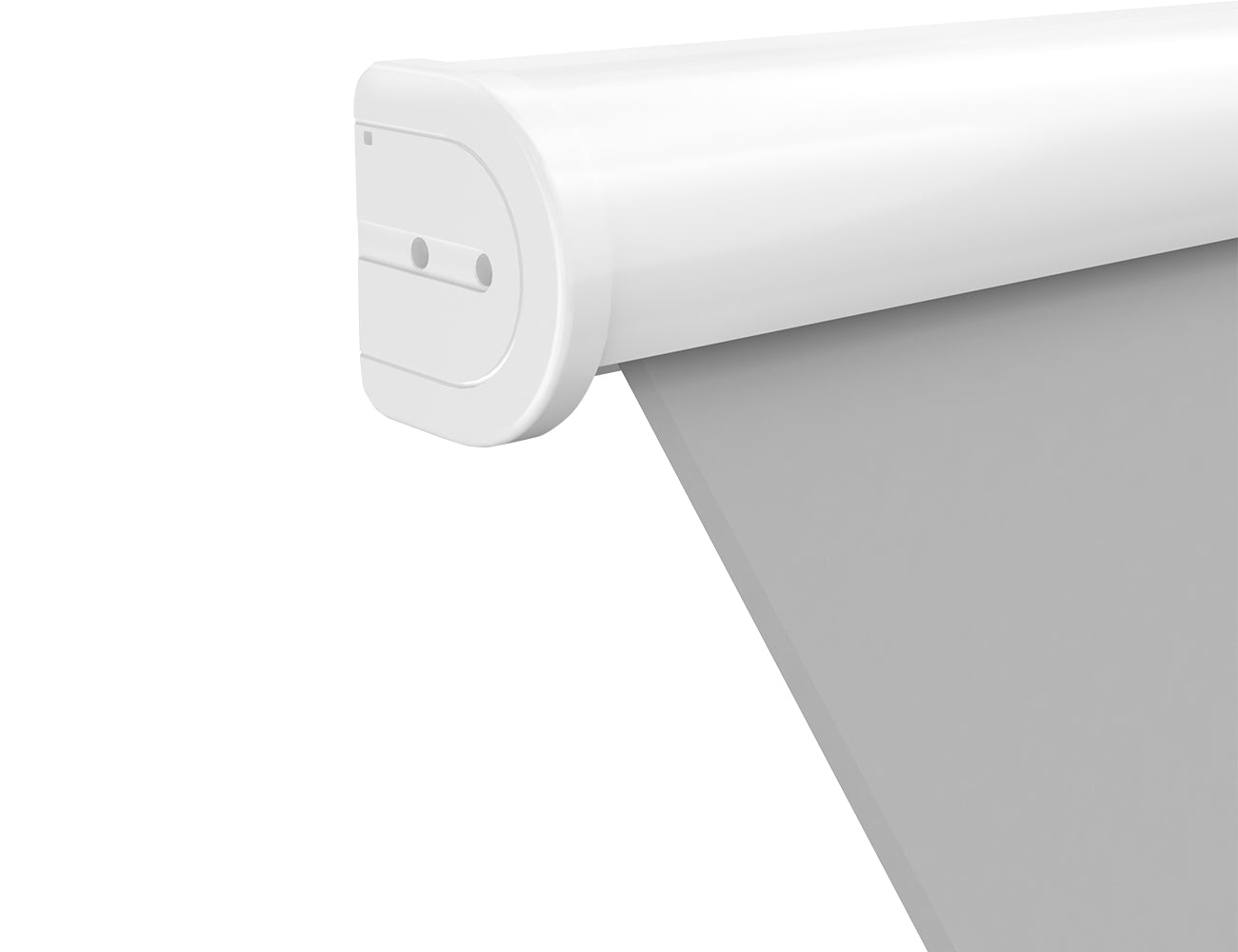

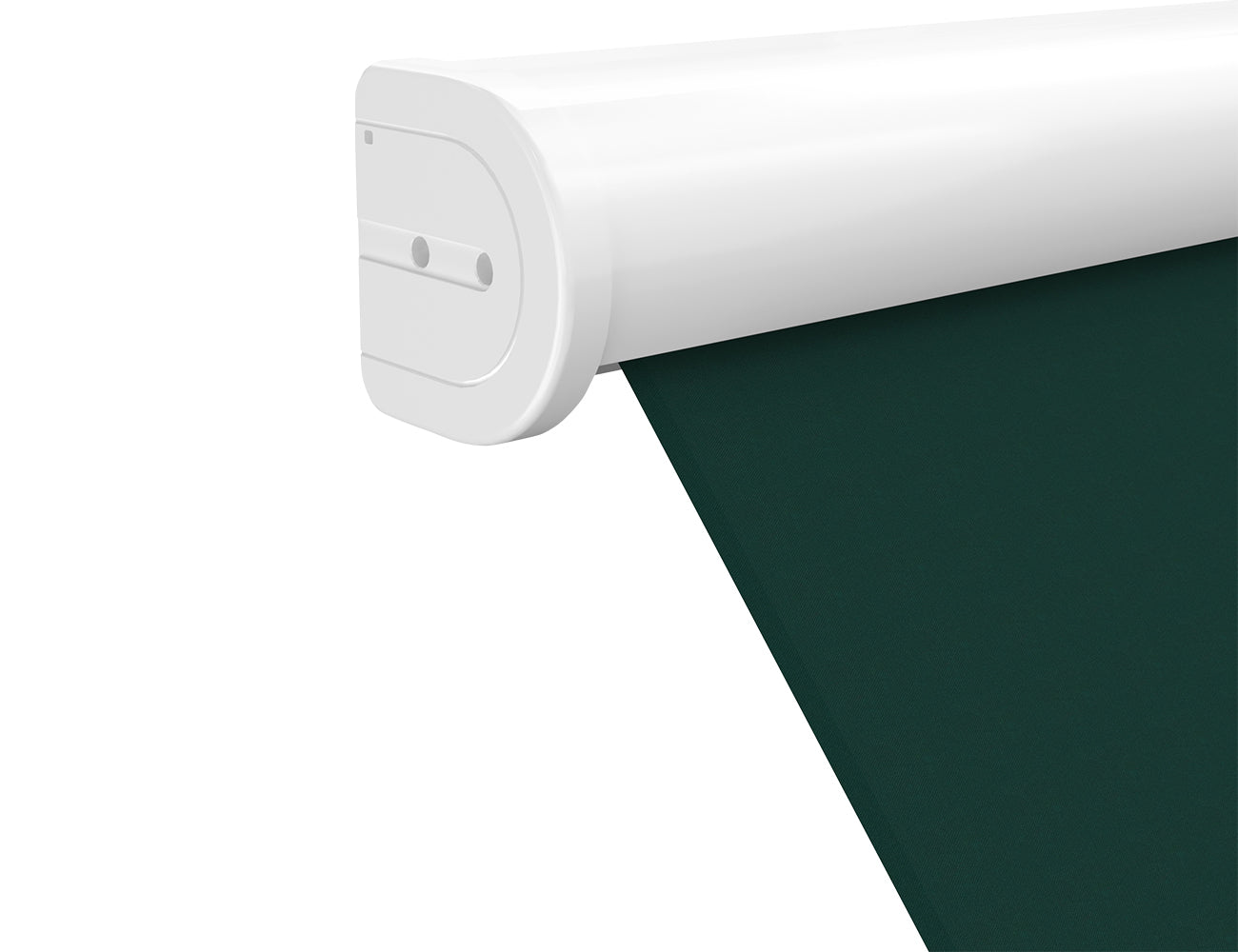

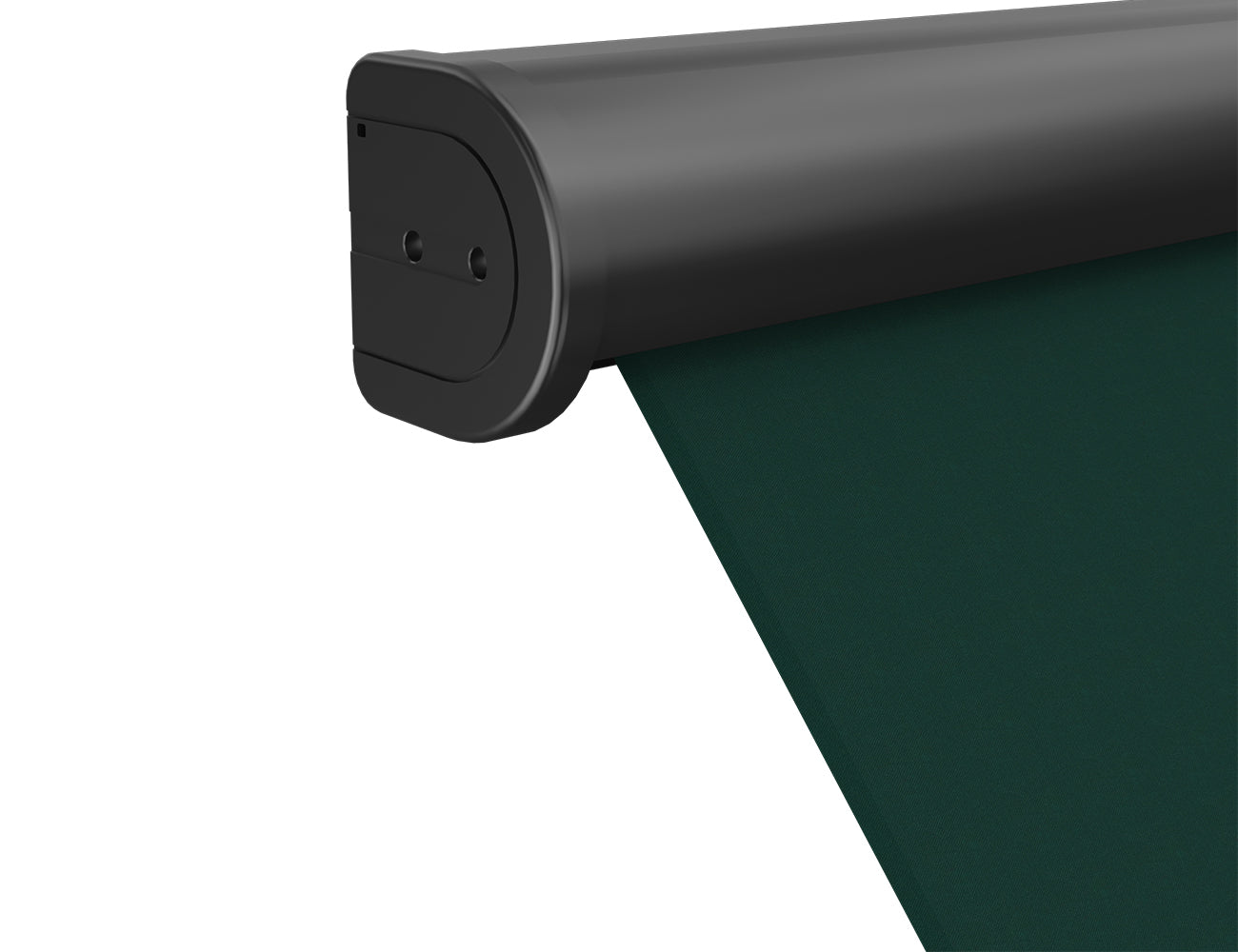

🛡️ Full-Cassette Protection When you don't need shade, the awning retracts fully into a slim, powder-coated aluminum box (cassette). This protects the fabric and mechanism from rain and dirt, ensuring a long lifespan and a clean look on your façade.

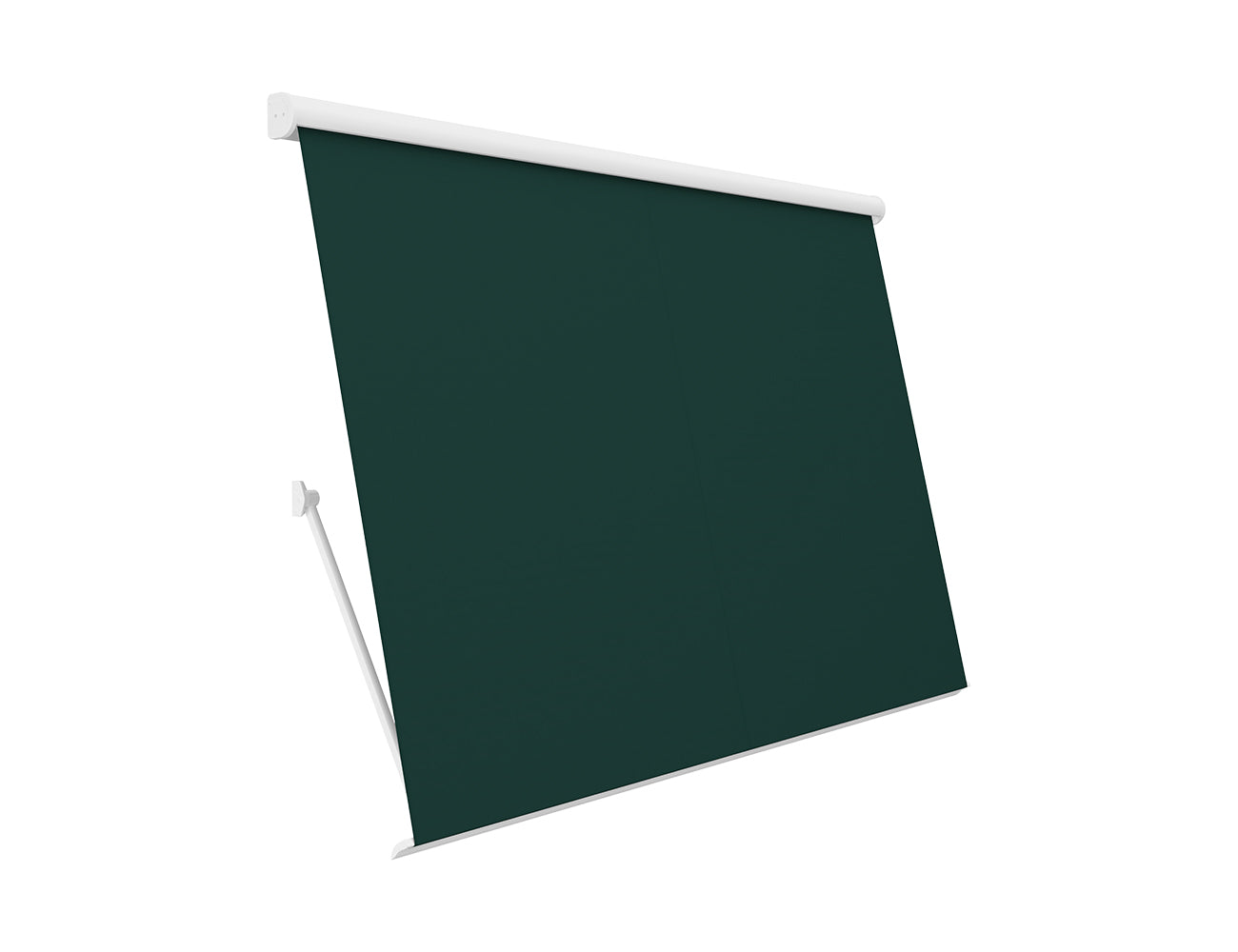

🕹️ Precision Control Use the included remote to stop the arms at any angle (0° to 170°). Extend fully for maximum coverage or retract partially to dial in the perfect amount of natural light.

NOTE*: The motor's wiring are on the left side of the awning when you are facing it.

Sizes

Width × Projection

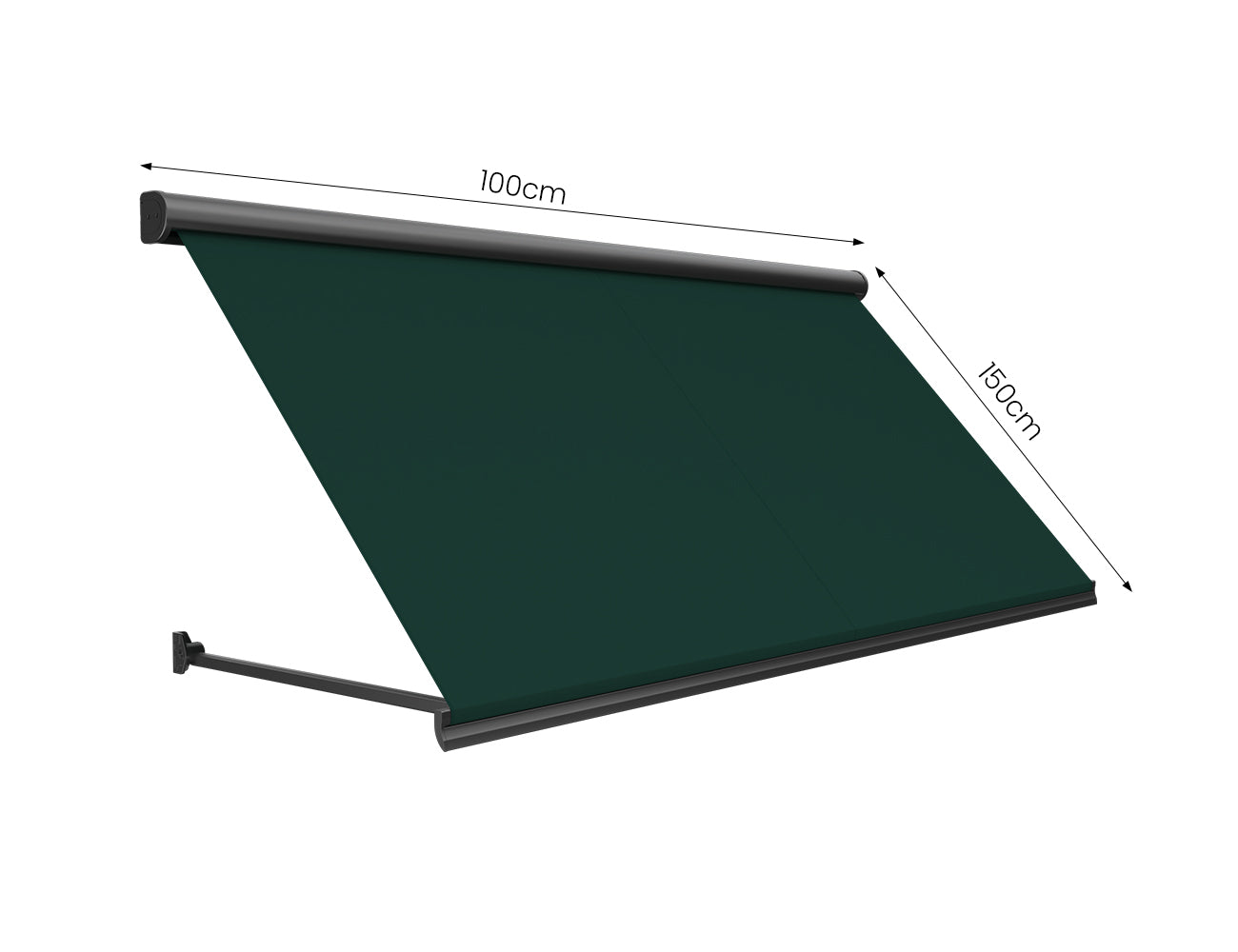

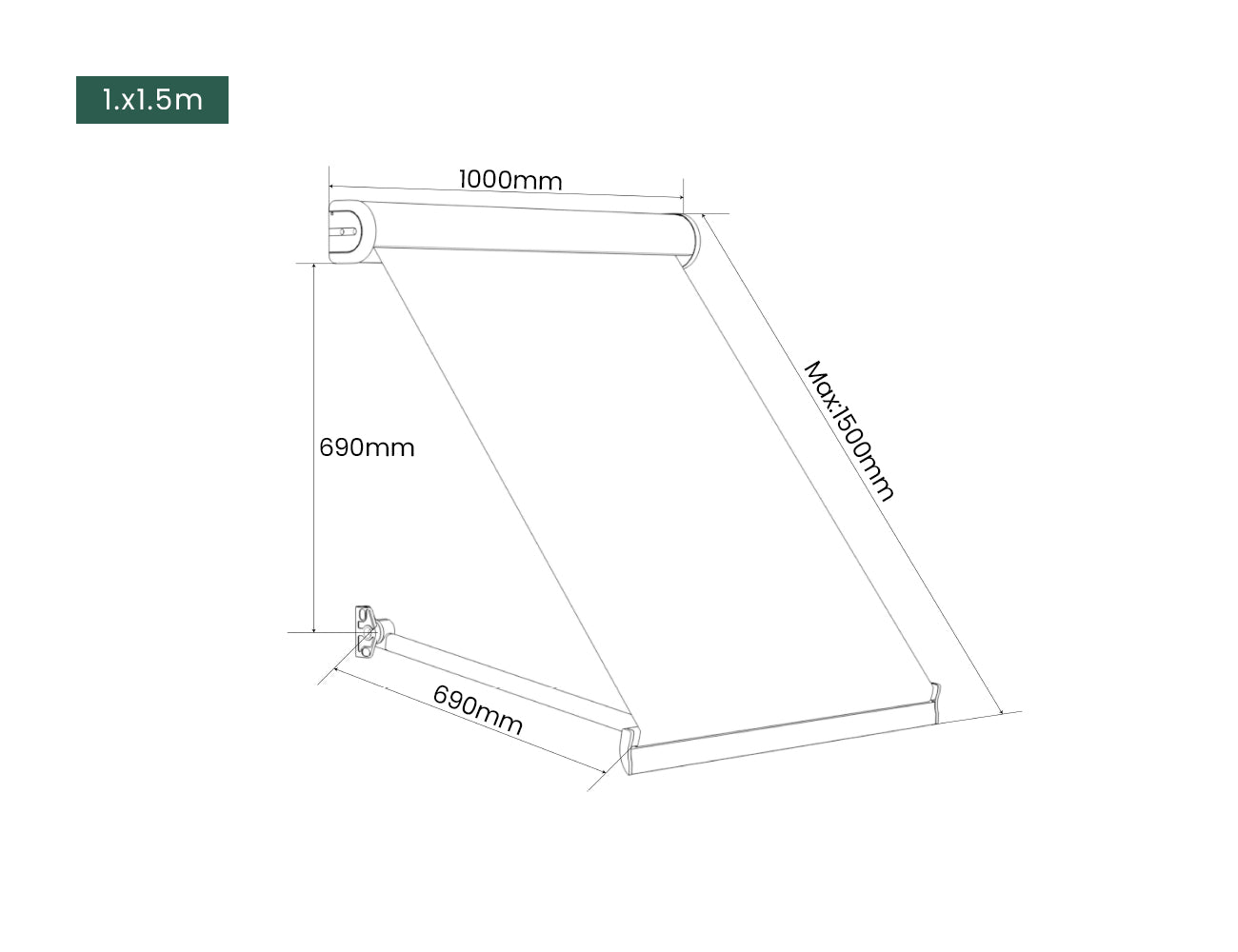

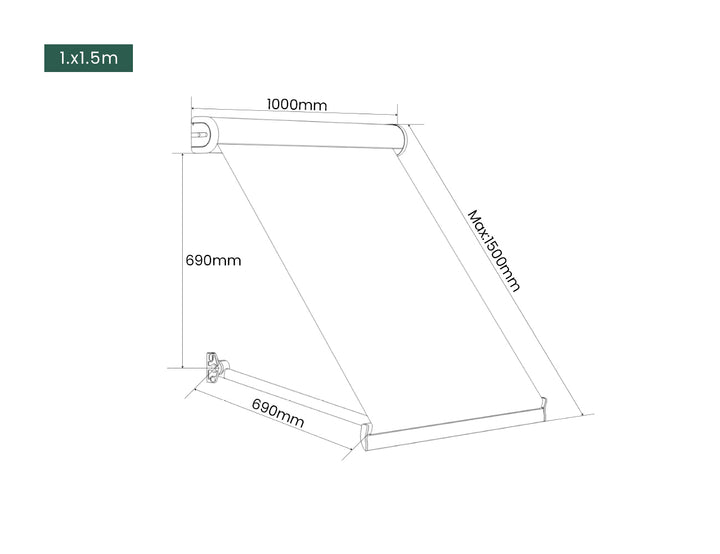

• 1.0 × 1.5 m

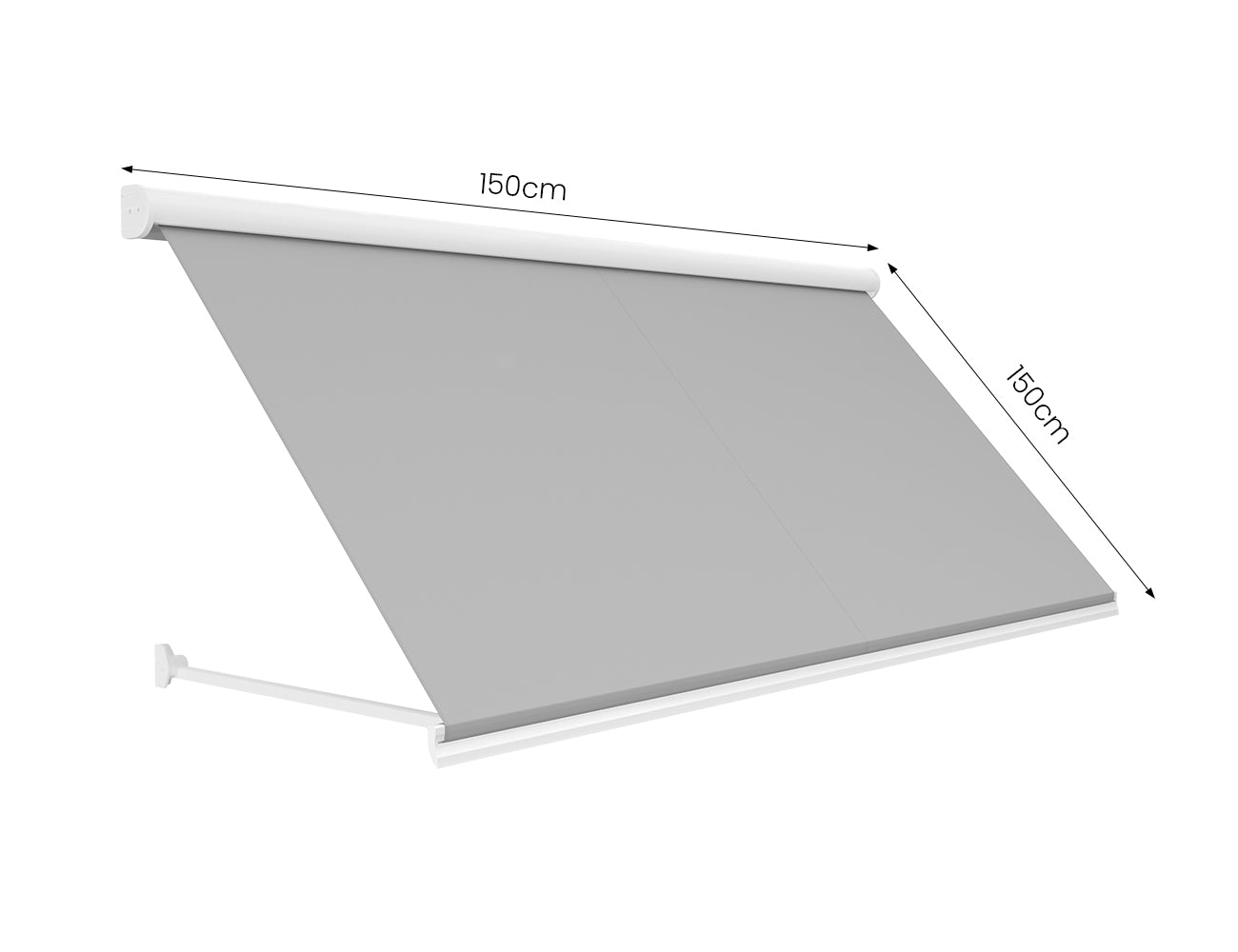

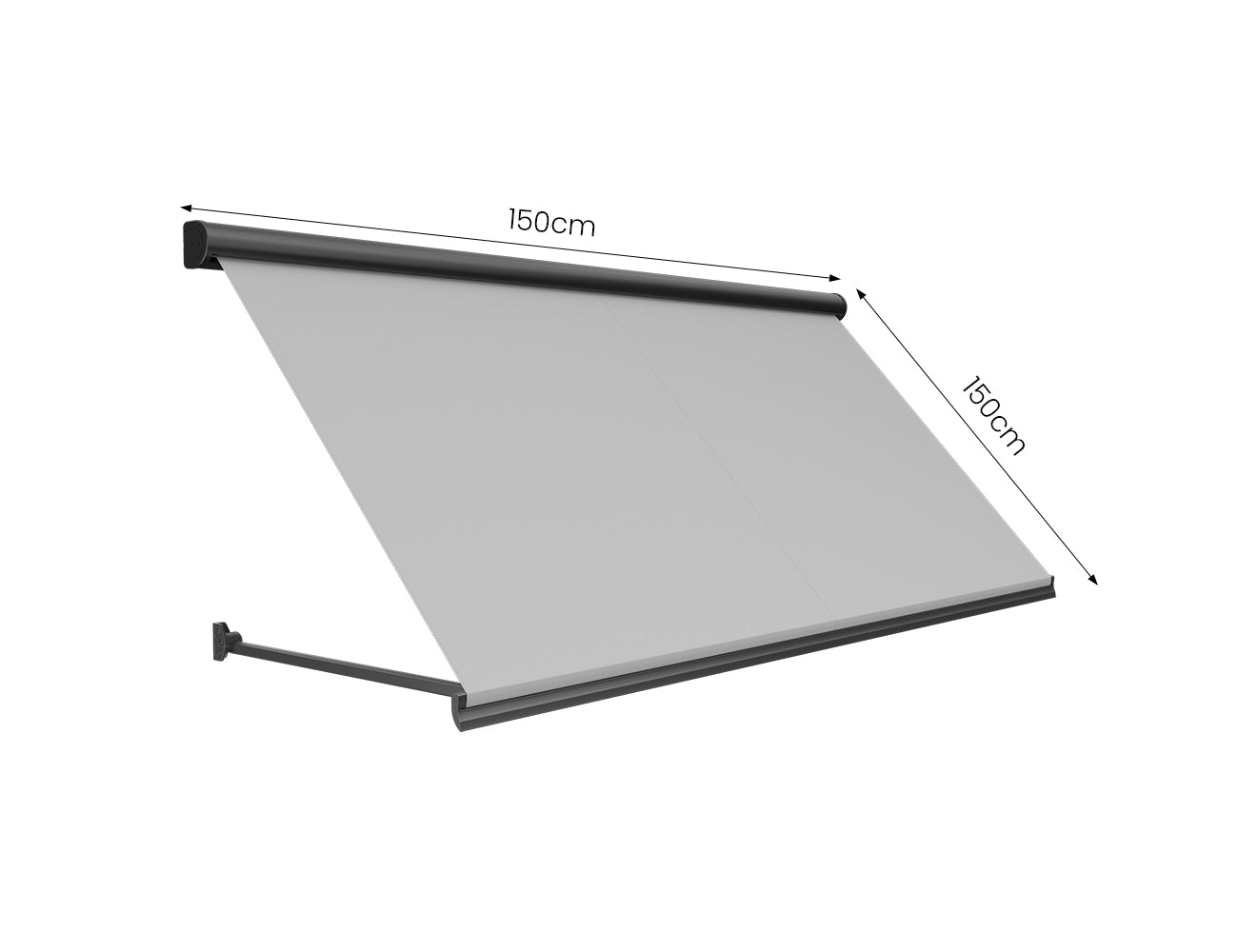

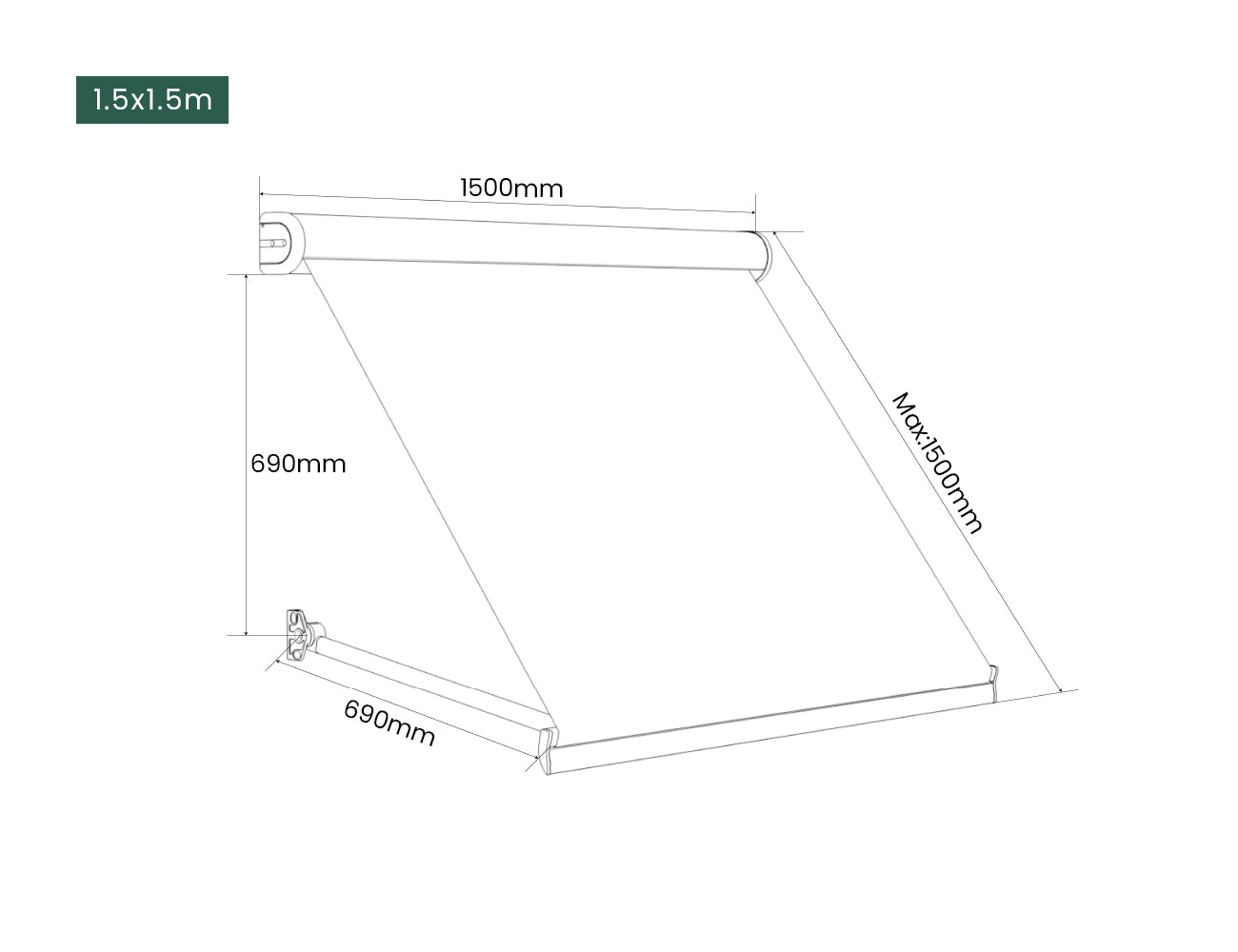

• 1.5 × 1.5 m

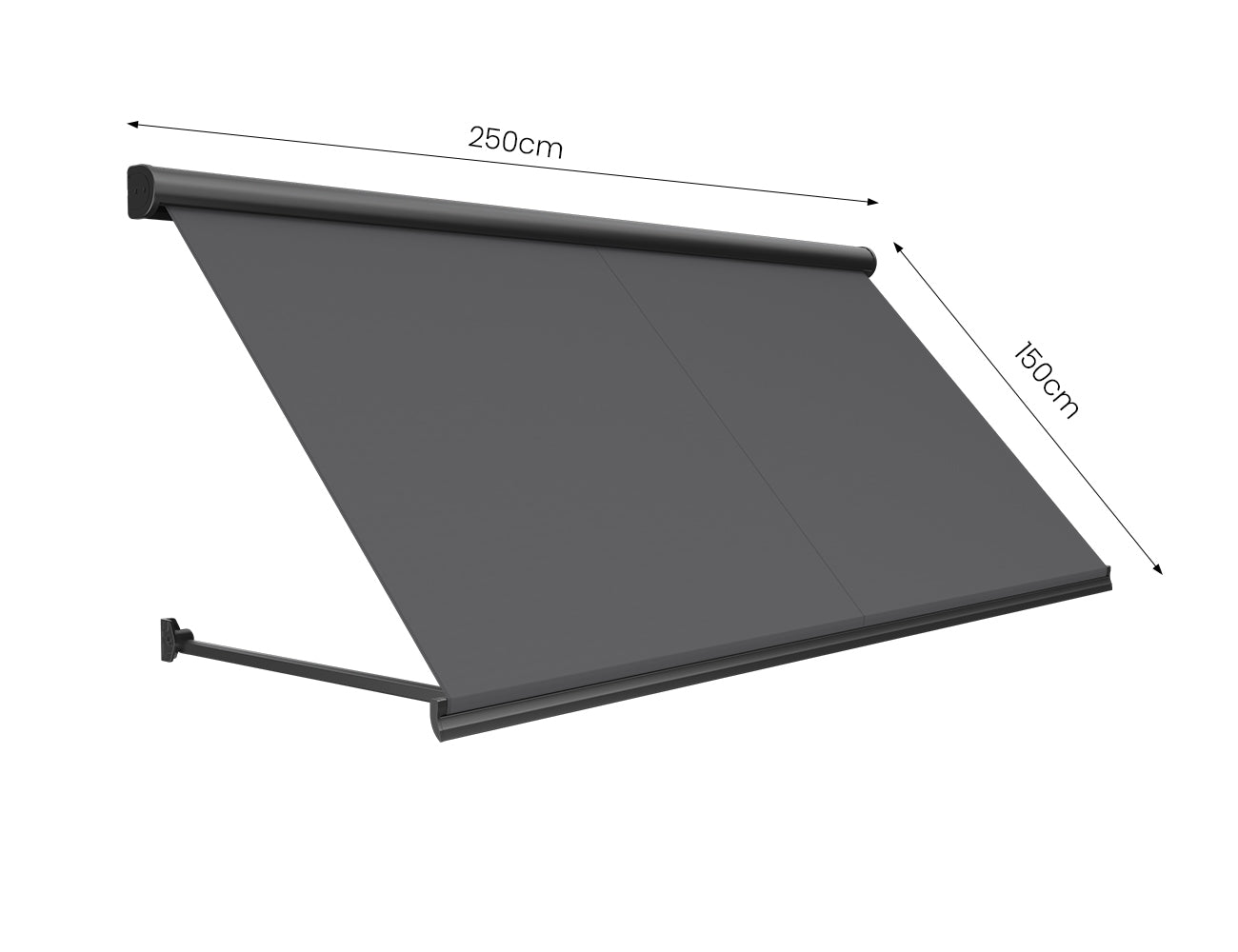

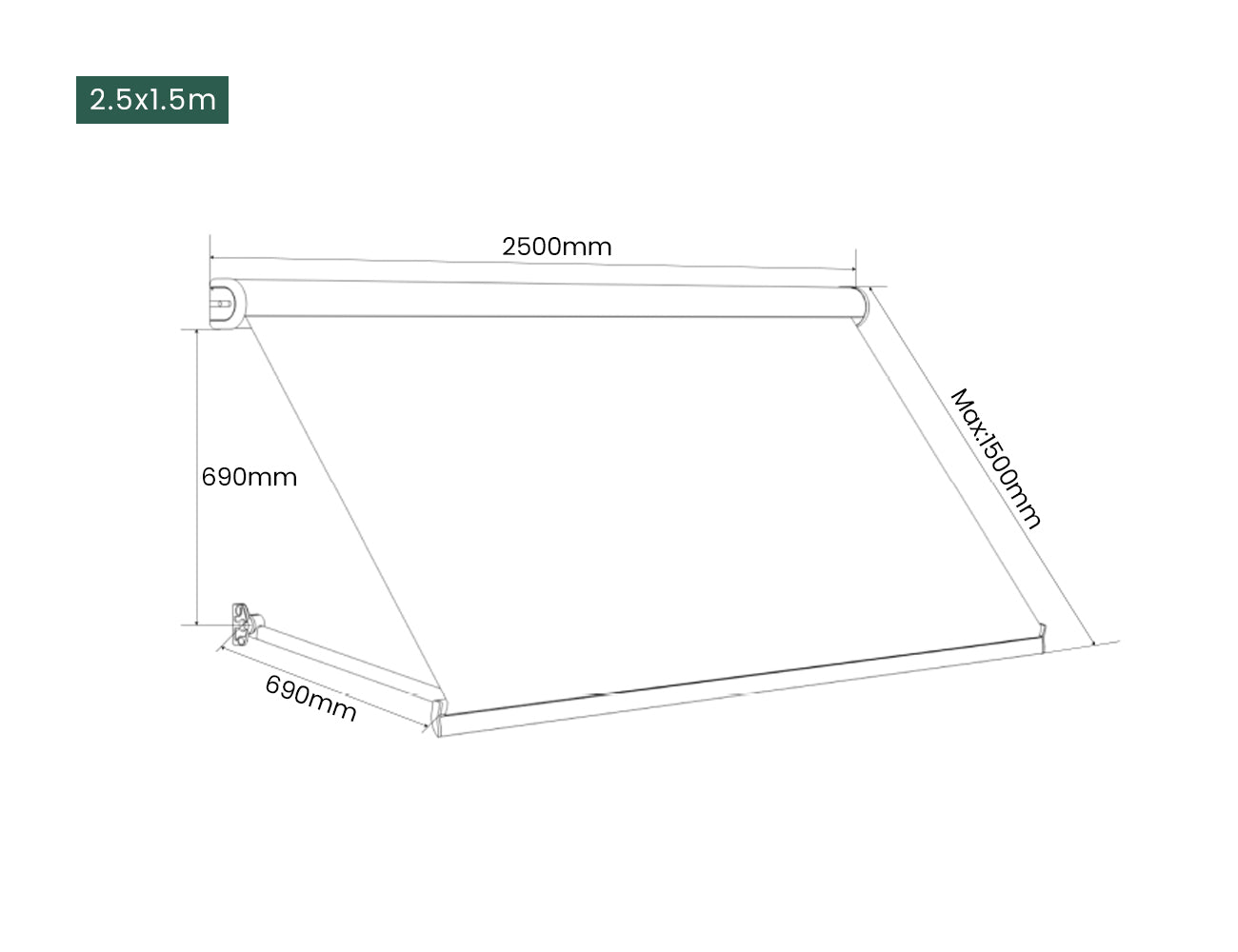

• 2.5 × 1.5 m

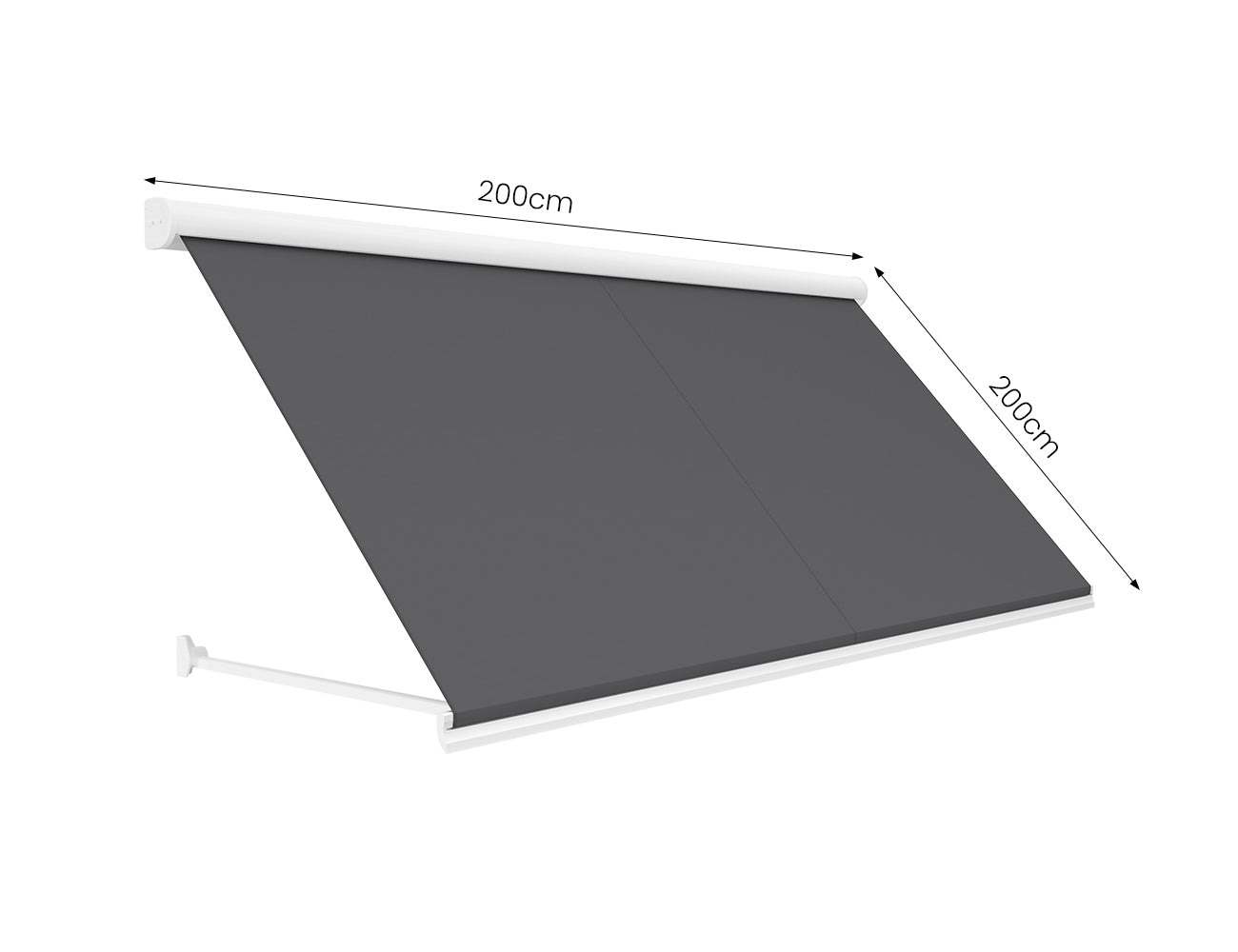

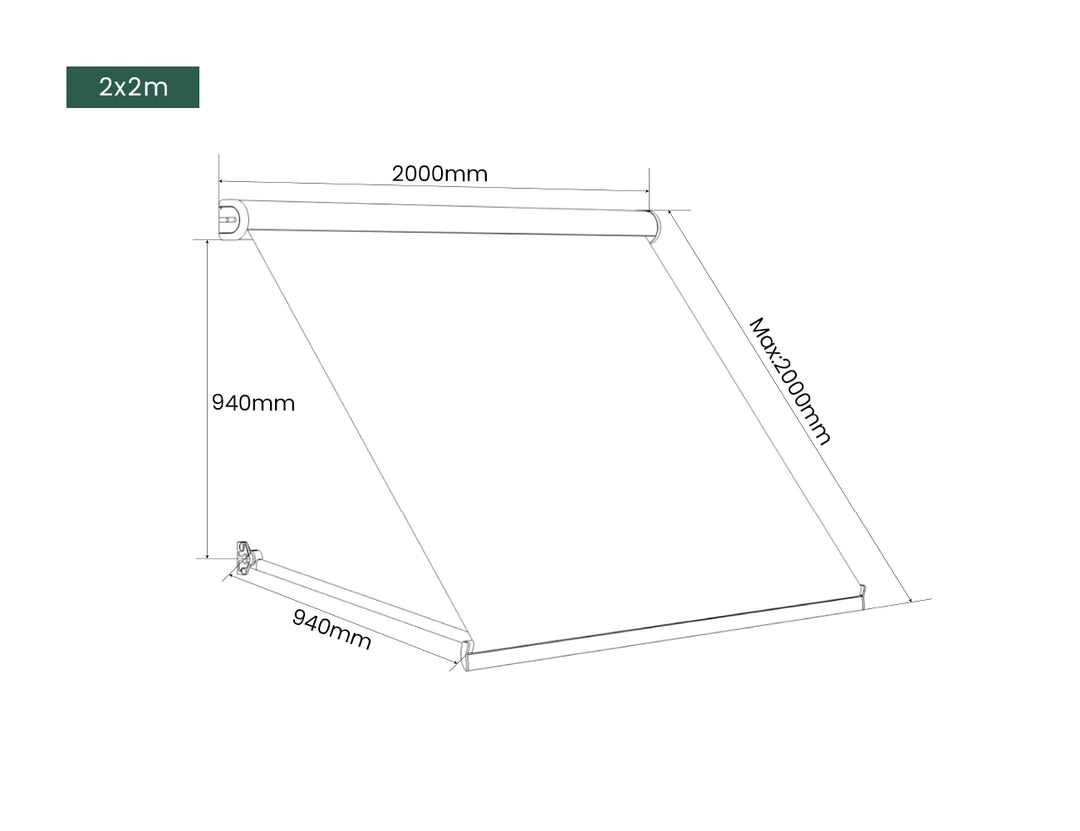

• 2.0 × 2.0 m

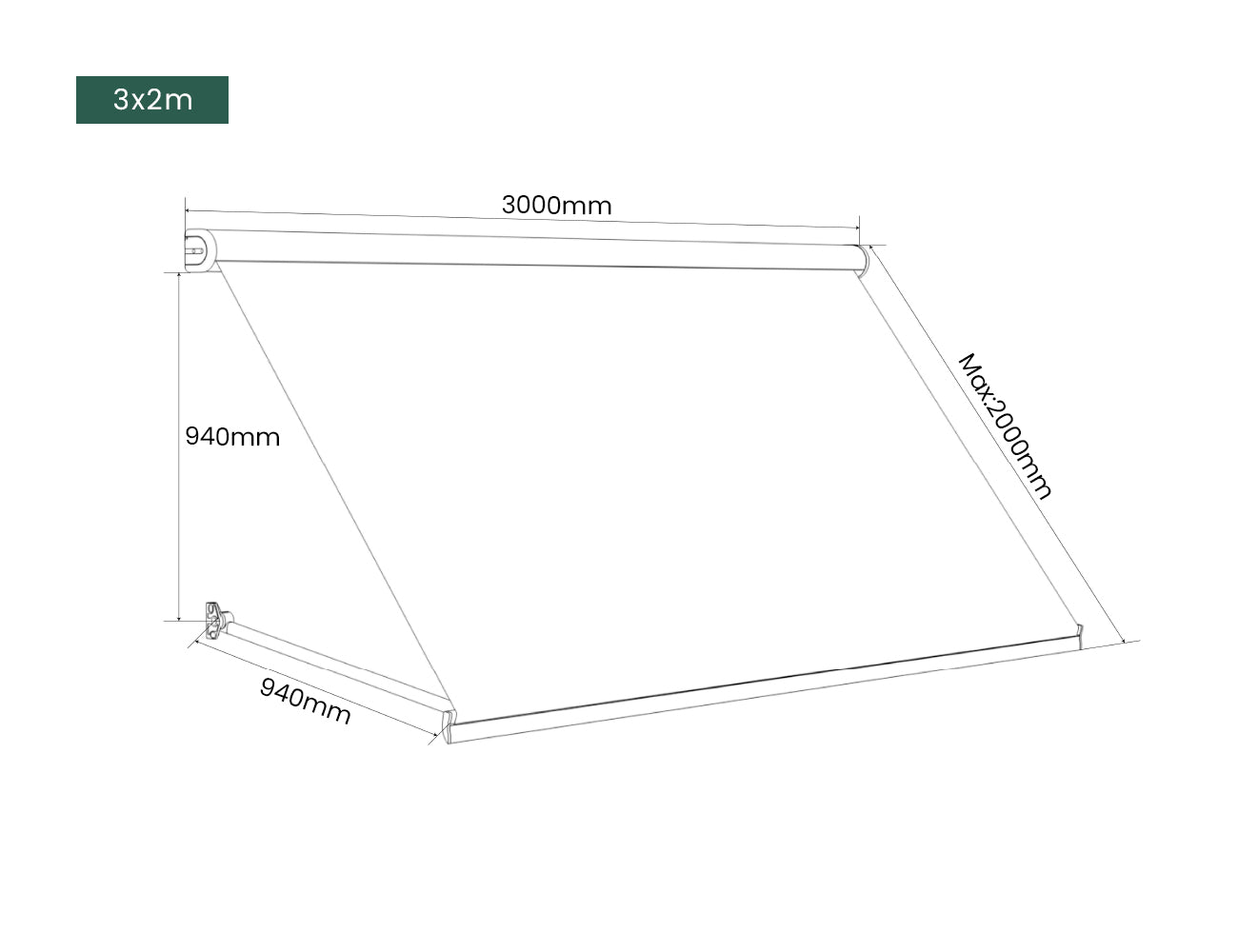

• 3.0 × 2.0 m

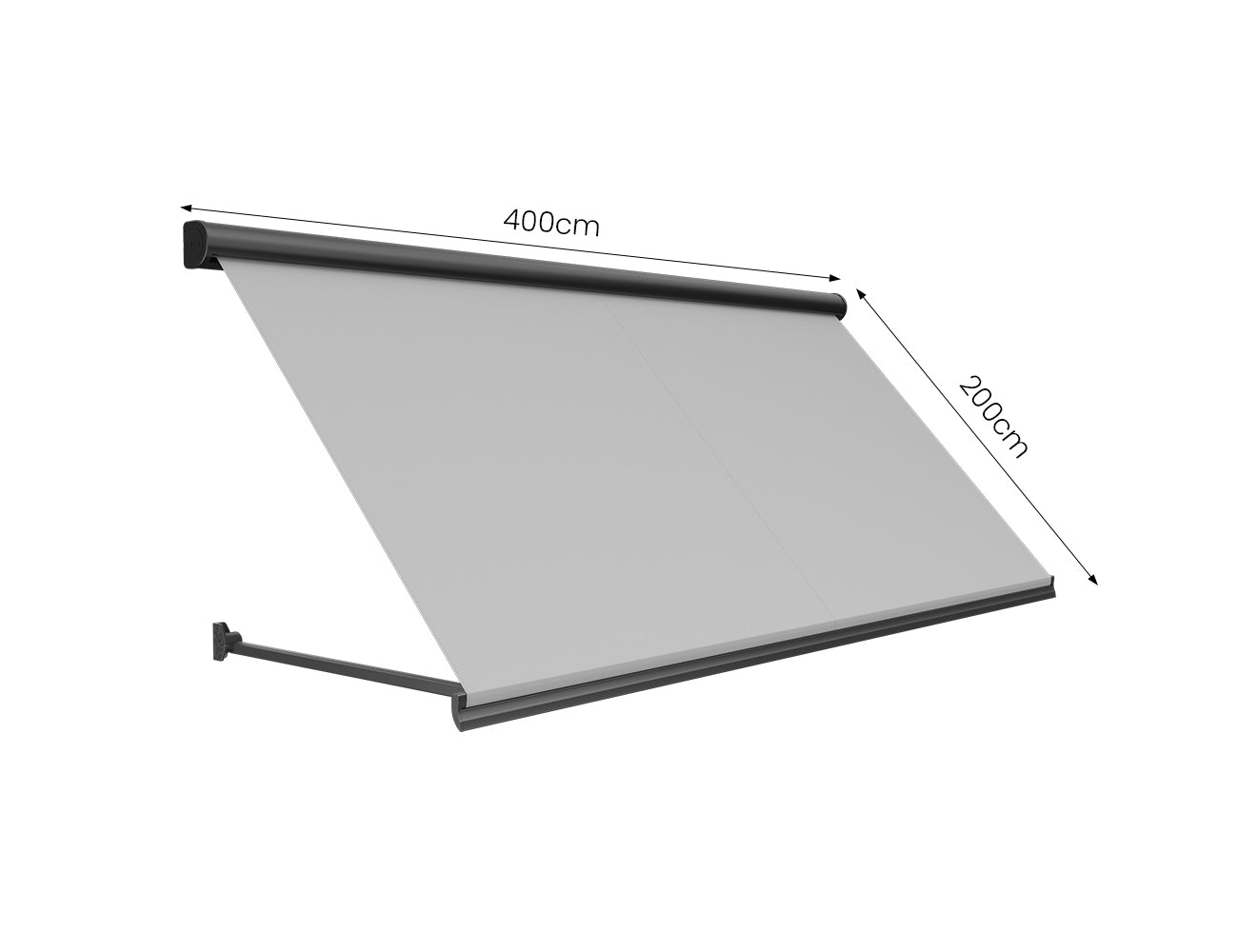

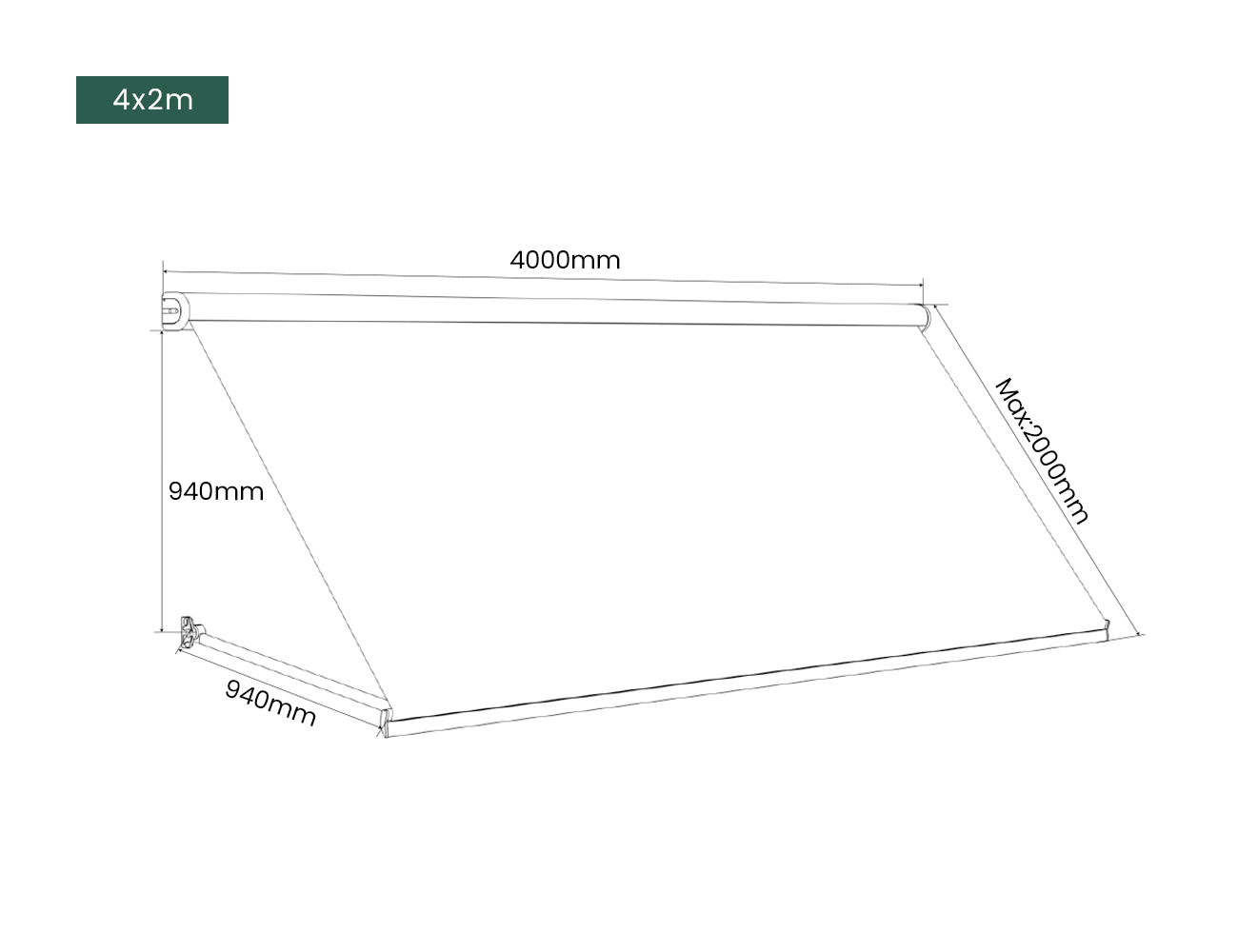

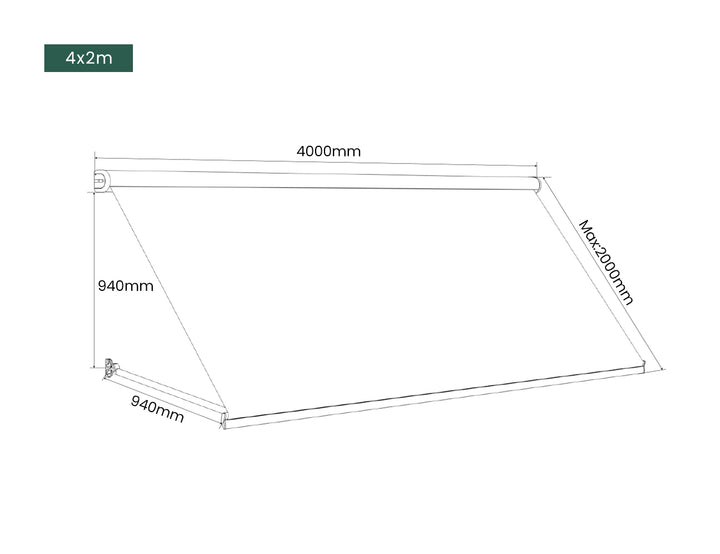

• 4.0 × 2.0 m

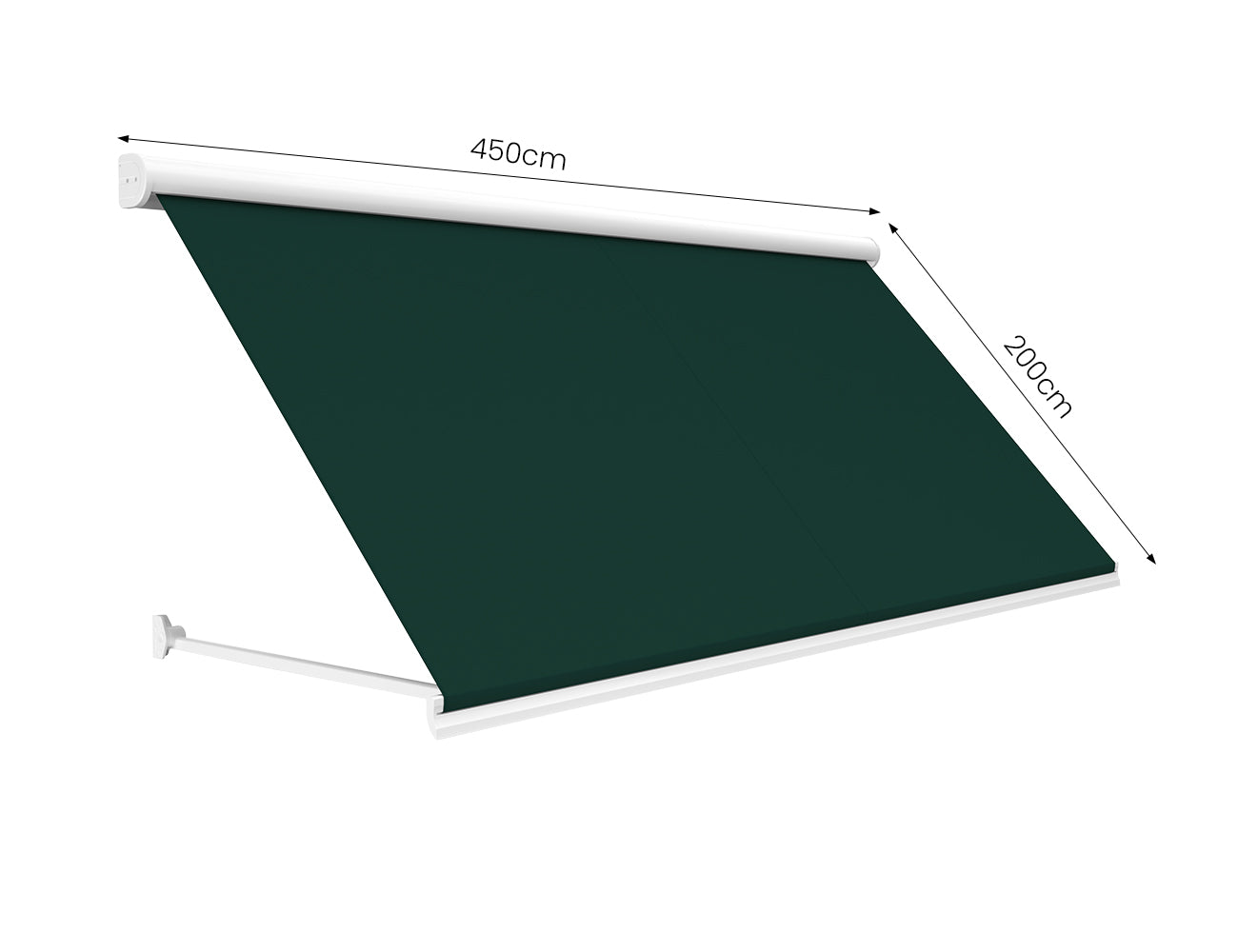

• 4.5 × 2.0 m

Frame & Fabric Colours

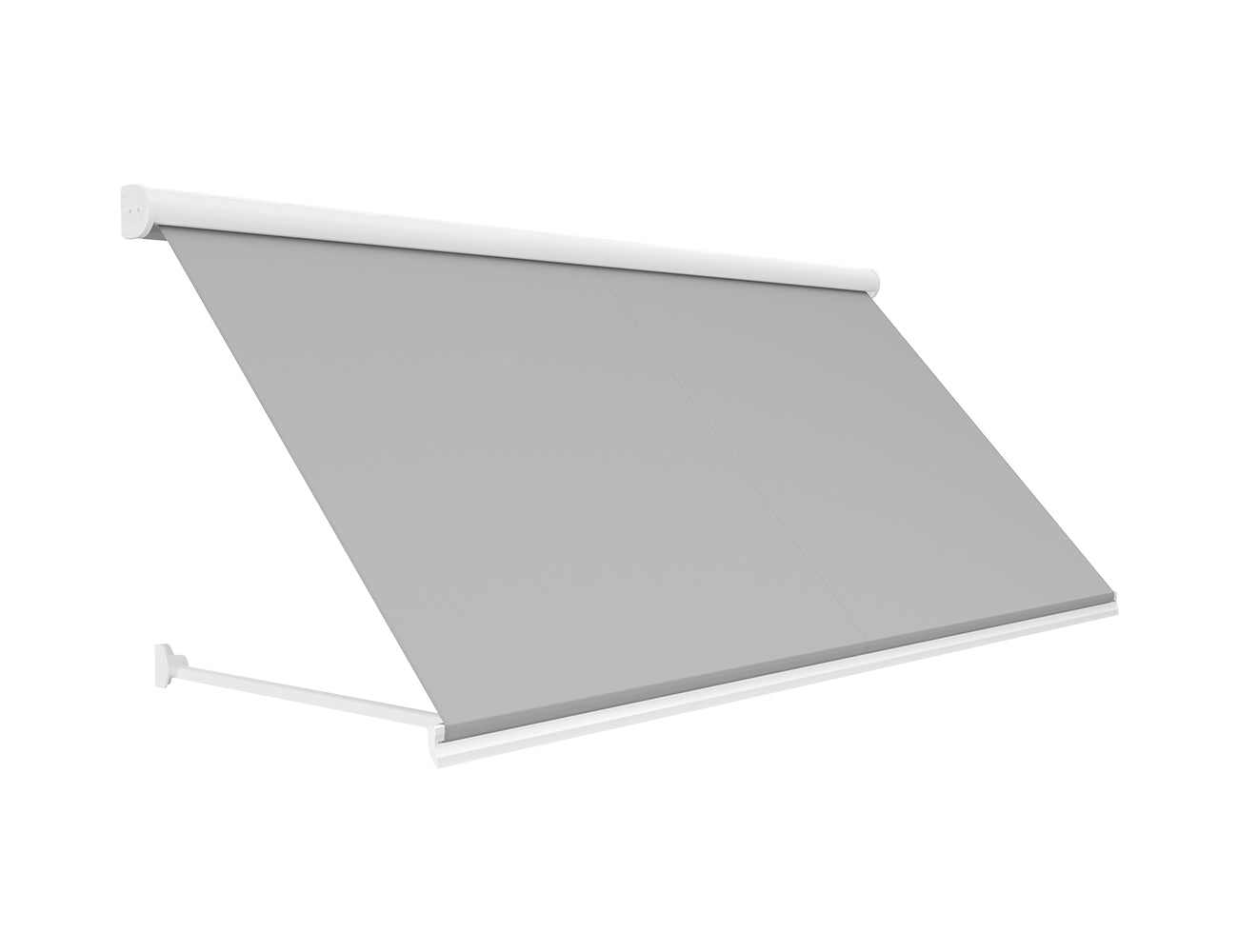

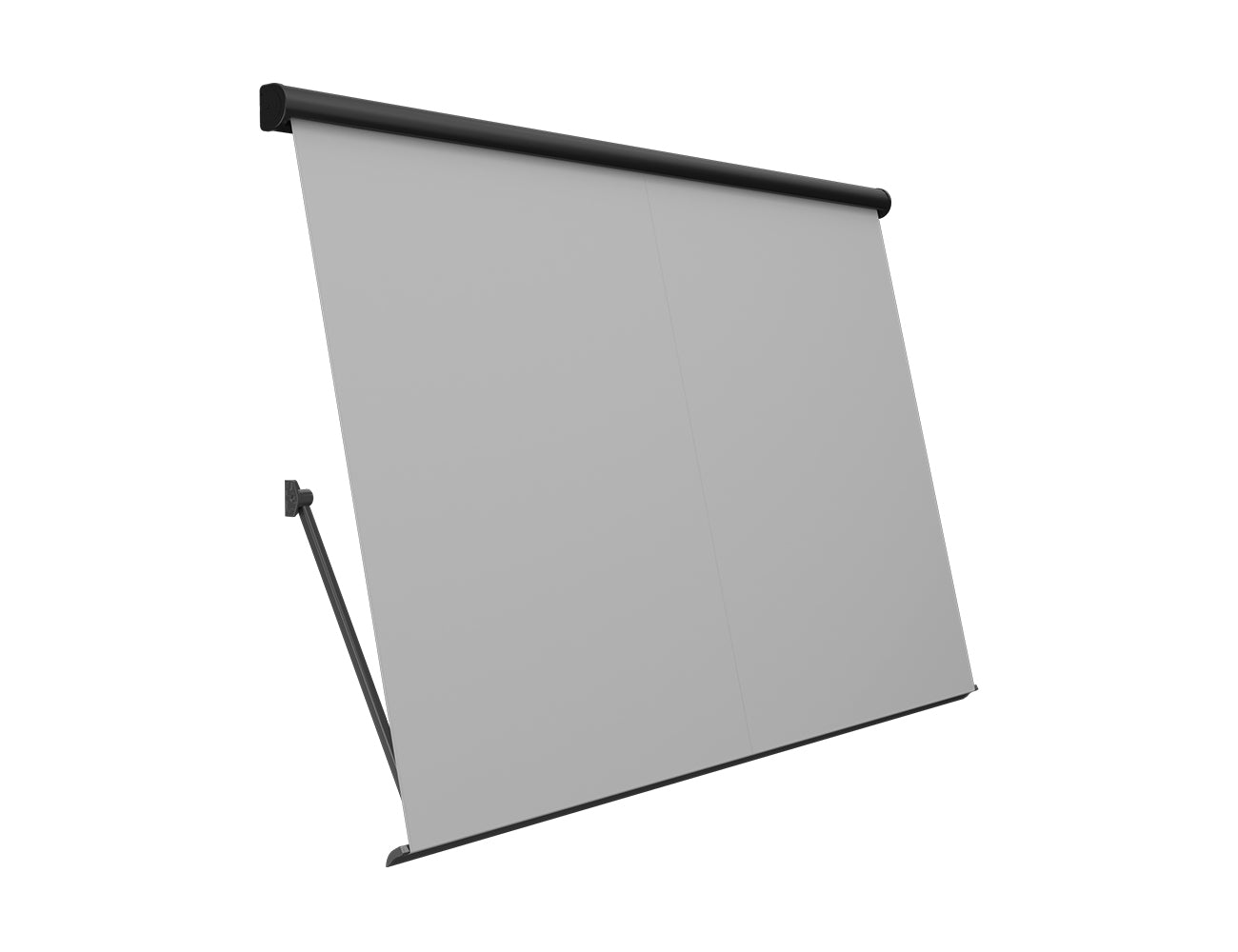

Frame

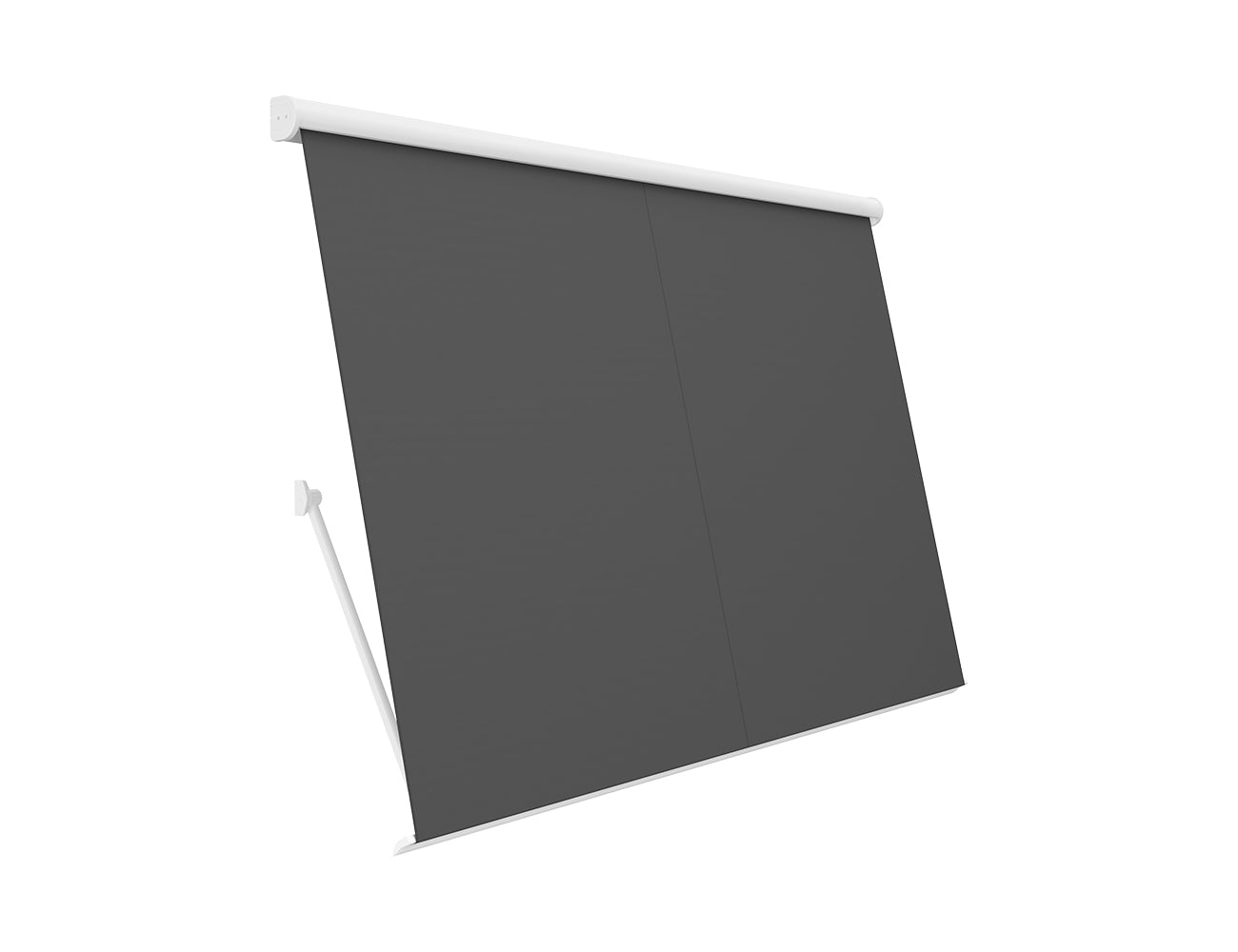

• White

• Dark Grey

Fabric (solution-dyed acrylic)

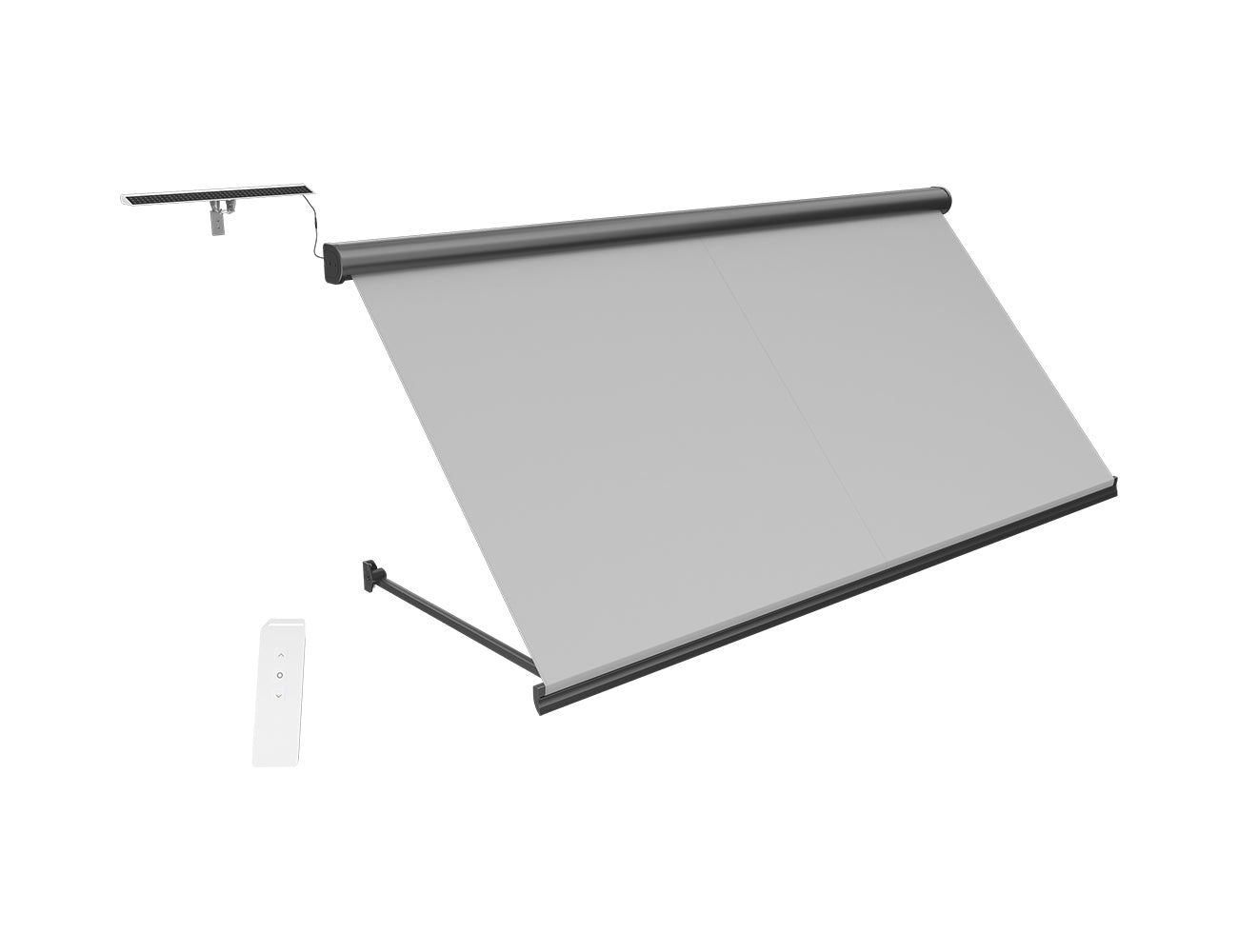

• Light Grey (AF1120007-YT)

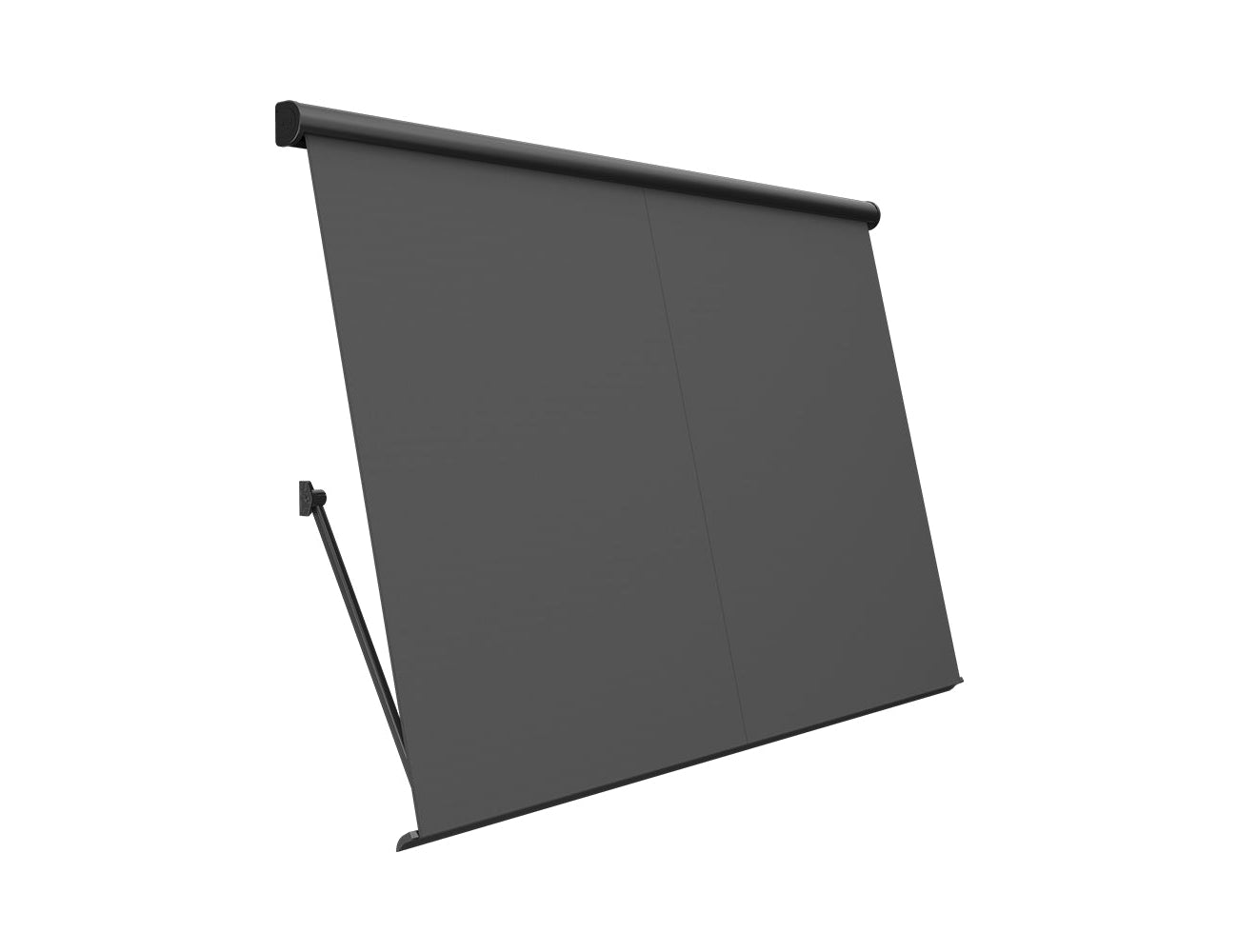

• Dark Grey (AF1120056-YT)

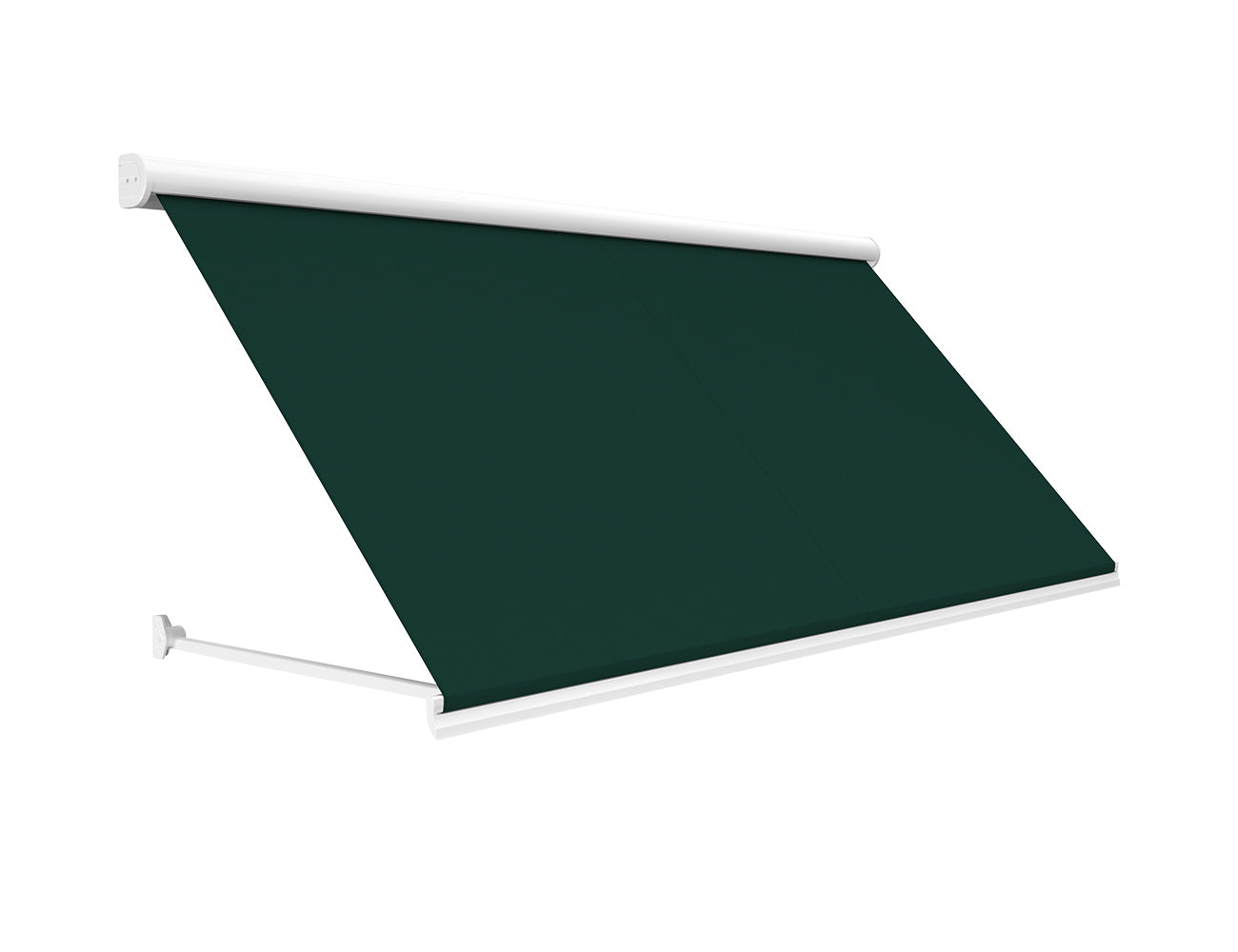

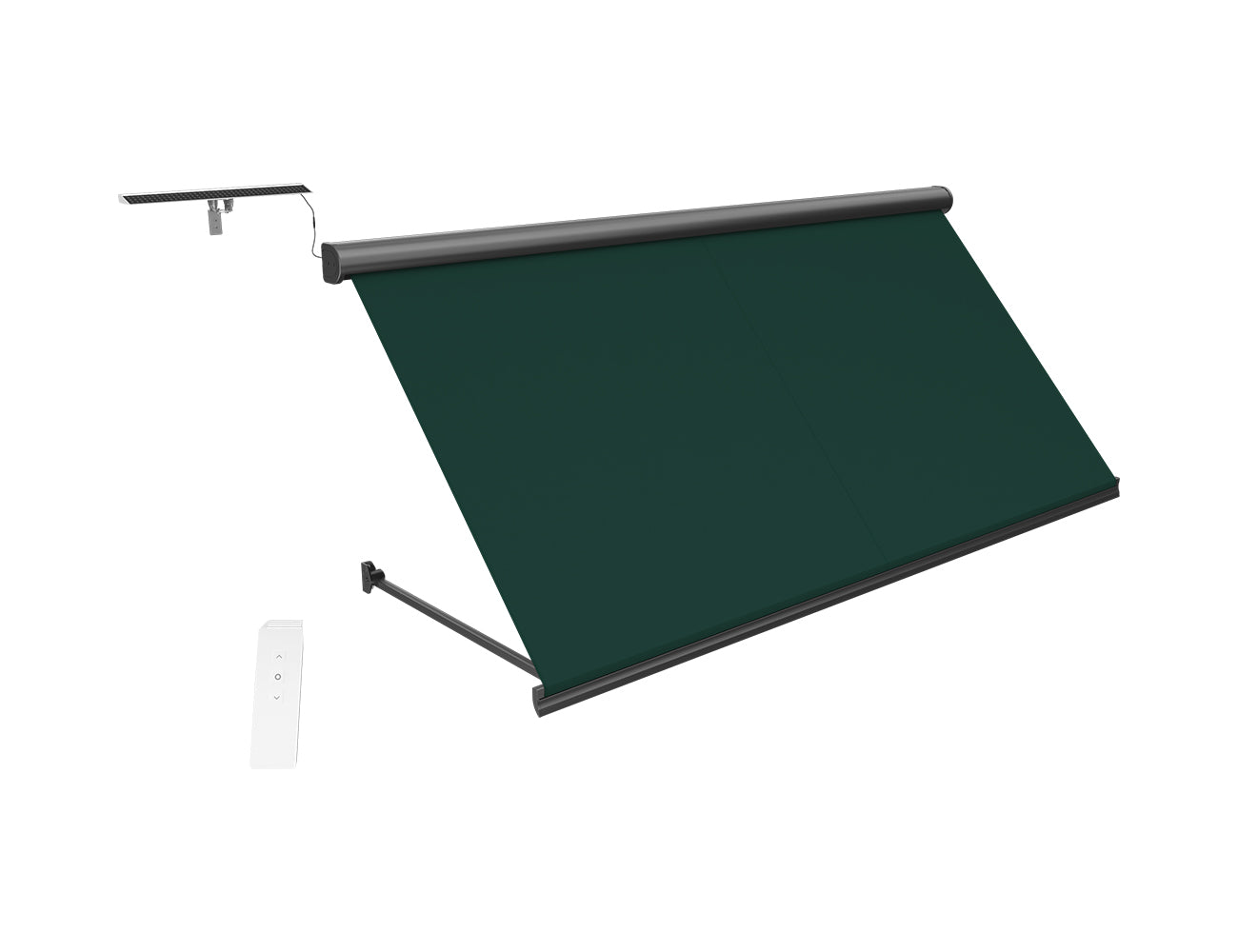

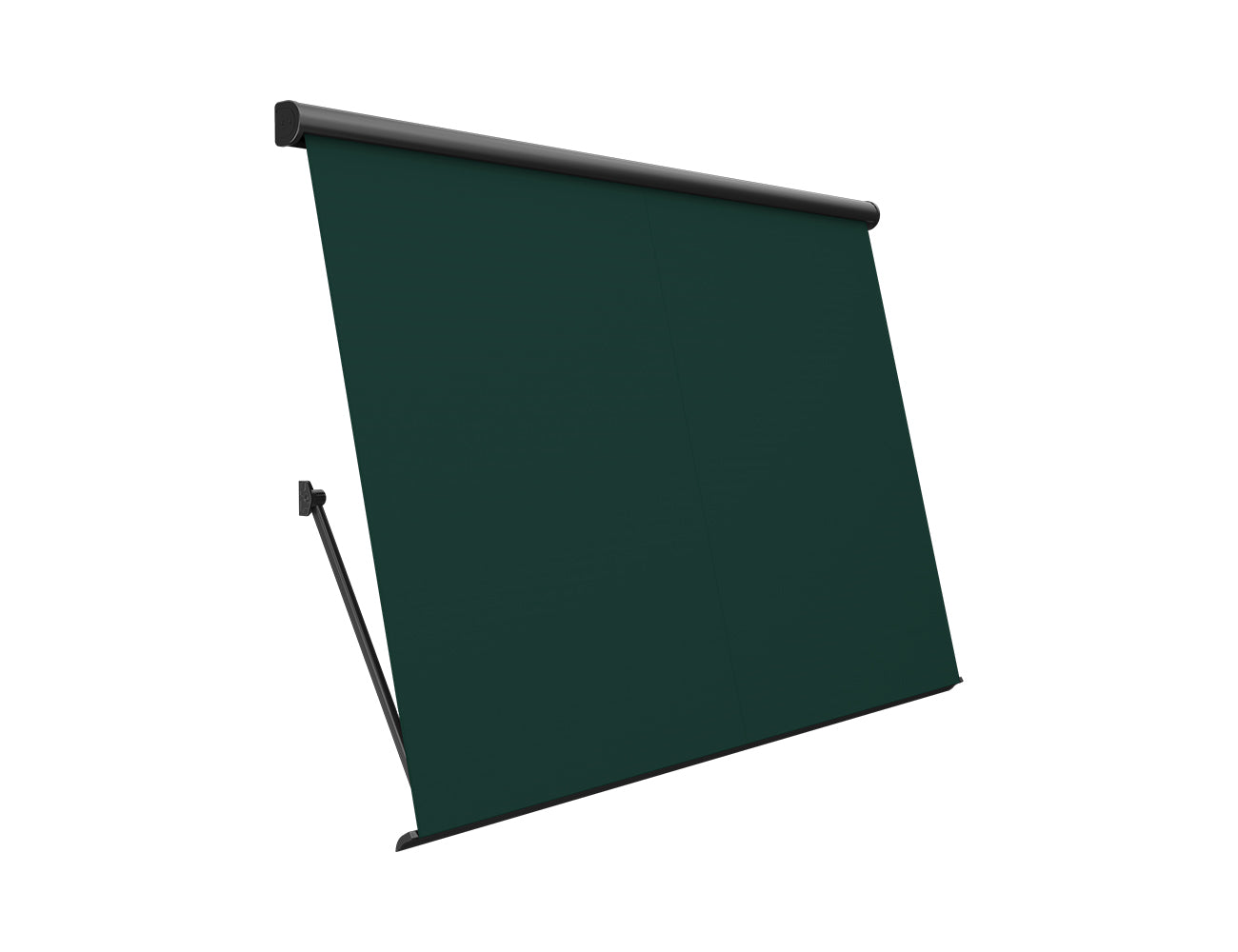

• Green (AF1120139-YT)

Technical details

• Operation: Solar-powered motor with remote control

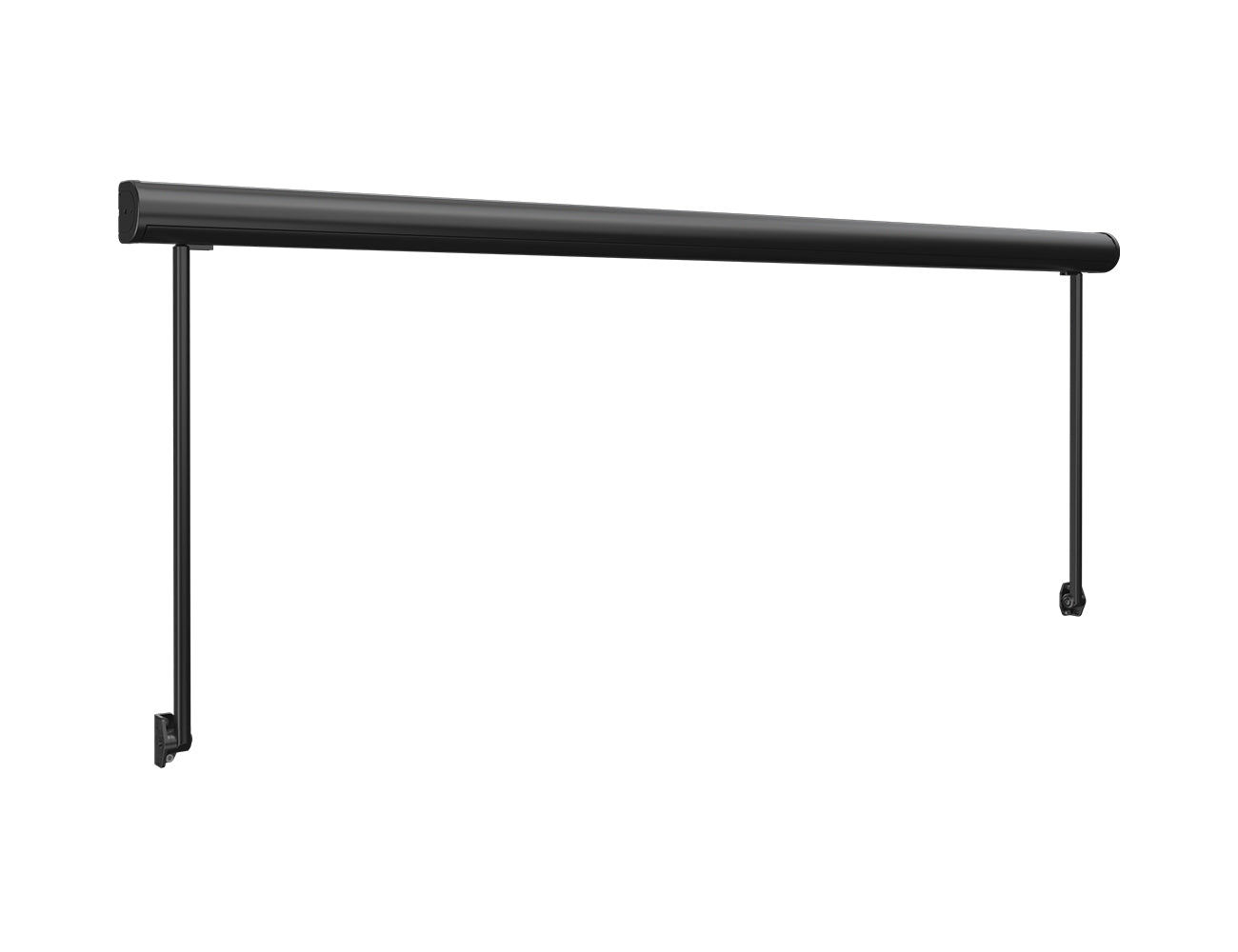

• Mechanism: Pivot arm awning, swing angle 0°–170°

• Fabric: 100% solution-dyed acrylic, >280 g/m², UV and fade resistant

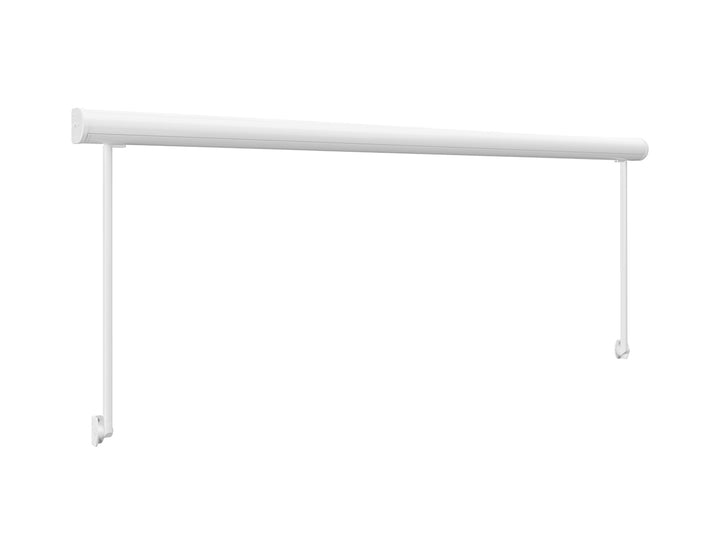

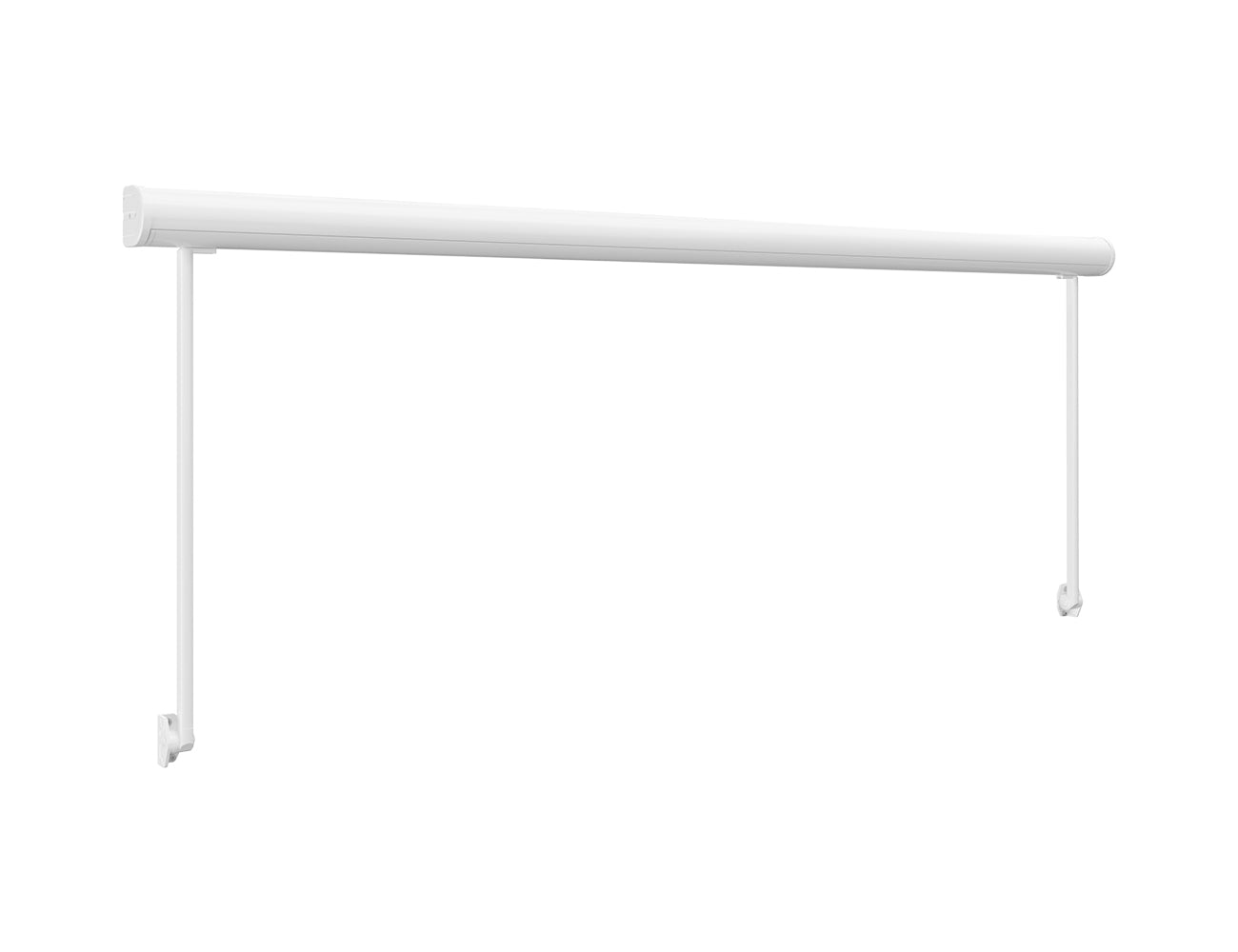

• Frame: Powder-coated 6063-T5 aluminium with steel roller tube

• Wind resistance: 62–74 km/h

• Cassette section: 112 × 118 × 1.8 mm

• Solar panel size: 540 × 90 mm

• Roller tube: Ø70 mm, thickness 1 mm

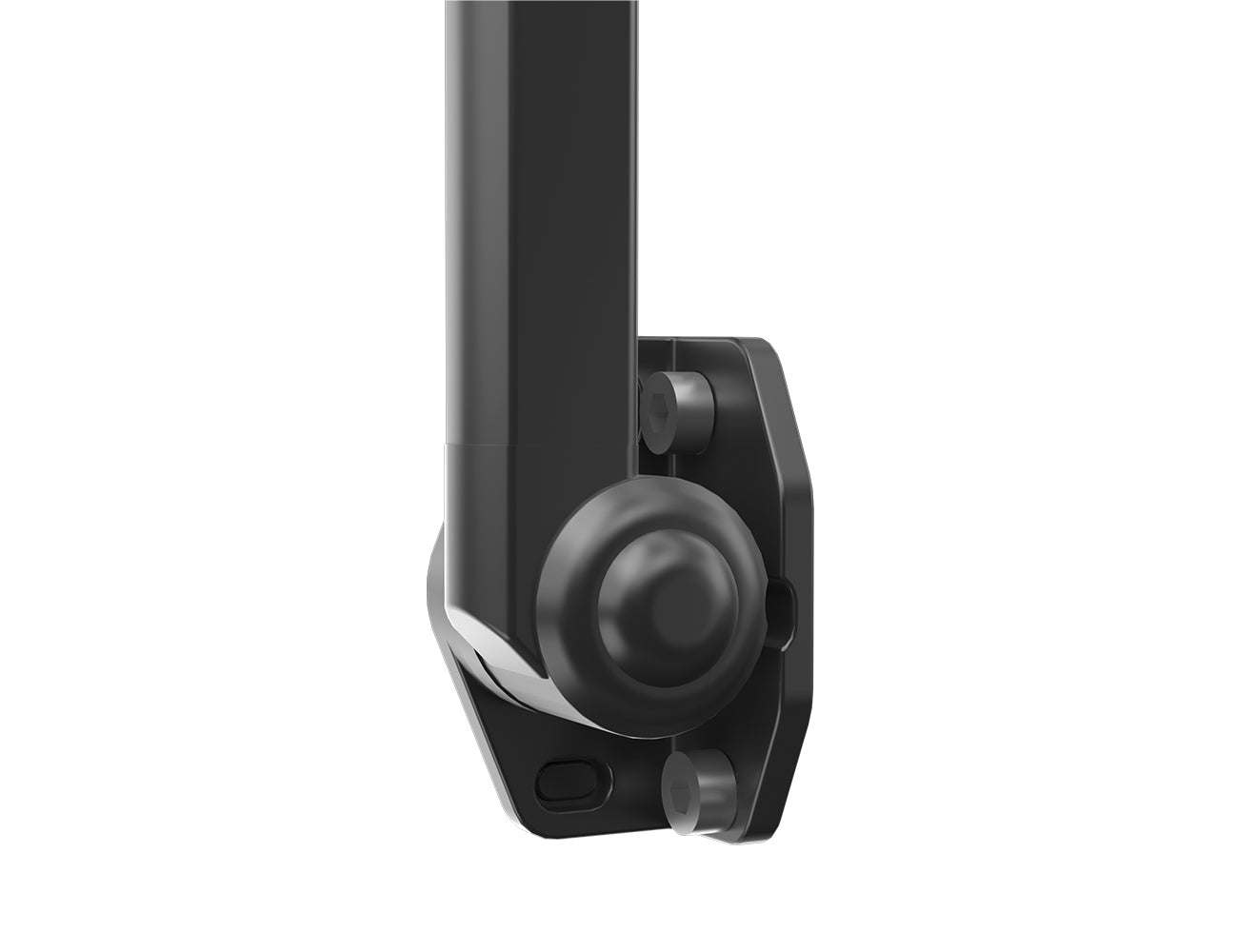

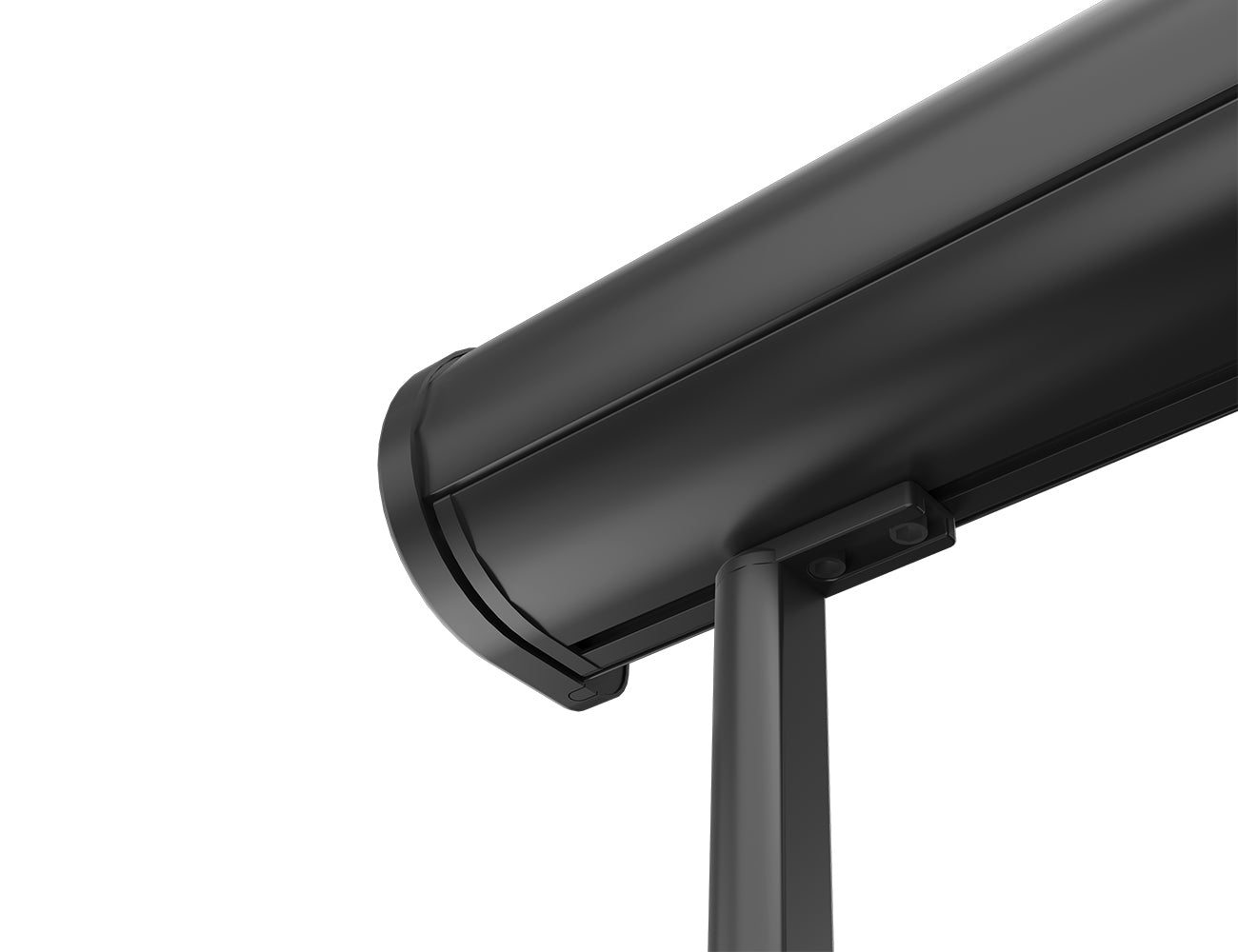

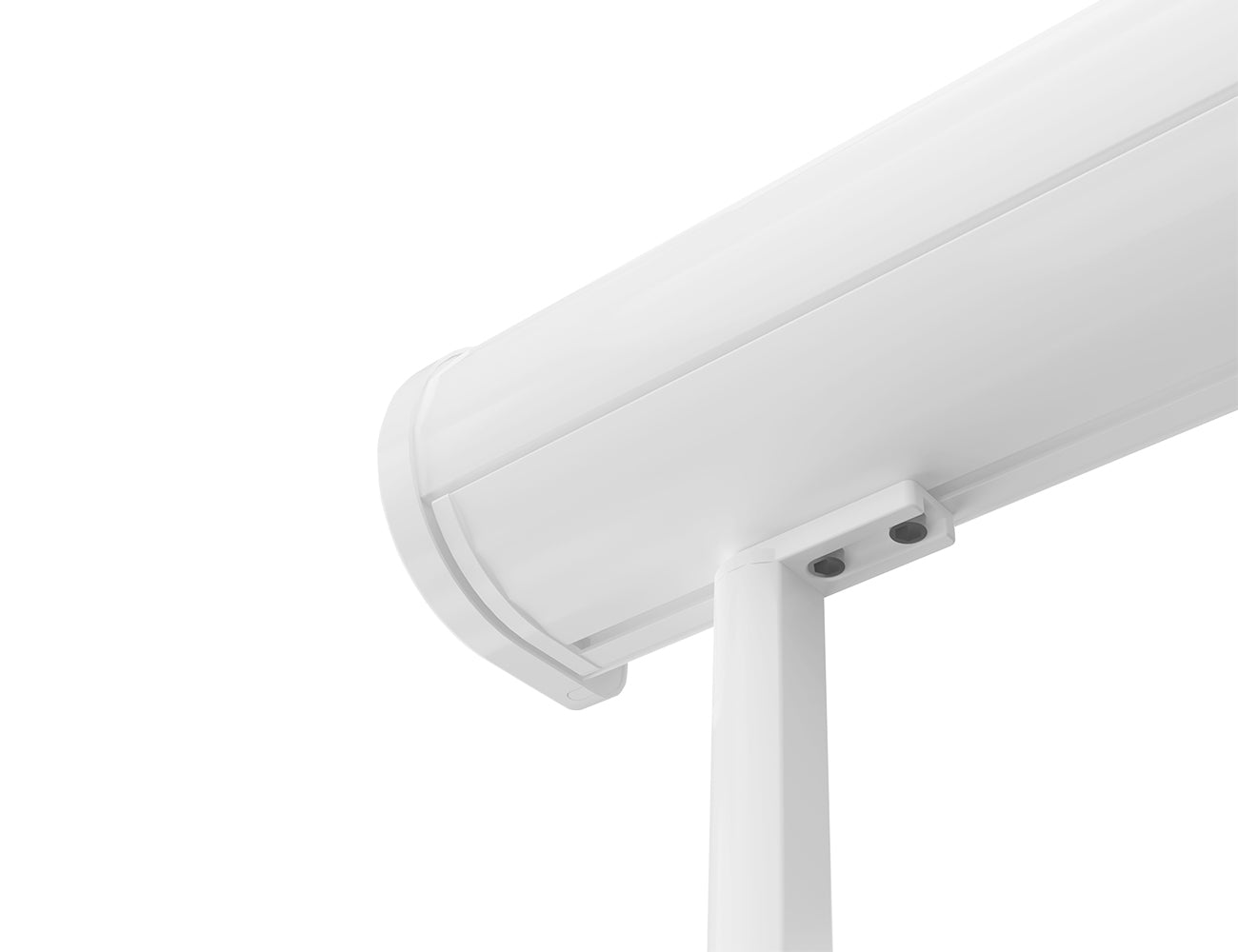

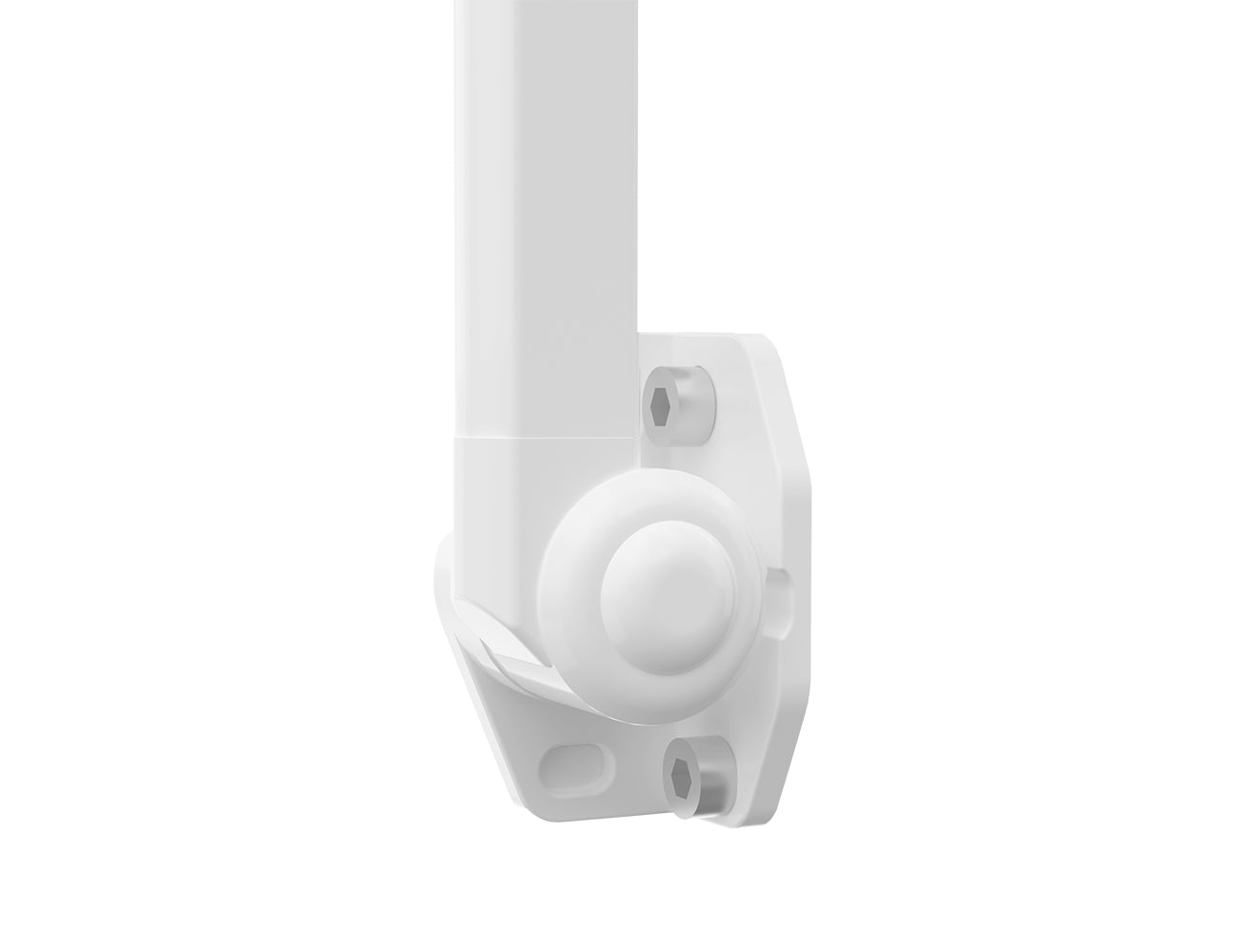

• Drop arm profile: 30 × 30 × 1.5 mm

• Motor: Wistar motor, IP44 waterproof rating

Warranties

• Frame & motor: 5 years

• Fabric fade resistance: 5 years

• Solar panel: 2 years

What you receive

• 1 × Solaris Solar Motorised Drop Arm Window Awning

• 1 × Instruction / installation manual

Package dimensions：

1.0 × 1.5 m awning – 106 × 21 × 14.5 cm, 15.7 kg

1.5 × 1.5 m awning – 156 × 21 × 14.5 cm, 17.4 kg

2.5 × 1.5 m awning – 256 × 21 × 14.5 cm, 22.84 kg

2.0 × 2.0 m awning – 206 × 21 × 14.5 cm, 20.86 kg

3.0 × 2.0 m awning – 306 × 21 × 14.5 cm, 26.0.3 kg

4.0 × 2.0 m awning – 406 × 21 × 14.5 cm, 31.4 kg

4.5 × 2.0 m awning – 456 × 21 × 14.5 cm, 33.7 kg
