Shield your patio in style with the Rainier Full Cassette Motorised Retractable Awning. This modern awning combines robust sun protection with smart features to enhance your outdoor living experience. The fully enclosed cassette design protects the mechanism and fabric when retracted, while the premium Dickson® acrylic fabric blocks 99% of UV rays and withstands harsh weather conditions. Built-in LED lighting and optional smart climate controls let you enjoy your patio day or night, rain or shine.

Key Features:

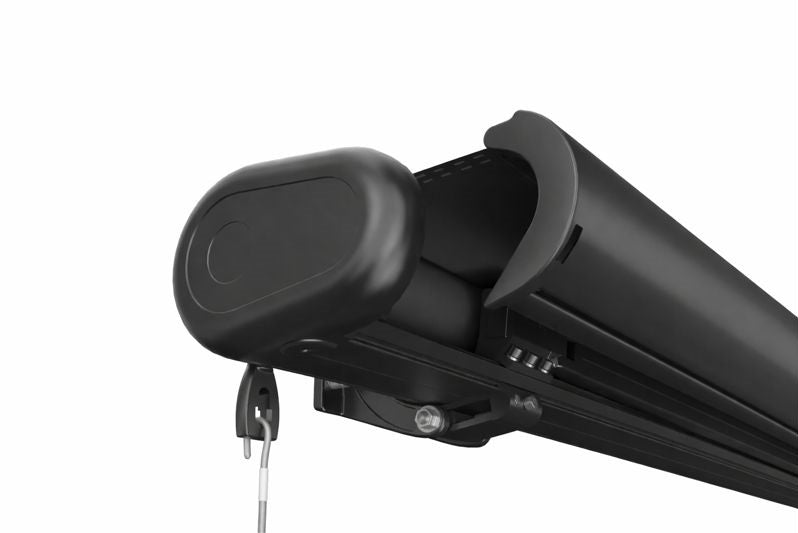

• Full cassette enclosure protects fabric and mechanisms from weather damage
• Remote-controlled operation with manual override capability
• Integrated LED lighting with auto-shutoff when retracted

• Adjustable pitch (0-30 degrees) for optimal shade coverage
• Premium Dickson® acrylic fabric resists fading, mold, and stains
• Wind resistance up to 50 km/h
• Removable valance for flexible styling options
• Compatible with concrete, solid brick, or wood walls
• Warranty: 5 years (frame/motors), 10 years (fabric fade resistance)

Specifications:

• Frame Colour: White / Dark Grey

• Canopy Colour: Dark Grey / Light Grey

• Canopy Fabric: 100% Solution Dyed French Dickson®Acrylic Fabric(>280g/㎡)

• Frame Material: Powder Coated 6063-T5 Aluminium  + Steel Roller Tube

• LED Strip: 3000K warm light with adjustable brightness levels

• Lights: Built-in LED light system

• Operation: Remote control and manual

• Water Draining Front Beam

• Awning Arm Dimensions:  Small Arm: 52 x 28 x 2.5mm Big Arm: 61 x 33 x 3mm

• Cassette Cover Dimensions: 175 x 155 x 2.5mm

• Roller Tube Diameter: 80mm

• Roller Tube Thickness: 1.2mm

• Front Beam Dimensions: 120 x 64.8 x 2.8mm

• Wind resistance: Up to 50km/h
• Motor Type: Wistar® Motor

• Motor Waterproof Grade: IP44

• Power: 230V / 50Hz

• Power Cable: 1.5m

• Hand Crank Length: 1.5m

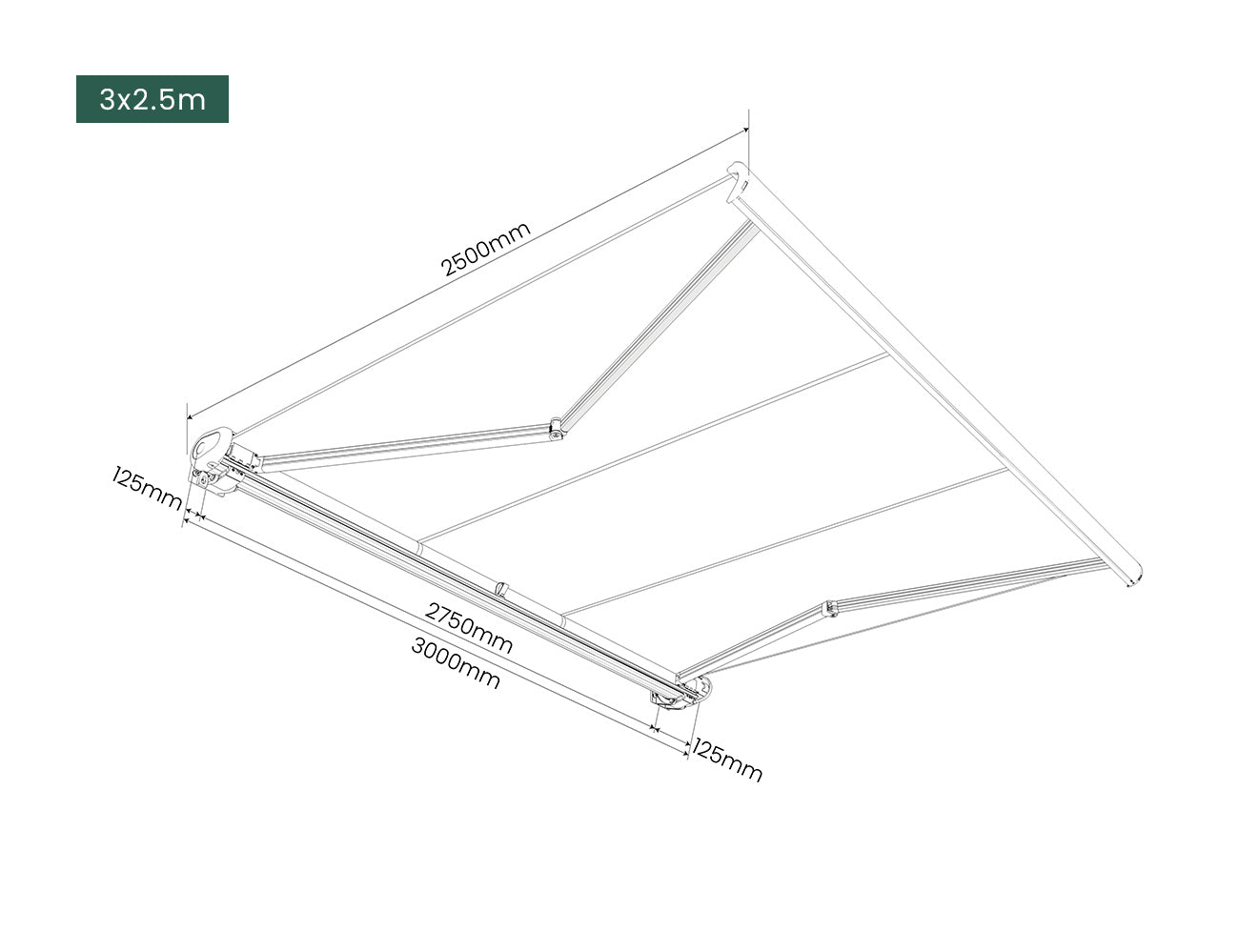

• Product Dimensions: 400 x 250cm/500 x 3000cm

• Net Weight: 3m x 2.5m, 53kg/ 4m x 2.5m, 68kg/ 5m x 3m, 84kg
• Packing: One package
• Packaging Dimensions + Weight: 3m x 2.5m Package: 345 x 28 x 22cm, 58kg/ 4m x 2.5m Package: 445 x 28 x 22cm, 77kg/ 5m x 3m Package: 549 x 28 x 22cm, 95.5kg


*The hand crank and the motor's wiring are on the left side of the awning when you are facing it.

Package Contents:

• 1 x Rainier Full Cassette Retractable Awning
• 1 x Manual Crank
• 1 x Hand Crank Connector
• 1 x Motor Limit Adjusting Rod
• 1 x Remote Control
• 2 x Wall Brackets
• 8 x Expansion Bolts
• 8 x Lag Bolts

• 1 x Instruction Manual

Click to download:  installation manual

Click to download:  remote control recode manual

Click to download:  awning fabric options brochure

Click to download:  living culture VS other brand -fabric roll comparison
