Aegis Outdoor Dog Run With Roof Cover - 196x582x230cm
SKU: CS26902
Provide your dog with a massive, secure area for exercise and rest. At nearly 6 metres in length, this enclosure offers significantly more freedom than standard kennels. Built with a hot-dip galvanised steel frame and flexible chain-link mesh, it ensures secure containment with maximum airflow. The included roof cover creates a designated sheltered zone, ensuring your pet stays dry during showers and protected from the sun.
Important: This dog run is designed for supervised outdoor activity and is not an escape-proof kennel. Highly active dogs, dogs unfamiliar with outdoor enclosures, or dogs prone to separation anxiety, chewing, digging, or pushing against barriers may damage the mesh or attempt to escape. Gradual acclimation and supervision are recommended.
Key Features
-
Weather-Resistant Build: Both the 32 mm steel frame and 3 mm wire mesh are hot-dip galvanised and plastic-coated (Black), offering dual-layer protection against rust and the kiwi weather.
-
Secure Chain-Link Mesh: The 60 mm x 60 mm diamond mesh is flexible yet durable, designed to absorb impact without breaking. Note: The mesh spacing is optimised for medium to large breeds.
-
Waterproof Roof Cover: Manufactured from 420D Oxford fabric with UV inhibitors, the canopy blocks sun damage and sheds rain. (Includes one cover unit to create a shaded retreat).
-
Walk-In Access: The 2.3-metre height allows owners to enter comfortable for cleaning, feeding, or interaction without crouching.
Specifications:
| Feature | Detail |
| Overall Dimensions | 196 cm (W) x 582 cm (L) x 230 cm (H) |
| Frame Material | 32 mm Steel Tubing (1 mm wall thickness) |
| Mesh Type | 3.0 mm Galvanised & Coated Wire |
| Mesh Spacing | 60 mm x 60 mm (Chain Link style) |
| Roof Fabric | 420D Waterproof Oxford Cloth |
| Colour | Black |
Important Assembly Notes
-
Installation: This unit utilises a modular frame with a roll-out chain link mesh system.
-
Tensioning: For maximum security, before installation, fully unfold the mesh and lay it flat. Ensure it is straight and free of twists before securing it to the metal frame.
-
Anchoring: It is recommended to anchor the frame to the ground (ground pegs/bolts not always included) to ensure stability during high winds.
Packaging:
- Gross Weight: 89.7kg
- Packaging1: 195*24*11cm 25.7kg
- Packaging2: 162*24*9cm 18kg
- Packaging3: 182*22*18cm 17kg
- Packaging4: 182*22*18cm 17kg
- Packaging5: 49*40*17cm 12kg
- Packaging Material: carton
Package Contents:
- 1 x Dog Run (Includes 1 × Roof Cover)
- 1 x Assembly Instruction
Click to download: Installation manual
Watch Video: Mesh Alignment & Straightening
Watch Video: Door Mesh Installation
Cover Installation Tips：
- Ensure the top edge of the mesh is positioned slightly below the top frame. Avoid leaving sharp wire ends protruding upward where they may contact the roof cover.
- If any wire ends extend above the frame, use pliers to bend them downward before installing the cover.
- For additional protection, you may wrap any exposed wire ends with tape, rubber tubing, or other protective material to help prevent unnecessary wear to the cover over time.
| Size | Gross Weight | Package 1 | Package 2 | Package 3 | Package 4 | Package 5 |
| 196x582x230cm | 89.7kg | 195x24x11cm,25.7kg | 162x24x9cm,18kg | 182x22x18cm,17kg | 182x22x18cm,17kg | 49x40x17cm,12kg |
Dispatch & Delivery
-
Quick Dispatch:
In-stock items are processed and dispatched within 48 hours of payment confirmation (excluding weekends and public holidays). -
Estimated Delivery Times for In-Stock Items:
North Island: Expect delivery within 5–7 business days.
South Island: Expect delivery within 5–14 business days.
(Exact delivery estimates are displayed at checkout.) -
Handling Heavy or Bulky Items:
For larger or heavier items, please ensure someone is available at delivery to assist with unloading. Additional delivery assistance can be arranged if required (an extra fee may apply).
Click & Collect
-
How It Works:
At checkout, select Pickup as your shipping method. Our team will contact you once your order is ready. -
Please bring your confirmation email when you come to collect your order.
Pickup Location: Pilkington Park, Unit 4, 167 Pilkington Road, Point England.
Pickup Hours: 8am to 4pm (Mon-Sat) except public holidays.
Shipping Costs
-
Calculate Your Shipping:
Use our shipping calculator by entering your postcode at checkout to get an estimate of your shipping cost.
Returns
We offer a full refund (including shipping) under the following conditions:
-
Defective Items:
If a faulty item is found to be defective and cannot be fixed or replaced. -
Incorrect Descriptions:
If the item does not match its website description.
Refund Timeframe: Once your refund request is approved, the funds will be returned to your original payment method within 5–7 business days. (Bank processing times may vary).
Learn more about our Return and Refund Policy
Need Assistance?
- Email: support@livingculture.co.nz
- Phone: 0800 298 398
- Auckland Showroom: 139 Wairau Road, Wairau Valley, Auckland, 0627
- Christchurch Showroom: 217 Blenheim Road, Riccarton, Christchurch 8041
We stand behind the quality of our products. Most items include at least a 12-month warranty, with extended coverage on many collections.
If your item arrives damaged or faulty, please let us know within 14 days of delivery, and we’ll replace it at no cost.
If a problem arises during the warranty period, we’ll assess it and offer a repair, replacement, or refund where appropriate.
Want to learn more about specific warranty periods and coverage? Visit our Warranty Information page for full details.
DESIGNED FOR SPACIOUS BACKYARDS
DESIGNED FOR SPACIOUS BACKYARDS

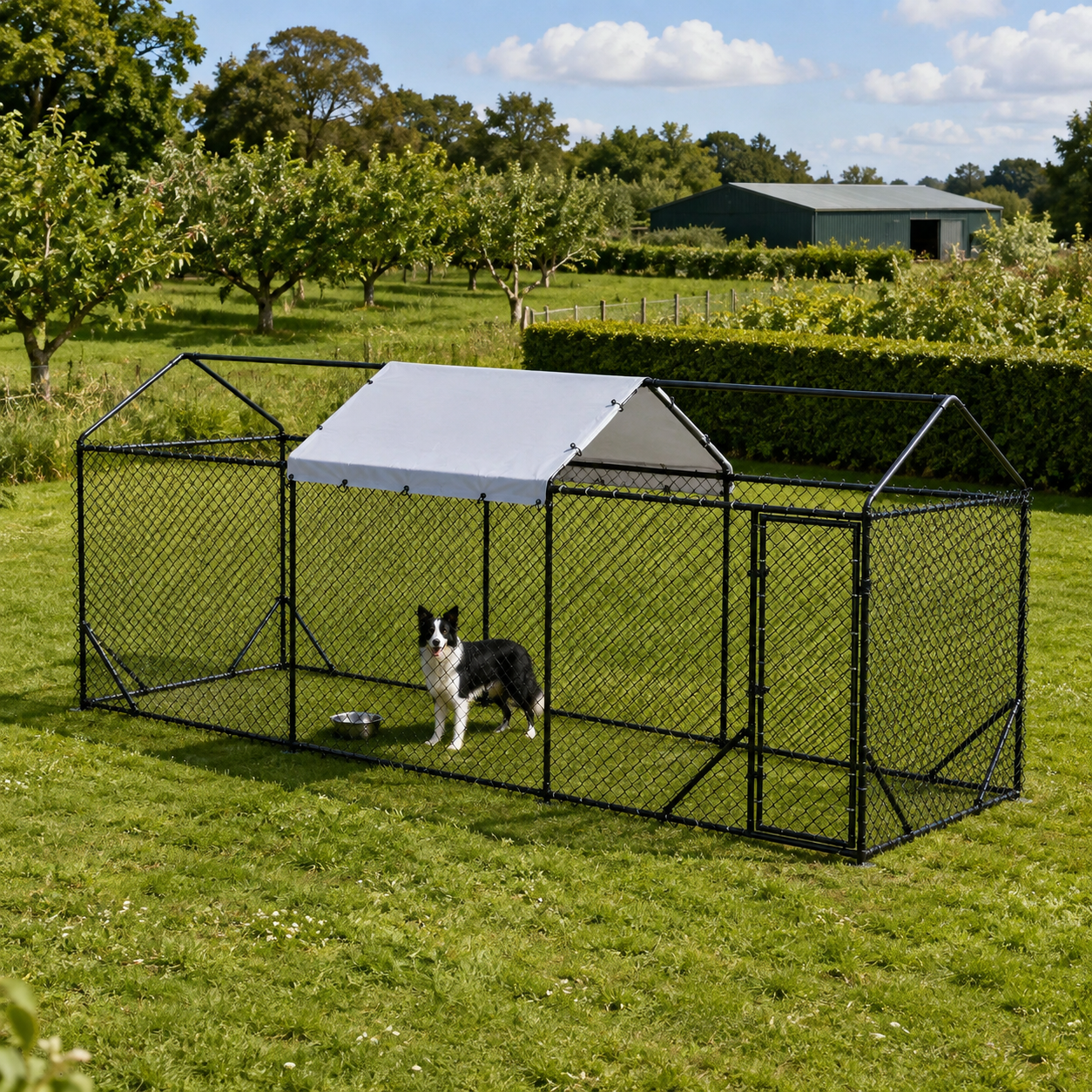

Open-Air Space for Exercise and Care.
With a 196 × 582cm footprint, this enclosure provides 11.4m² of space for exercise, rest and routine care. Its 2.3m peak height allows walk-in access for feeding and cleaning.
Open-Air Space for Exercise and Care.
With a 196 × 582cm footprint, this enclosure provides 11.4m² of space for exercise, rest and routine care. Its 2.3m peak height allows walk-in access for feeding and cleaning.
Secure by Design
Coated mesh, reinforced steel bracing and dual gate latches work together to create a more secure outdoor enclosure.
3.0mm Coated Wire Mesh
Heavy-gauge wire with 60 × 60mm spacing helps resist bending while maintaining airflow and visibility.
Dual Gate Latches
Separate top-and-bottom steel latches secure both ends of the gate and help reduce unwanted movement.

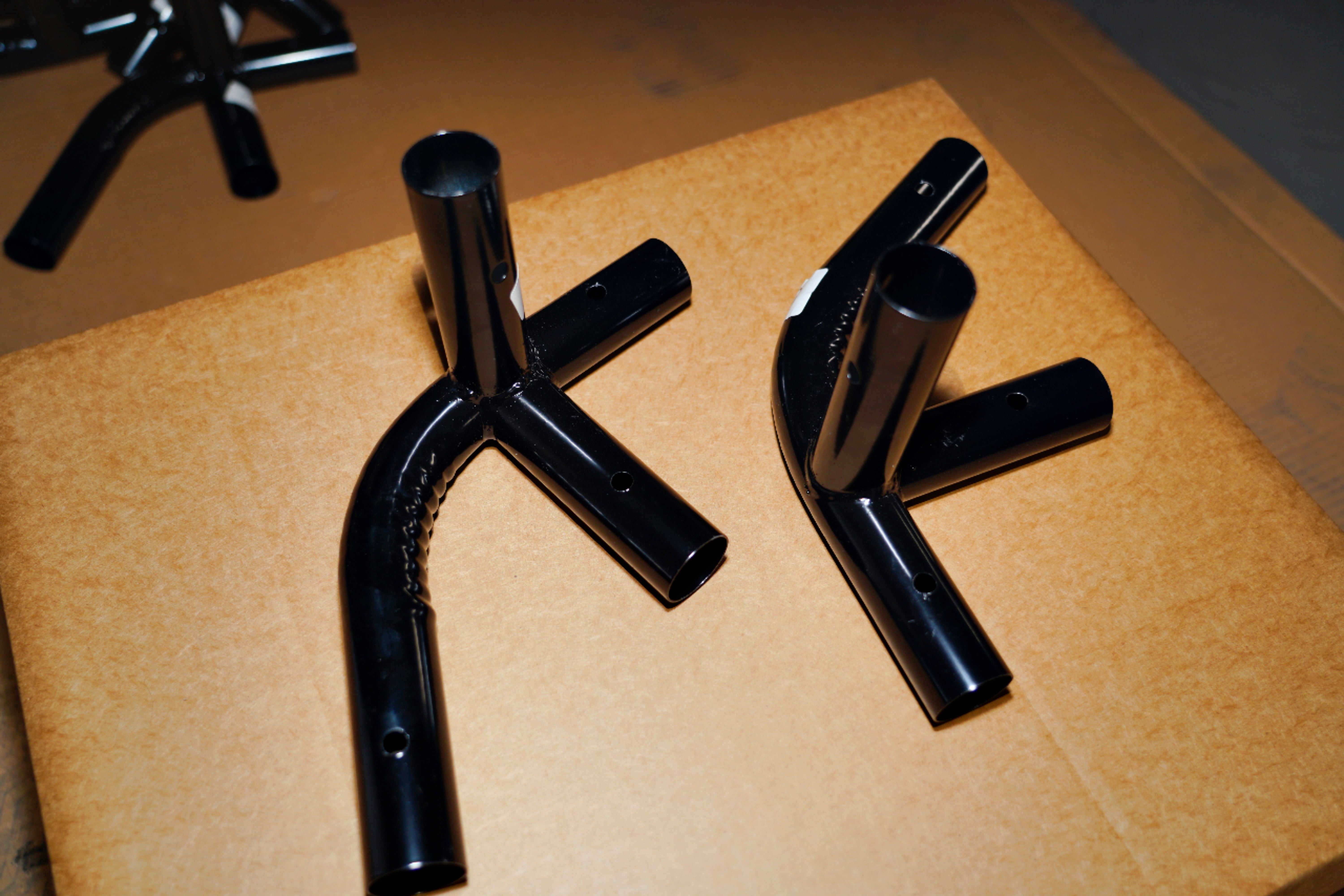

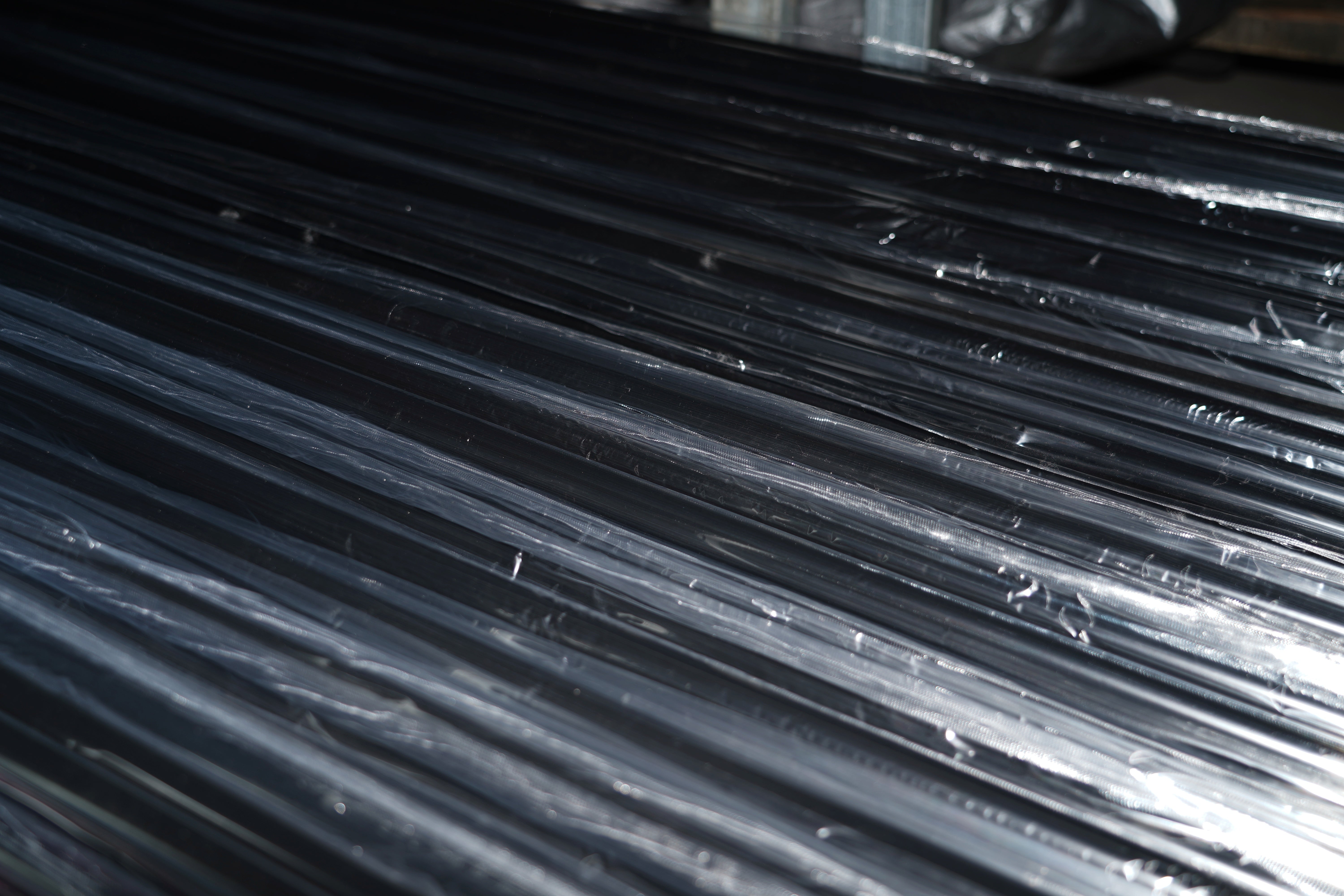

Reinforced Ø32mm Frame
Ø32mm steel tubes with 1.0mm walls and diagonal bracing add stability at key structural points.
Aegis Dog Run vs. Others
VS.
3.0mm coated wire
2.0–2.5mm wire
Ø32mm tubes / 1.0mm wall thickness
Typically 0.8 mm wall thickness
Triple-Layer Protection
Galvanized finish only
420D Oxford roof cover
PE or shade-cloth cover
2.3m full walk-in peak height
Lower overall height
Dual gate latches
Single gate latch

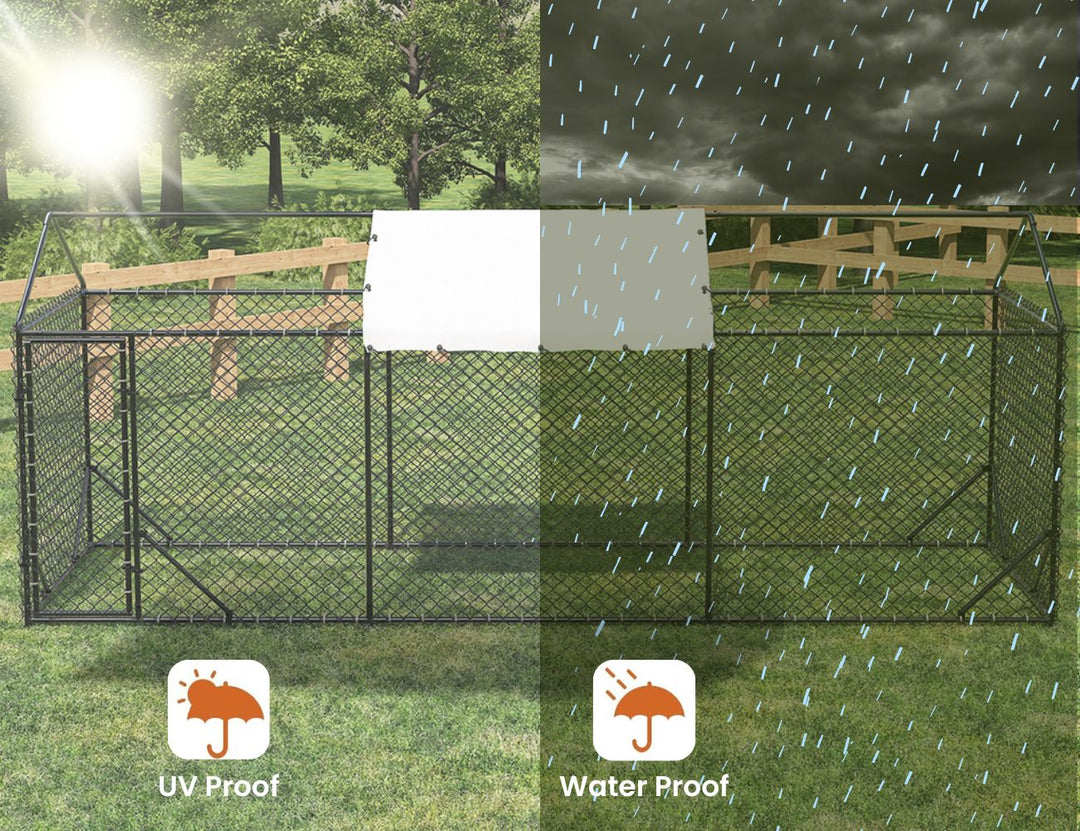

RAIN & SHADE PROTECTION

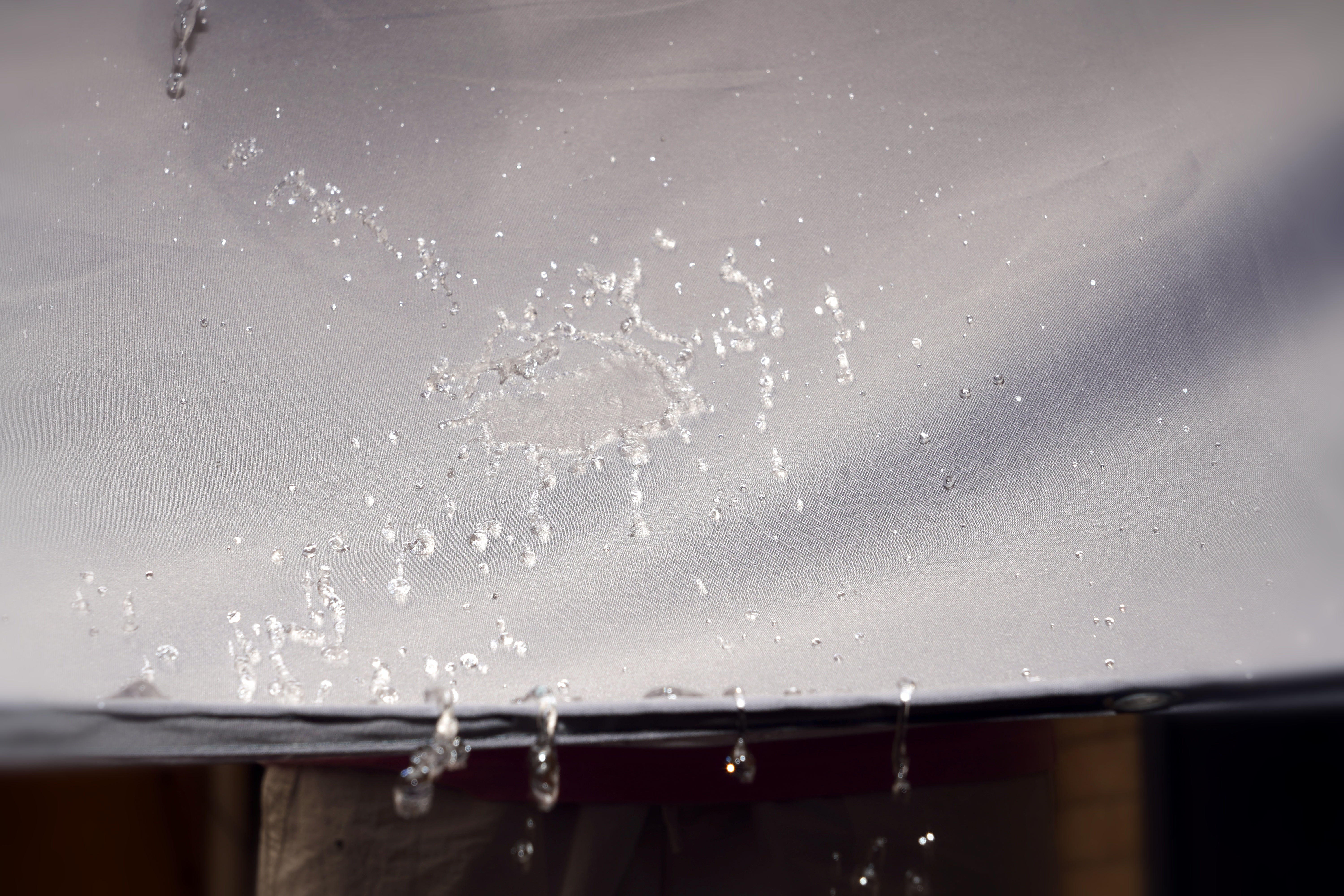

Waterproof 420D Oxford Roof Cover
Made from dense 420D Oxford fabric with a waterproof coating and UV inhibitors, the included roof cover helps provide shade and rain protection. Elastic ball ties keep it secured neatly to the frame.
DIY Assembly Guide
Two-person assembly is recommended. Fully unfold and straighten the chain-link mesh before securing it to the frame for a neater, more secure finish.
01
Assemble the Frame
Connect the base, upright posts, roof tubes and braces using the supplied fittings.
02
Fit the Gate
Attach the gate, hinges and two steel latches, then check that it opens smoothly.
03
Prepare & Secure the Mesh
Lay the mesh flat, straighten any twists, pull it tight and fasten it with metal ties.
04
Anchor & Add the Cover
Insert the ground stakes, bend down exposed wire ends and secure the roof cover with elastic ball ties.
🐕 Dog Run – Common FAQs
Quick answers about sizing, assembly, installation and everyday use.
The enclosure has a 196 × 582cm footprint, providing approximately 11.41m² of enclosed space, with a 230cm peak height. The right size depends on your dog’s breed, activity level and how long the enclosure will be used.
Yes. One grey 420D Oxford roof cover is included. It covers one section of the enclosure to create a sheltered area. Its waterproof coating and UV inhibitors help provide shade and protection from rain, while the open sides maintain airflow.
Yes. It is designed for DIY assembly, although two people are recommended, especially when tensioning and securing the chain-link mesh. Assembly time varies depending on the enclosure size and installation experience.
Before installation, fully unfold the mesh and lay it flat. Gently twist any uneven wire sections back into alignment, then pull the mesh tight and secure it evenly to the frame with the supplied metal ties. Properly preparing the mesh helps make installation smoother and creates a safer, more secure enclosure.
The reinforced gate uses separate top-and-bottom steel latches to help secure both ends of the closing edge. Check both latches and the mesh tension regularly, particularly if your dog is active or prone to pushing against enclosures.
Yes. The steel frame and wire mesh are hot-dip galvanized and finished with a protective plastic coating to improve corrosion resistance. Regular inspection and care of any damaged coating will help maintain the enclosure over time.
Yes. This dog run includes a 12-month warranty. If you experience a product fault, contact Living Culture with your order details so the issue can be assessed.
