Bering Wall Mounted Pergola
SKU: CS25310-4

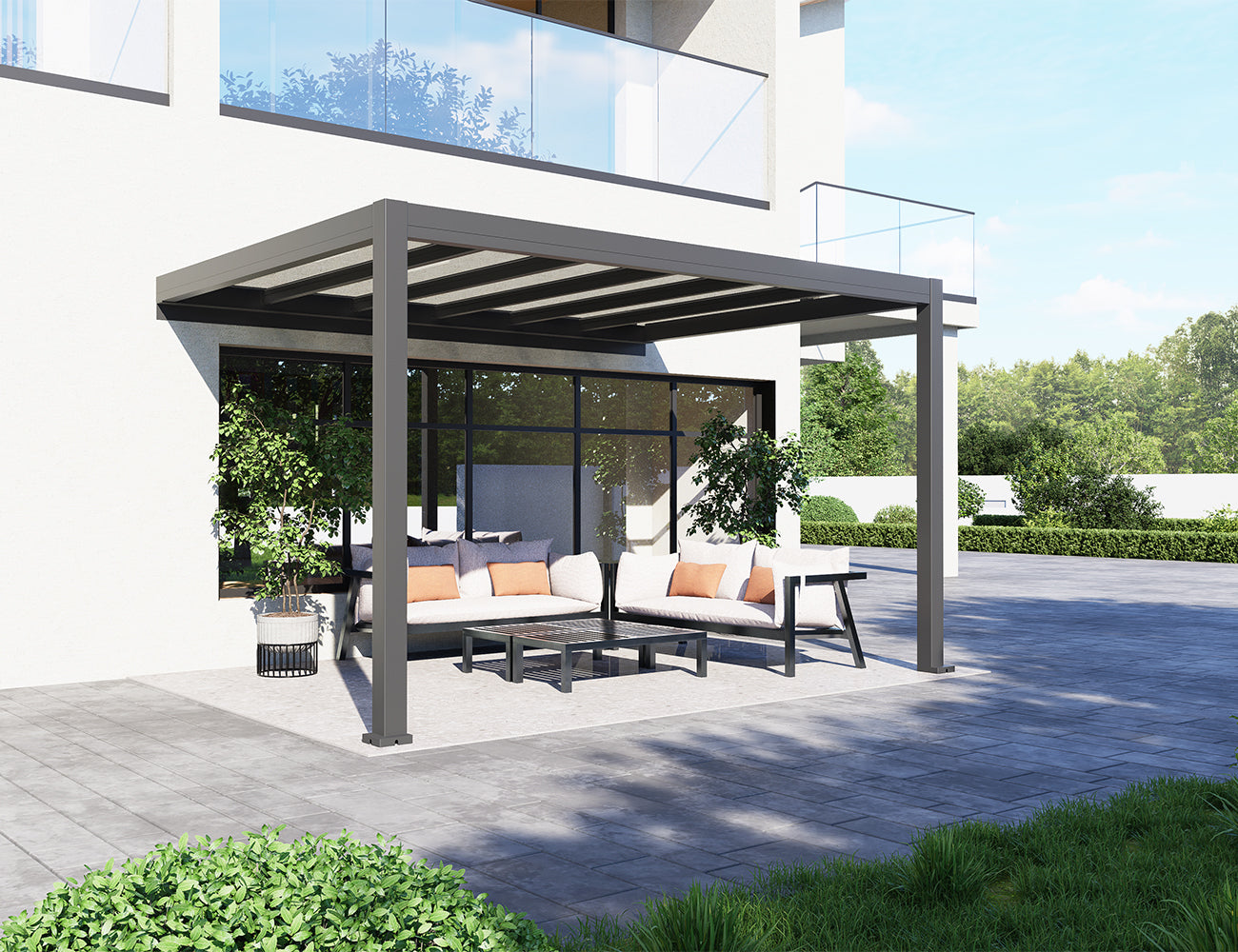

Designed to extend the architecture of your home outdoors, the Bering Wall-Mounted Pergola creates a sheltered space that feels purposeful and built-in. The structure anchors directly to your exterior wall, forming a covered zone that protects outdoor furniture and provides a natural transition from interior to exterior living.
Constructed from precision-engineered aluminium and topped with solid polycarbonate roofing, it delivers full rain and UV protection without darkening your patio. The louvre panels are adjustable, allowing you to enjoy an open-air feel even on grey days.
Sleek, architectural lines and a matte powder-coated finish make the Bering Wall-Mounted Pergola an ideal addition for modern homes that value clean form and lasting quality.
Features:
- Durable Aluminium Frame – Crafted from high-grade 6063-T5 powder-coated aluminium for superior strength, corrosion resistance, and a refined matte finish.
- Solid Polycarbonate Roof – German-designed Bayer® 4 mm panels provide reliable shelter while maintaining 85% light transmission for a bright, open atmosphere.
- Exceptional UV Protection – Blocks up to 99.8% of harmful UV rays with a 30 μm UV-resistant coating for long-lasting clarity and protection.
- Temperature-Tolerant Panels – Performs consistently from –40°C to 120°C, ensuring durability in both hot and cold climates.

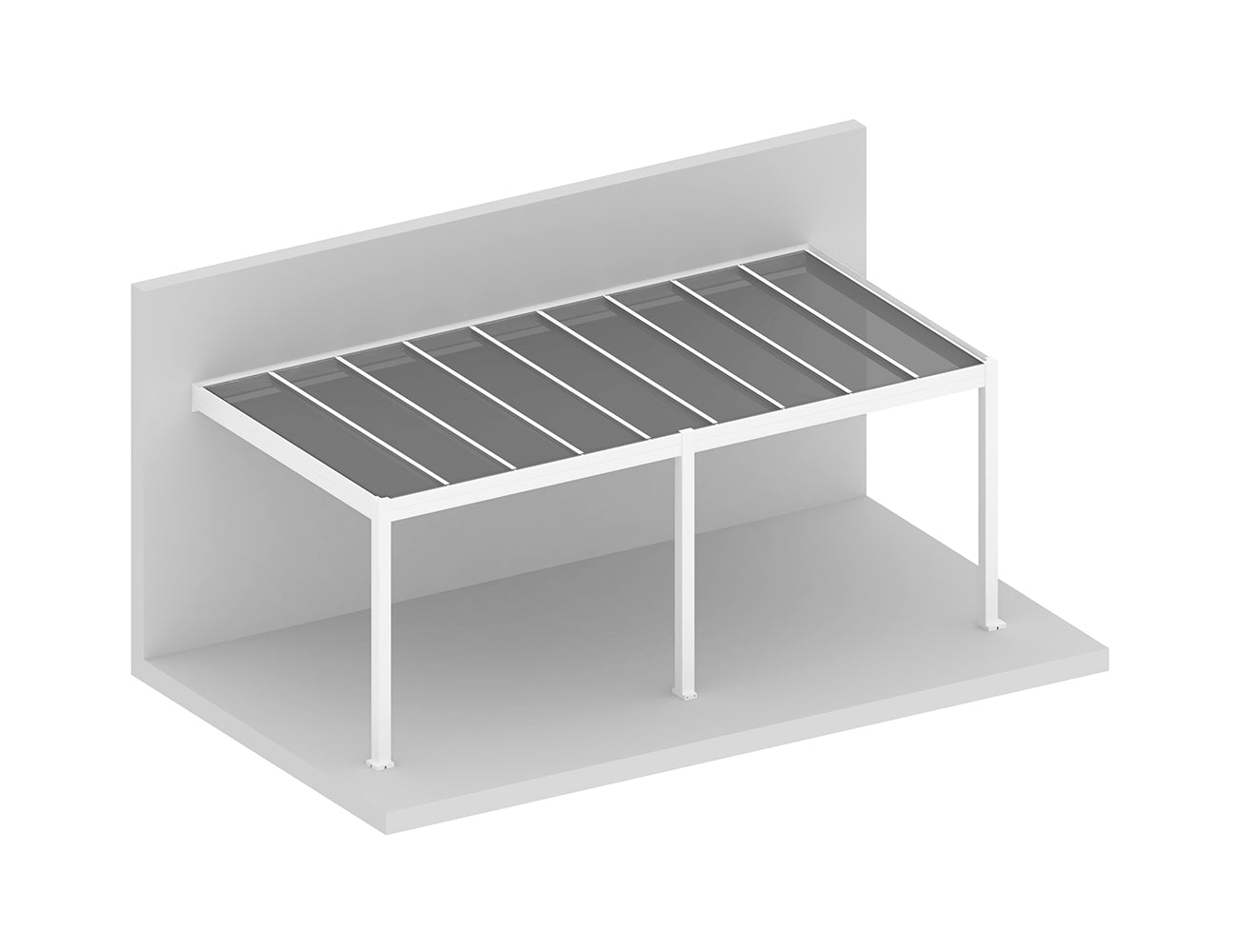

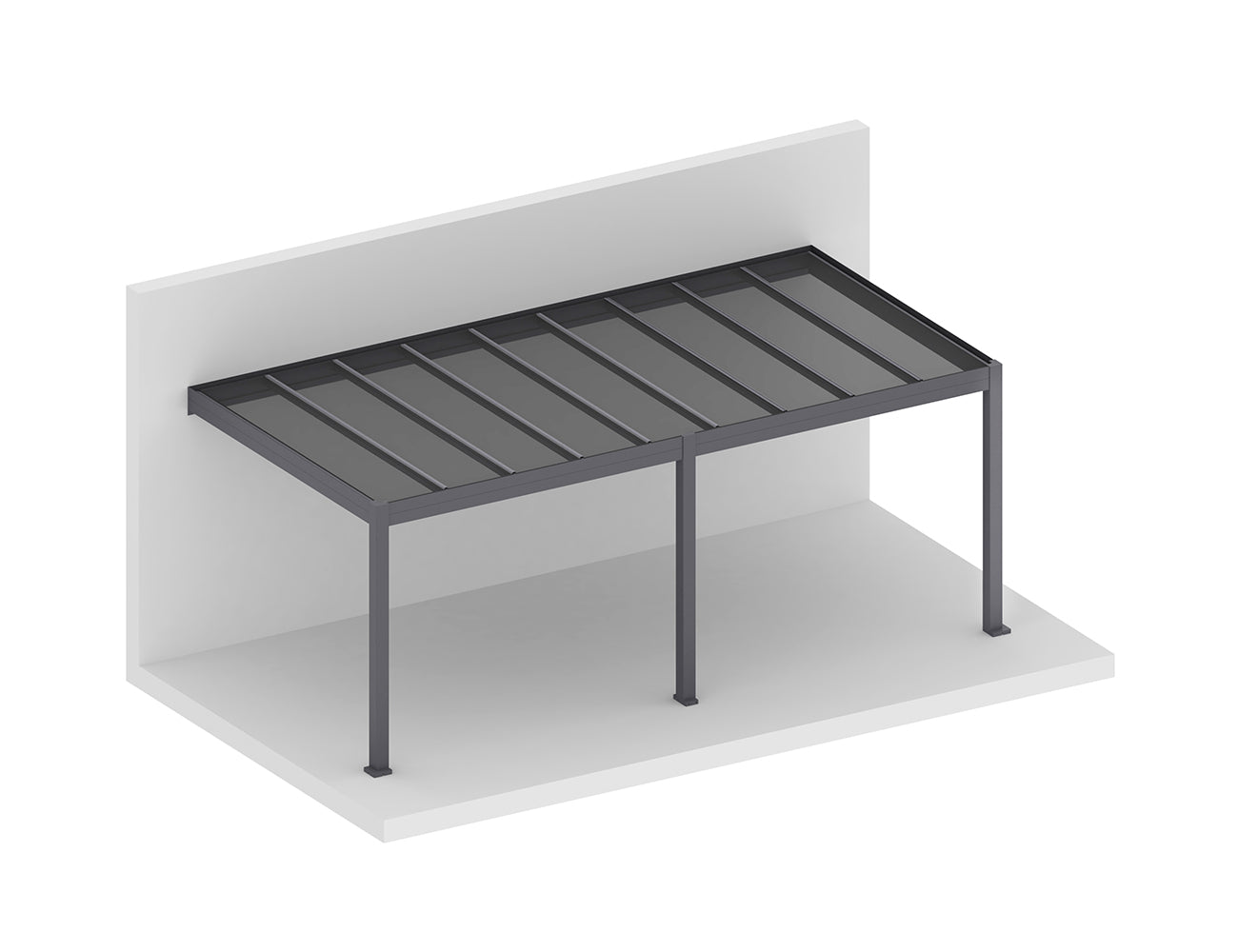

- Wall-Mounted Design – Attaches directly to your home to create a seamless covered extension for patios, decks, or entryways.
- Elegant Architectural Profile – Minimalist lines, hidden fixings, and a clean silhouette complement any modern landscape.
- Low-Maintenance Finish – Powder-coated surface resists fading, peeling, and corrosion, keeping the pergola looking new for years.
-
Peace of Mind – Backed by a 10-year structural warranty and 10-year roof panel warranty.
Specifications:
- Available Sizes (W x D x H in meters):

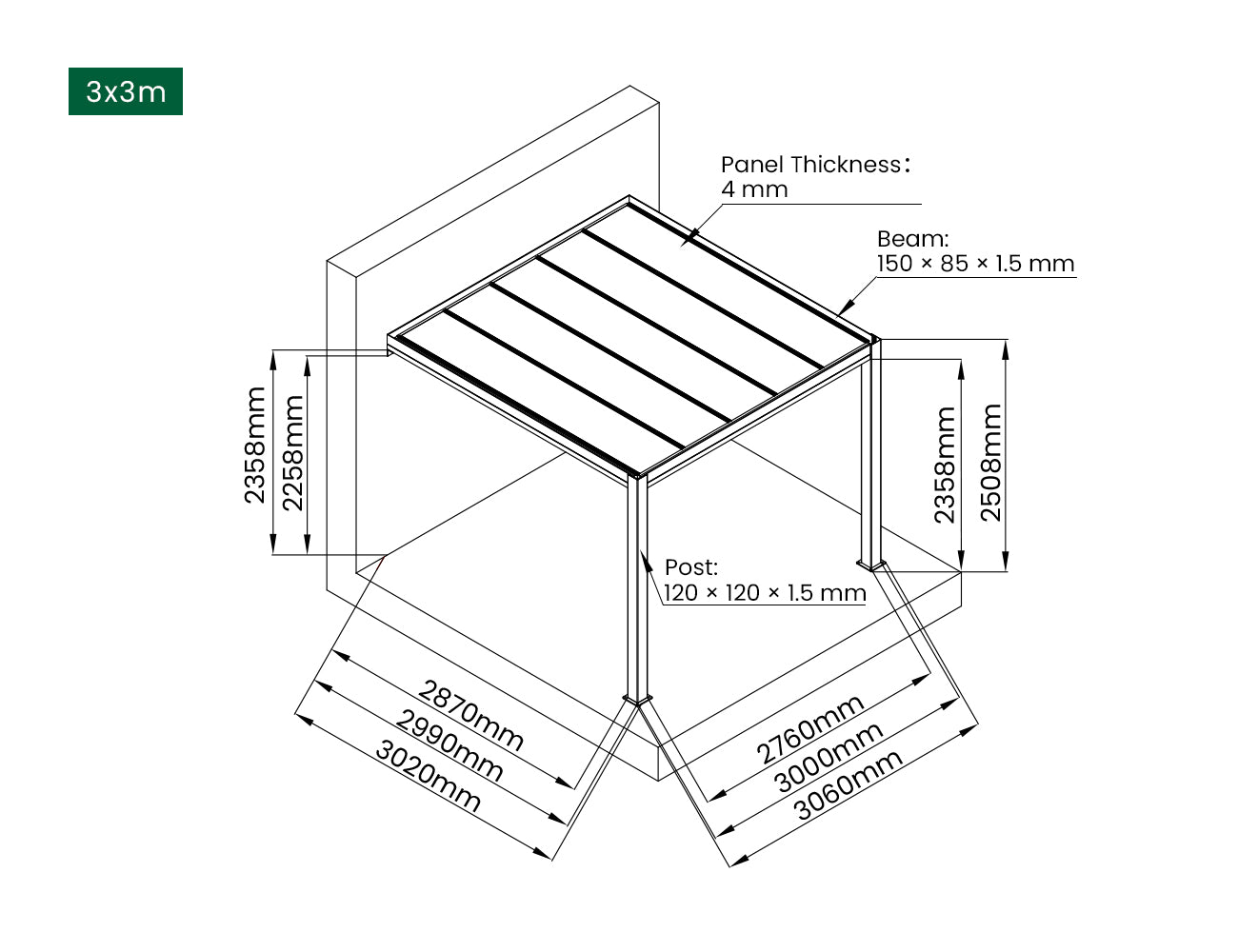

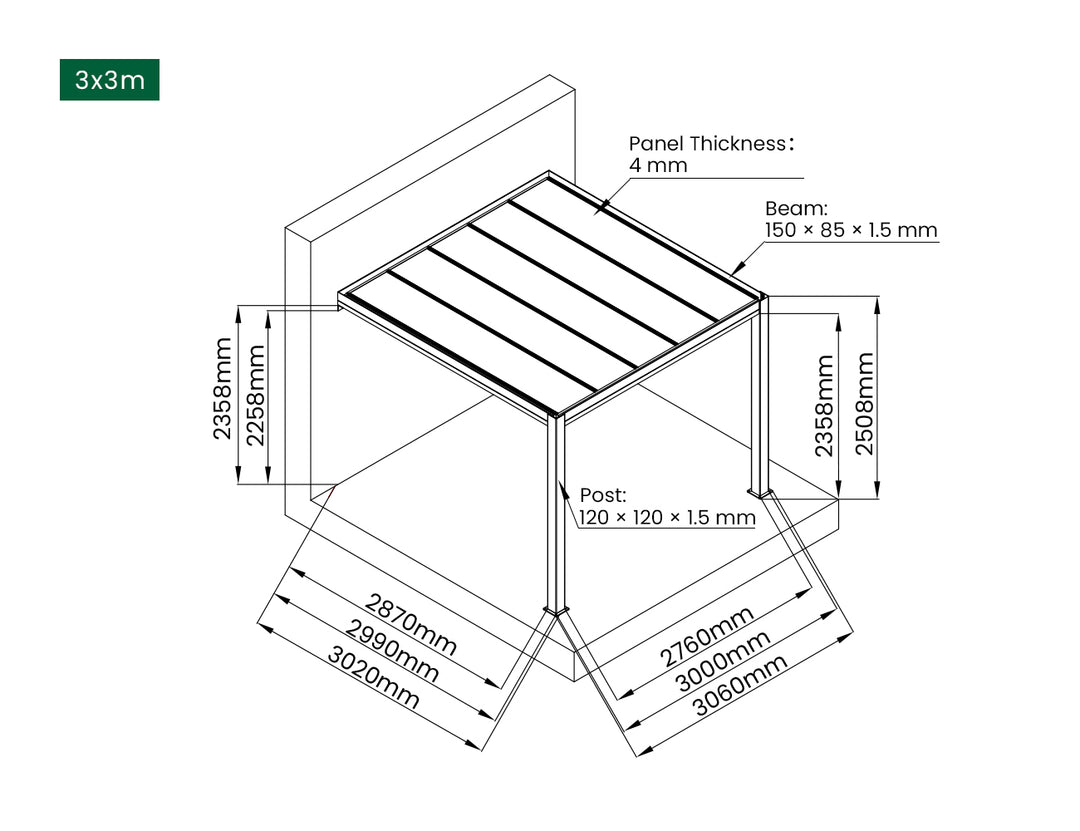

3 x 3 x 2.5

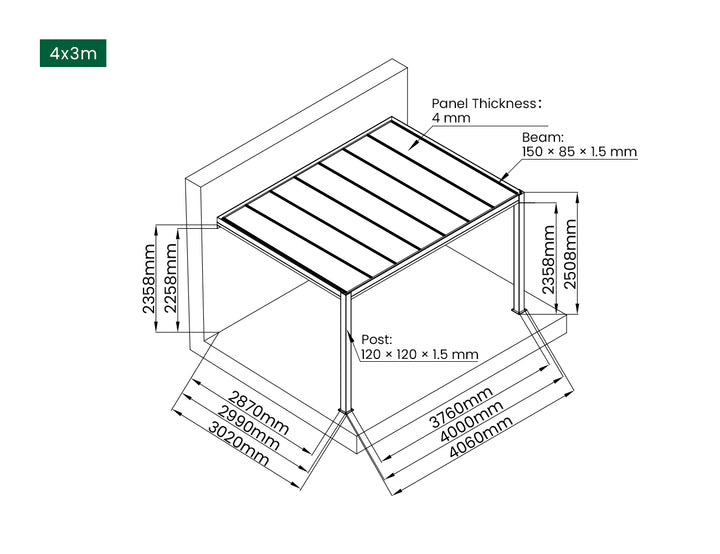

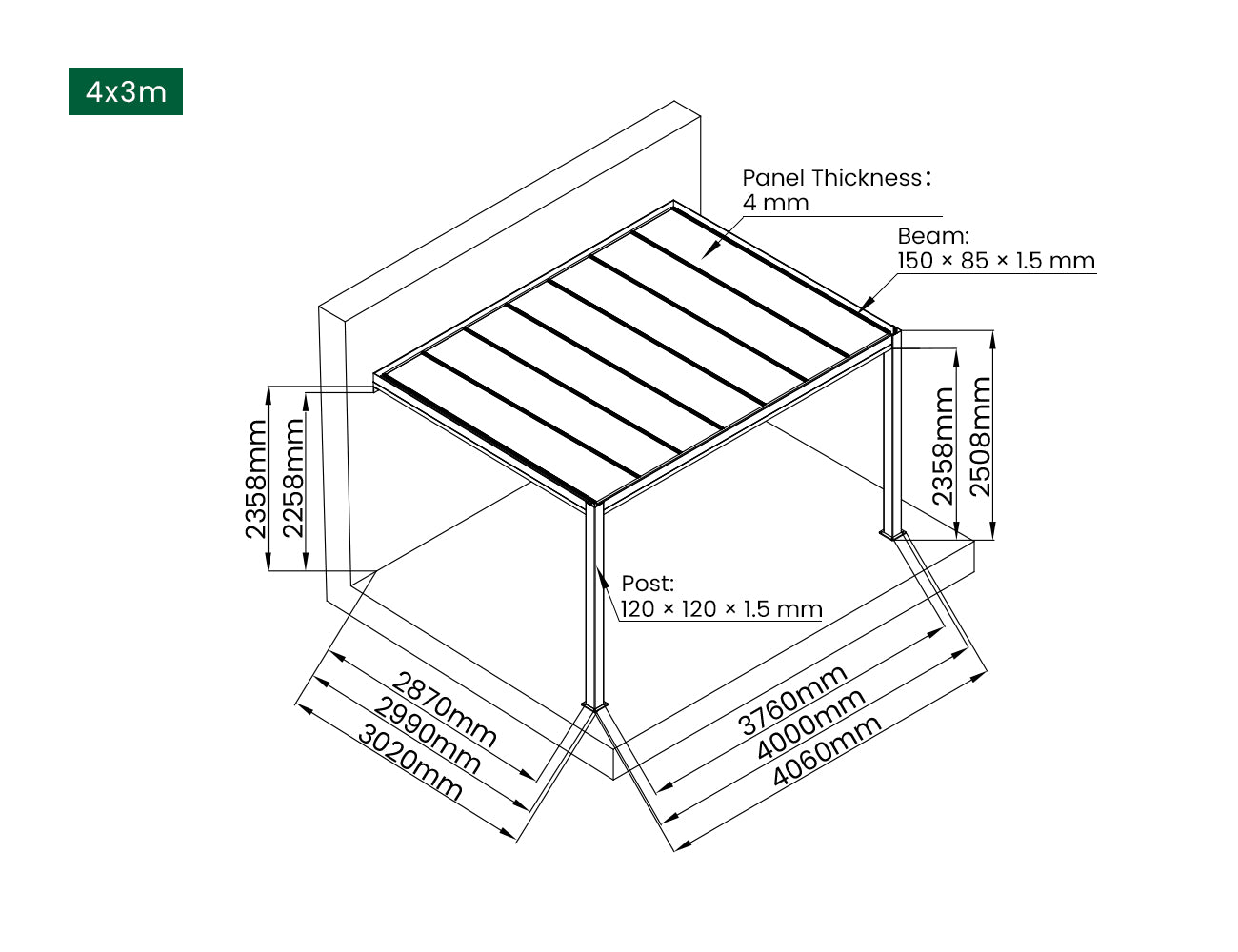

4 x 3 x 2.5

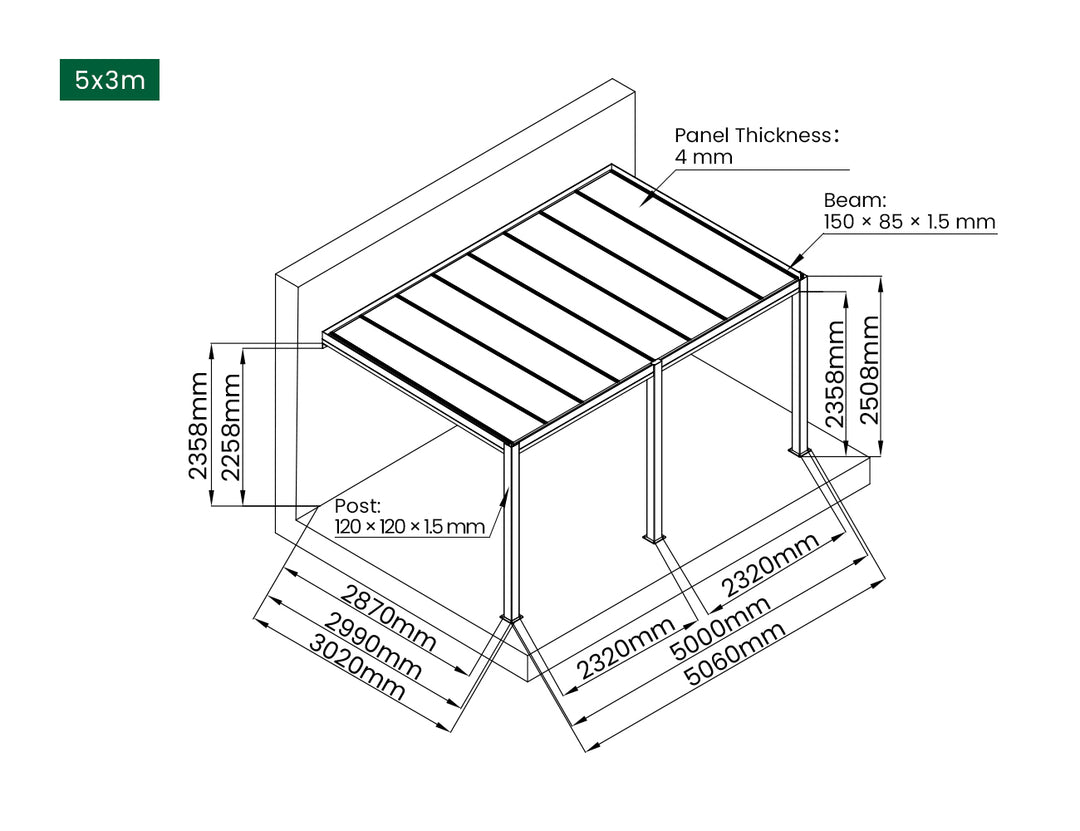

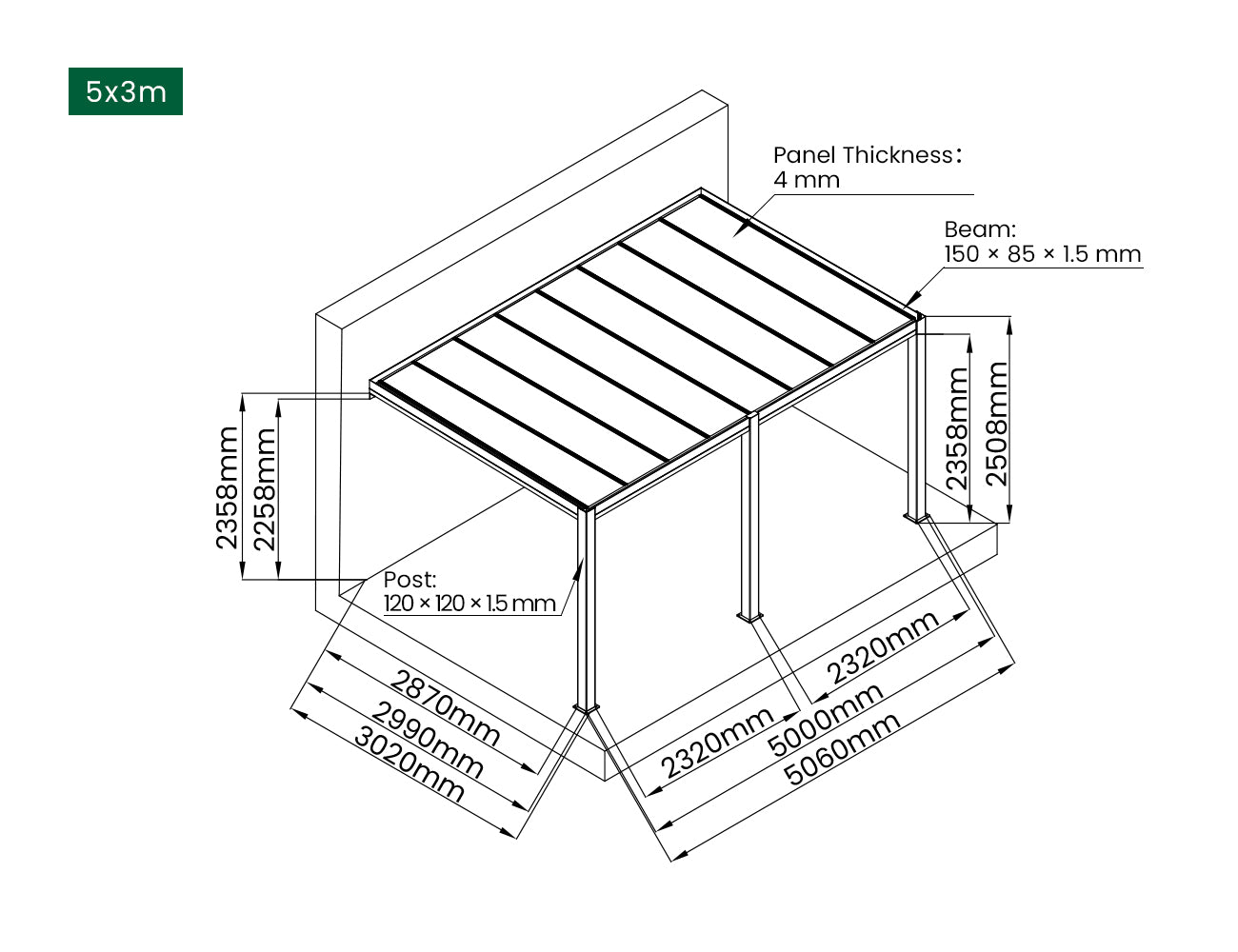

5 x 3 x 2.5

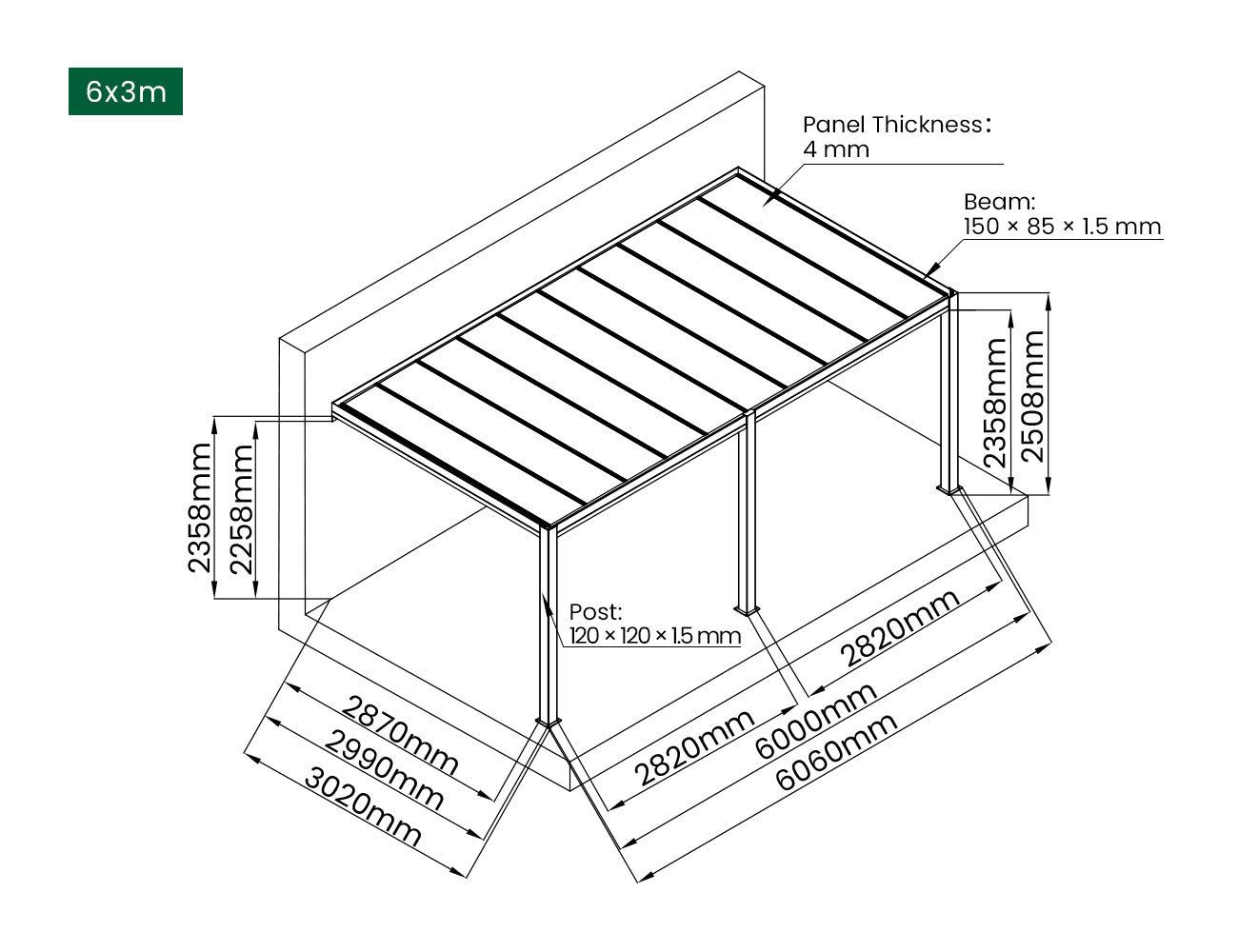

6 x 3 x 2.5

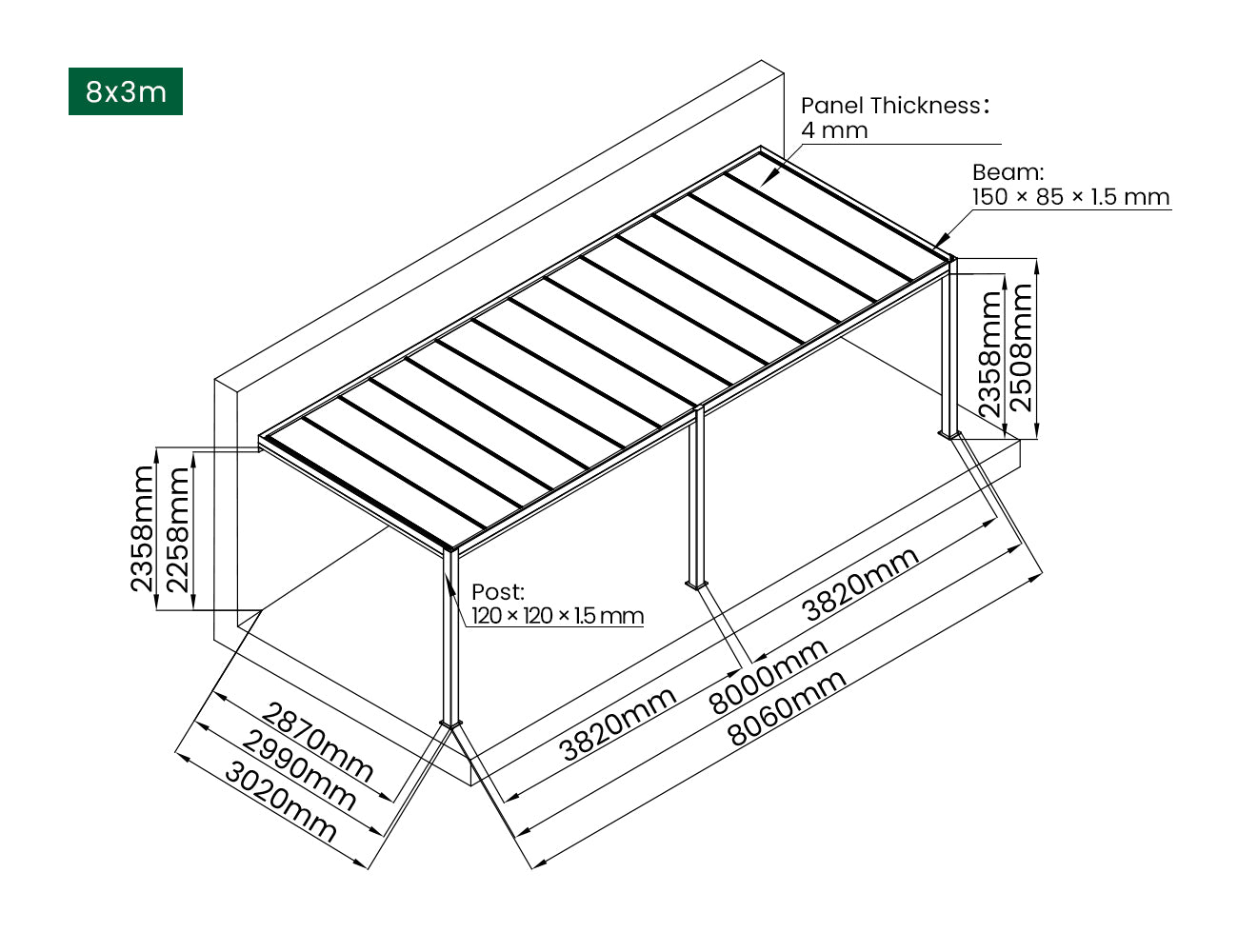

8 x 3 x 2.5

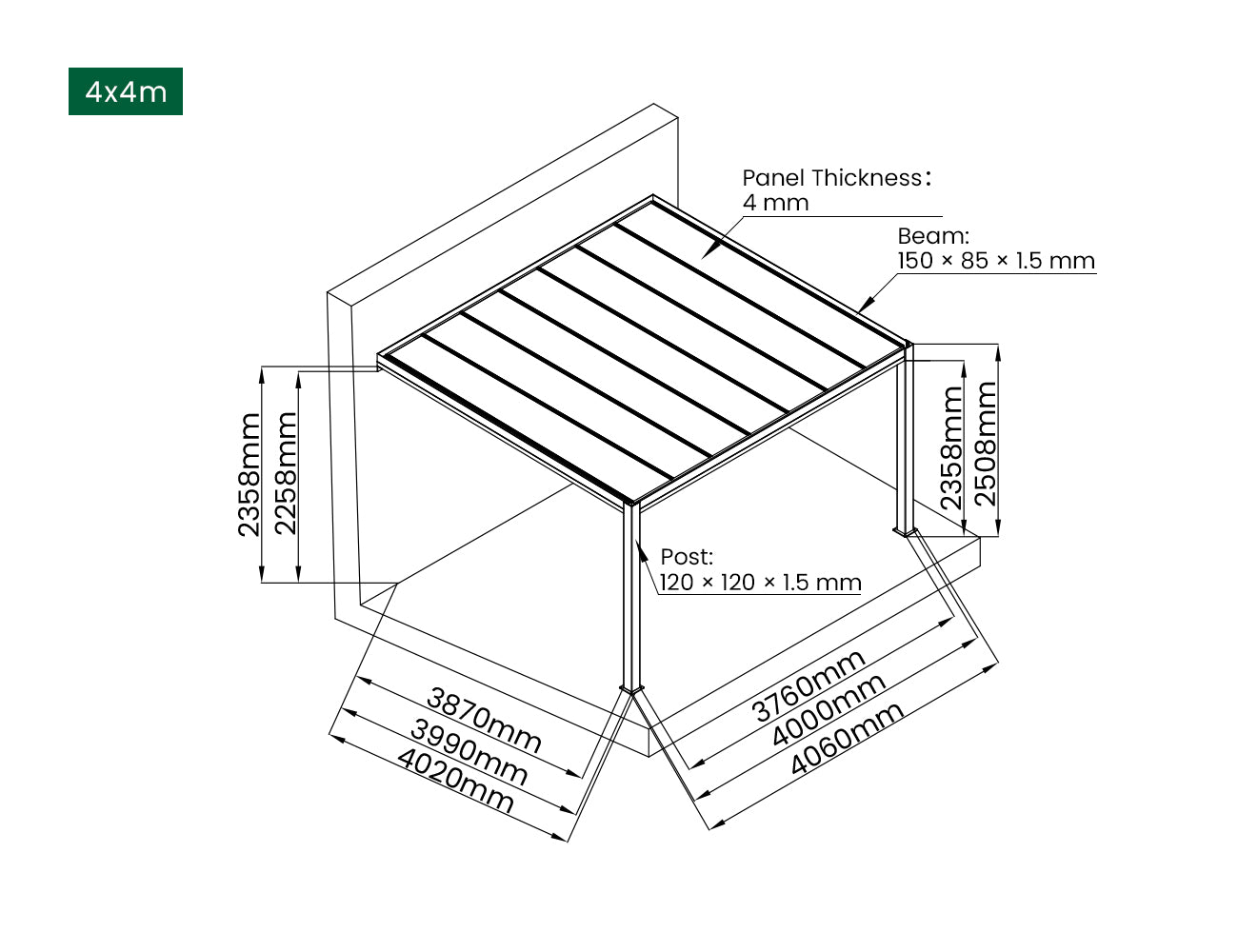

4 x 4 x 2.5

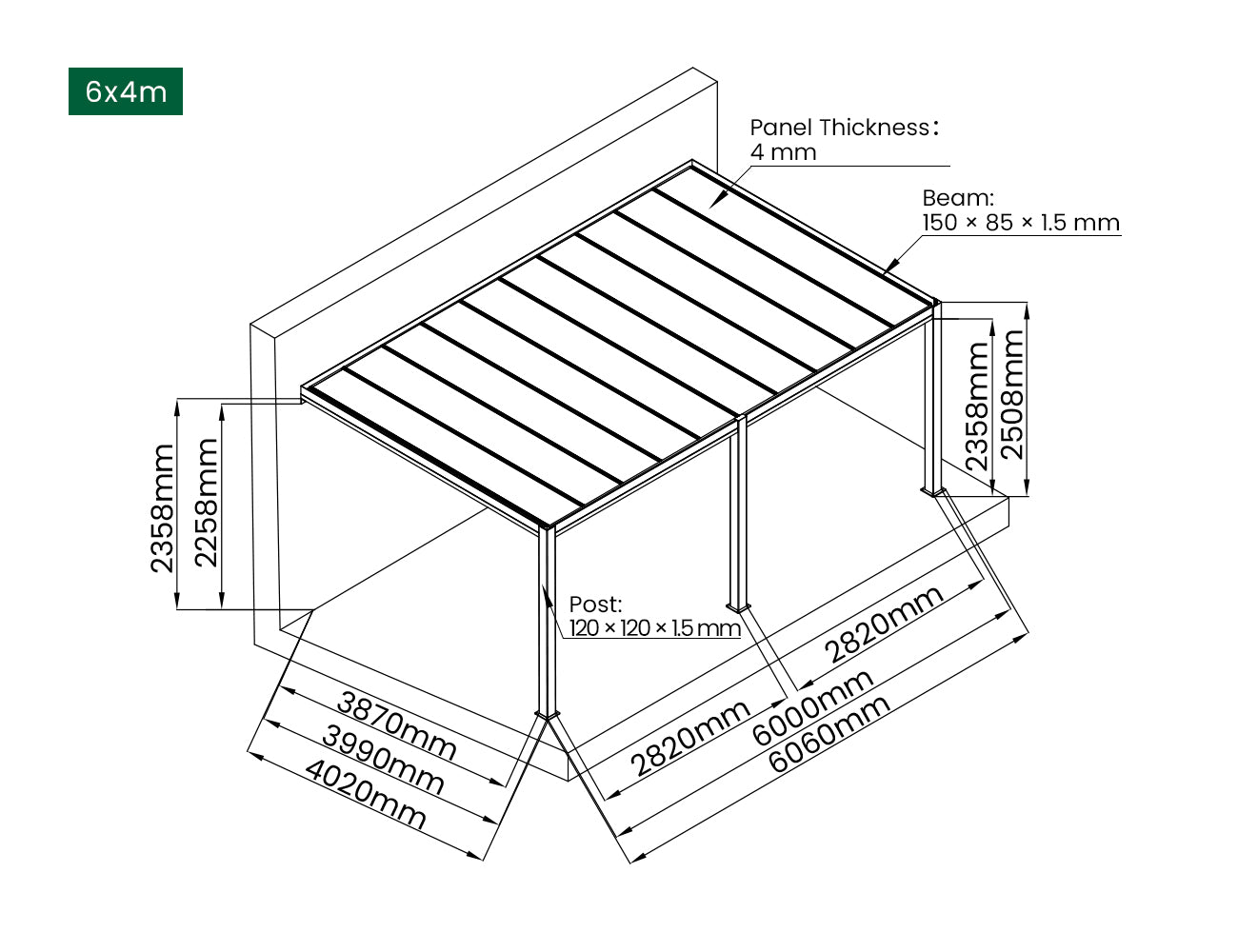

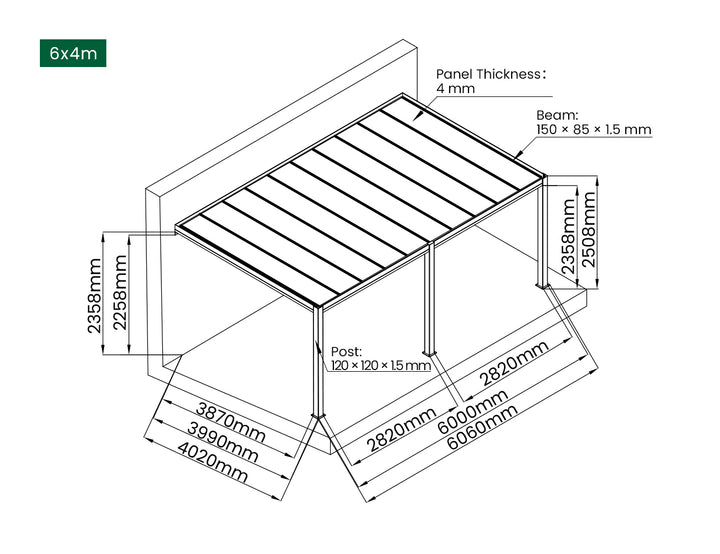

6 x 4 x 2.5

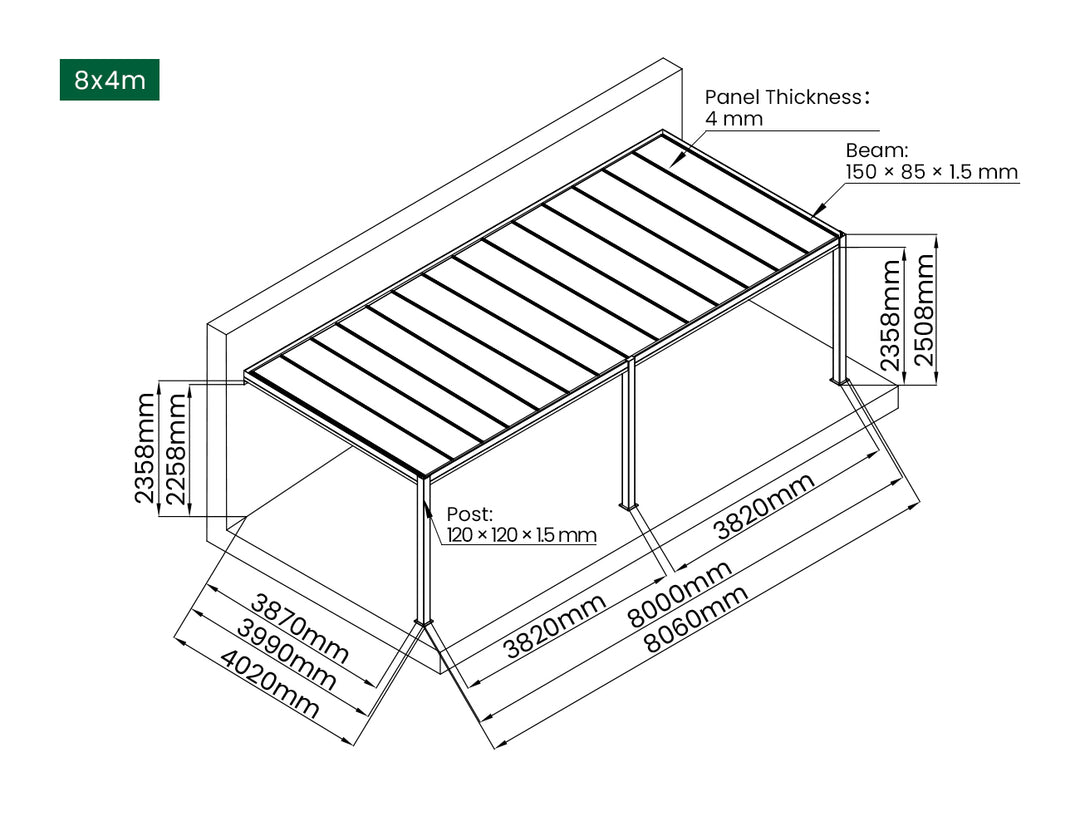

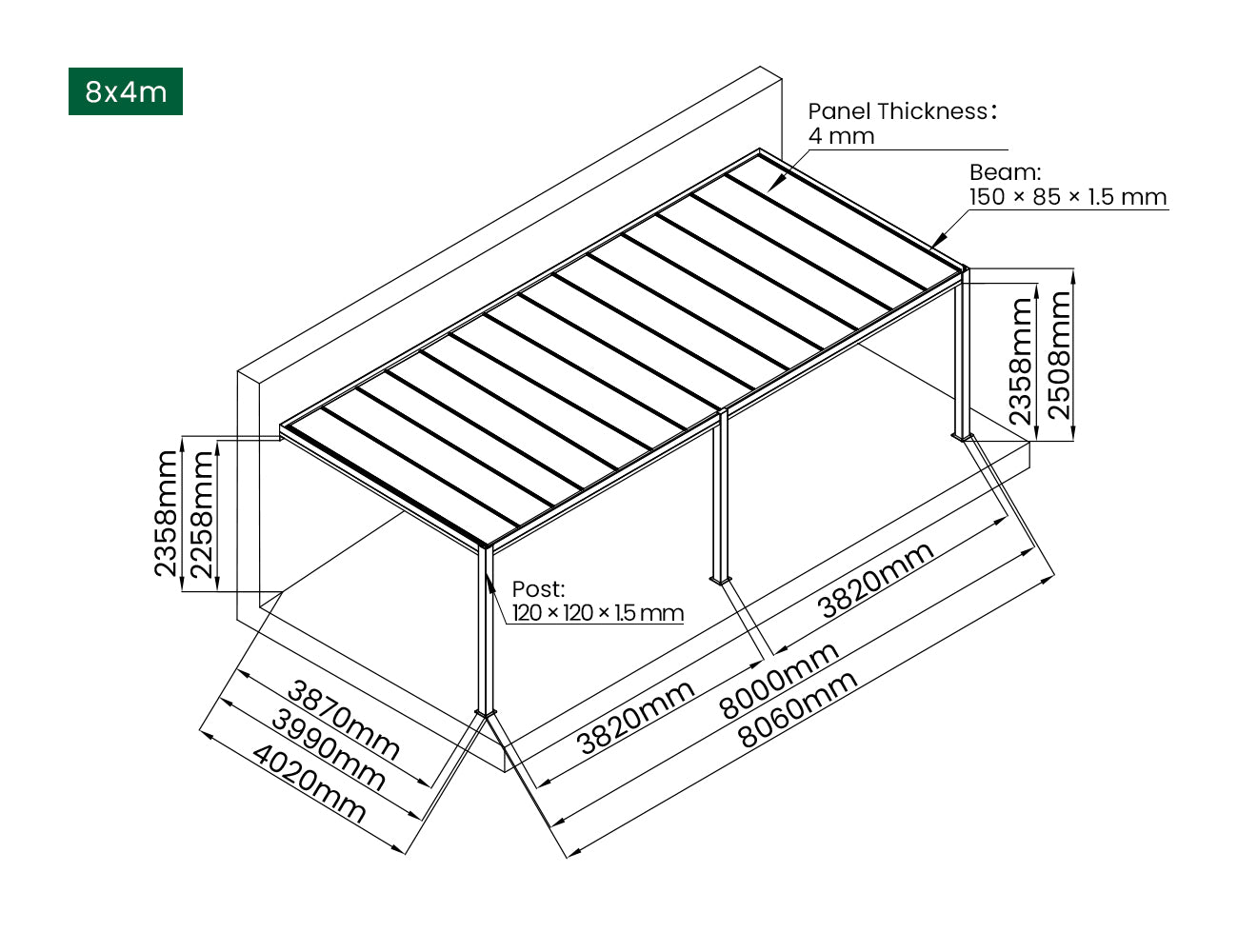

8 x 4 x 2.5

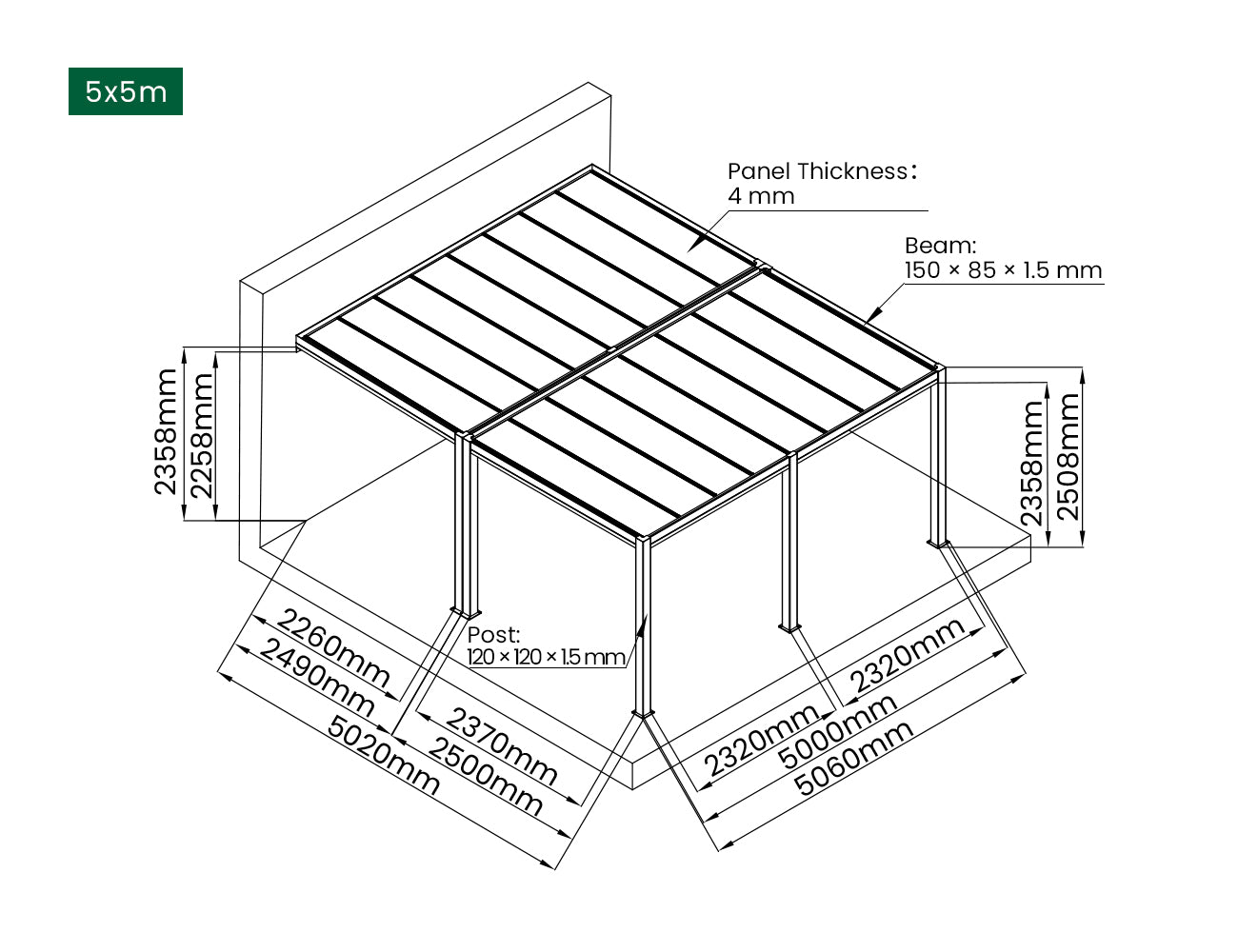

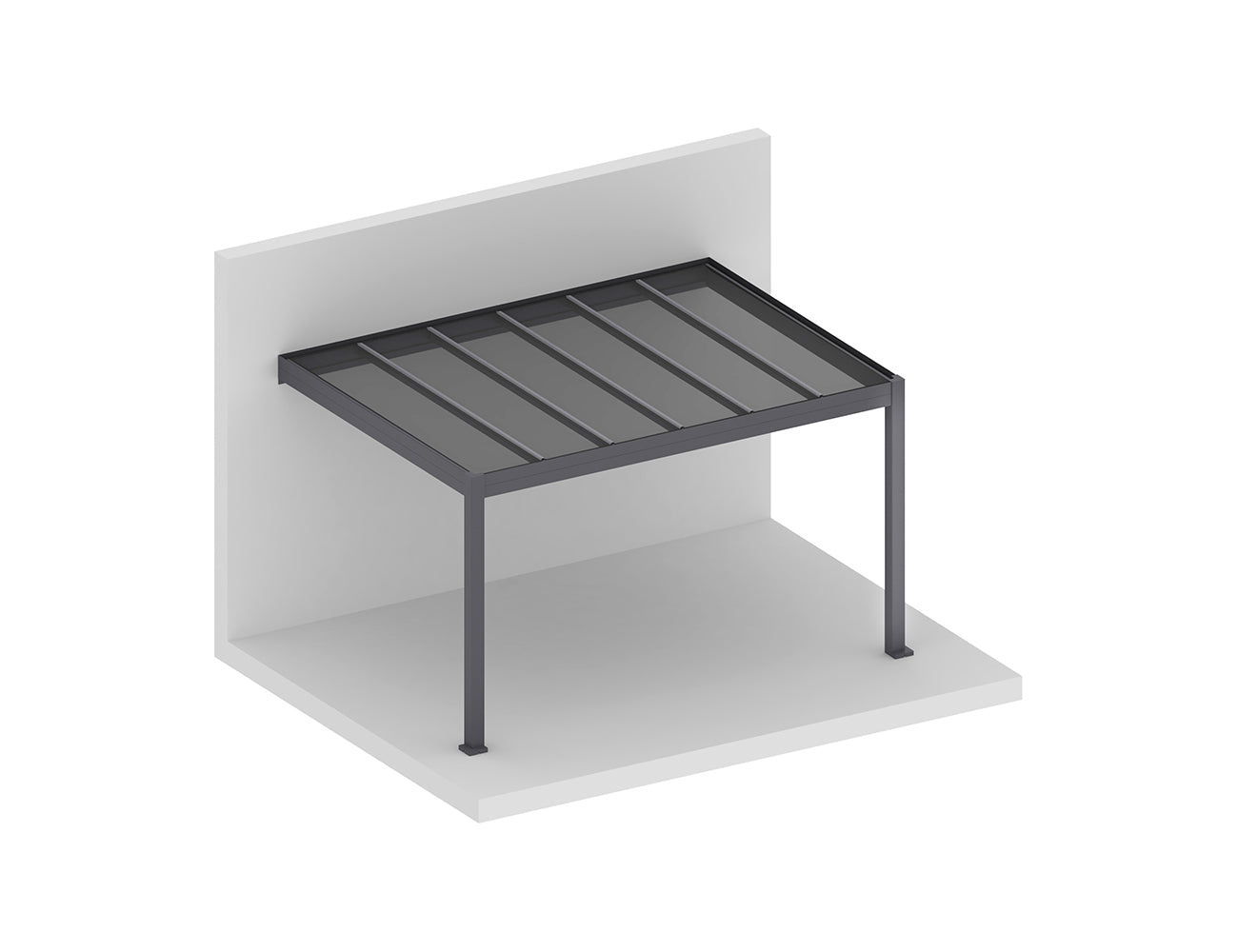

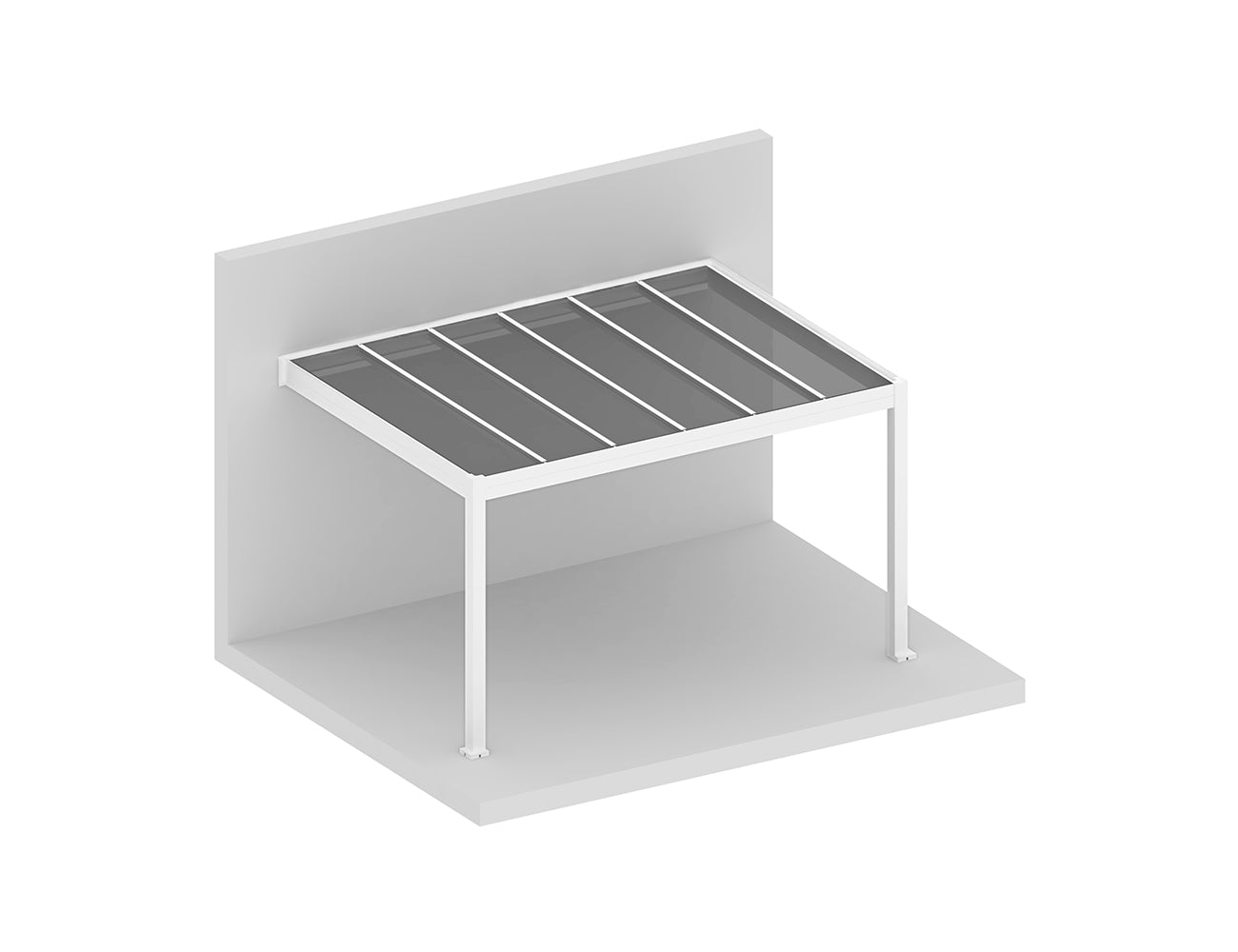

5 x 5 x 2.5 - Frame Colour: Charcoal (RAL 7016) / White (RAL 9016)
- Frame Material: Powder-Coated Aluminium
- Aluminium Grade: 6063-T5
- Panel Colour: Light Grey
- Panel Material: Solid German Designed Bayer® Polycarbonate
- Panel Thickness: 4 mm

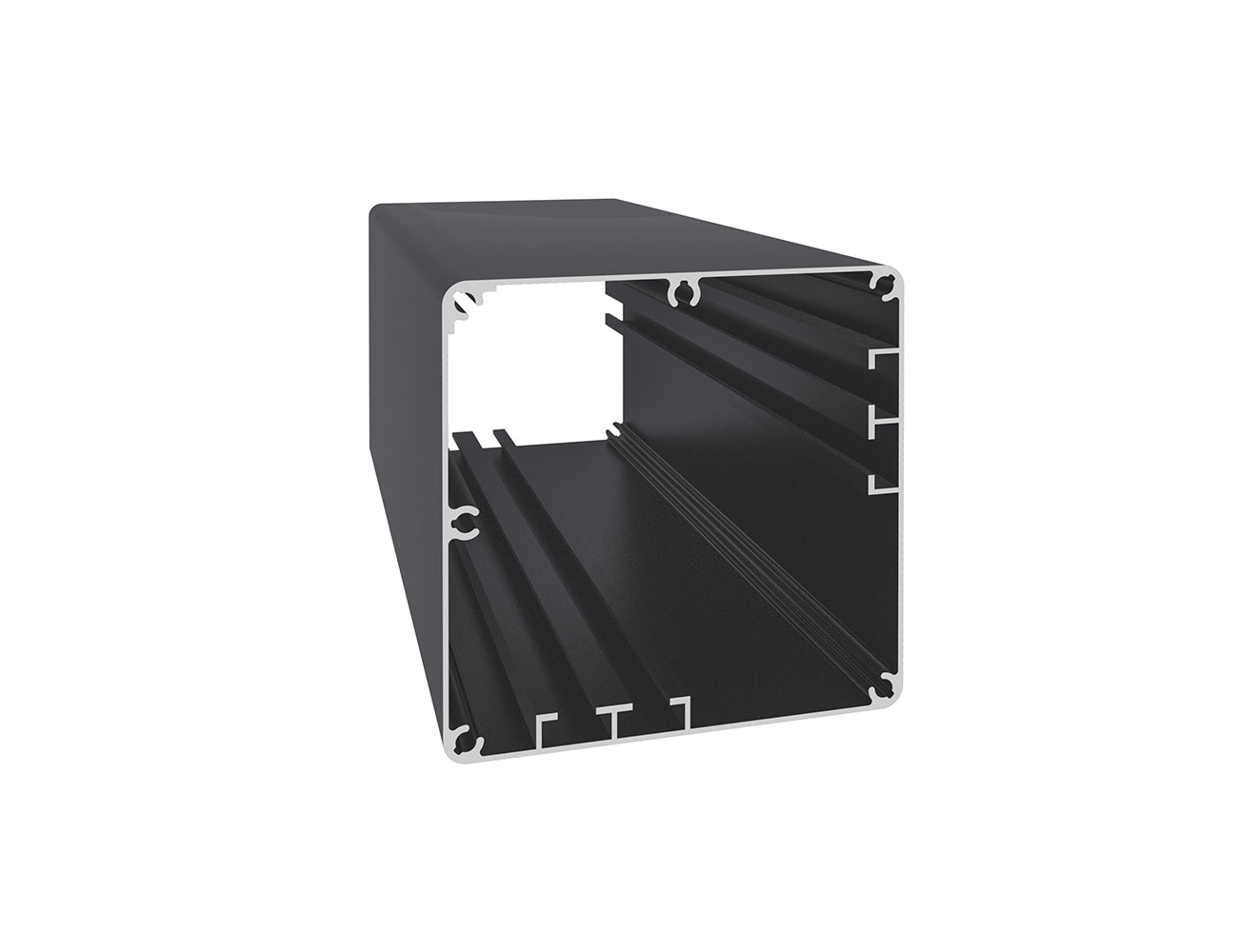

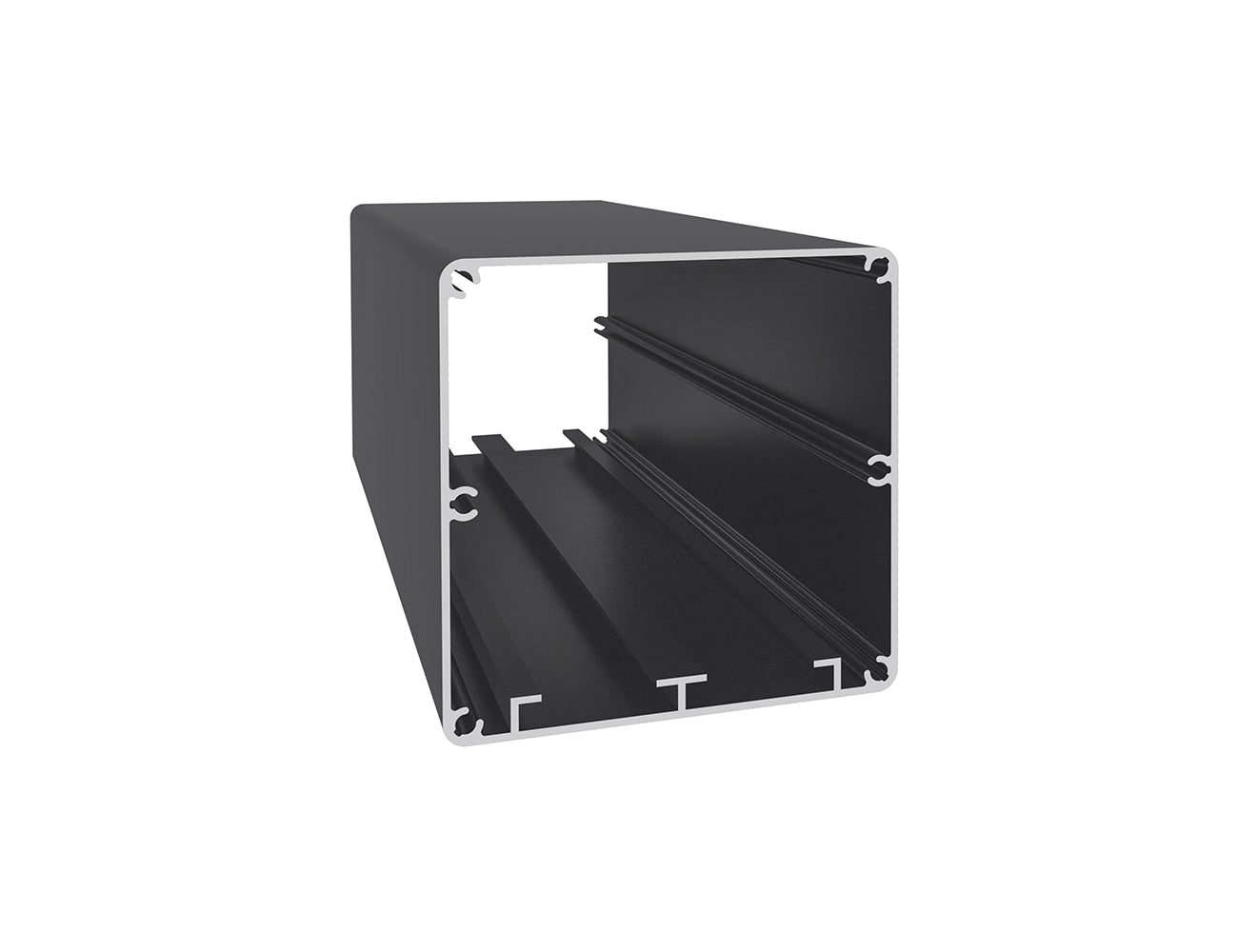

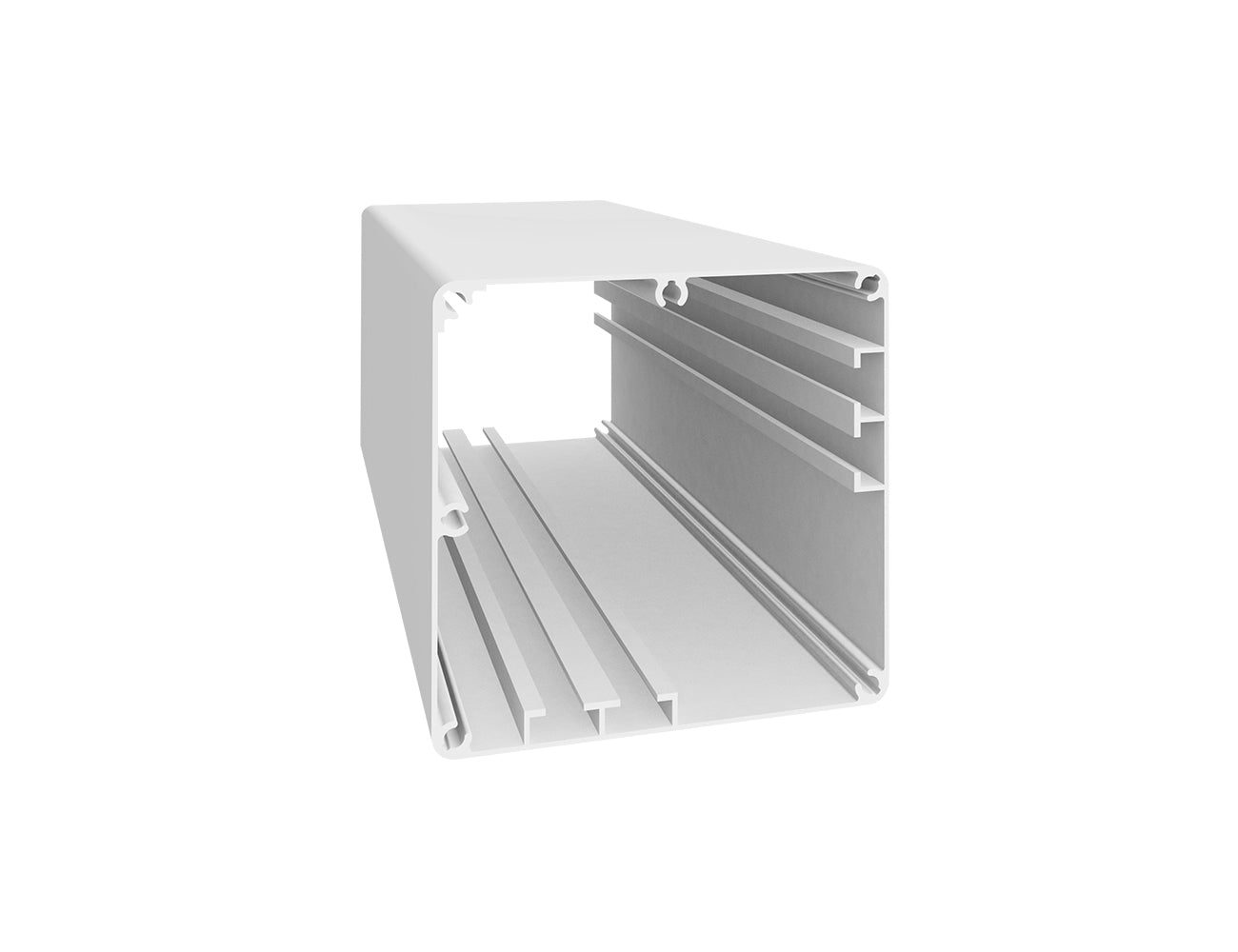

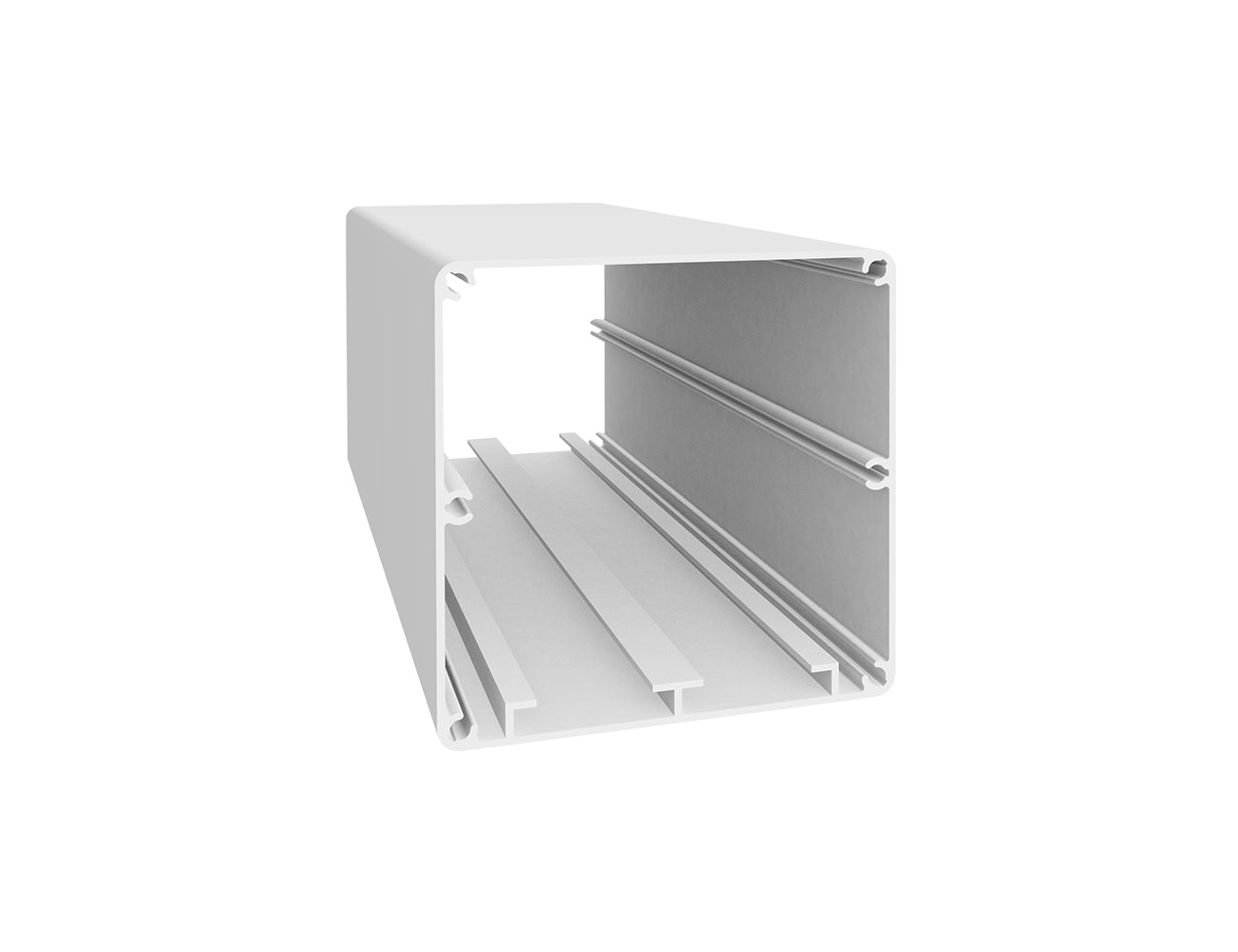

- Post: 120 × 120 × 1.5 mm

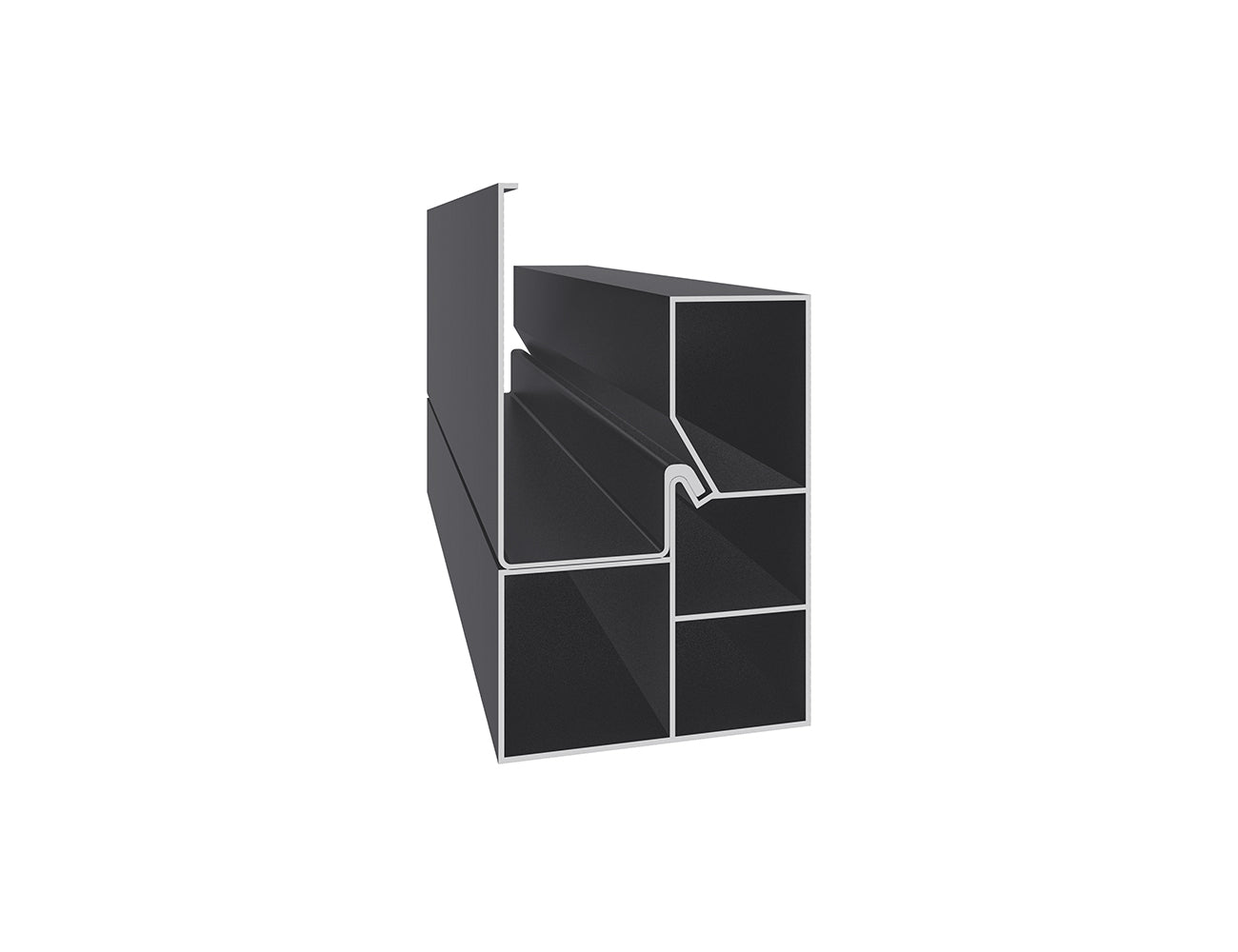

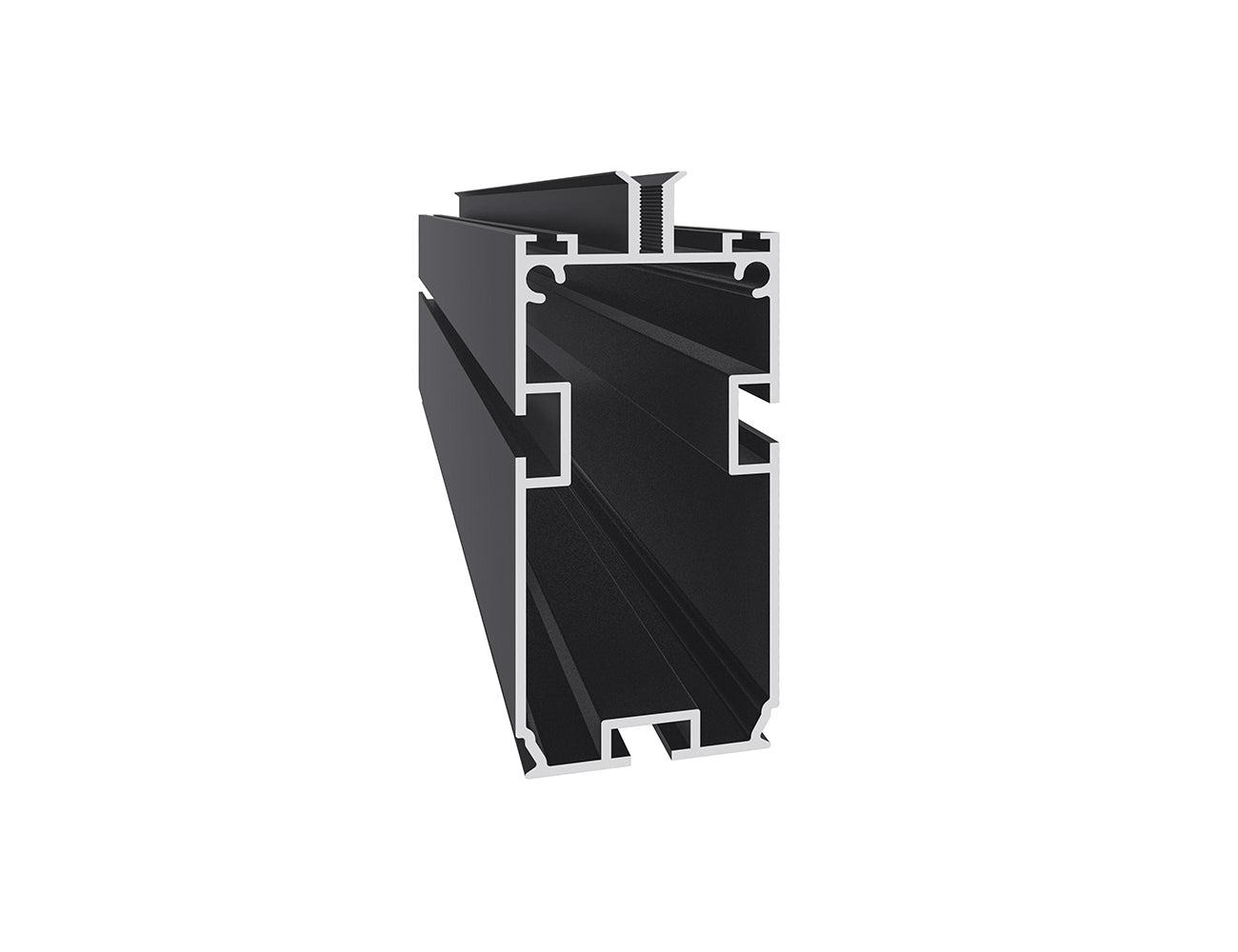

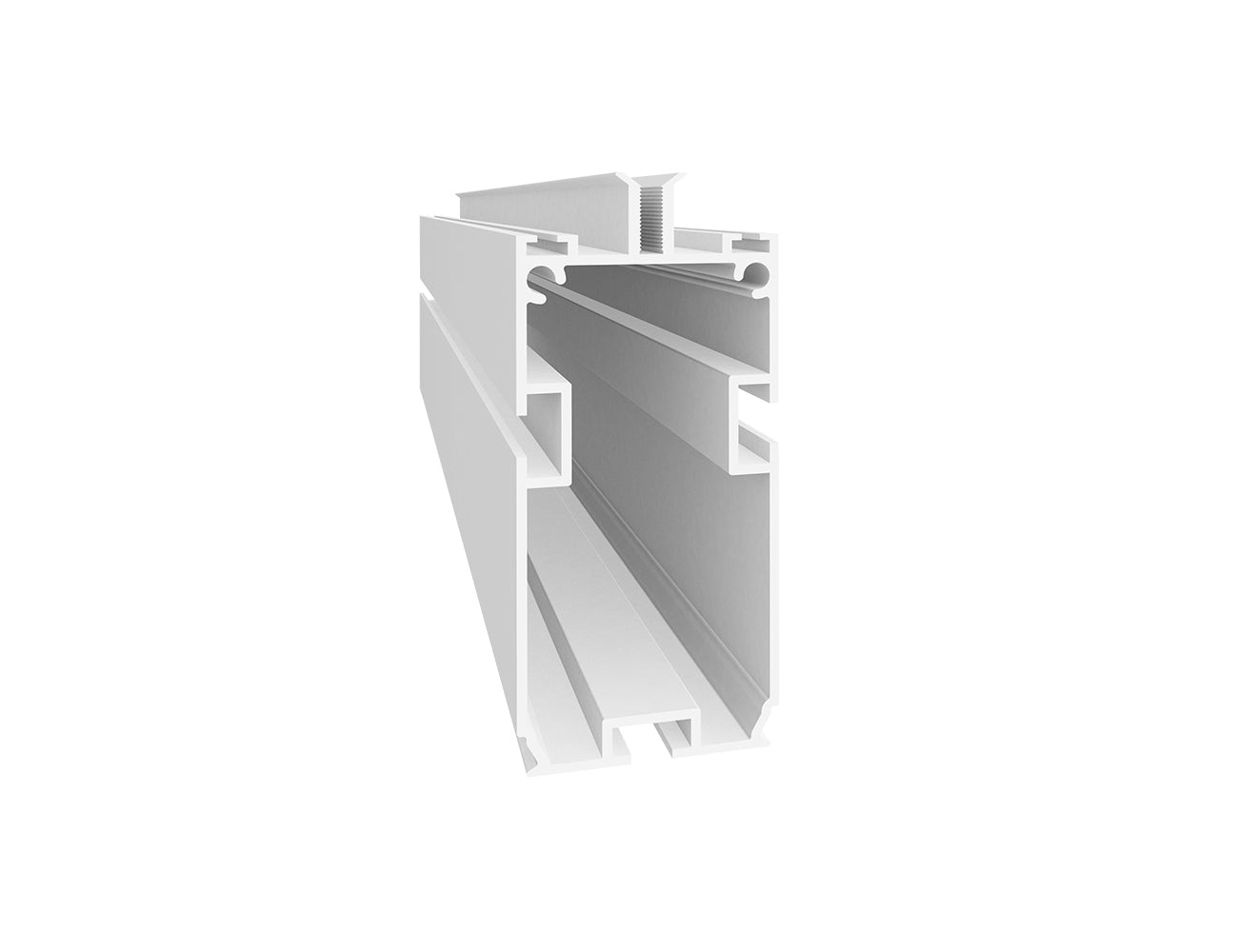

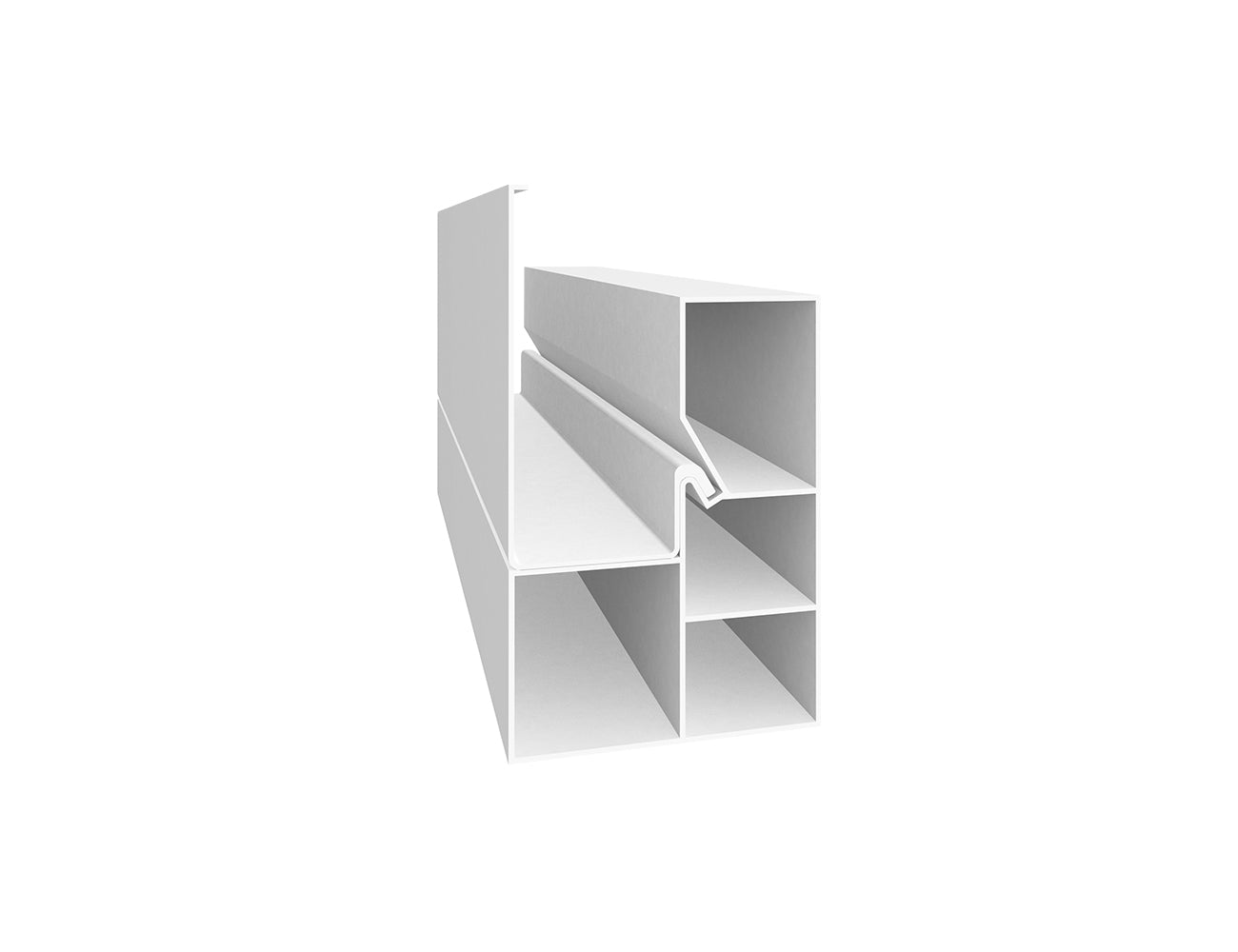

- Beam: 150 × 85 × 1.5 mm
- Roof Panel Temperature Range: -40℃-120℃
- Roof Panel Sunshine Blockout: About 15%
- UV Protection: 99.8%
- UV protective coating thickness: 30μm
- Wind Resistance: 90 km/h
- Snow Load: 50 kg/m²
- Frame Warranty: 10 years
- Panel Warranty: 10 years
Package Contents:
- 1x Bering Wall Mounted Pergola
- 1x Instruction Manual
| Wall Mounted | 3 x 3m | 4 x 3m | 5 x 3m | 6 x 3m | 8 x 3m |
| Gross Weight | 152.6KG | 190.72KG | 236KG | 229.36KG | 278.9KG |
| Package 1 | 258x27x26cm,43.5KG | 258x27x26cm,44.5KG | 258x27x35cm,50.6KG | 258x27x35cm,51.6KG | 258x27x35cm,54.9KG |
| Package 2 | 305x27.6x16.2cm,38.5KG | 405x27.6x16.2cm,46.7KG | 254x27x15.5cm,24.9KG | 294x29x20.5cm,38.8KG | 398x32x28cm,48.02KG |
| Package 3 | 296x27x21cm,34.6KG | 296x36x21cm,47.5KG | 304x29x16cm,45.9KG | 294x29.5x20cm,25.28KG | 297x33.5x19.5cm,37.98KG |
| Package 4 | 62x62x65cm,36KG | 62x62x65cm,52.02KG | 296x39.5x20cm,48.9KG | 289x39x22cm,34.48KG | 285.5x30x30cm,38.4KG |
| Package 5 | 62x62x65cm,65.7KG | 62x62x65cm,39.6KG | 62x62x65cm,49.8KG | ||
| Package 6 | 62x62x65cm,39.6KG | 62x62x65cm,49.8KG |
| Wall Mounted | 4 x 4m | 6 x 4m | 8 x 4m | 5 x 5m |
| Gross Weight | 228.4KG | 278.69KG | 435.7KG | 443.4KG |
| Package 1 | 256x27x26cm,44.9KG | 258x27x35cm,52KG | 256x27x35cm,54.9KG | 256x27x26cm,43.5KG |
| Package 2 | 405x27.6x16.2cm,52.3KG | 294x29x28cm,38.8KG | 404x27x15.5cm,39.5KG | 256x27x27cm,35.6KG |
| Package 3 | 396x36x21cm,63.2KG | 398x29x20cm,35.21KG | 404x29x16cm,61.8KG | 254x27x15.5cm,24.9KG |
| Package 4 | 62x62x65cm,68KG | 390.5x39x22cm,46.08KG | 396x21x21cm,51.2KG | 254x27.5x15.5cm,28.7KG |
| Package 5 | 62x62x65cm,53.3KG | 396x21x21cm,40.1KG | 246x21x21cm,18.5KG | |
| Package 6 | 62x62x65cm,53.3KG | 396x30.5x20cm,45.4KG | 62x62x65cm,54.3KG | |
| Package 7 | 62x62x65cm,71.4KG | 246x21x20cm,22.5KG | ||
| Package 8 | 62x62x65cm,71.4KG | 256x27x35cm,52.1KG | ||
| Package 9 | 254x27x15.5cm,24.9KG | |||
| Package 10 | 254x29x16cm,43.1KG | |||
| Package 11 | 246x21x21cm,18.5KG | |||
| Package 12 | 246x21x20cm,22.5KG | |||
| Package 13 | 62x62x65cm,54.3KG |
