What surfaces can the pedestals be installed on?

ElevaDeck pedestals should be installed on a firm, stable and load-bearing surface , such as: Concrete slabs Suitable waterproof membrane systems Rooftop substrates Other stable finished surfaces They should not be installed directly onto soft, loose or unstable ground without a suitably prepared supporting base.

Which joist support cradle should I choose?

Choose the support according to the width of your timber joist: 50 mm Fixed Joist Support Cradle — designed for standard 50 mm timber joists 45–60 mm Flexi Joist Support Cradle — suitable for joists between 45 mm and 60 mm wide Once you have selected the correct joist support, choose the pedestal height range that covers your required installation height.

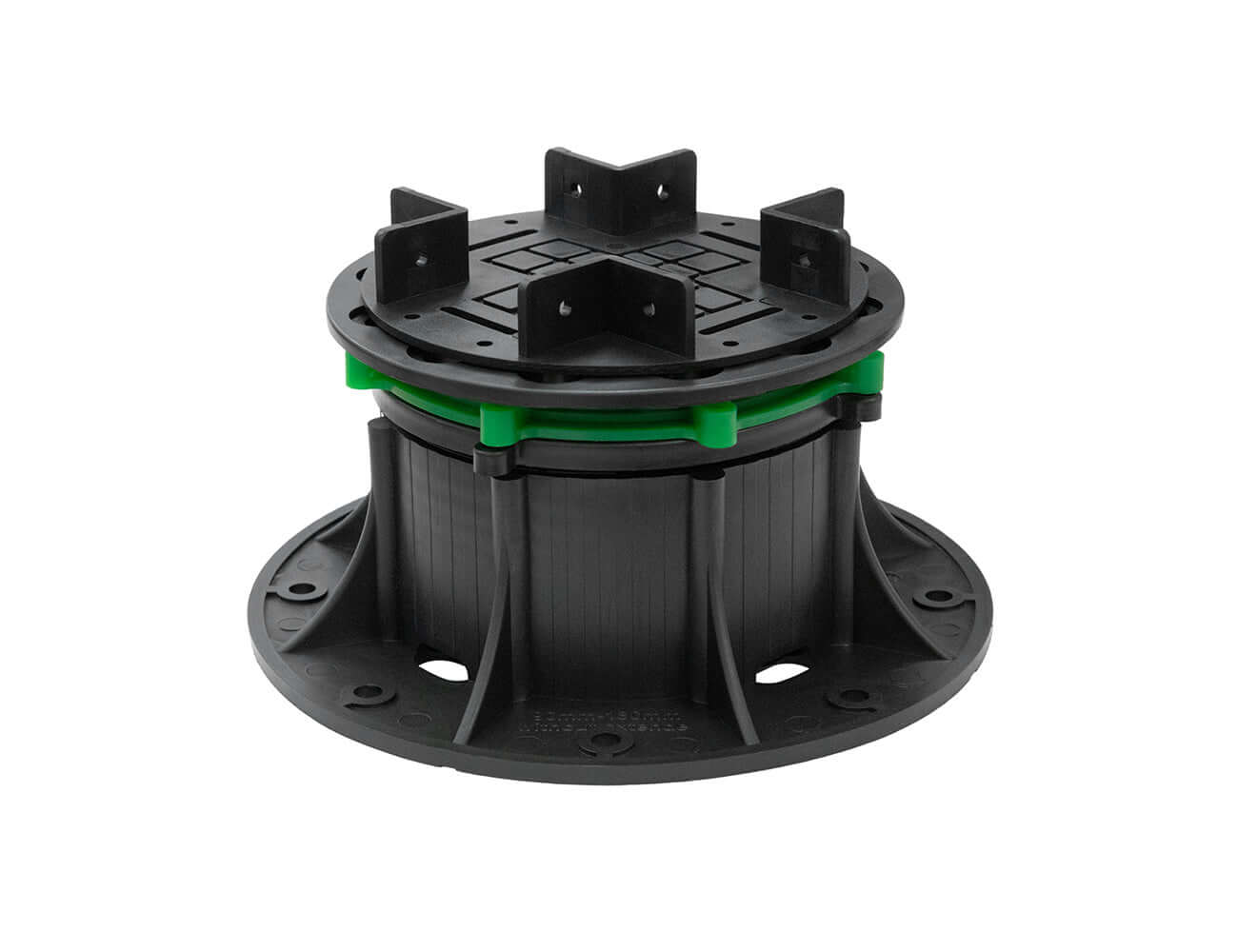

ElevaDeck Adjustable Timber Deck Pedestal

Q: How much weight can each pedestal support?

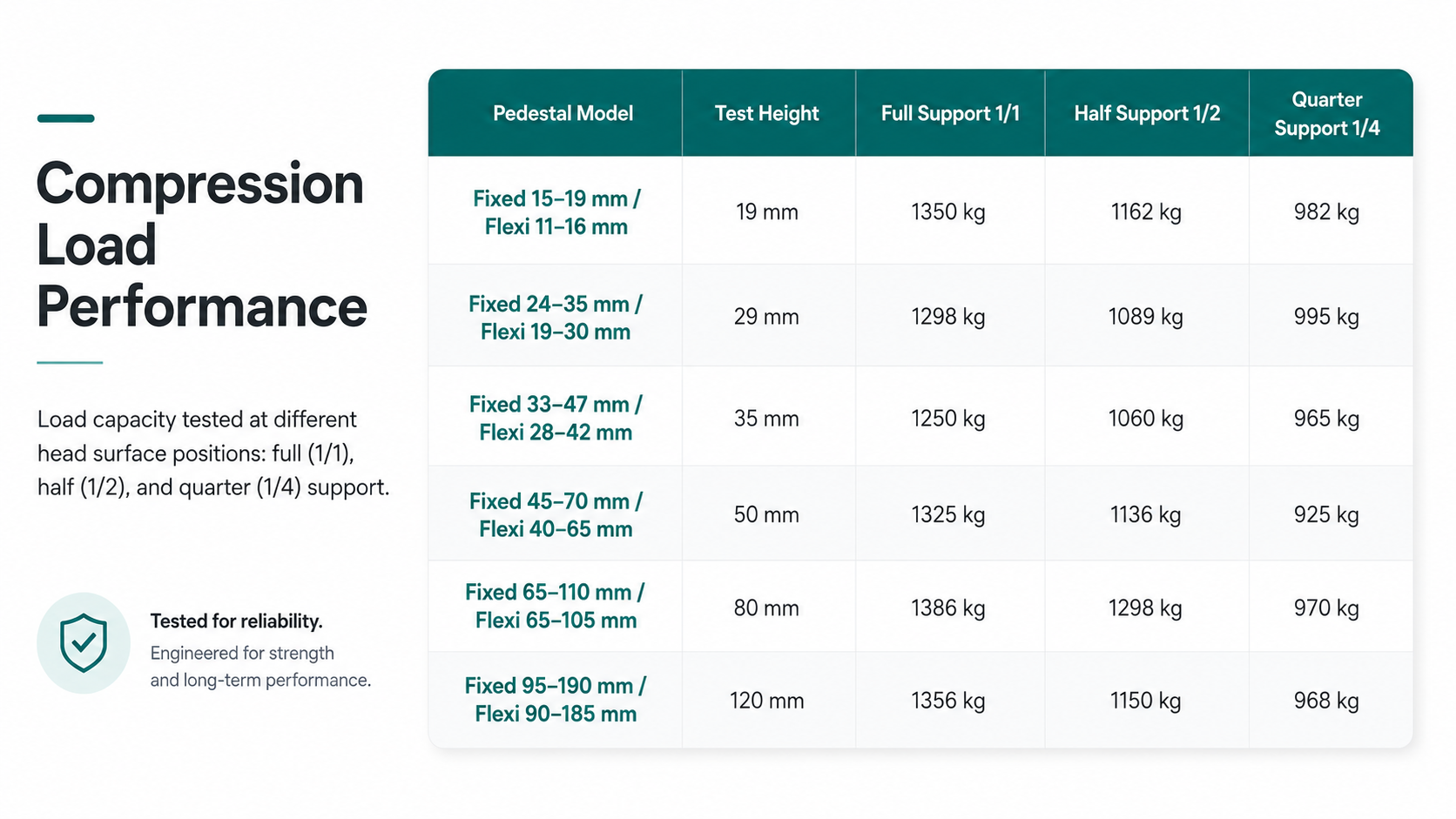

Laboratory compression testing recorded 1,250–1,386 kg under full-support loading , depending on the pedestal model and test height. Load performance varies depending on pedestal height, support position, spacing, substrate and the overall deck structure. These figures are laboratory test results and should not be treated as the recommended working load for every installation. For commercial or high-load applications, the complete supporting structure should be assessed as part of the project design.

Q: Are ElevaDeck pedestals suitable for outdoor use?

Yes. ElevaDeck pedestals are manufactured from UV-stabilised polypropylene and are designed for outdoor raised decking applications. They are suitable for areas such as decks, balconies, rooftop terraces, patios, courtyards and other outdoor spaces with a suitable supporting substrate.

Q: How do I choose the correct pedestal height?

Measure the vertical distance from the finished surface where the pedestal base will sit to the underside of the joist. The stated ElevaDeck height range refers to the overall assembled pedestal height, including the pedestal base and joist support cradle . These components are already included in the stated height and do not need to be added separately. Choose a pedestal range that covers your required height while allowing enough adjustment for levelling. If accessories such as a Base Rubber Pad or Base Slope Corrector are installed underneath the pedestal, allow for their additional thickness when calculating the total build-up height. If the finished surface level varies across the project, more than one pedestal height range may be required.

ElevaDeck Adjustable Timber Deck Pedestal

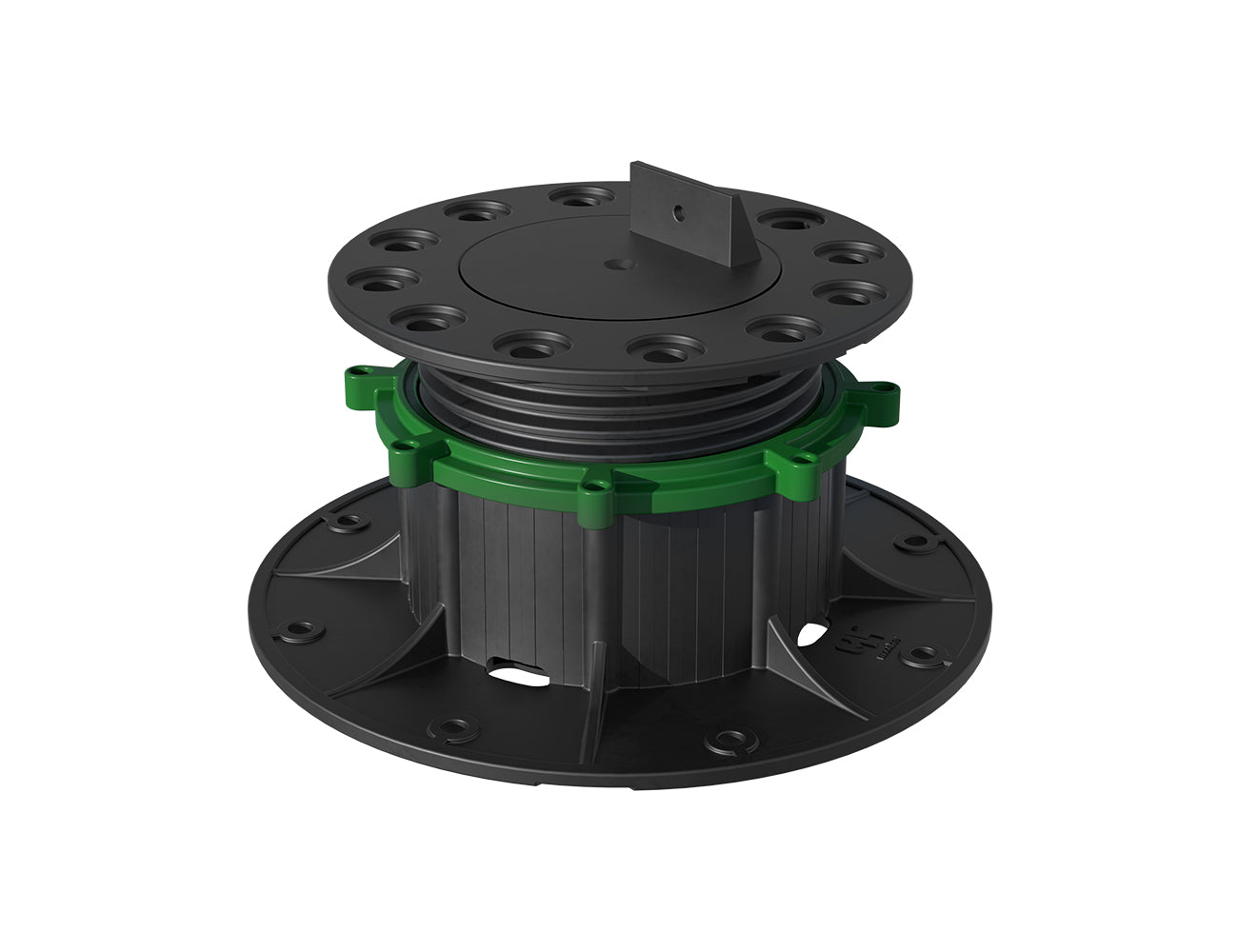

Timber Deck Pedestal System - Flexi 60-105mm

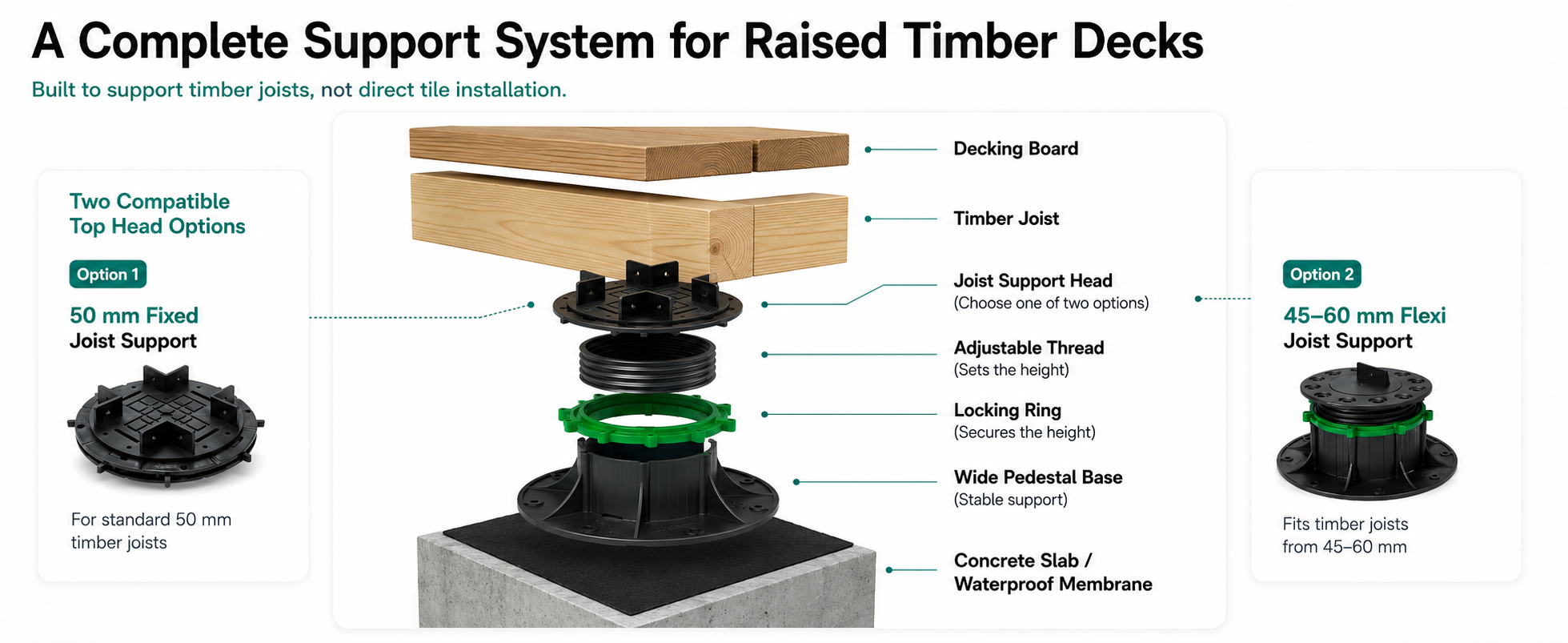

The ElevaDeck Adjustable Timber Deck Pedestal System provides a fast, reliable and adjustable foundation for timber decking installations. Designed for use over concrete slabs, waterproof membranes and other stable substrates, it creates a level, well-supported deck while promoting effective drainage and ventilation beneath the structure.

Whether you're building a residential deck, rooftop terrace or commercial outdoor space, ElevaDeck offers a simple two-step selection process. First, choose the Joist Support that matches your timber framing, then select the required Pedestal Height for your project.

Manufactured from UV-stabilised polypropylene, each pedestal is engineered for long-term outdoor durability, high load capacity and reliable performance in New Zealand conditions.

How to Order

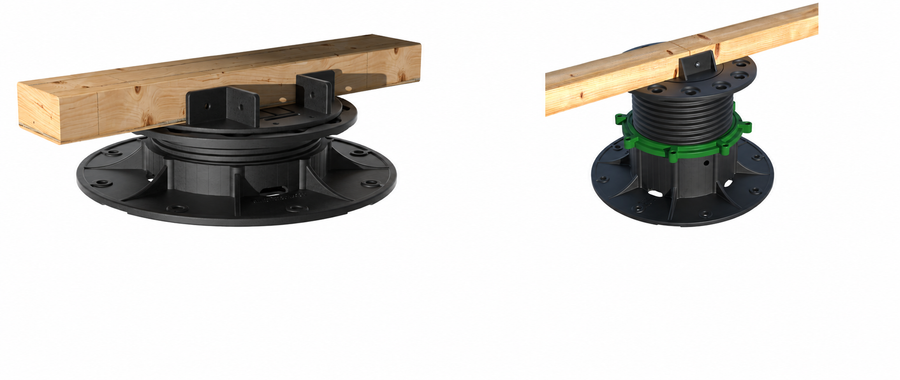

Step 1 – Choose Your Joist Support

Select the support that best suits your timber joists:

50mm Fixed Joist Support – Designed for standard 50mm timber joists.

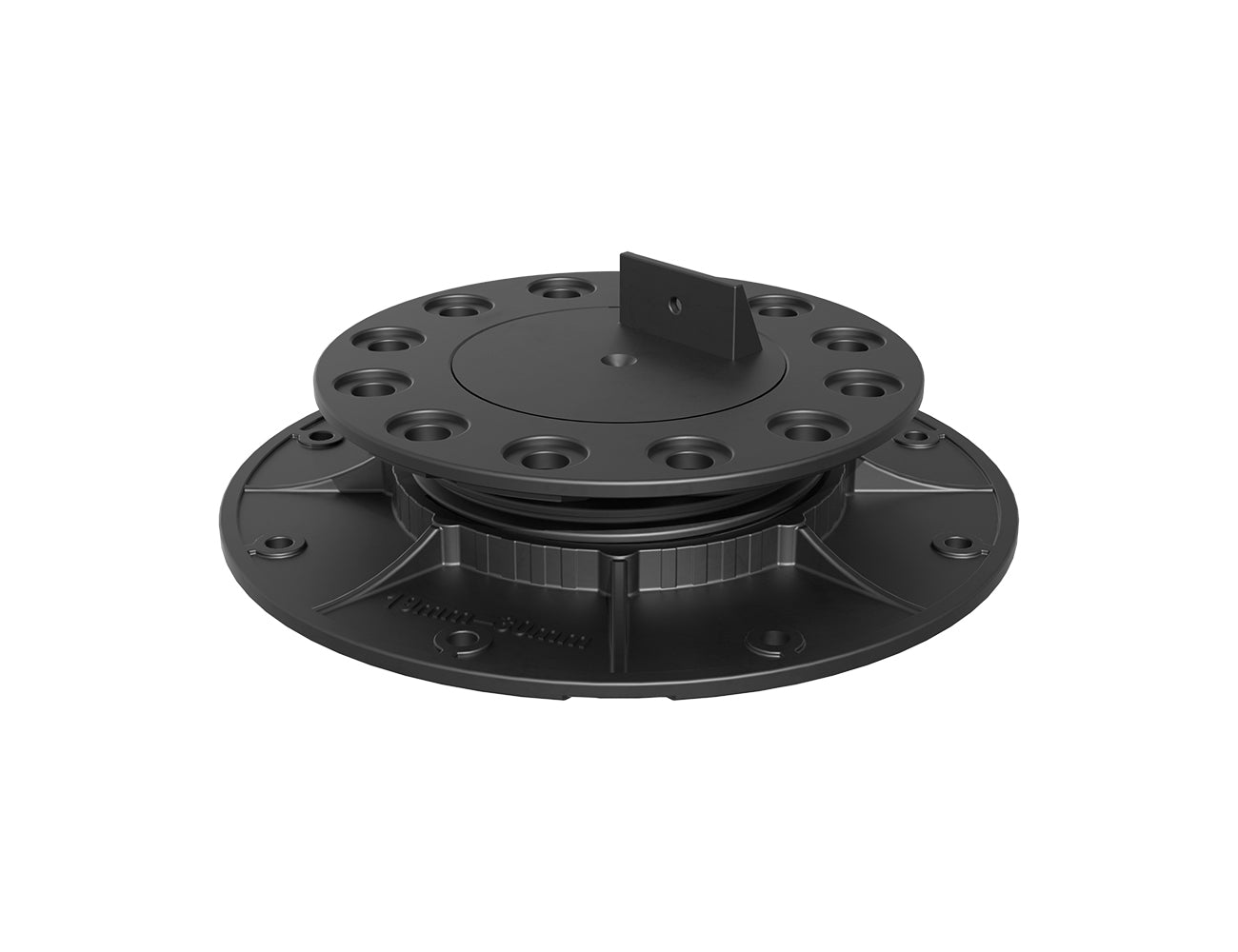

45–60mm Flexi Joist Support – Suits timber joists between 45mm and 60mm wide.

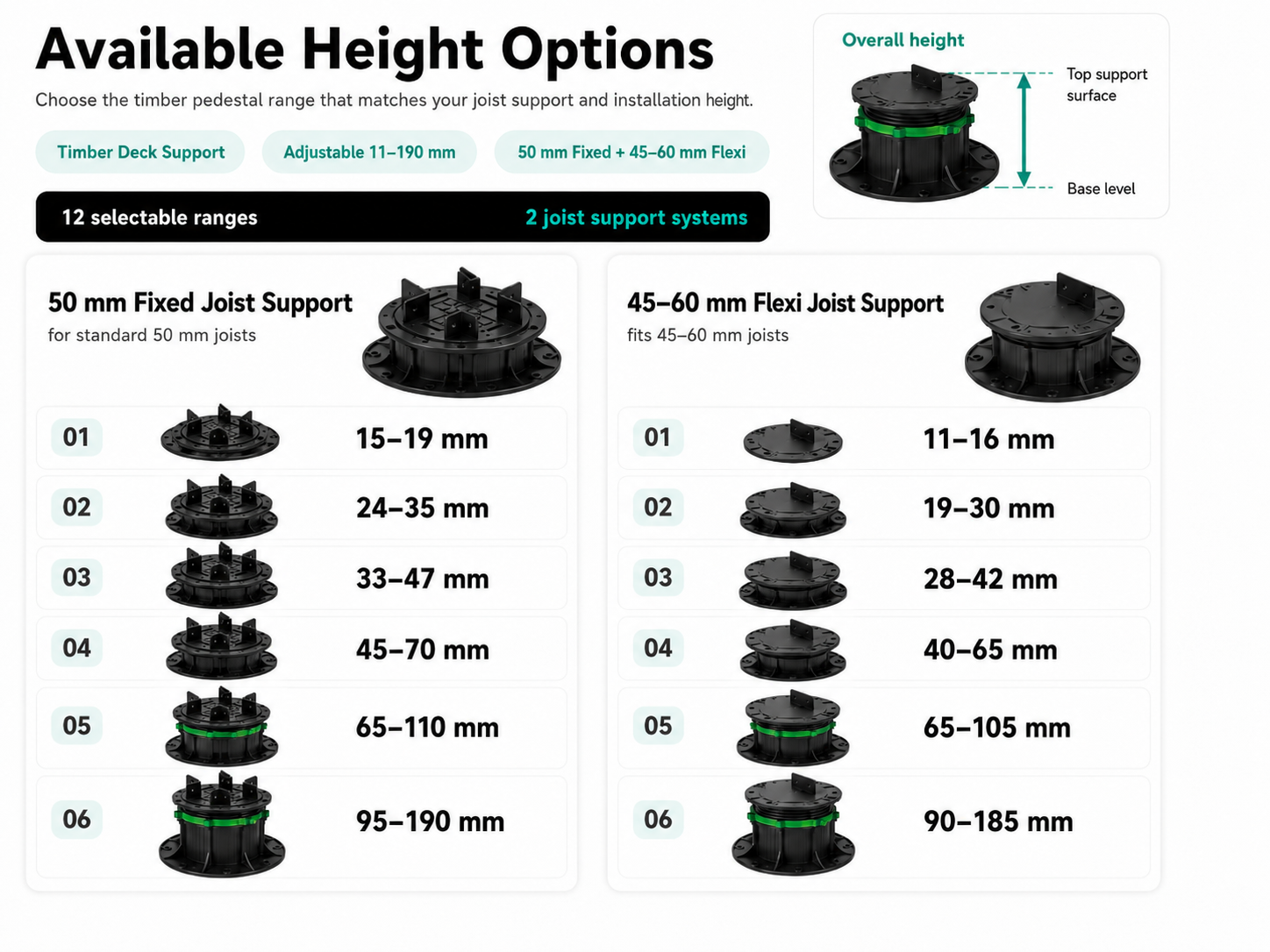

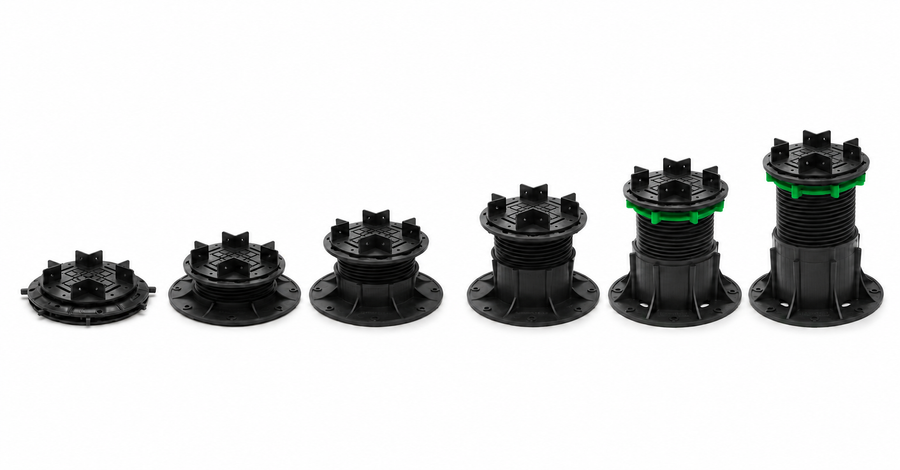

Step 2 – Select Your Pedestal Height

Choose the adjustable height range that best suits your project.

Standard Series

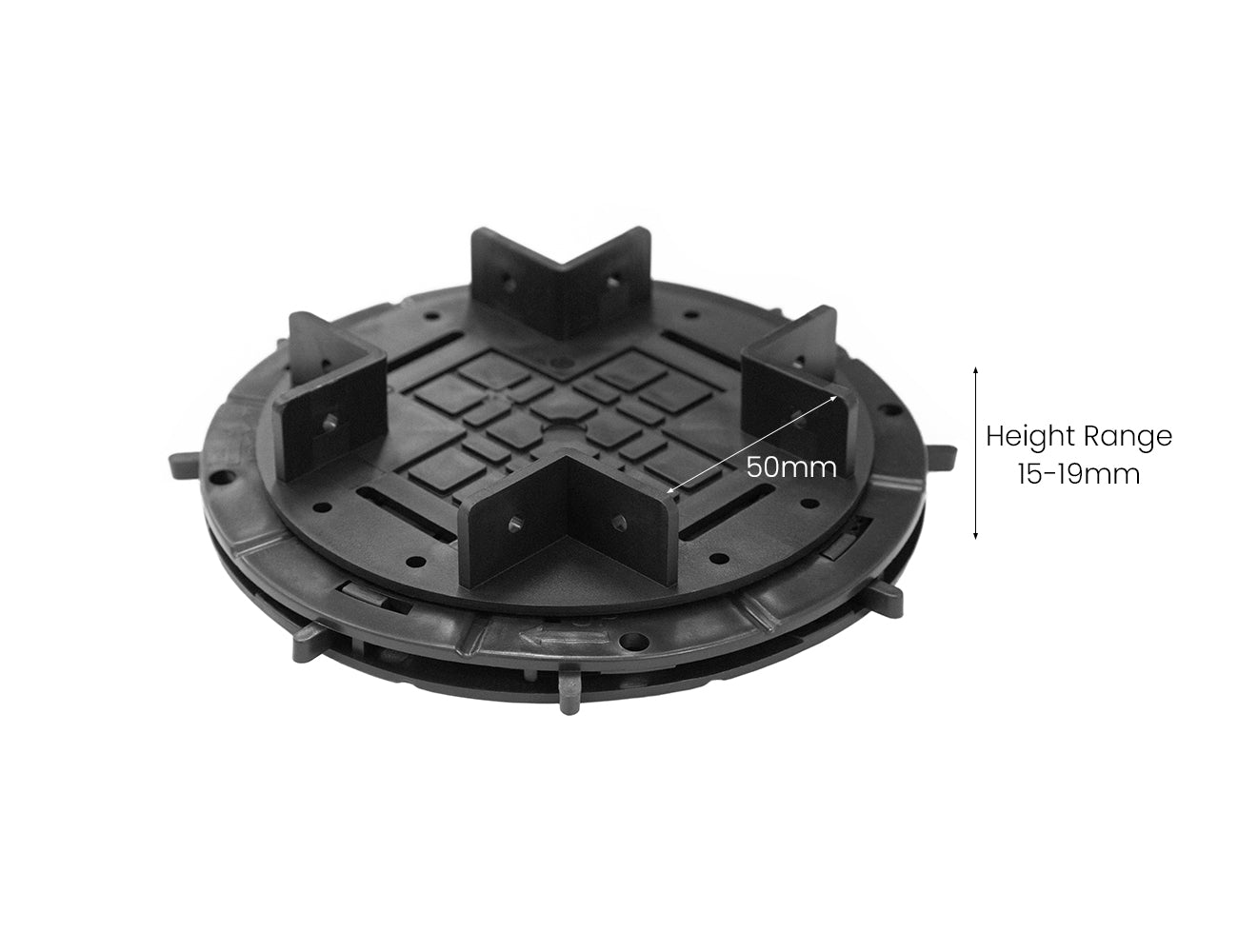

15–19mm

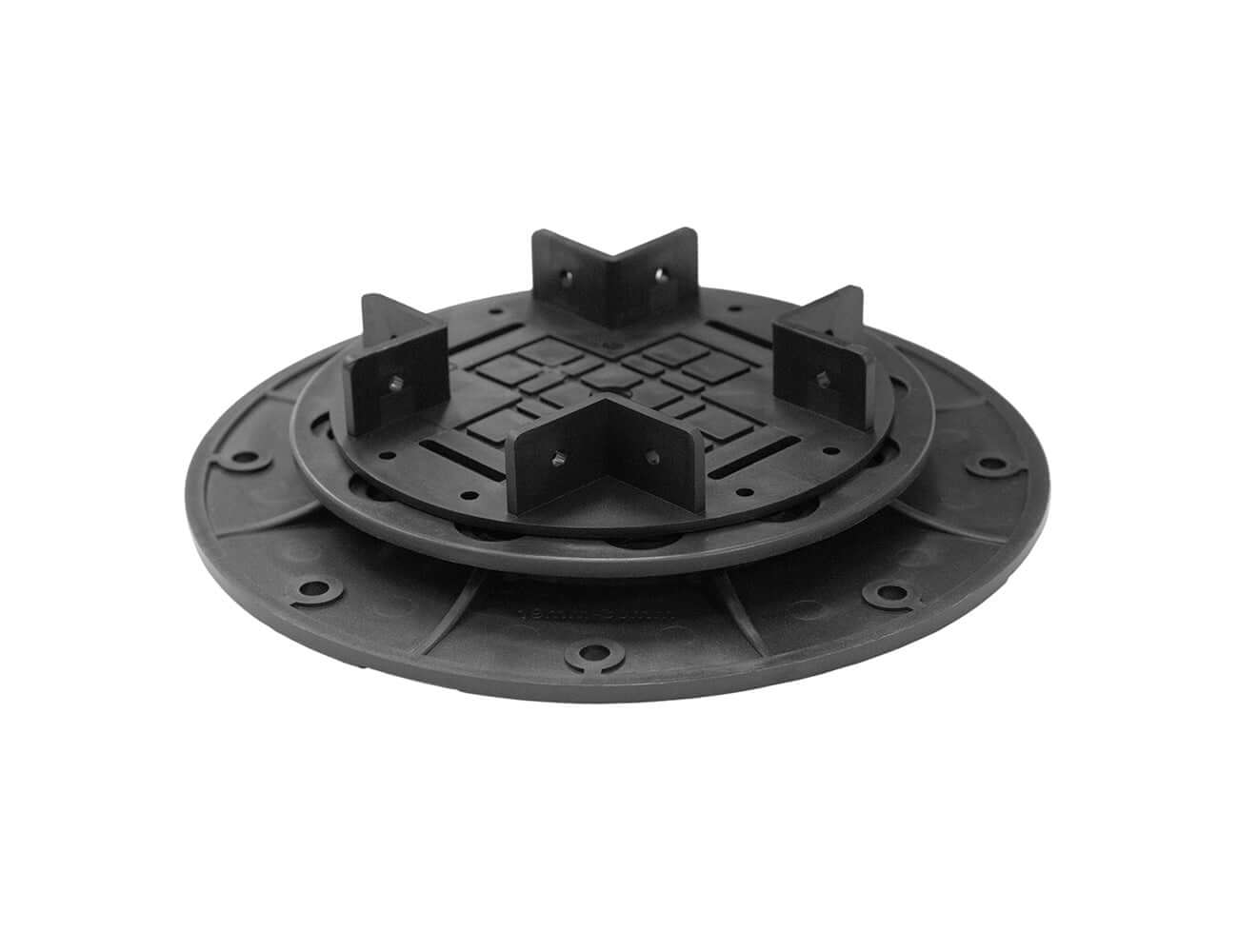

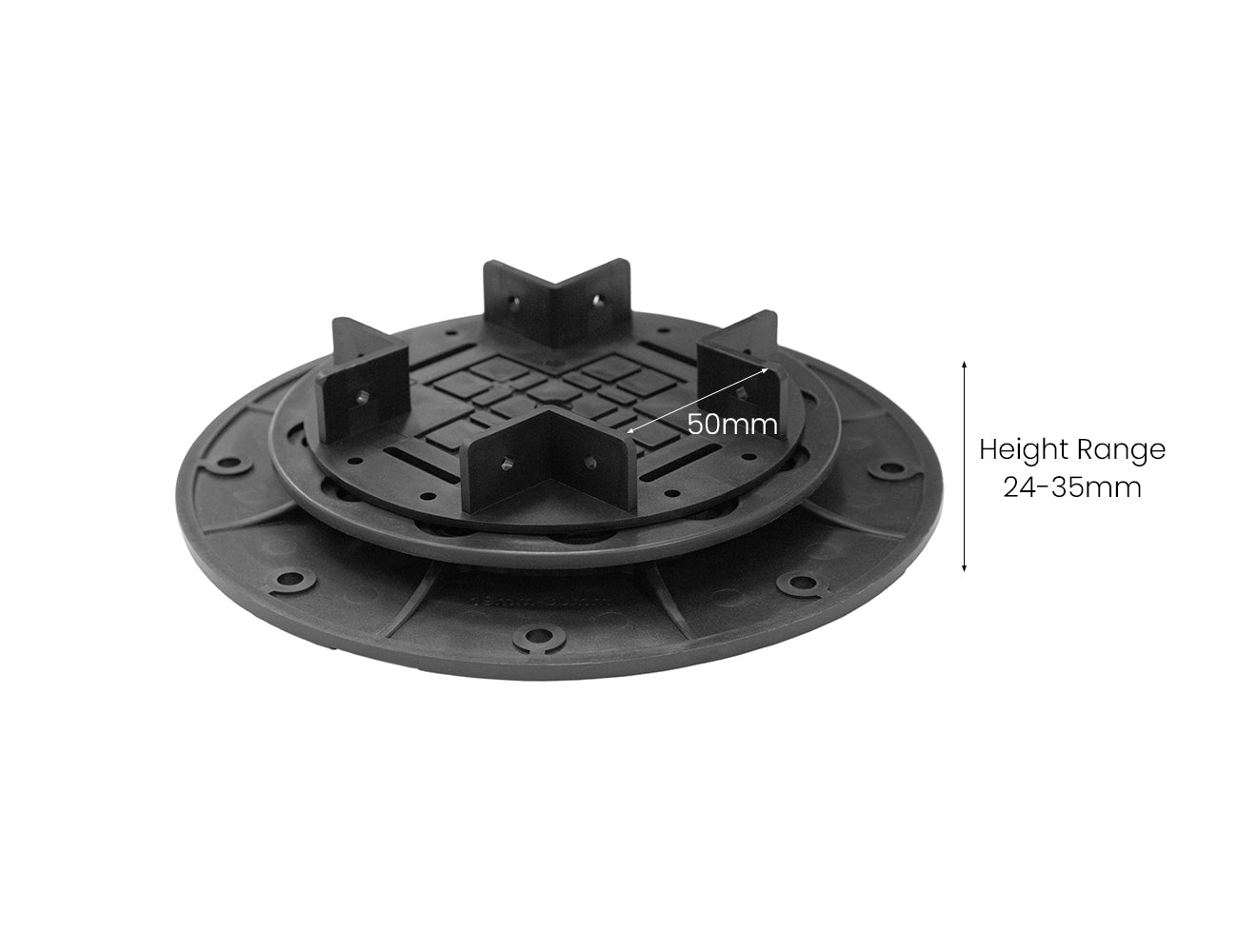

24–35mm

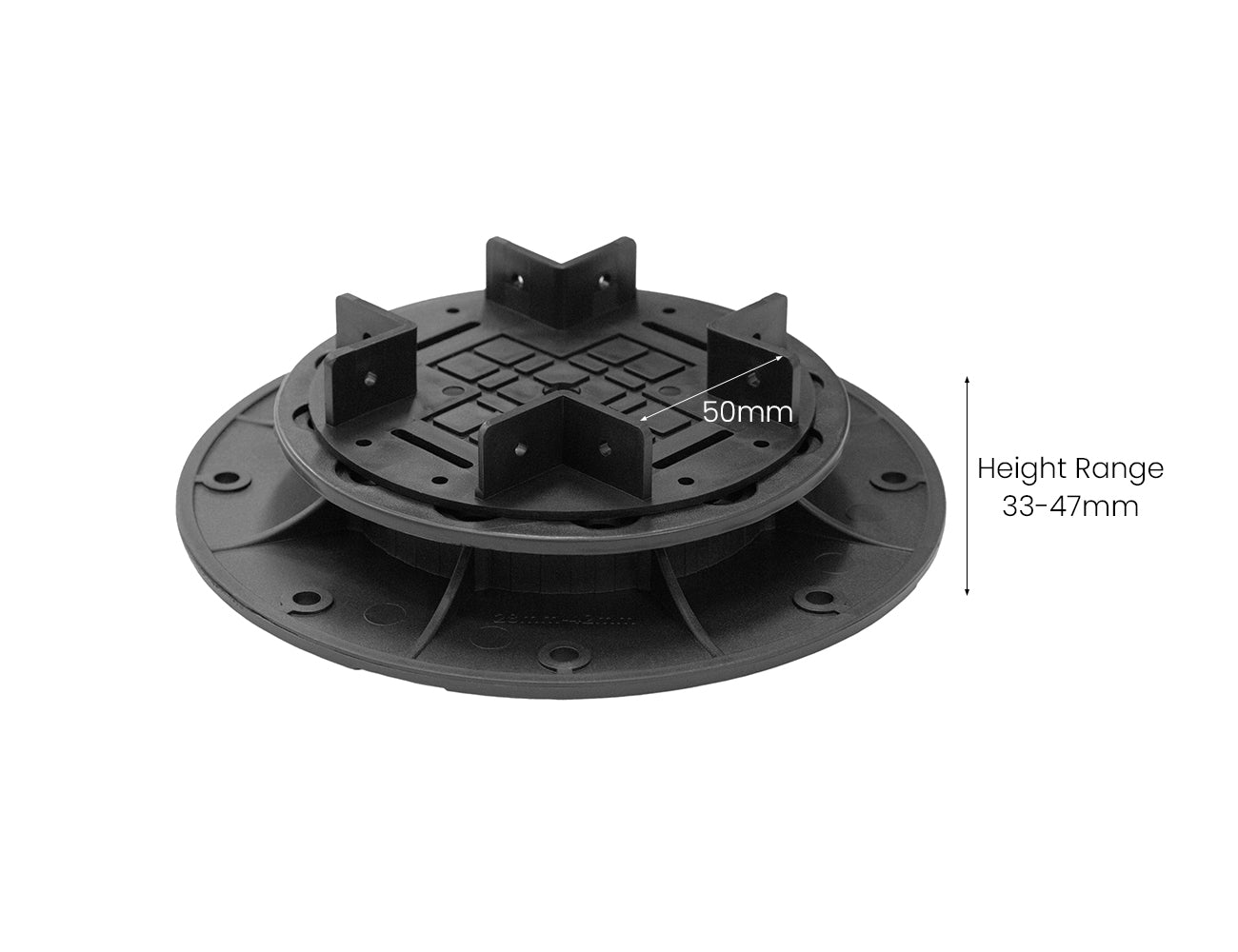

33–47mm

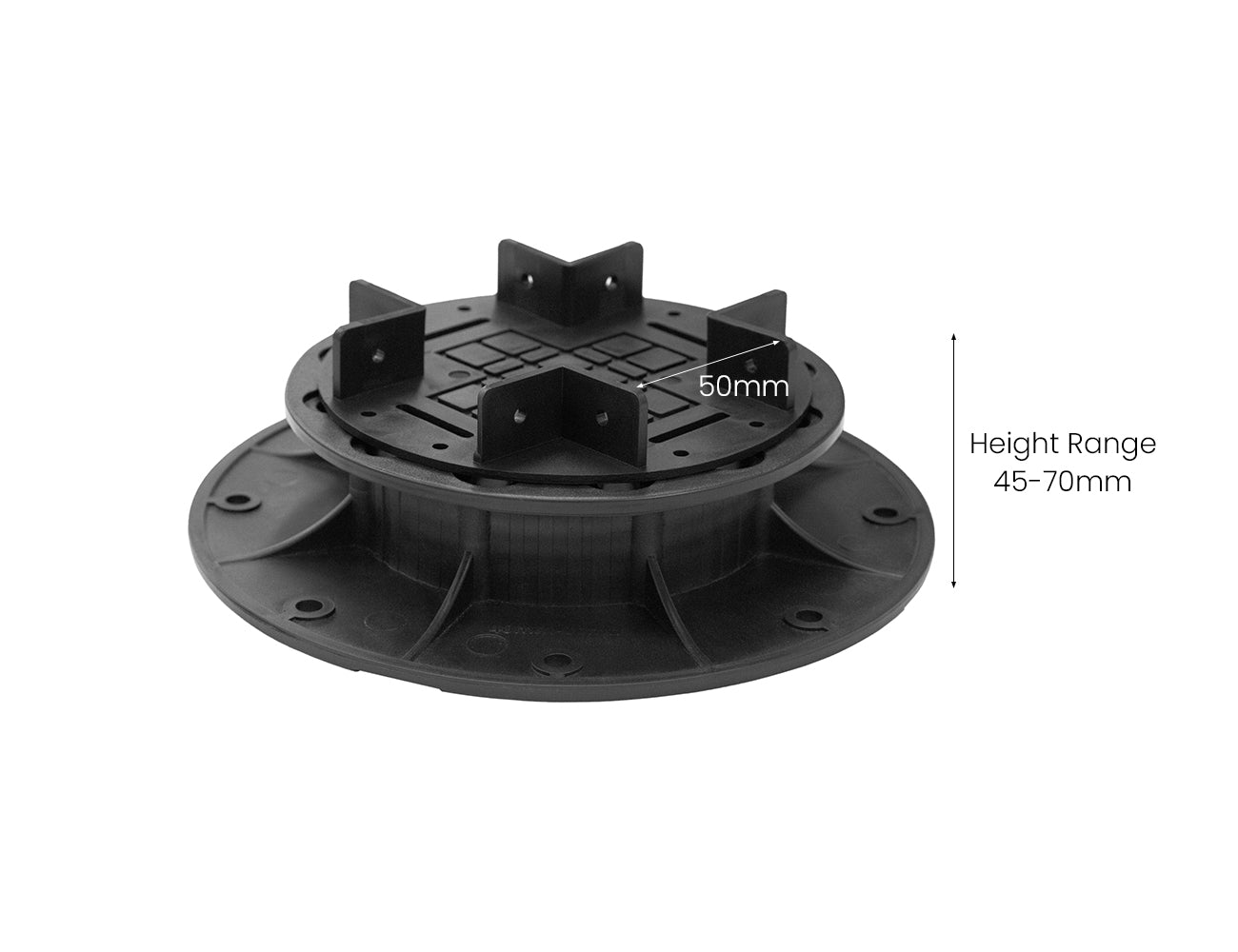

45–70mm

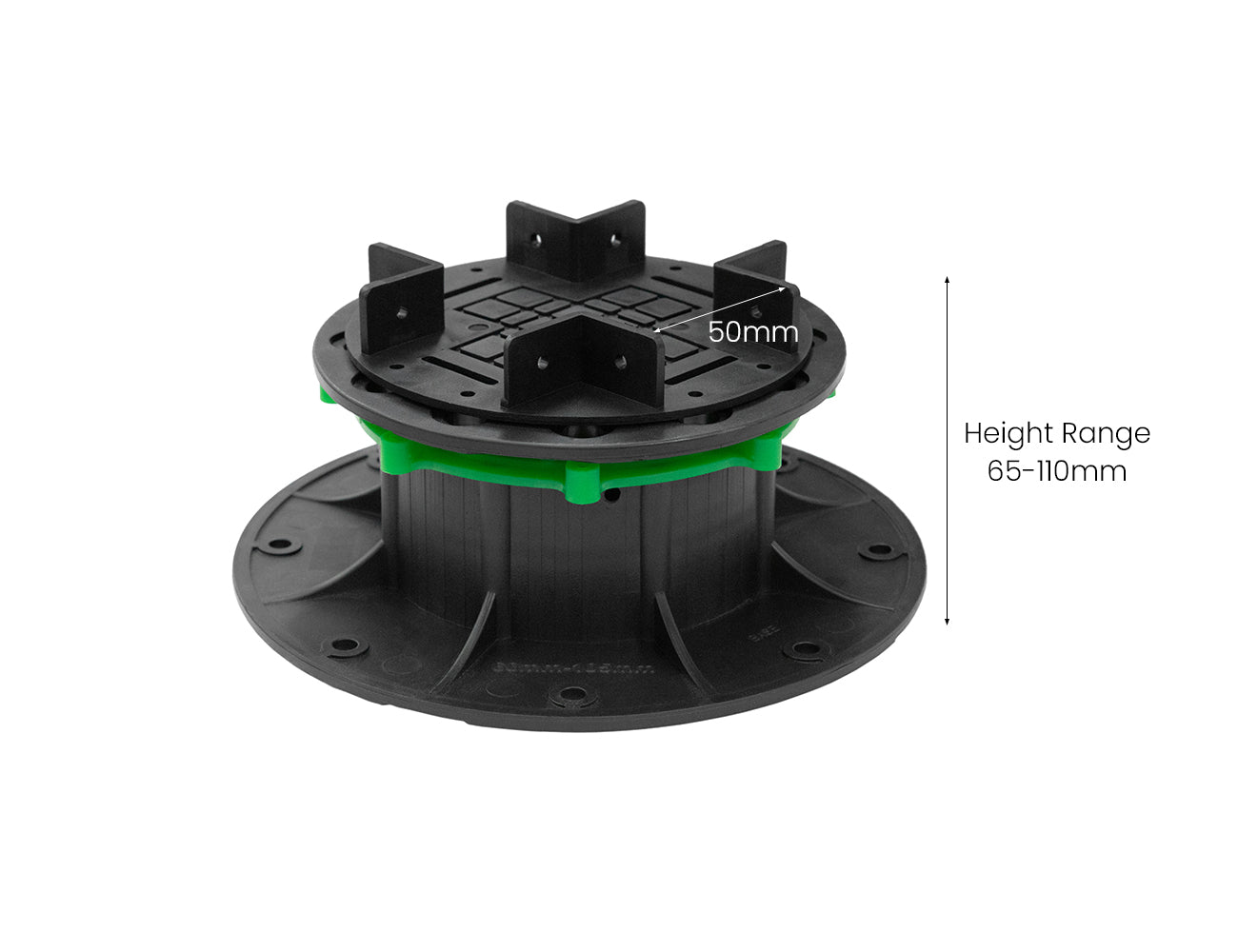

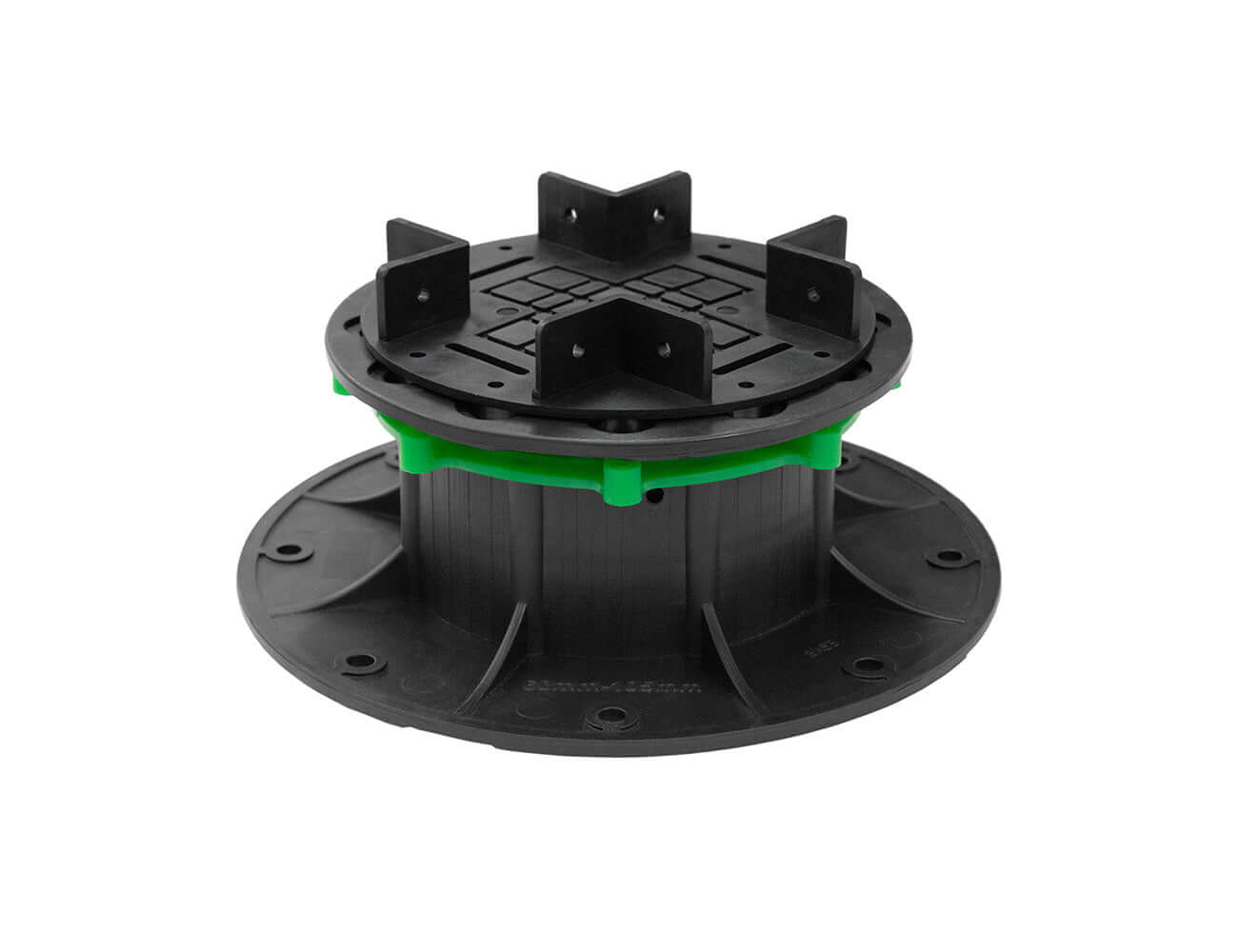

65–110mm

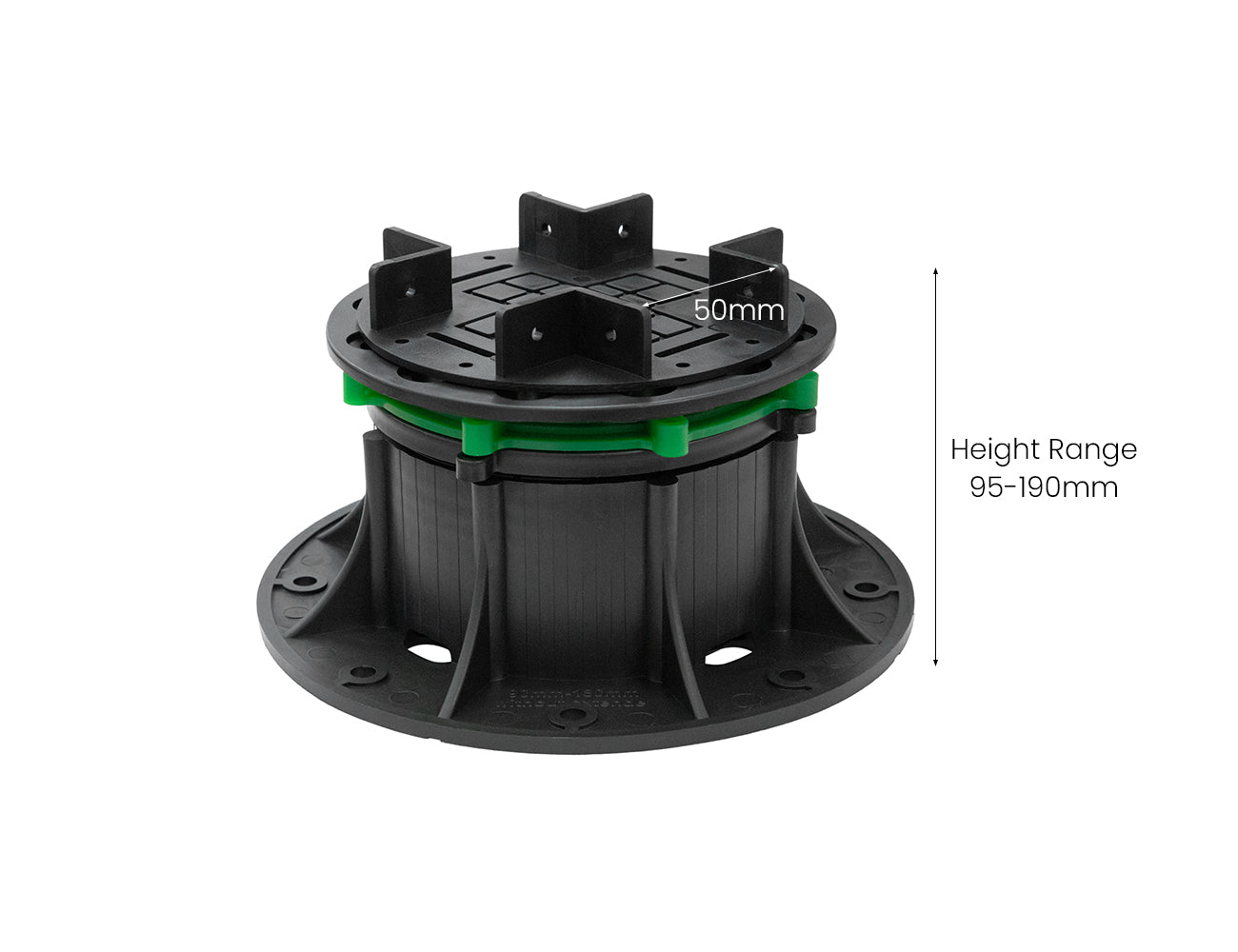

95–190mm

Flexi Series

11–16mm
19–30mm

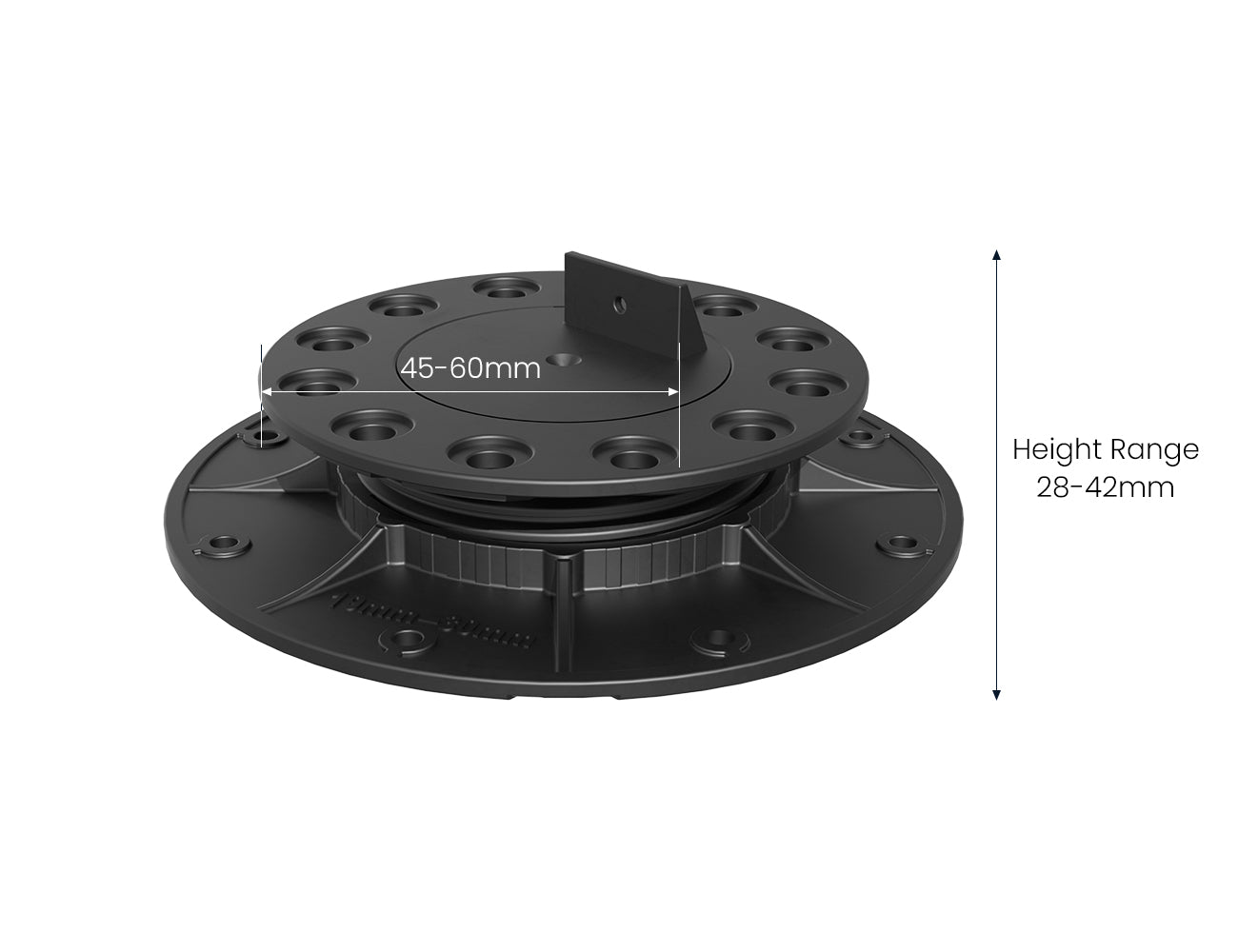

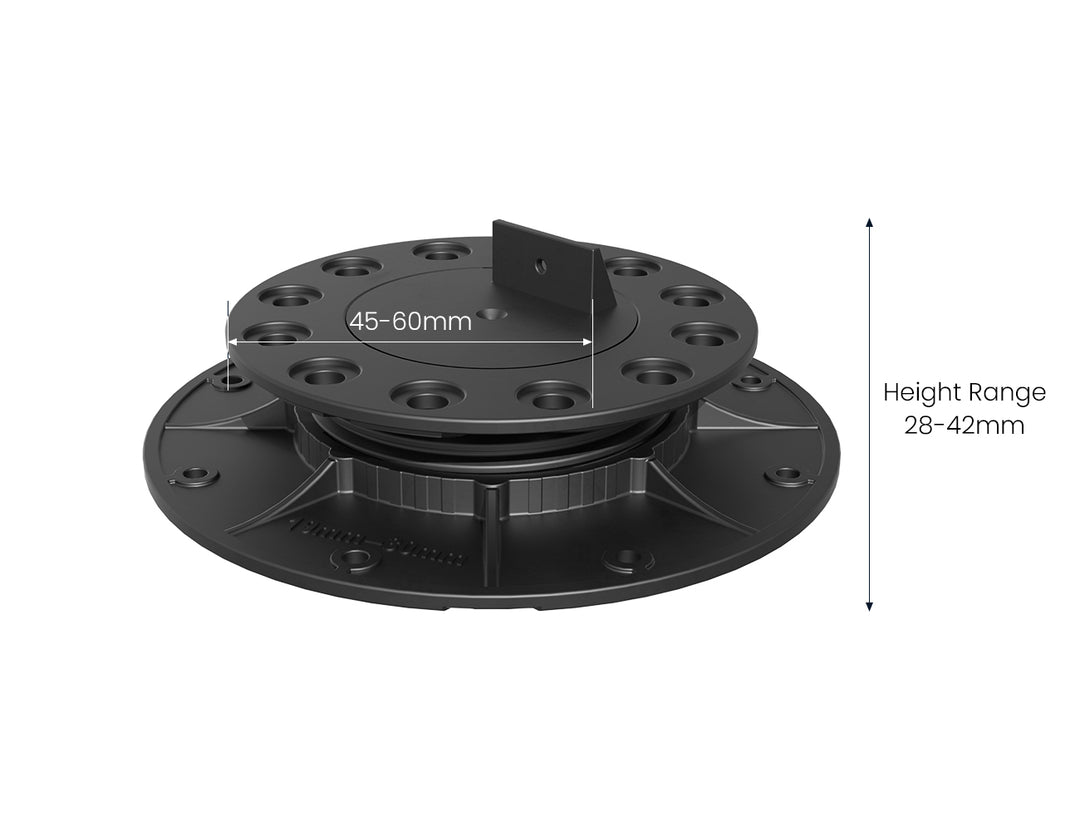

28–42mm
40–65mm

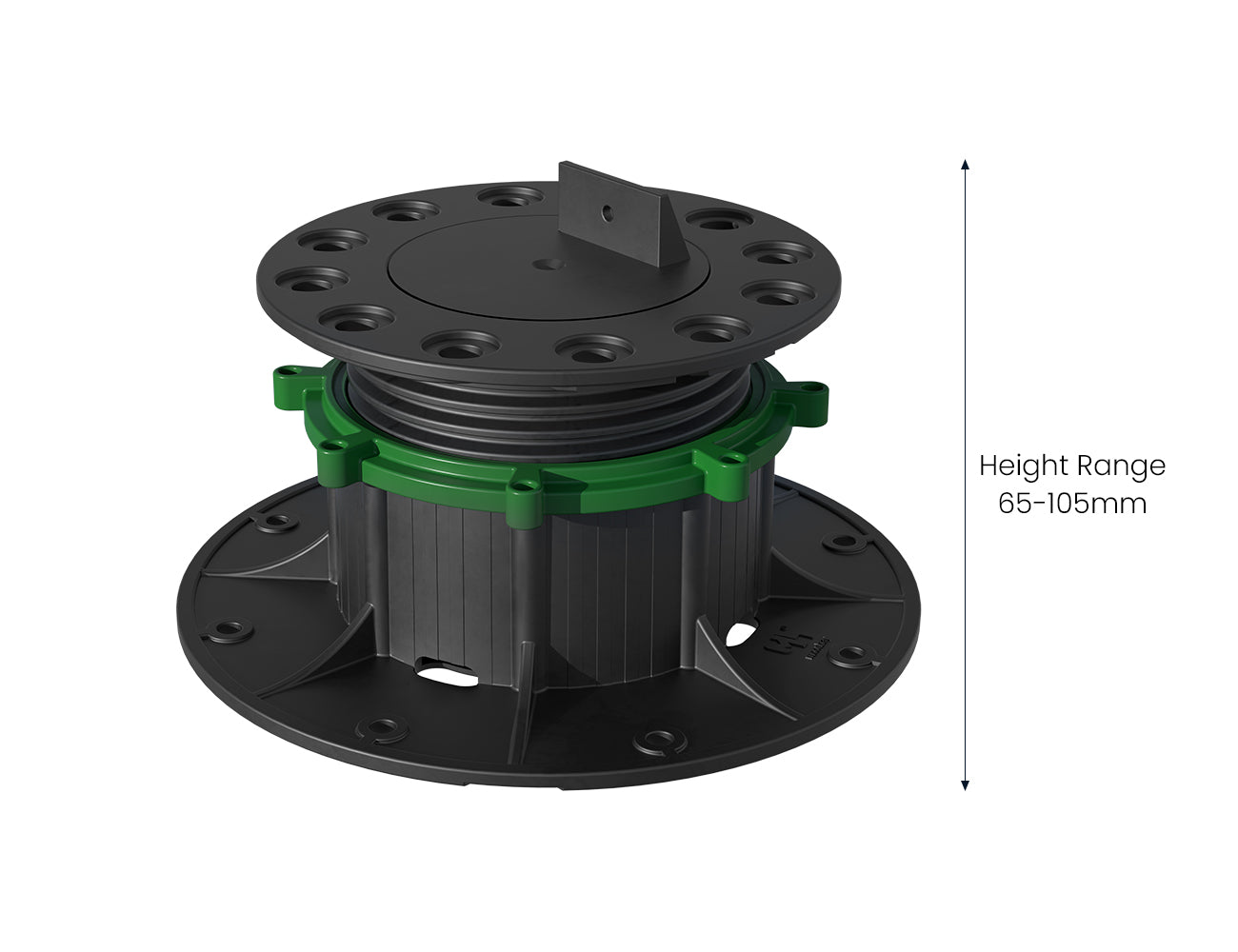

60–105mm

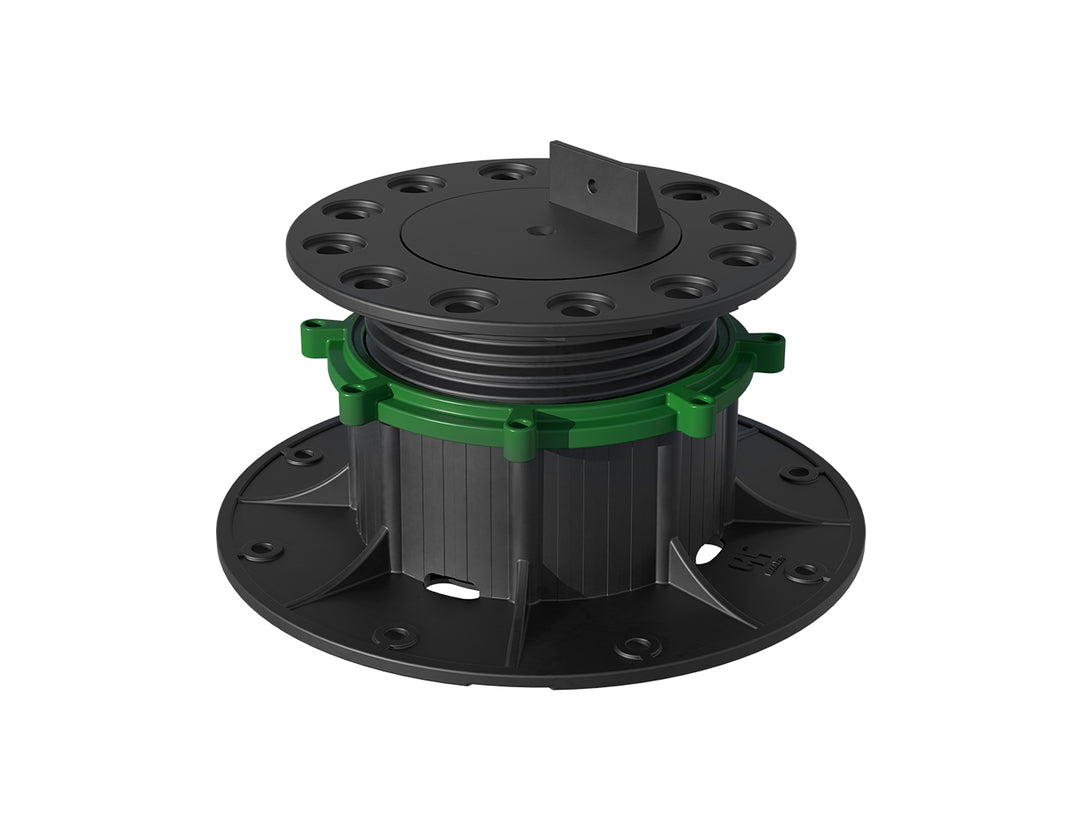

90–185mm

Key Features

Two joist support options to suit different timber framing requirements
Wide range of adjustable height options for flexible deck design
Precise height adjustment for fast and accurate levelling
Suitable for timber decking installations
Compatible with concrete slabs, waterproof membranes and other stable bases
Raises the deck above the substrate to improve drainage and airflow
Creates accessible space beneath the deck for services and future maintenance
UV-stabilised polypropylene construction for long-lasting outdoor performance
High-strength design with excellent load distribution
Locking ring securely maintains the selected height during installation
Lightweight and easy to install
Removable and reusable when required
10-Year Manufacturer's Warranty

Ideal For

ElevaDeck is suitable for a wide range of outdoor decking applications, including:

Residential timber decks
Rooftop decks
Balconies
Patios
Courtyards
Pool surrounds
Outdoor entertainment areas
Commercial decking projects

Specifications：

Height Adjustment Range: 11–190 mm (depending on selected pedestal height range)
Load Performance: Engineered for high compressive strength suitable for residential and light commercial timber decking applications
(Exact load capacity varies depending on installation conditions and load distribution)
Material: UV-stabilised polypropylene
Base Design: Wide base for improved load distribution
Joist Compatibility:
- 50 mm Fixed Joist Support
- 45–60 mm Flexi Joist Support
System Type:
Adjustable pedestal support system for timber decking installations
Installation Surface:
Concrete slabs, waterproof membranes, compact and stable substrates
UV Resistance:
Yes – UV stabilised for long-term outdoor exposure
Reusability:
Components can be repositioned and reused if required
Warranty: 10 Years Manufacturer’s Warranty

Also known as deck supports, deck jacks, adjustable deck supports, screw jack supports, timber decking pedestals, raised decking supports.

Click to download: 15-19mm 11-16mm Adjustable Timber Pedestal Technical Data

Click to download: 24-35mm 19-30mm Adjustable Timber Pedestal Technical Data

Click to download: 33-47mm 28-42mm Adjustable Timber Pedestal Technical Data

Click to download: 45-70mm 40-65mm Adjustable Timber Pedestal Technical Data

Click to download: 65-110mm 60-105mm Adjustable Timber Pedestal Technical Data

Click to download: 95-190mm 90-185mm Adjustable Timber Pedestal Technical Data

Click to download: 15-19mm 11-16mm Adjustable Timber Pedestal Technical Data

Click to download: 24-35mm 19-30mm Adjustable Timber Pedestal Technical Data

Click to download: 33-47mm 28-42mm Adjustable Timber Pedestal Technical Data

Click to download: 45-70mm 40-65mm Adjustable Timber Pedestal Technical Data

Click to download: 65-110mm 60-105mm Adjustable Timber Pedestal Technical Data

Click to download: 95-190mm 90-185mm Adjustable Timber Pedestal Technical Data

50mm Fixed Joist Height Range :

45–60mm Flexi Joist Height Range :

Dispatch & Delivery

Quick Dispatch:
In-stock items are processed and dispatched within 48 hours of payment confirmation (excluding weekends and public holidays).
Estimated Delivery Times for In-Stock Items:
North Island: Expect delivery within 5–7 business days.
South Island: Expect delivery within 5–14 business days.
(Exact delivery estimates are displayed at checkout.)
Handling Heavy or Bulky Items:
For larger or heavier items, please ensure someone is available at delivery to assist with unloading. Additional delivery assistance can be arranged if required (an extra fee may apply).

Click & Collect

How It Works:
At checkout, select Pickup as your shipping method. Our team will contact you once your order is ready.
Please bring your confirmation email when you come to collect your order.

Pickup Location: Pilkington Park, Unit 4, 167 Pilkington Road, Point England.

Pickup Hours: 8am to 4pm (Mon-Sat) except public holidays.

Learn More

Shipping Costs

Calculate Your Shipping:
Use our shipping calculator by entering your postcode at checkout to get an estimate of your shipping cost.

Returns

We offer a full refund (including shipping) under the following conditions:

Defective Items:
If a faulty item is found to be defective and cannot be fixed or replaced.
Incorrect Descriptions:
If the item does not match its website description.

Refund Timeframe: Once your refund request is approved, the funds will be returned to your original payment method within 5–7 business days. (Bank processing times may vary).

Learn more about our Return and Refund Policy

Need Assistance?

Email: support@livingculture.co.nz
Phone: 0800 298 398
Auckland Showroom: 139 Wairau Road, Wairau Valley, Auckland, 0627
Christchurch Showroom: 217 Blenheim Road, Riccarton, Christchurch 8041

We stand behind the quality of our products. Most items include at least a 12-month warranty, with extended coverage on many collections.

If your item arrives damaged or faulty, please let us know within 14 days of delivery, and we’ll replace it at no cost.

If a problem arises during the warranty period, we’ll assess it and offer a repair, replacement, or refund where appropriate.

Want to learn more about specific warranty periods and coverage? Visit our Warranty Information page for full details.

Why Choose ElevaDeck?

Precisely Adjustable

Fine-tune the pedestal height for fast and accurate deck levelling.

UV Stabilised

Durable polypropylene designed for long-term outdoor exposure.

Improved Drainage

Raises timber joists to promote effective drainage and airflow.

10-Year Warranty

Backed by a 10-year manufacturer’s warranty for added confidence.

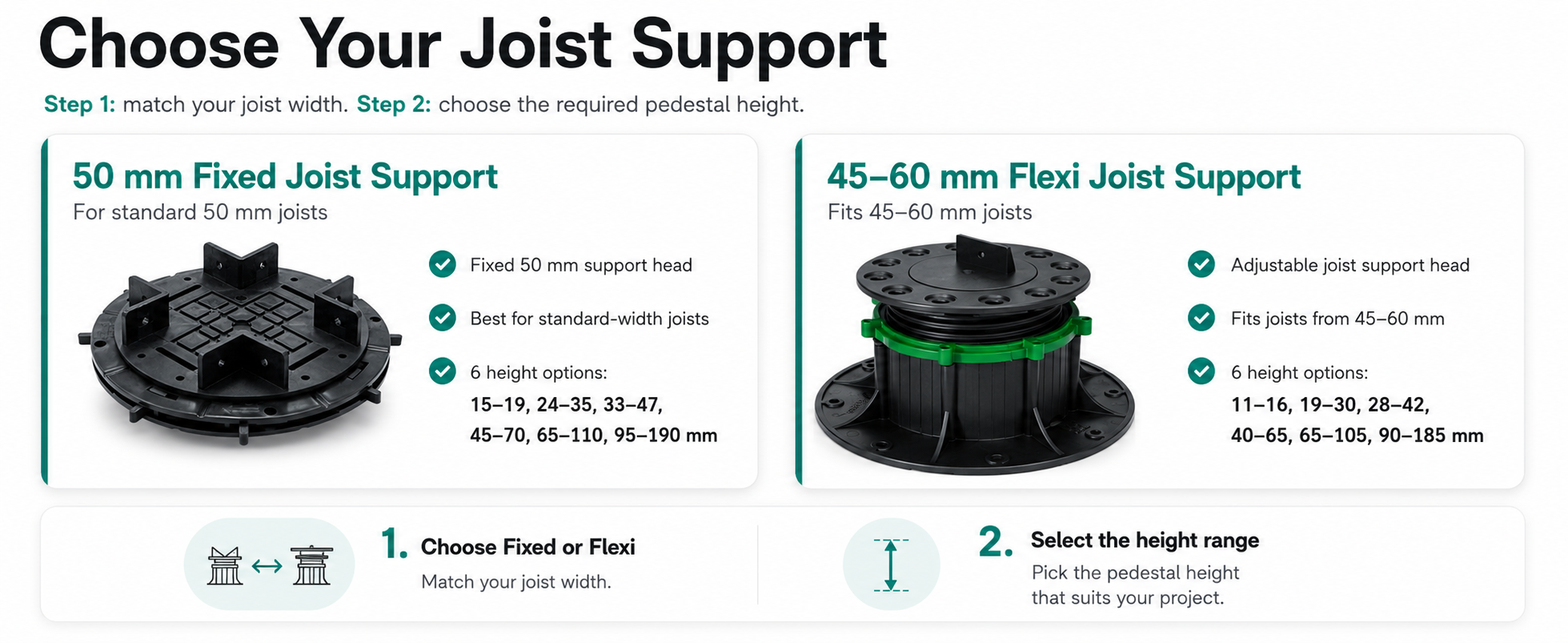

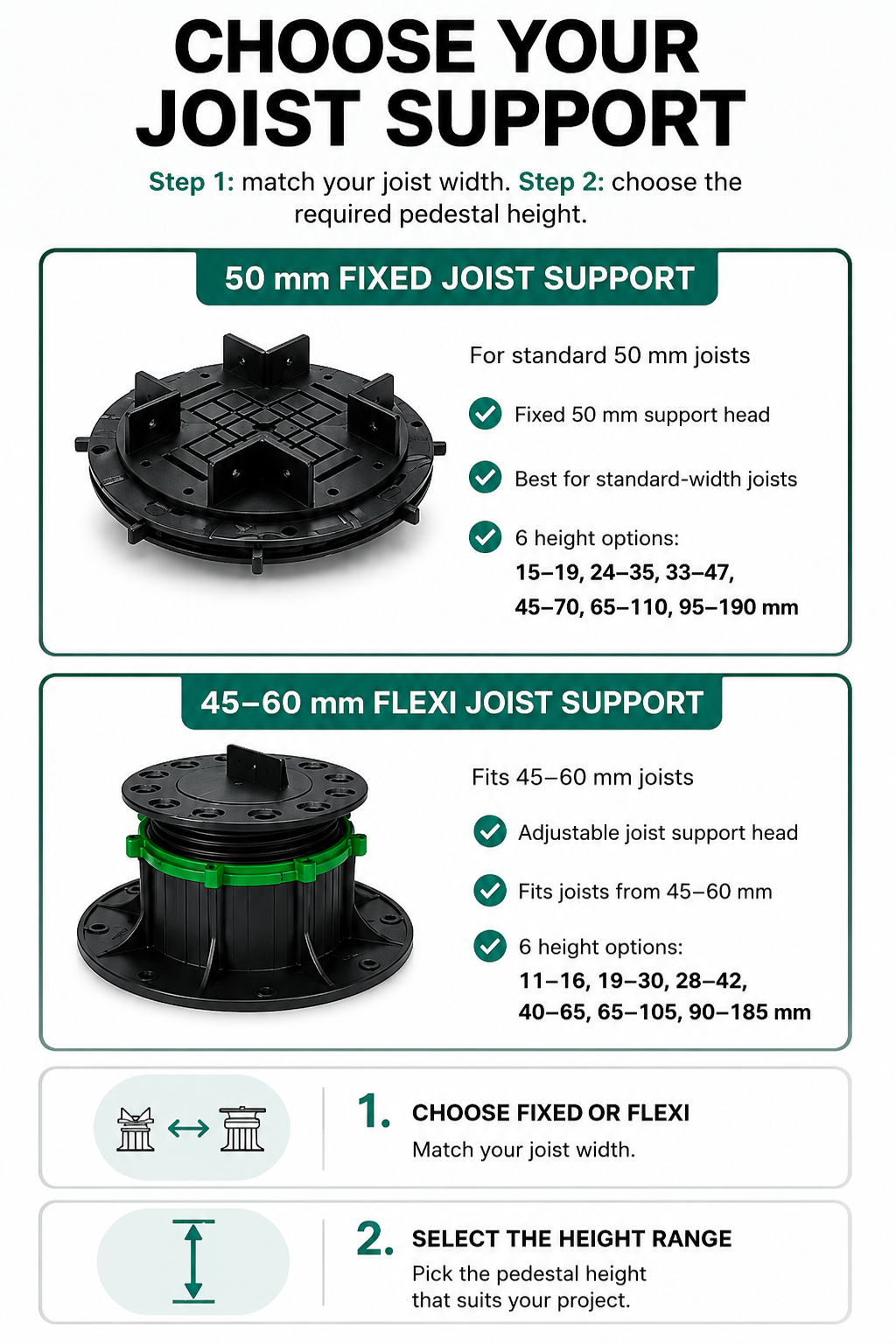

How to Choose?

Choose the support type and height range that best suits your deck project.

1. Choose your joist support

50mm Fixed Joist SupportFor standard 50mm timber joists.
45–60mm Flexi Joist SupportFor joists between 45mm and 60mm.

2. Choose your height range

Standard Series	Flexi Series
15–19mm	11–16mm
24–35mm	19–30mm
33–47mm	28–42mm
45–70mm	40–65mm
65–110mm	60–105mm
95–190mm	90–185mm

ElevaDeck height range comparison
StandardFor typical deck builds - 50mm joist	FlexiFor greater adjustment - 45-60mm joist
15–19 mm	11–16 mm
24–35 mm	19–30 mm
33–47 mm	28–42 mm
45–70 mm	40–65 mm
65–110 mm	60–105 mm
95–190 mm	90–185 mm

Range values are indicative. Confirm finished levels before ordering.

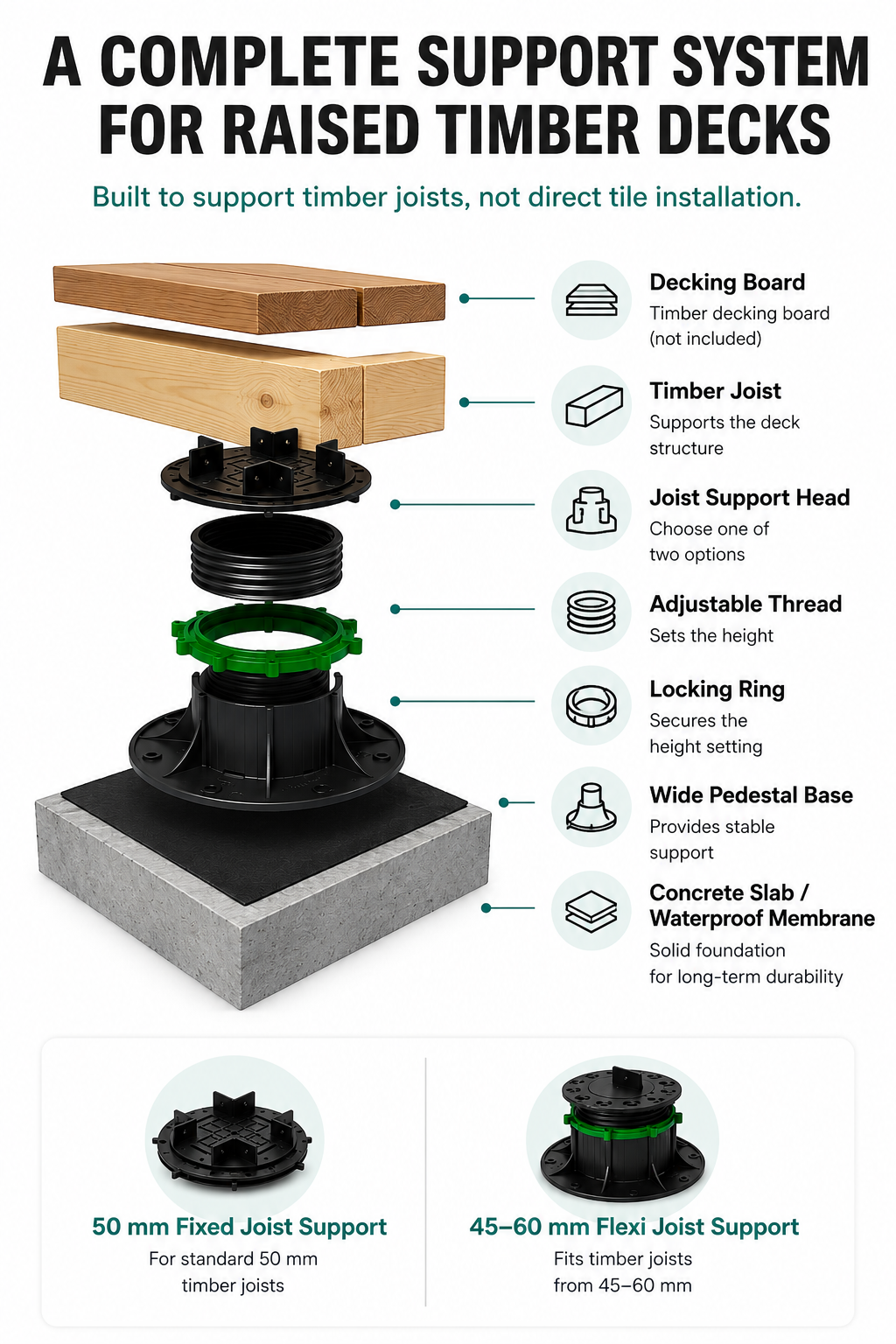

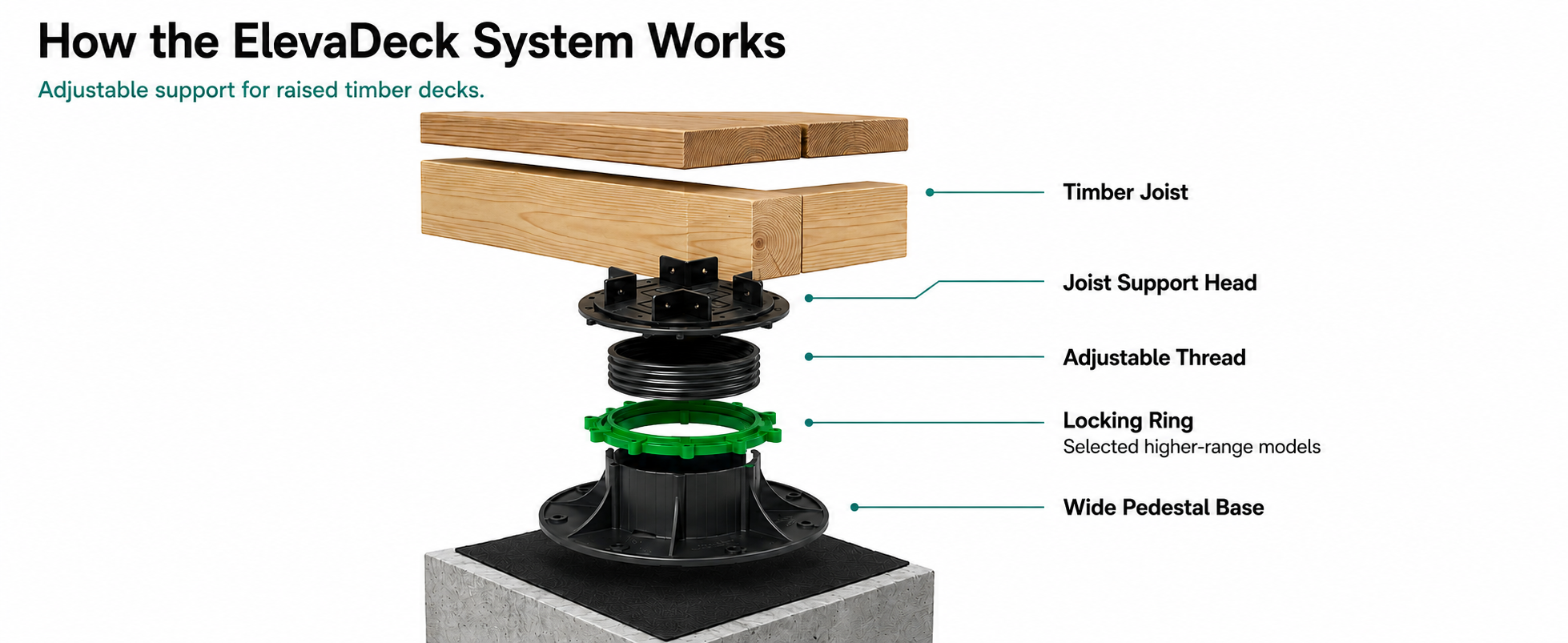

ElevaDeck adjustable timber deck pedestal system

Precision levelling

Create a stable, level foundation across uneven ground.

Reliable drainage

Help water drain away beneath the deck structure.

Improved airflow

Allow ventilation beneath the deck for a durable installation.

Built to support

Provide dependable support for a strong outdoor living space.

Technical Downloads

View technical data sheets for each Standard and Flexi pedestal height range.

Standard 15–19mm / Flexi 11–16mmView PDF →Standard 24–35mm / Flexi 19–30mmView PDF →Standard 33–47mm / Flexi 28–42mmView PDF →Standard 45–70mm / Flexi 40–65mmView PDF →Standard 65–110mm / Flexi 60–105mmView PDF →Standard 95–190mm / Flexi 90–185mmView PDF →

Timber Pedestal FAQs

Pedestal spacing depends on the joist material, joist size and the decking system being installed.

Always follow the spacing and span recommendations provided by your decking or joist manufacturer, as requirements can vary between products and applications.

The quantity required depends on your project size, joist spacing and the spacing between pedestals along each joist.

Because deck layouts, edges, joints and structural requirements can vary, pedestal quantities should be treated as an estimate rather than a fixed number based on area alone.

Always confirm your joist and decking layout before ordering.

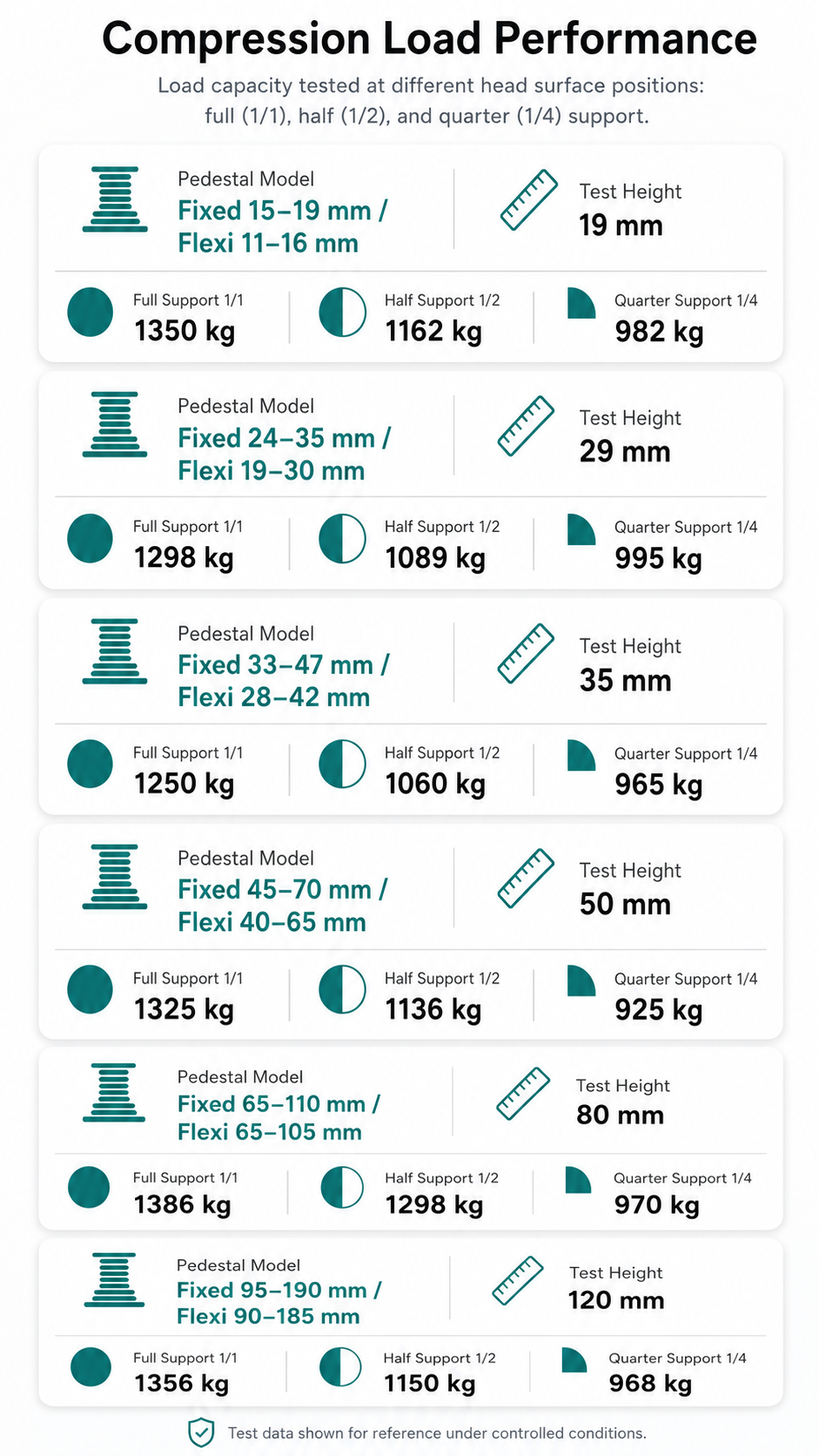

Laboratory compression testing recorded 1,250–1,386 kg under full-support loading, depending on the pedestal model and test height.

Load performance varies depending on pedestal height, support position, spacing, substrate and the overall deck structure. These figures are laboratory test results and should not be treated as the recommended working load for every installation.

For commercial or high-load applications, the complete supporting structure should be assessed as part of the project design.

Yes. ElevaDeck pedestals can be installed over suitable waterproof membrane systems and other stable finished surfaces.

For additional protection, an ElevaDeck Base Rubber Pad can be placed beneath each pedestal. The rubber pad helps cushion the contact point, improve grip, distribute load and reduce direct contact between the pedestal base and the membrane surface.

Always follow the waterproof membrane manufacturer's installation and protection requirements.

The wide pedestal base helps distribute the load across a larger contact area.

Where additional protection is required, we recommend using an ElevaDeck Base Rubber Pad between the pedestal and the membrane. It helps reduce abrasion and direct contact while also improving stability and cushioning.

Before installation, ensure the surface is clean and free from sharp debris that could damage the membrane.

Yes. ElevaDeck pedestals are manufactured from UV-stabilised polypropylene and are designed for outdoor raised decking applications.

They are suitable for areas such as decks, balconies, rooftop terraces, patios, courtyards and other outdoor spaces with a suitable supporting substrate.

ElevaDeck pedestals should be installed on a firm, stable and load-bearing surface, such as:

Concrete slabs
Suitable waterproof membrane systems
Rooftop substrates
Other stable finished surfaces

They should not be installed directly onto soft, loose or unstable ground without a suitably prepared supporting base.

Choose the support according to the width of your timber joist:

50 mm Fixed Joist Support Cradle — designed for standard 50 mm timber joists
45–60 mm Flexi Joist Support Cradle — suitable for joists between 45 mm and 60 mm wide

Once you have selected the correct joist support, choose the pedestal height range that covers your required installation height.

Measure the vertical distance from the finished surface where the pedestal base will sit to the underside of the joist.

The stated ElevaDeck height range refers to the overall assembled pedestal height, including the pedestal base and joist support cradle. These components are already included in the stated height and do not need to be added separately.

Choose a pedestal range that covers your required height while allowing enough adjustment for levelling. If accessories such as a Base Rubber Pad or Base Slope Corrector are installed underneath the pedestal, allow for their additional thickness when calculating the total build-up height.

If the finished surface level varies across the project, more than one pedestal height range may be required.
